NSN 5305-01-115-7192 NAS1351424, NAS1351-4-24, 01-115-7192
Product Details | SOCKET HEAD CAP SCREW
5305-01-115-7192 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1351424, NAS1351-4-24, 5305-01-115-7192, 01-115-7192, 5305011157192, 011157192
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1981 | 01-115-7192 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

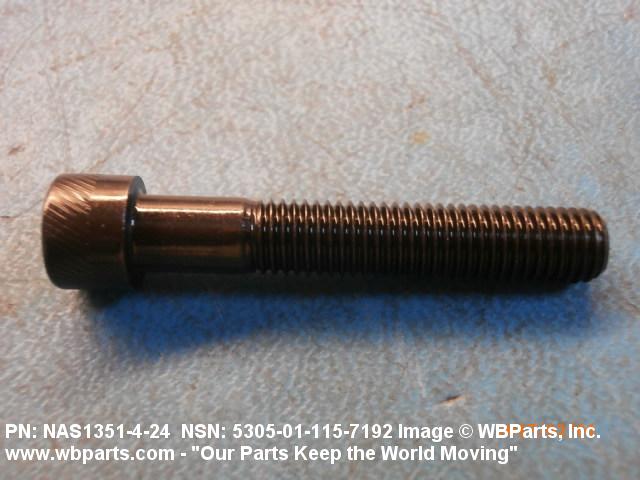

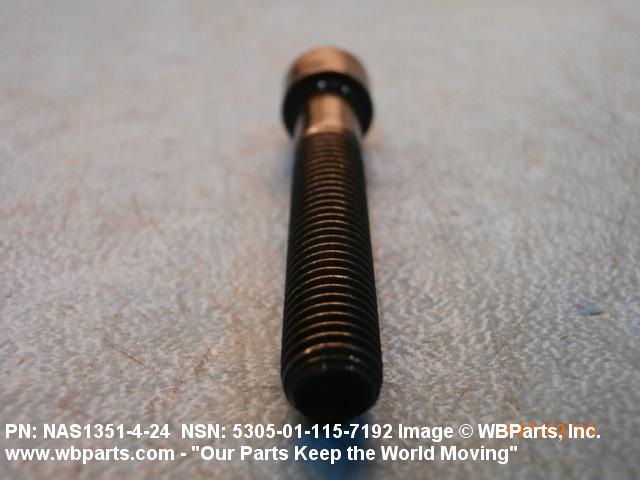

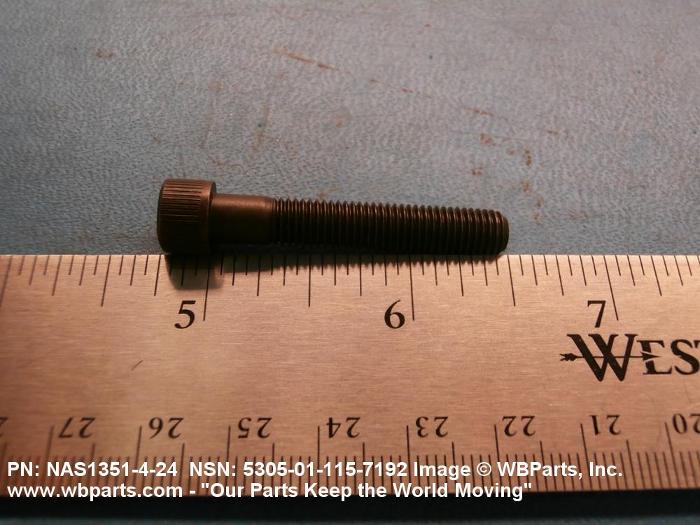

Drawings & Photos | NSN 5305-01-115-7192
Demand History | NSN 5305-01-115-7192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-115-7192 | 2024-10-302 | 19 | DIBBS |
| 5305-01-115-7192 | 2024-10-294 | 19 | DIBBS |
| 5305-01-115-7192 | 2024-07-198 | 30 | US |
| 5305-01-115-7192 | 2024-07-197 | 30 | US |
| NAS1351424 | 2024-07-197 | 30 | India |
| 5305-01-115-7192 | 2024-06-168 | 9 | DIBBS |
| 5305-01-115-7192 | 2024-01-15 | 8 | DIBBS |
| 5305-01-115-7192 | 2023-09-270 | 160 | DIBBS |
| NAS1351424 | 2021-06-181 | 16 | us |
| NAS1351424 | 2017-01-27 | 8 | United States |
| NAS1351424 | 2017-01-26 | 8 | United States |
| 5305-01-115-7192 | 2016-11-327 | 1 | DIBBS-RFPs |
| NAS1351424 | 2013-02-53 | 12 | United States |
| NAS1351424 | 2012-02-48 | 60 | US |
| NAS1351424 | 2012-01-11 | 2 | US |
| NAS1351424 | 2011-07-208 | 100 | United States |
| NAS1351424 | 2010-10-295 | 18 | US |
| NAS1351424 | 2008-03-72 | 58 | US |
Cross Reference | NSN 5305-01-115-7192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1351-4-24 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-115-7192
Related Products | NSN 5305-01-115-7192
Technical Data | NSN 5305-01-115-7192

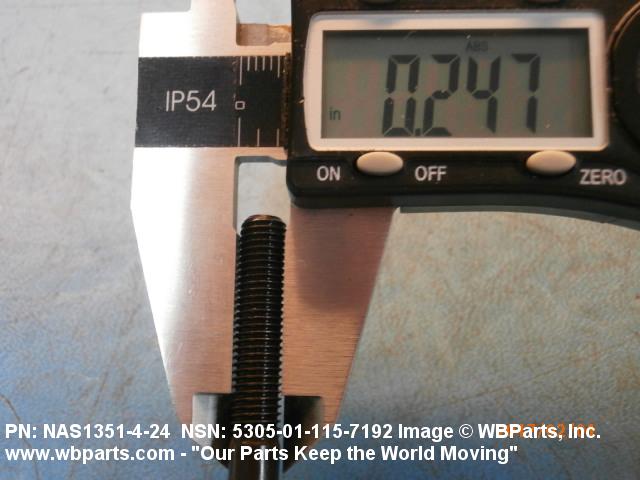

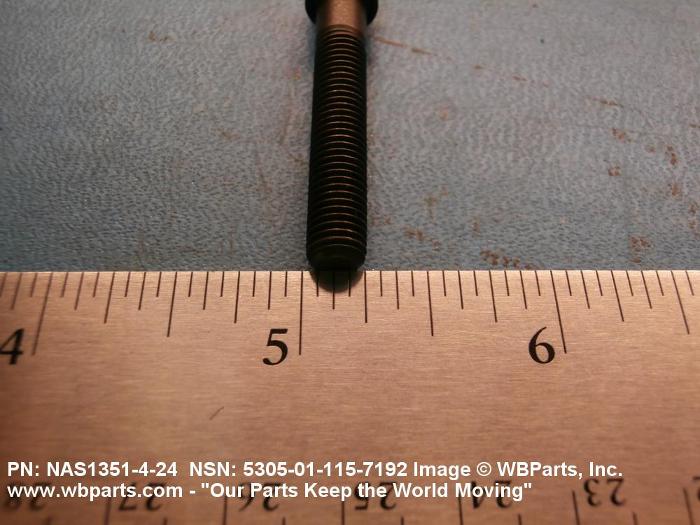

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES MINIMUM |

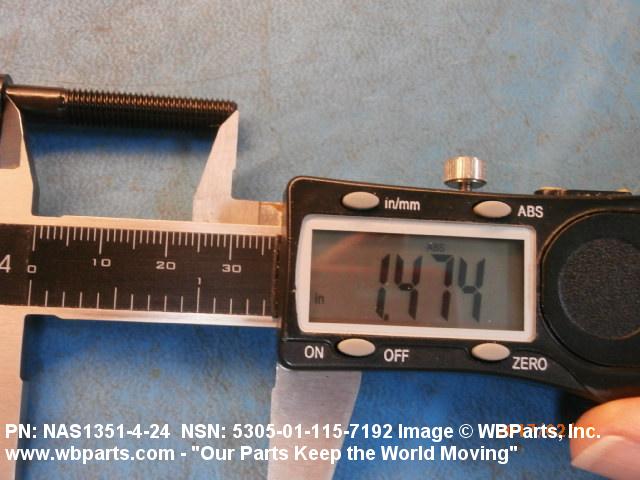

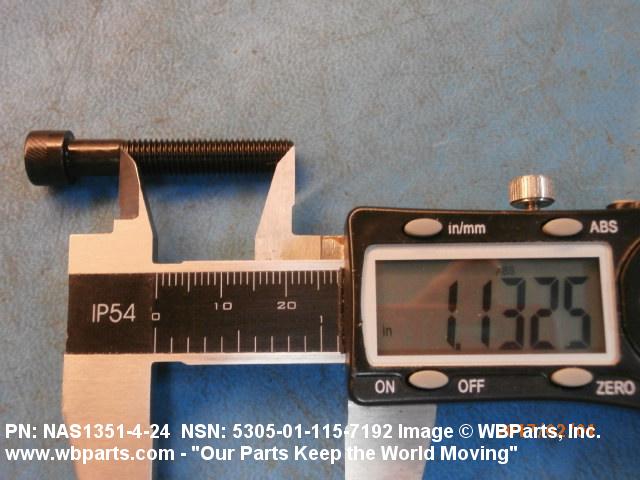

| FASTENER LENGTH | 1.460 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-13924 CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |

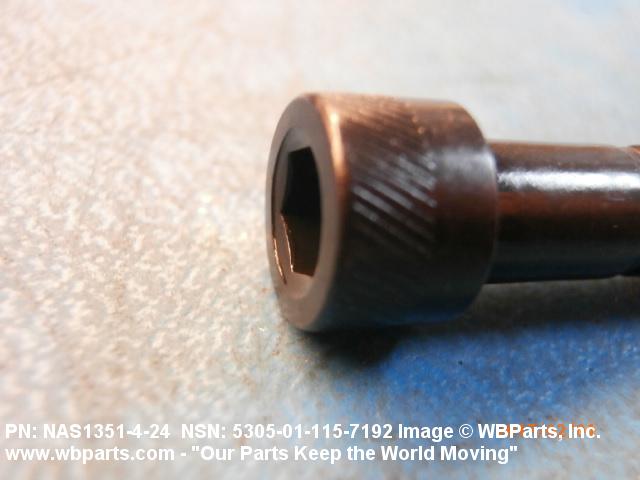

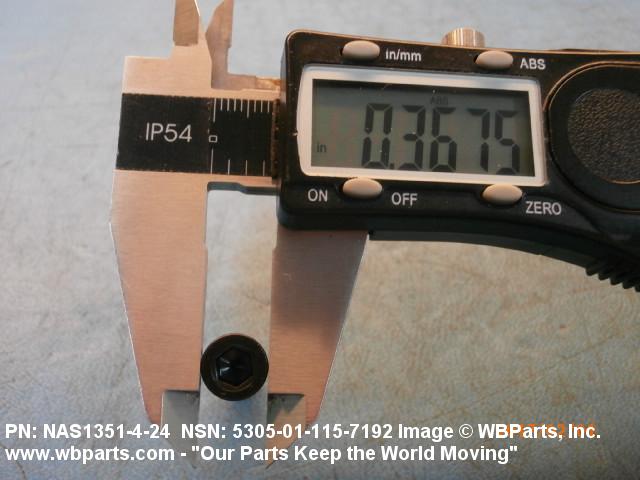

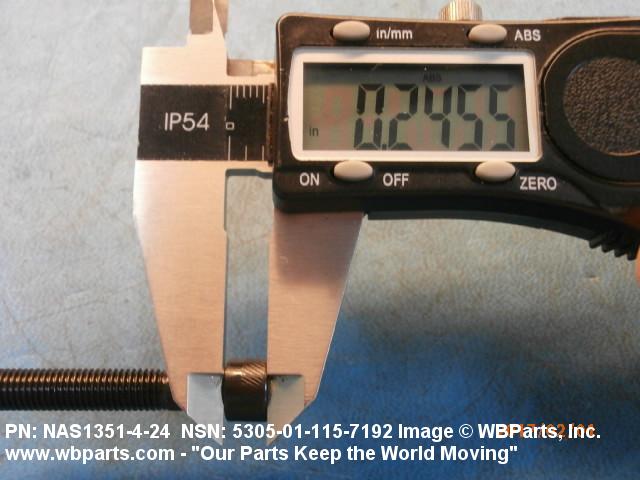

| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

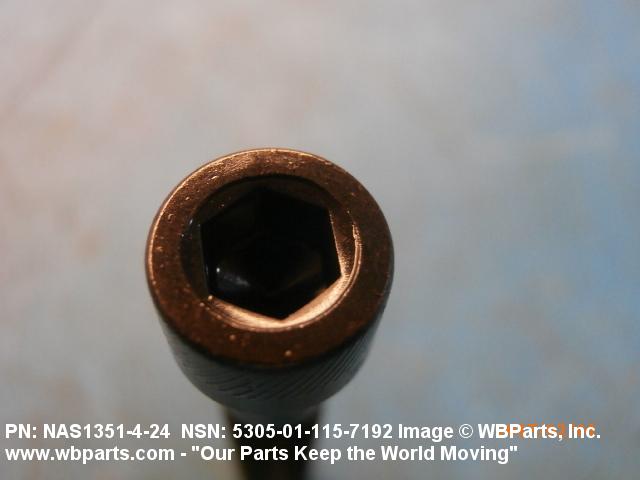

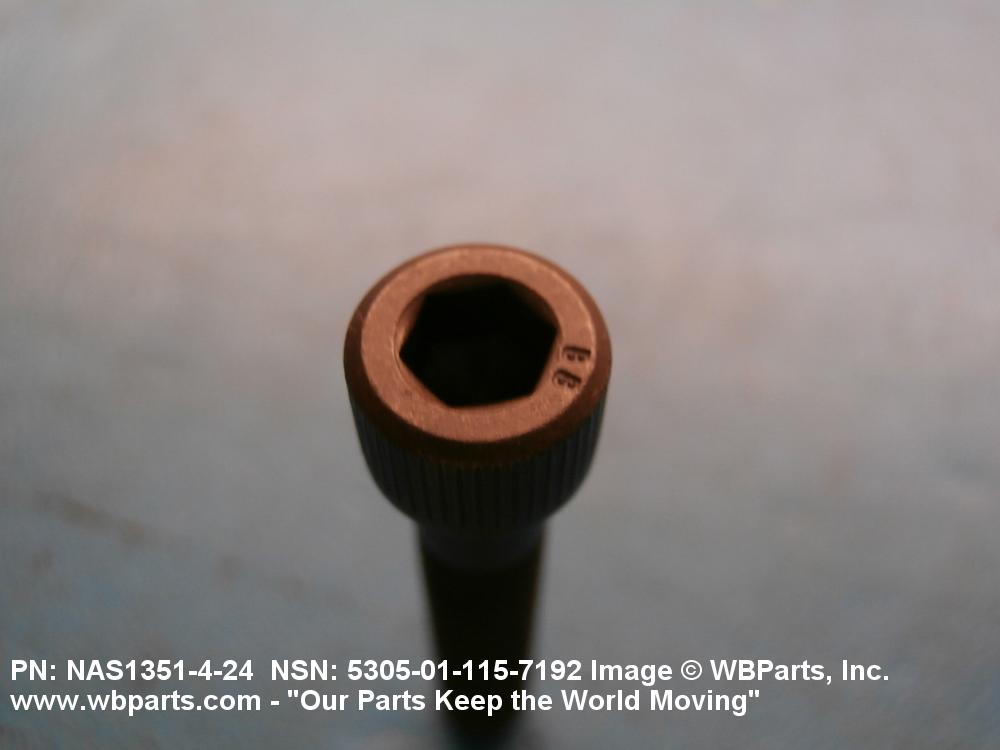

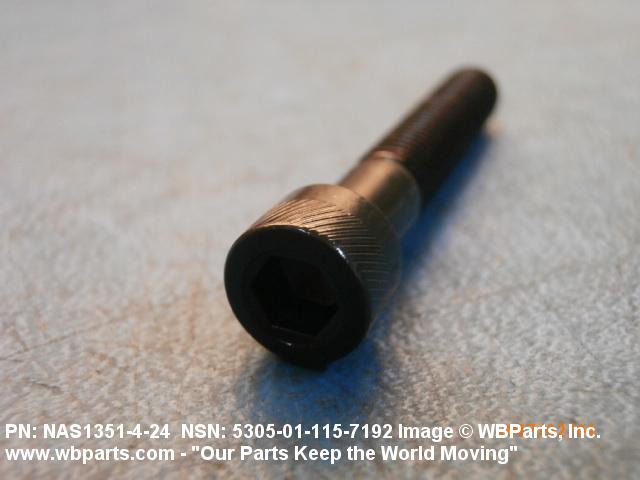

| INTERNAL DRIVE STYLE | D5 HEXAGON |

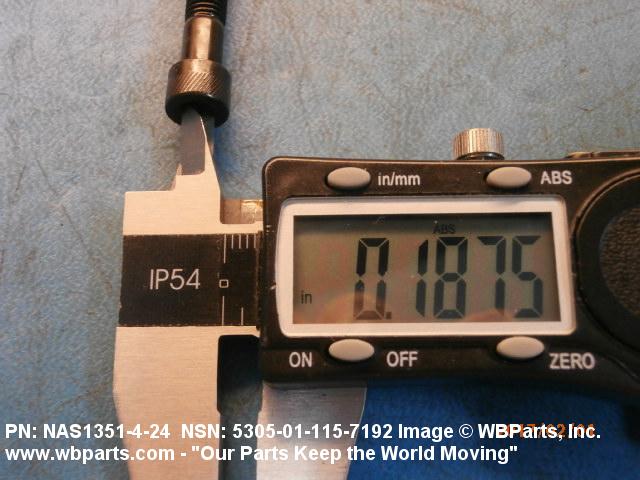

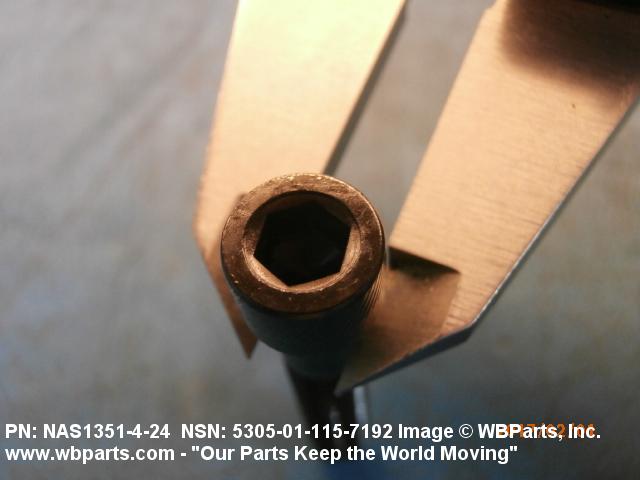

| WIDTH ACROSS FLATS | 0.1875 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-115-7192
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
