NSN 5305-01-081-2397 3176208C066, 3176208-C-066, 01-081-2397
Product Details | SOCKET HEAD CAP SCREW
5305-01-081-2397 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 3176208C066, 3176208-C-066, 5305-01-081-2397, 01-081-2397, 5305010812397, 010812397
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1979 | 01-081-2397 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

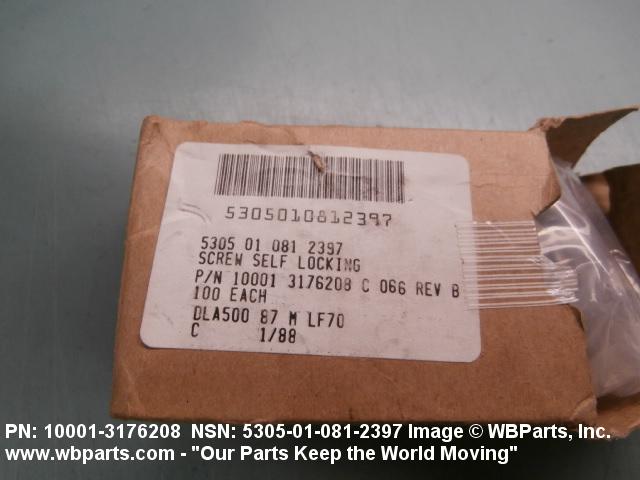

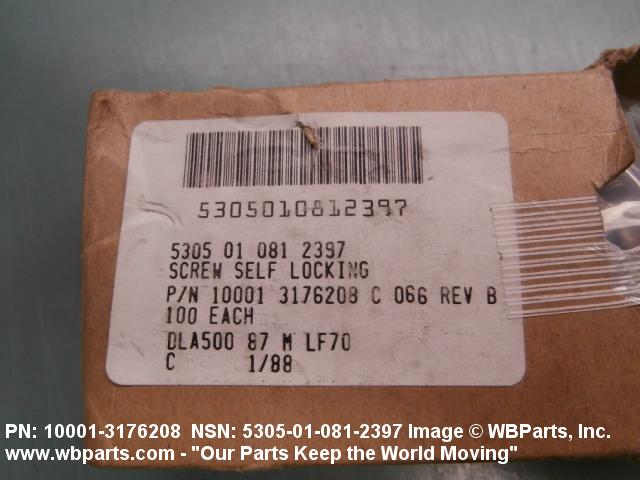

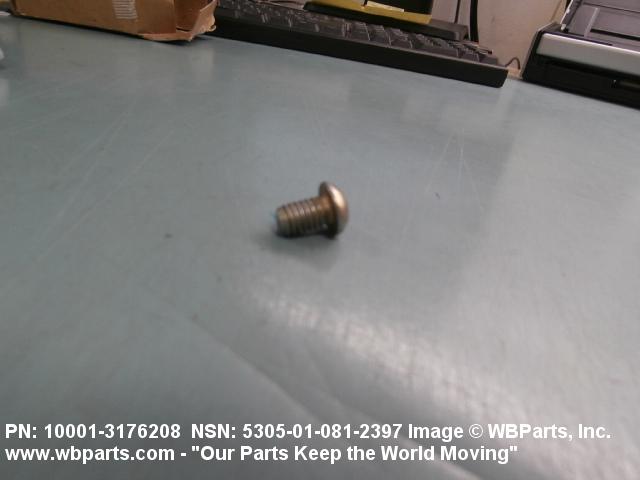

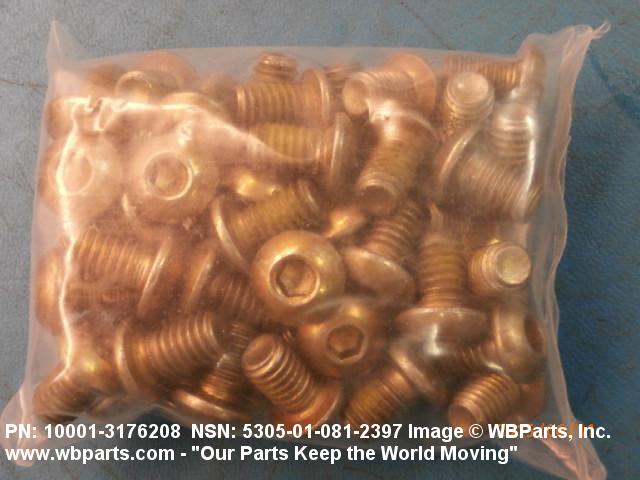

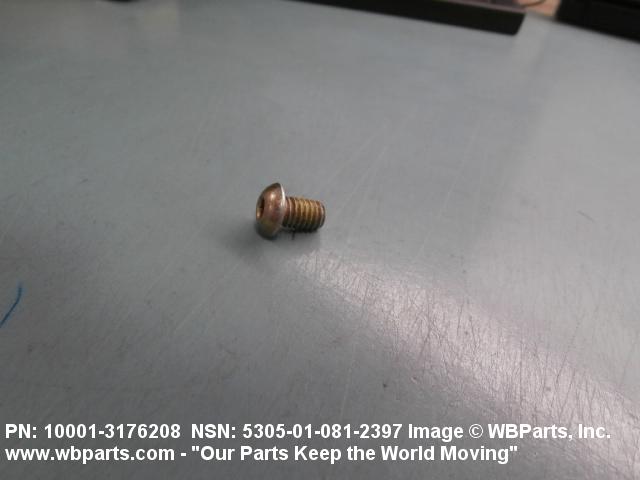

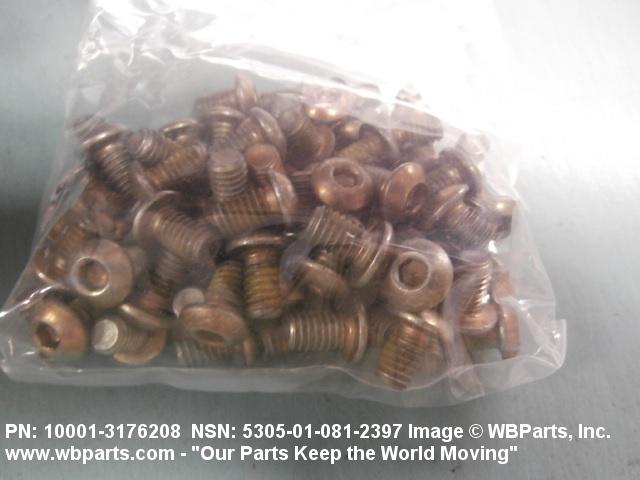

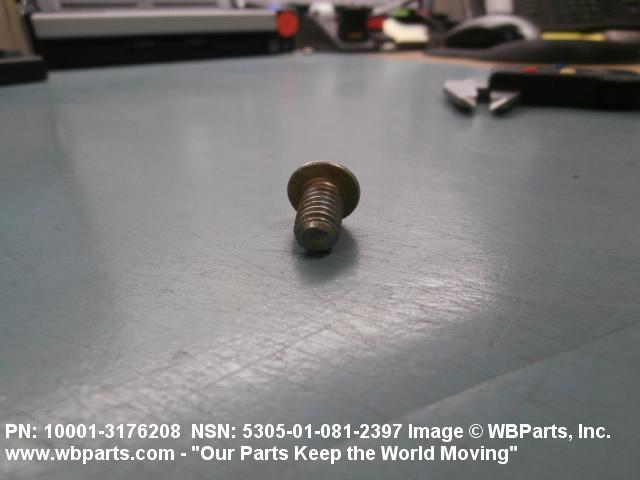

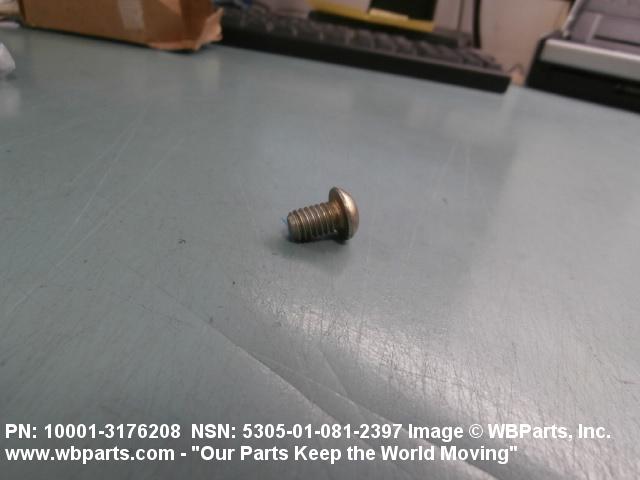

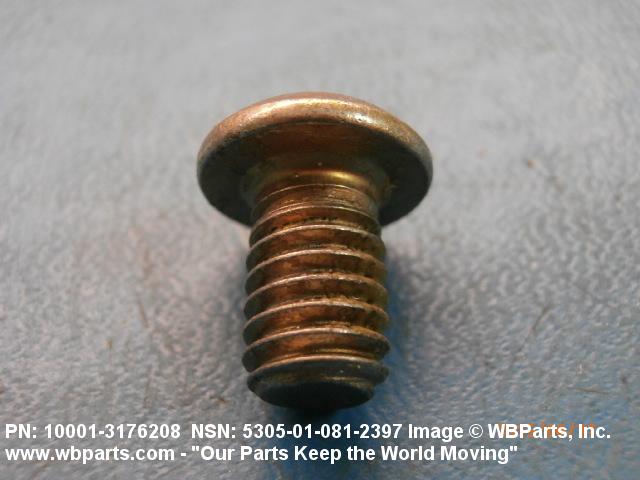

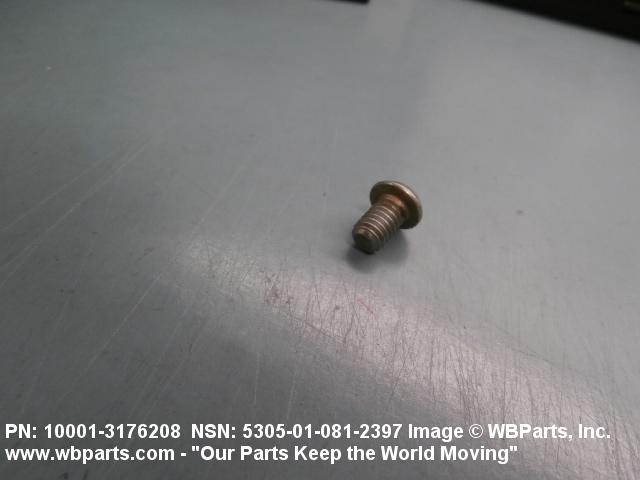

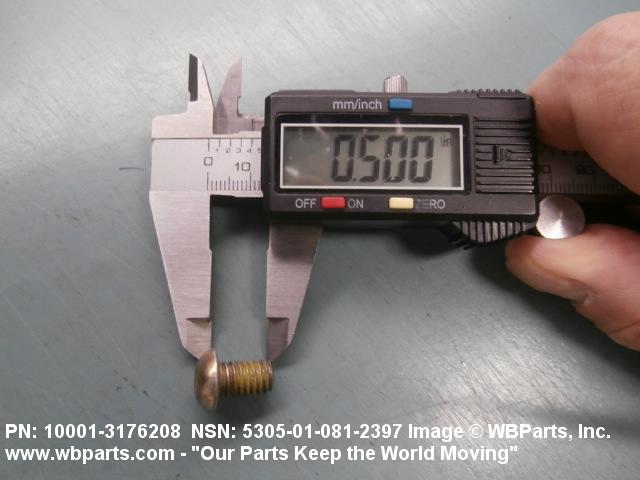

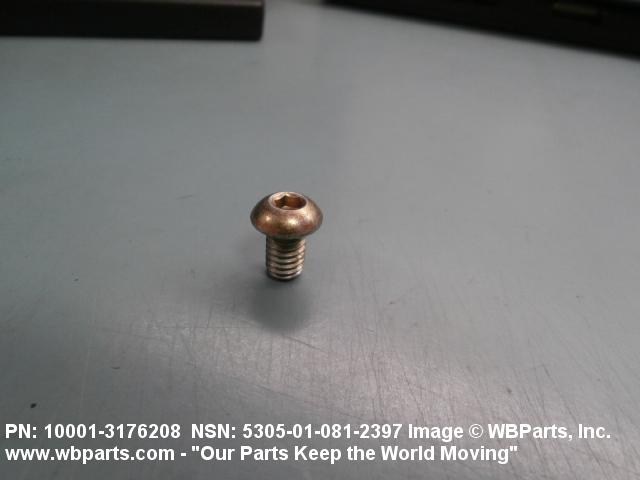

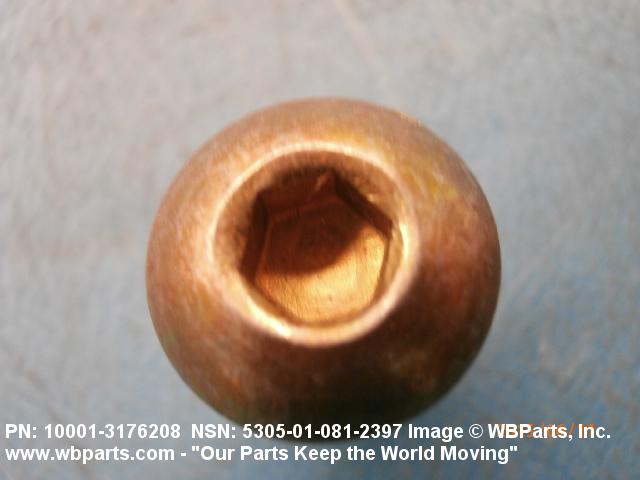

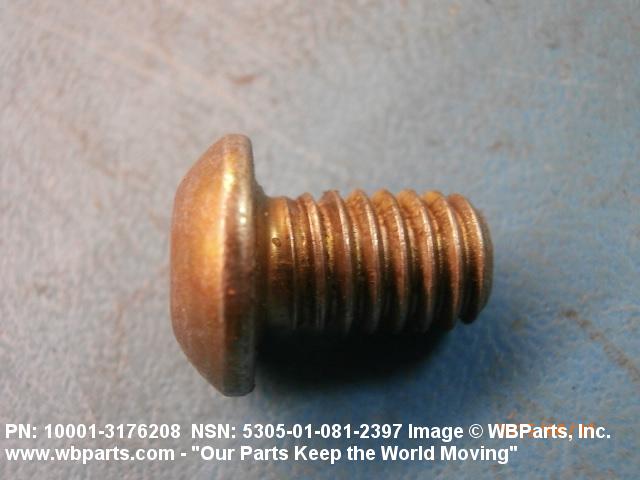

Drawings & Photos | NSN 5305-01-081-2397
Demand History | NSN 5305-01-081-2397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-081-2397 | 2015-05-147 | 50 | United States |
| 5305-01-081-2397 | 2014-06-161 | 48 | United States |
| 5305-01-081-2397 | 2014-06-161 | 48 | US |
Cross Reference | NSN 5305-01-081-2397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3176208-C-066 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-081-2397
Technical Data | NSN 5305-01-081-2397
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

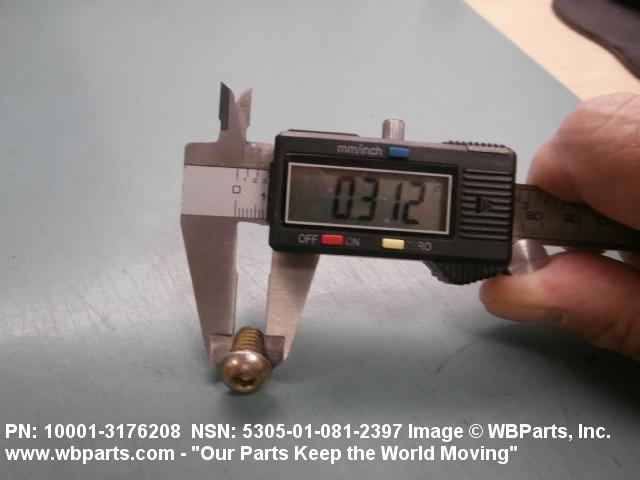

| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 170000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C35 UNDERCUT PAN NO. 2 |

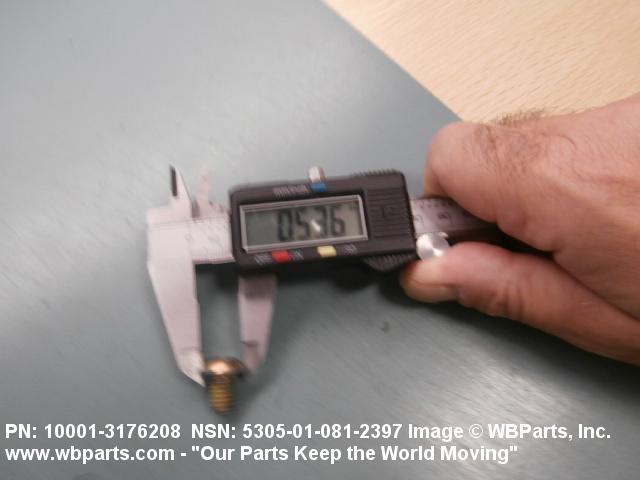

| HEAD DIAMETER | 0.527 INCHES MINIMUM AND 0.547 INCHES MAXIMUM |

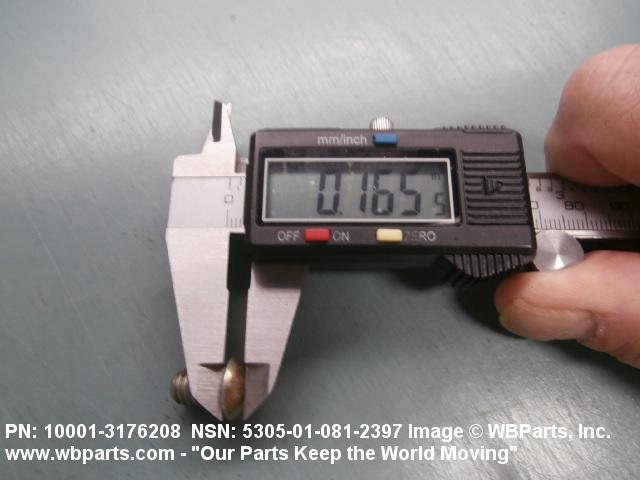

| HEAD HEIGHT | 0.152 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |

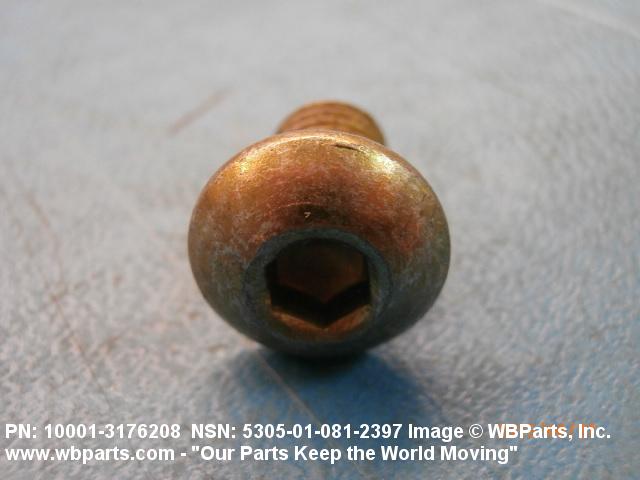

| INTERNAL DRIVE STYLE | D5 HEXAGON |

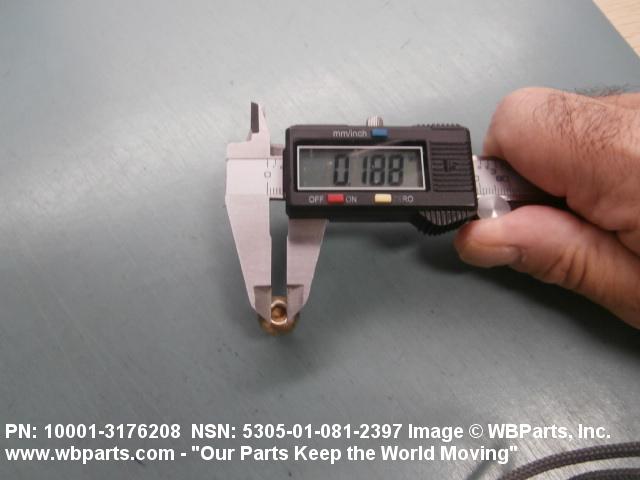

| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |
| LOCKING FEATURE | PATCH THREADS |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3176208-C-066 |
Restrictions/Controls & Freight Information | NSN 5305-01-081-2397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-081-2397
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
