NSN 5305-01-081-1259 F750010D3, F7500-10-D-3, 01-081-1259

Product Details | PANEL SCREW ASSEMBLY

5305-01-081-1259 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: F750010D3, F7500-10-D-3, 5305-01-081-1259, 01-081-1259, 5305010811259, 010811259

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 AUG 1979	01-081-1259	33044 ( SCREW ASSEMBLY, PANEL )

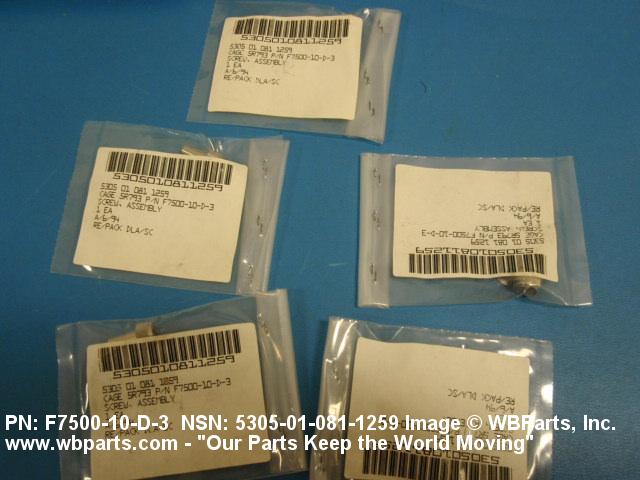

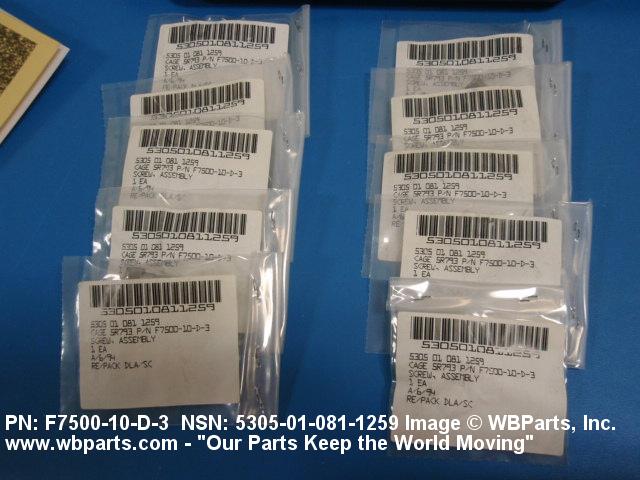

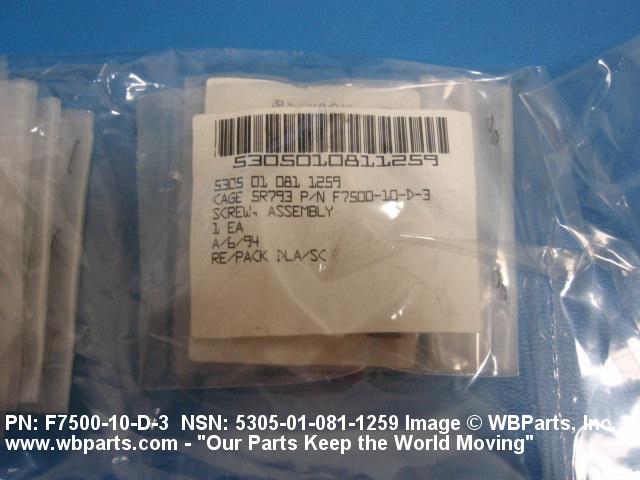

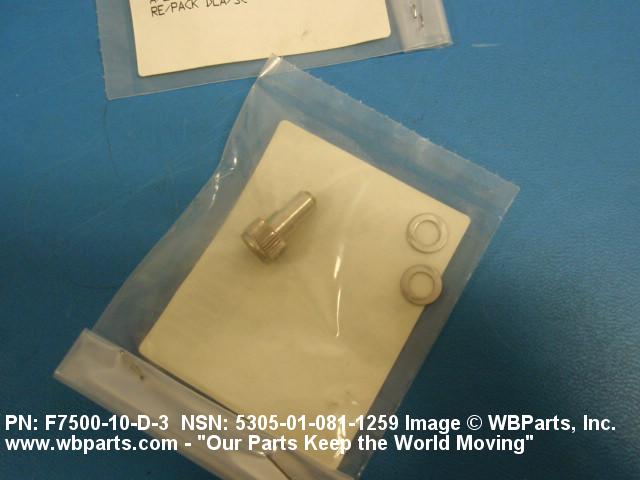

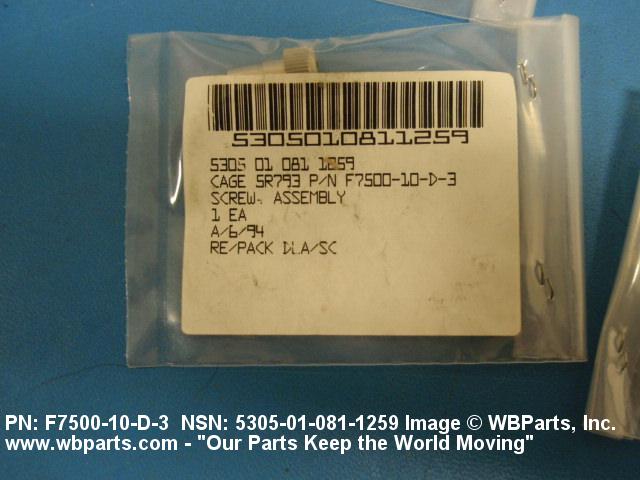

Drawings & Photos | NSN 5305-01-081-1259

Part Number	Request Date	QTY	Origin	SBA
F750010D3	2009-08-222	5	United Kingdom
5305-01-081-1259	2009-05-127	10	United Kingdom

Cross Reference | NSN 5305-01-081-1259

Part Number	Cage Code	Manufacturer
F7500-10-D-3	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
F7500-10-D-3	97928	HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-081-1259

Compare

Related Products | NSN 5305-01-081-1259

5305-01-081-1900, 5305-01-081-1907, 5305-01-081-1908, 5305-01-081-2105, 5305-01-081-2376

Technical Data | NSN 5305-01-081-1259

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
FASTENER LENGTH	0.502 INCHES MINIMUM AND 0.542 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER
SURFACE TREATMENT	ANODIZE HEAD PASSIVATE PRIMARY WASHER PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 TY1 CL1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING MIL-A-8625 TY1 CL1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HEAD STYLE	C68 KNURLED NO. 3
HEAD DIAMETER	0.436 INCHES MINIMUM AND 0.466 INCHES MAXIMUM
HEAD HEIGHT	0.275 INCHES MINIMUM AND 0.305 INCHES MAXIMUM
MATERIAL ACCOMMODATED THICKNESS	0.156 INCHES MINIMUM AND 0.217 INCHES MAXIMUM
SPECIAL FEATURES	FURNISHED WITH TWO WASHERS 0.020 IN MIN AND 0.030 IN MAX THK,0.256 IN MIN AND 0.261 IN MAX ID,0.405 IN MIN AND 0.425 IN MAX OD
MANUFACTURERS CODE	97928
DESIGN CONTROL REFERENCE	F7500-10-D-3
