NSN 5305-01-065-8822 0X.1875TYPEU.AISI305, 0X1875TYPEUAISI305, 6941503
Product Details | DRIVE SCREW

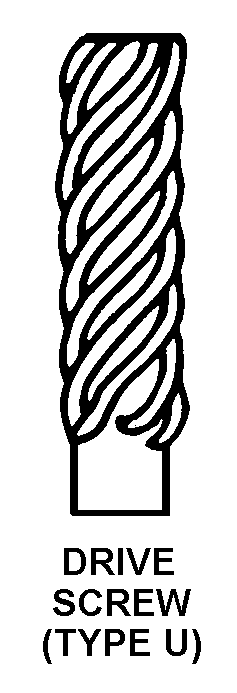

5305-01-065-8822 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.
Part Alternates: 0X.1875TYPEU.AISI305, 0X1875TYPEUAISI305, 6941503, 69415-0-3, 5305-01-065-8822, 01-065-8822, 5305010658822, 010658822
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 1978 | 01-065-8822 | 15896 ( SCREW, DRIVE ) |
Drawings & Photos | NSN 5305-01-065-8822
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-065-8822
Related Products | NSN 5305-01-065-8822
Technical Data | NSN 5305-01-065-8822
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A16 DRIVE SCREW |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.073 INCHES |
| FASTENER LENGTH | 0.173 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 305 OVERALL |

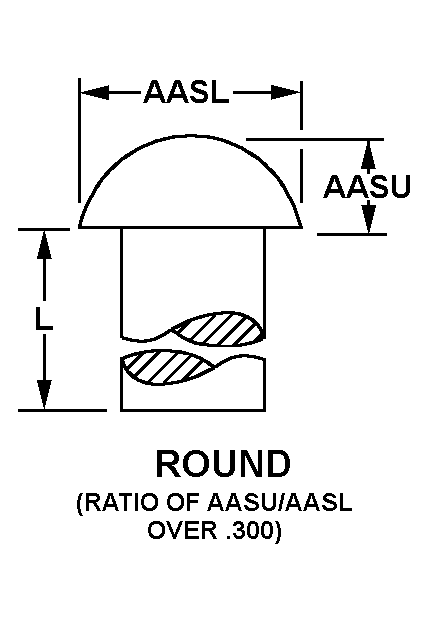

| HEAD STYLE | C37 ROUND |
| HEAD DIAMETER | 0.118 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| HEAD HEIGHT | 0.041 INCHES MINIMUM AND 0.049 INCHES MAXIMUM |
| PILOT DIAMETER | 0.060 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| PILOT LENGTH | 0.047 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-065-8822
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
