Product Details | DRIVE SCREW

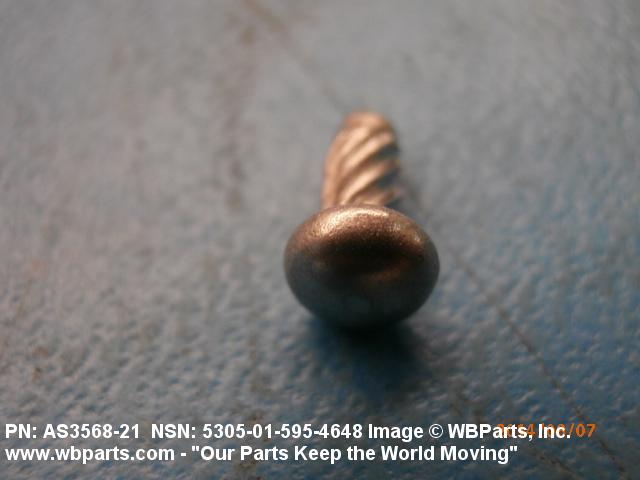

5305-01-595-4648 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: AS356821, AS3568-21, SAE AS3568, SAEAS3568, 5305-01-595-4648, 01-595-4648, 5305015954648, 015954648

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 28 APR 2011 01-595-4648

Drawings & Photos | NSN 5305-01-595-4648


Demand History | NSN 5305-01-595-4648

Part Number Request Date QTY Origin
5305-01-595-4648 2024-04-100 50 DIBBS
5305-01-595-4648 2023-12-353 278 DIBBS
5305-01-595-4648 2023-09-250 54 DIBBS
5305-01-595-4648 2022-08-221 90 DIBBS
AS356821 2022-04-95 176 us
5305-01-595-4648 2021-05-125 110 United States
5305-01-595-4648 2021-03-61 10 United States
5305-01-595-4648 2021-02-54 258 DIBBS
5305-01-595-4648 2020-11-328 140 United States
5305-01-595-4648 2019-04-107 25 United States
5305-01-595-4648 2017-01-13 4 US
5305-01-595-4648 2015-11-334 53 DIBBS
5305-01-595-4648 2015-11-322 53 DIBBS
5305-01-595-4648 2015-10-285 53 DIBBS
5305-01-595-4648 2015-01-22 85 DIBBS
5305-01-595-4648 2015-01-11 85 DIBBS
AS356821 2014-07-212 10 United States
5305-01-595-4648 2014-05-121 53 DIBBS
5305-01-595-4648 2014-04-93 32 DIBBS
AS356821 2013-06-165 10 United States
AS356821 2009-11-322 8 US
AS356821 2009-09-245 8 US
AS356821 2009-08-240 88 US

Cross Reference | NSN 5305-01-595-4648

Part Number Cage Code Manufacturer
AS3568-21 63005 ROLLS-ROYCE CORPORATION
SAE AS3568 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-595-4648

Technical Data | NSN 5305-01-595-4648

Characteristic Specifications
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5504 (UNS41000) ASSN STD SINGLE MATERIAL RESPONSE OVERALL
NONMACHINE THREAD STYLE DRIVE SCREW (TYPE U)
HEAD DIAMETER 0.193 INCHES MINIMUM AND 0.211 INCHES MAXIMUM
HEAD STYLE BUTTON
HEAD HEIGHT 0.075 INCHES MINIMUM AND 0.086 INCHES MAXIMUM
MATERIAL STEEL CORROSION RESISTING OVERALL
PILOT LENGTH 0.047 INCHES NOMINAL
PILOT DIAMETER 0.092 INCHES MINIMUM AND 0.096 INCHES MAXIMUM
FASTENER LENGTH 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION ASTM A 380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
SPECIAL FEATURES HEAT TREATED TO:35 TO 45 HRC
NONMACHINE NOMINAL THREAD DIAMETER 0.112 INCHES
