NSN 5305-01-064-8780 NAS13513HLB10P, 01-064-8780, 010648780
Product Details | SOCKET HEAD CAP SCREW
5305-01-064-8780 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS13513HLB10P, 5305-01-064-8780, 01-064-8780, 5305010648780, 010648780
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 SEP 1978 | 01-064-8780 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

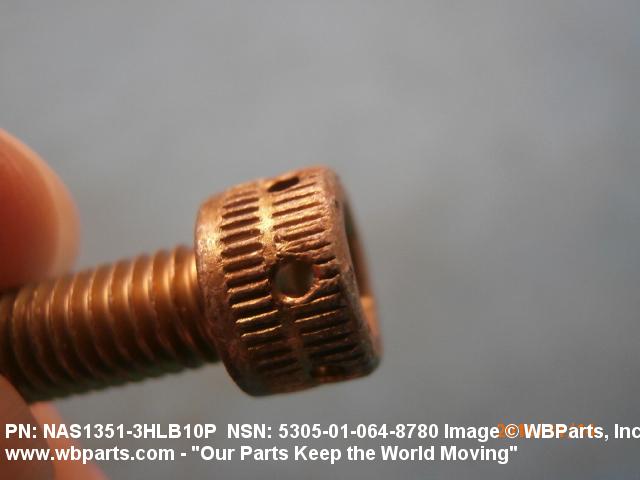

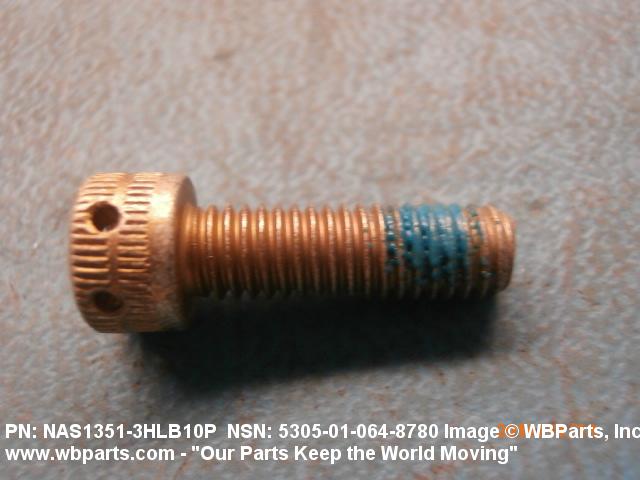

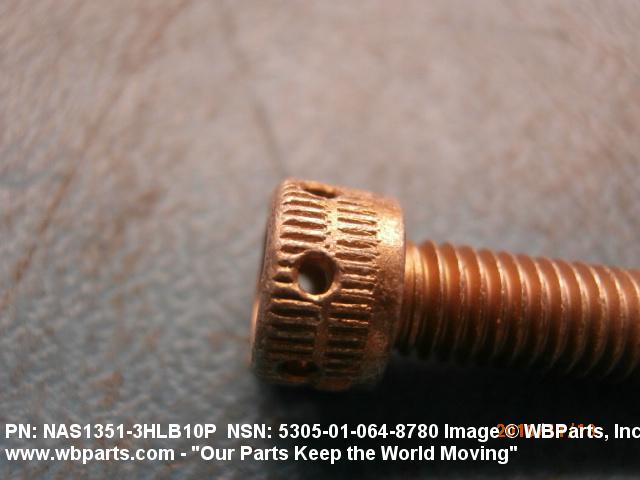

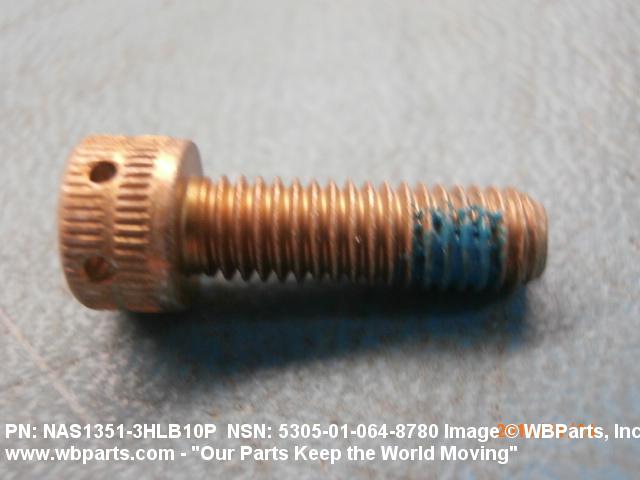

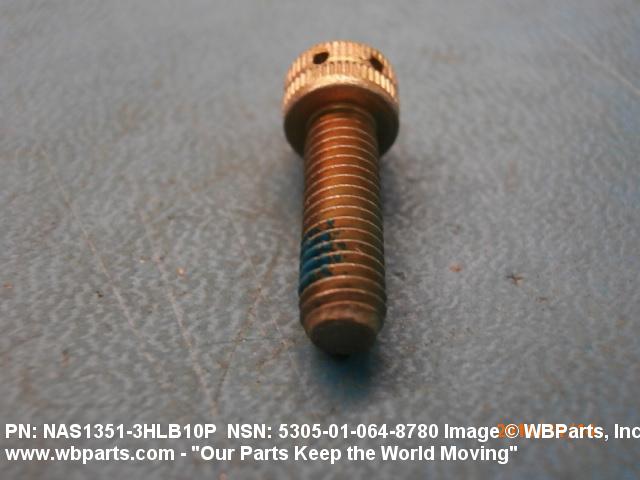

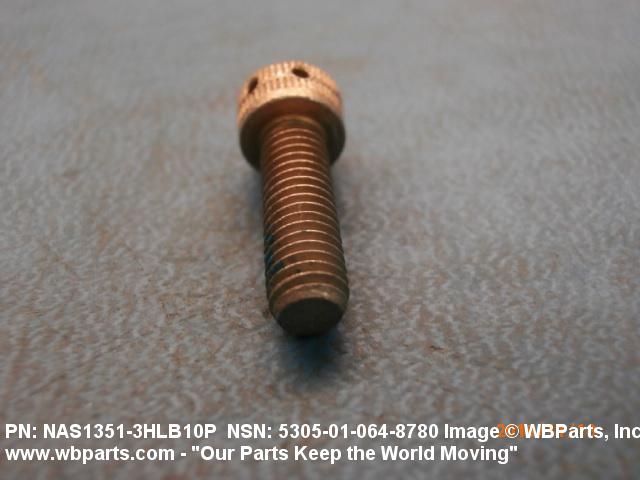

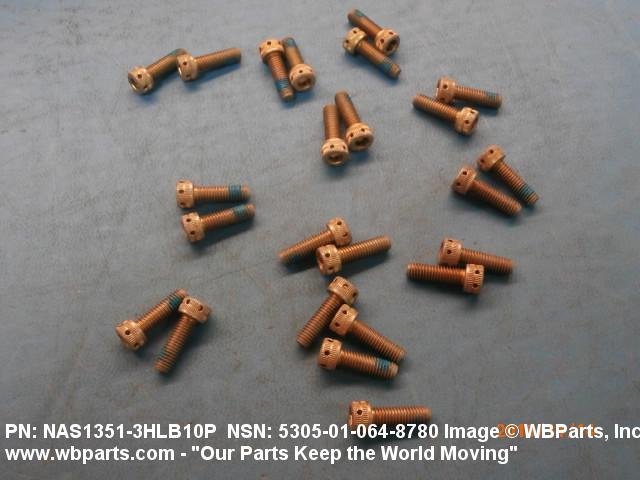

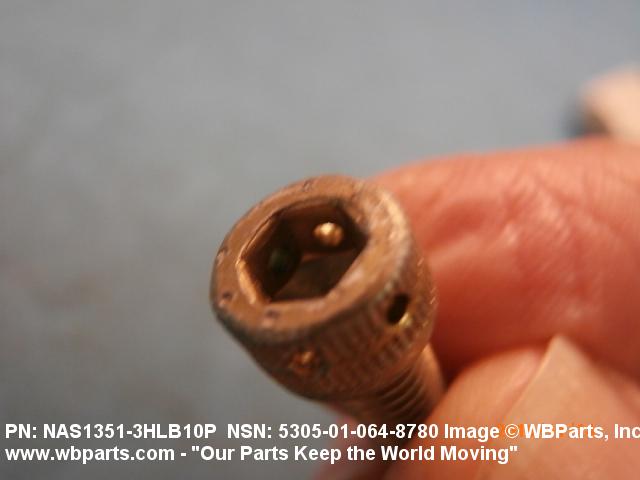

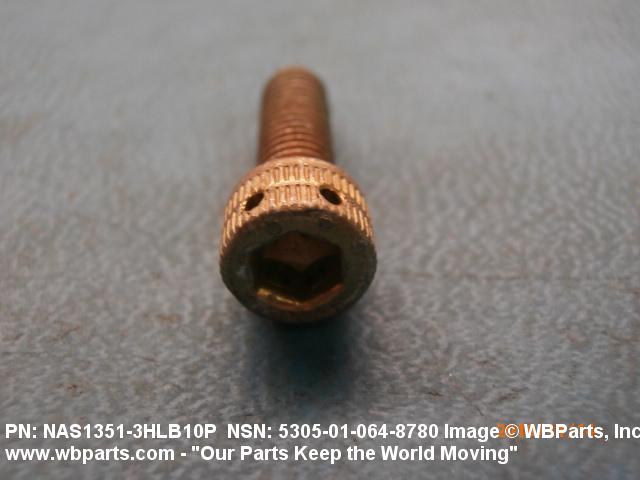

Drawings & Photos | NSN 5305-01-064-8780
Demand History | NSN 5305-01-064-8780
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS13513HLB10P | 2016-10-305 | 6 | Canada |
| 5305-01-064-8780 | 2014-08-240 | 86 | DIBBS |
| 5305-01-064-8780 | 2014-08-235 | 119 | DIBBS |
| 5305-01-064-8780 | 2014-08-223 | 238 | DIBBS |
| 5305-01-064-8780 | 2011-06-178 | 180 | DIBBS |
Cross Reference | NSN 5305-01-064-8780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS13513HLB10P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-064-8780
Related Products | NSN 5305-01-064-8780
Technical Data | NSN 5305-01-064-8780
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

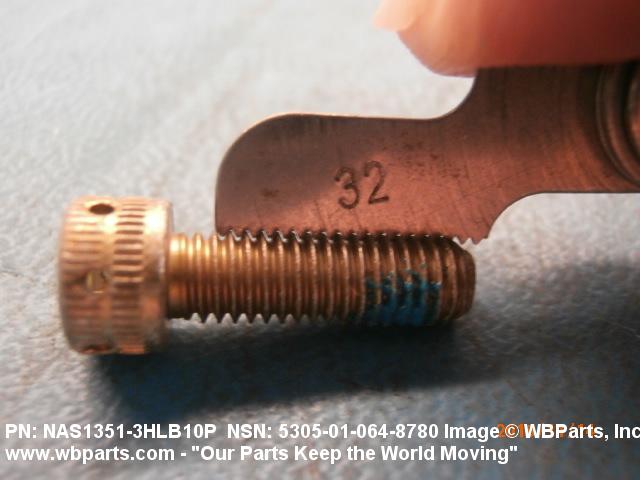

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

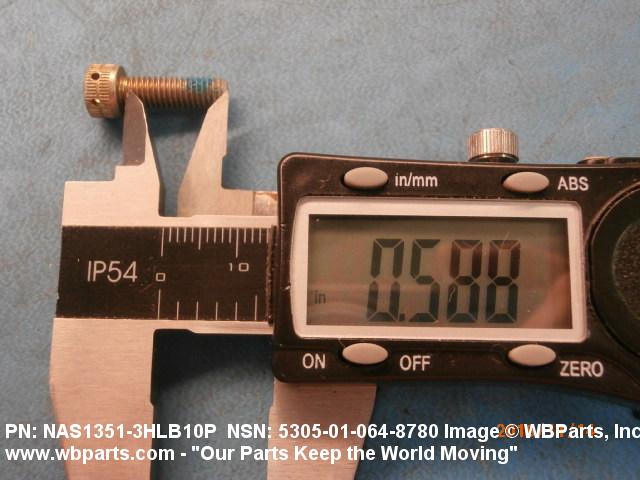

| THREAD LENGTH | 0.533 INCHES MINIMUM AND 0.595 INCHES MAXIMUM |

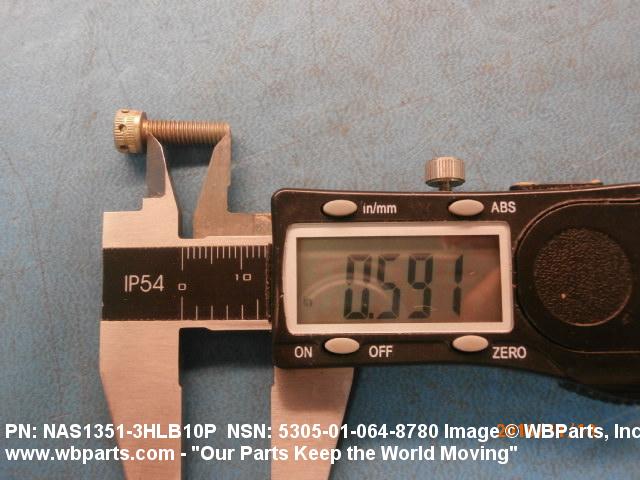

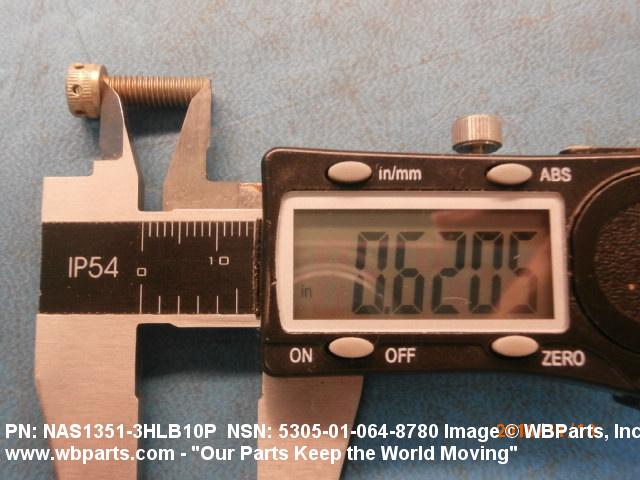

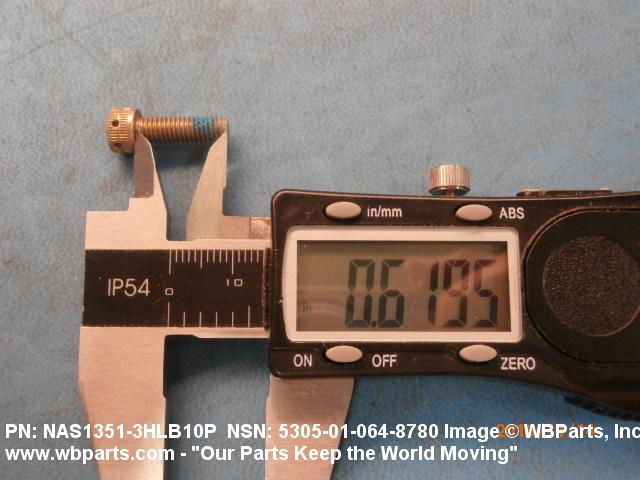

| FASTENER LENGTH | 0.595 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | PLASTIC POLYAMIDE LOCKING FEATURE STEEL FASTENER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 155000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

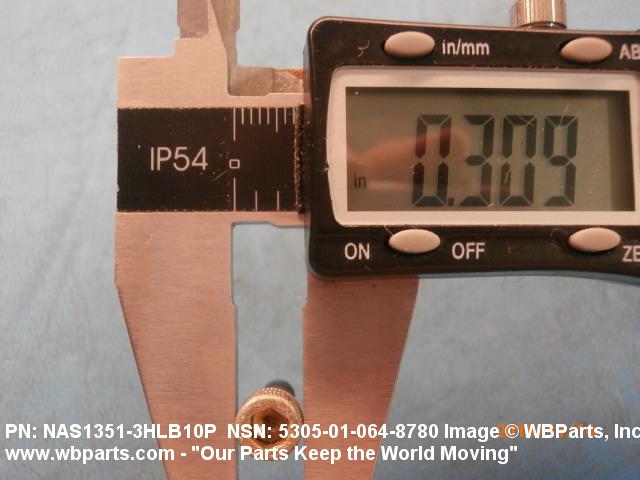

| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |

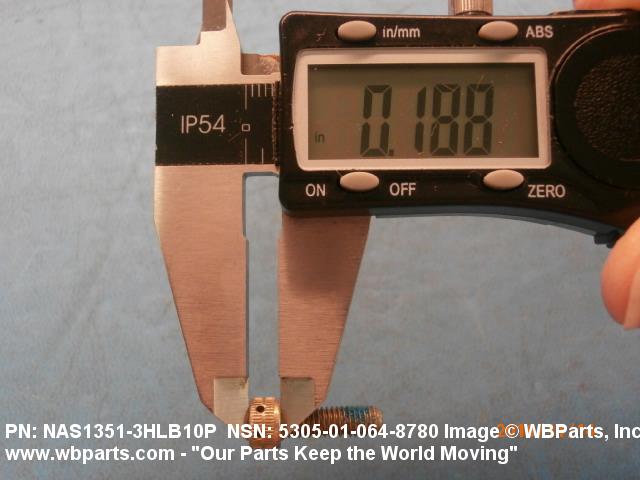

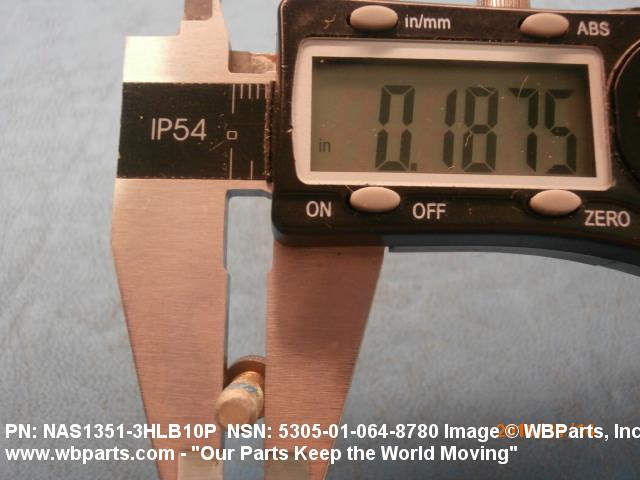

| HEAD HEIGHT | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

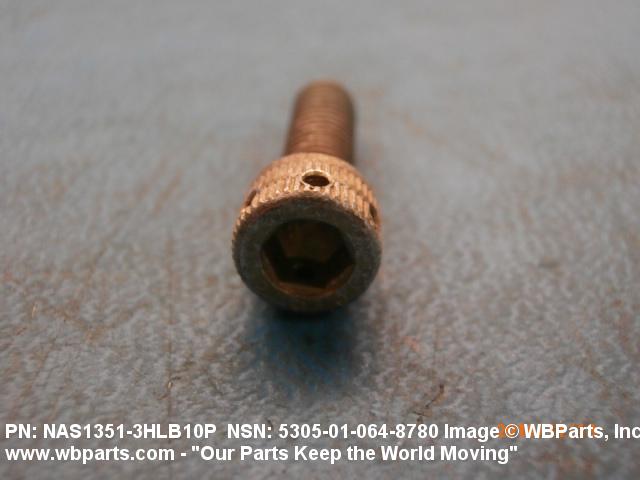

| INTERNAL DRIVE STYLE | D5 HEXAGON |

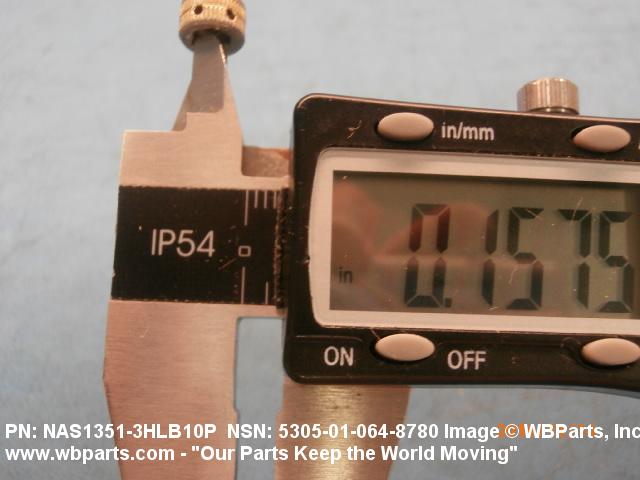

| WIDTH ACROSS FLATS | 0.156 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| LOCKING FEATURE | PATCH THREADS |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |

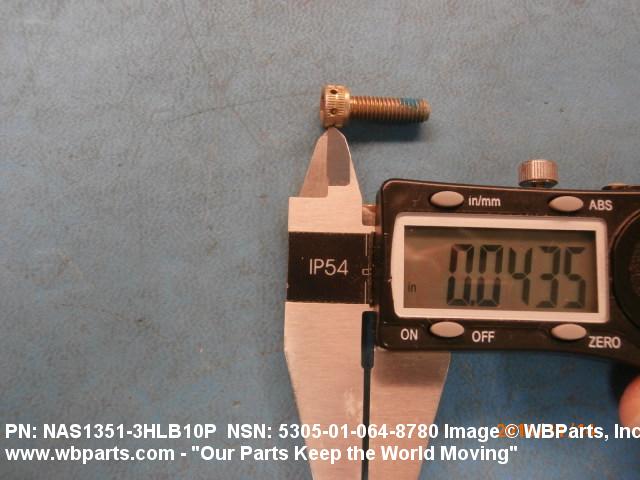

| HOLE DIAMETER | 0.044 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-064-8780
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-064-8780
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
