NSN 5305-01-023-4195 NAS1351C0616, NAS1351C06-16, 1210434256
Product Details | SOCKET HEAD CAP SCREW
5305-01-023-4195 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1351C0616, NAS1351C06-16, 1210434256, 12-104342-56, 5305-01-023-4195, 01-023-4195, 5305010234195, 010234195
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUN 1976 | 01-023-4195 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

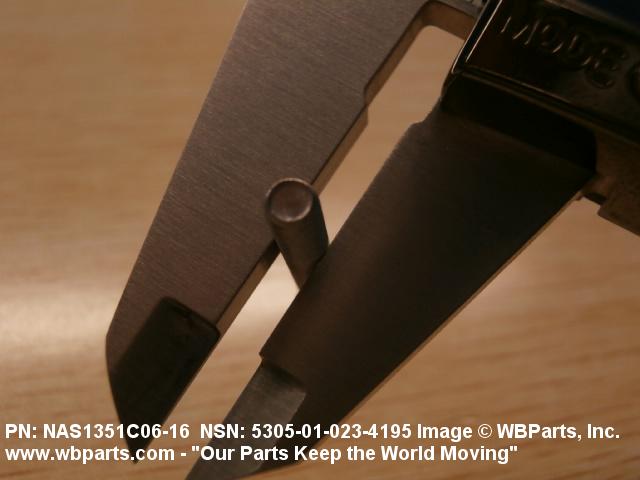

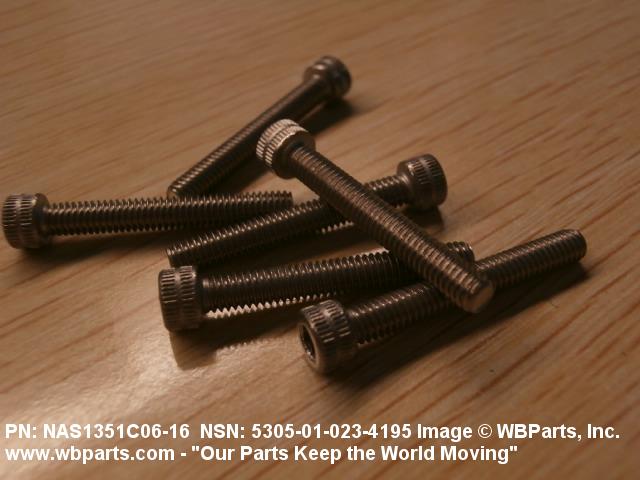

Drawings & Photos | NSN 5305-01-023-4195
Demand History | NSN 5305-01-023-4195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-023-4195 | 2023-01-30 | 100 | United States |
| NAS1351C0616 | 2016-12-363 | 350 | Korea |
| NAS1351C0616 | 2016-04-111 | 90 | Korea |
| NAS1351C0616 | 2014-02-37 | 280 | Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-023-4195
Related Products | NSN 5305-01-023-4195
Technical Data | NSN 5305-01-023-4195

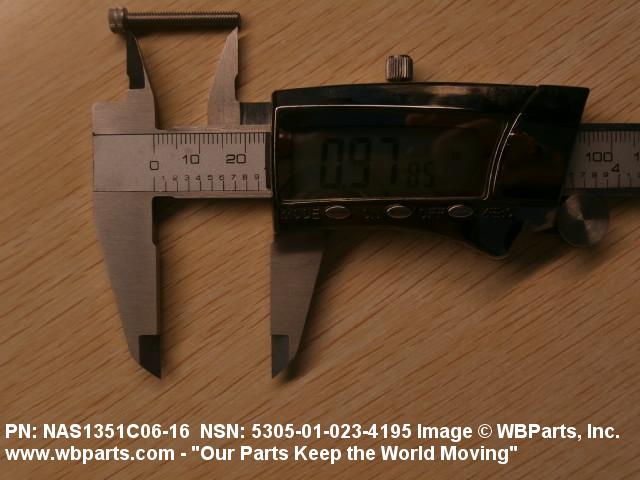

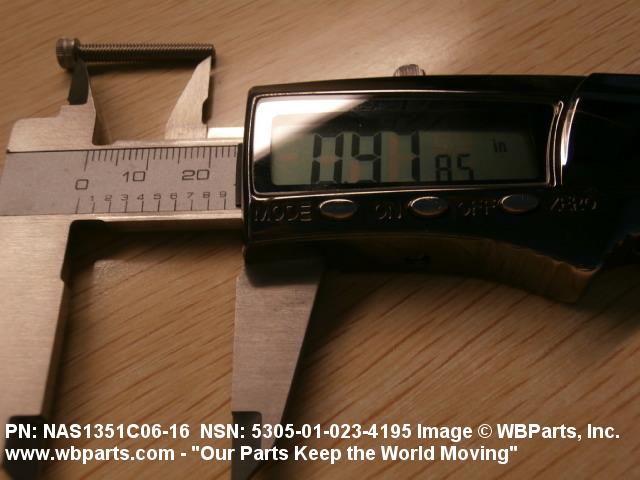

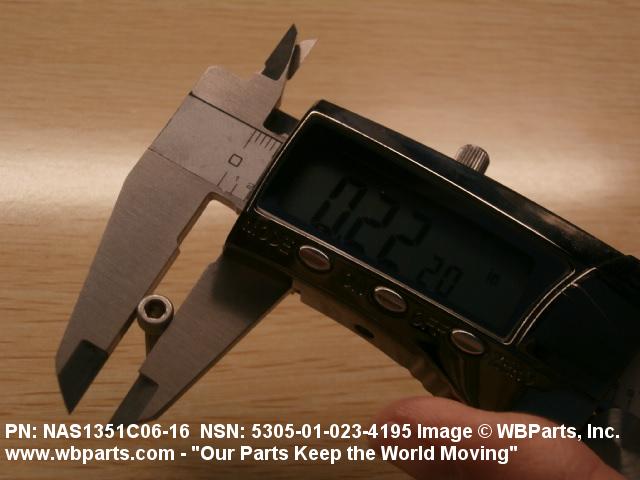

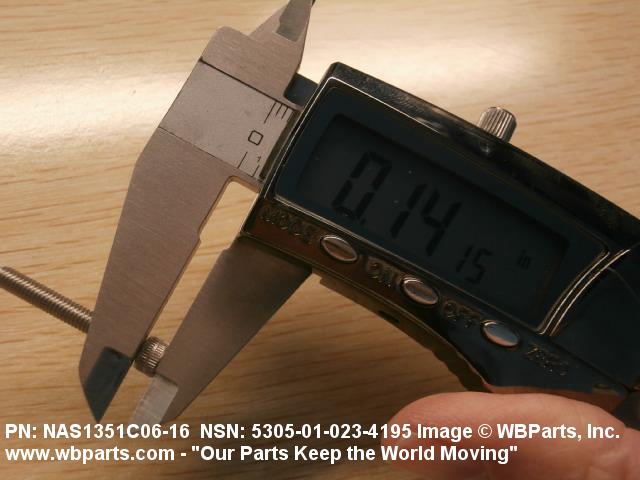

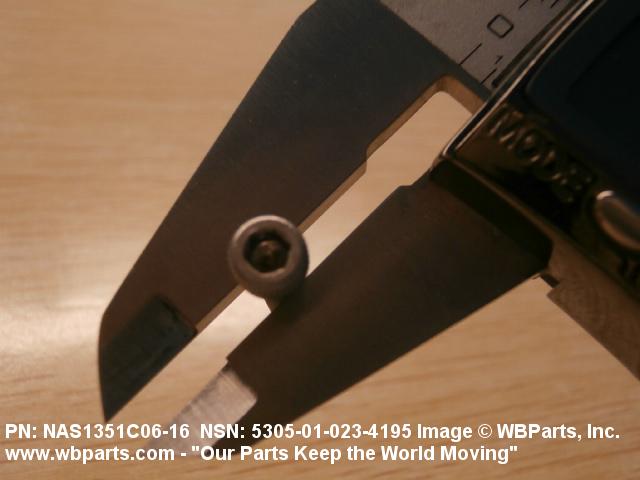

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES MINIMUM |
| FASTENER LENGTH | 0.970 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 OR STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD 1ST MATERIAL RESPONSE OR 66 FED STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OR ASTM A493 TYPE XM-7 ASSN STD 6TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.218 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| HEAD HEIGHT | 0.134 INCHES MINIMUM AND 0.138 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.109 INCHES MINIMUM AND 0.111 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
