NSN 5305-01-009-7364 FRSS75008B3, FRSS7500-8-B-3, 1143830717
Product Details | PANEL SCREW ASSEMBLY
5305-01-009-7364 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRSS75008B3, FRSS7500-8-B-3, 1143830717, 11438307-17, 48110653, 481106-53, 5000150717, 50001507-17, 5305-01-009-7364, 01-009-7364, 5305010097364, 010097364
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 SEP 1975 | 01-009-7364 | 33044 ( SCREW ASSEMBLY, PANEL ) |

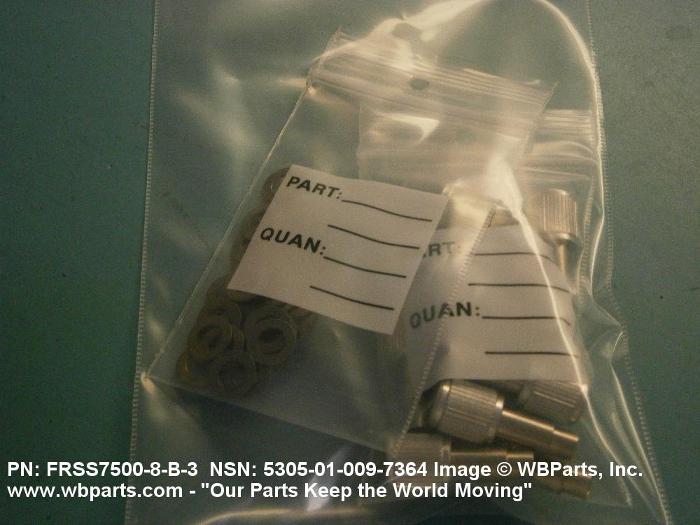

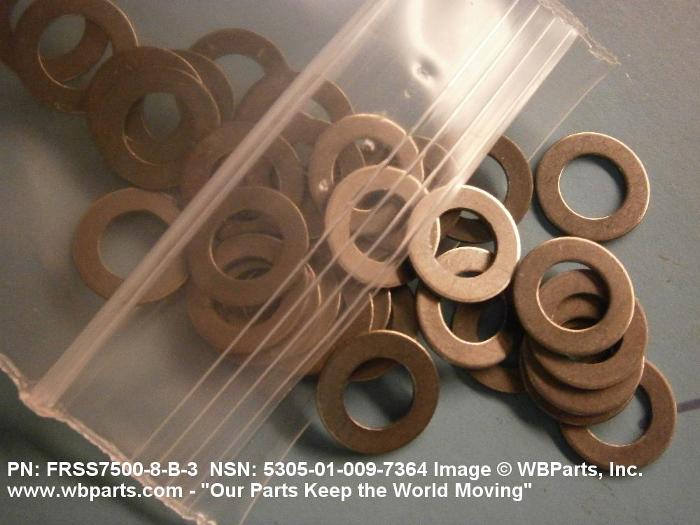

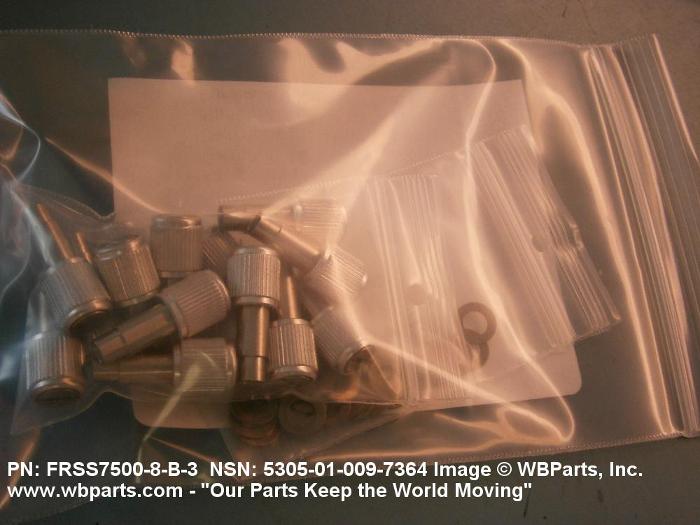

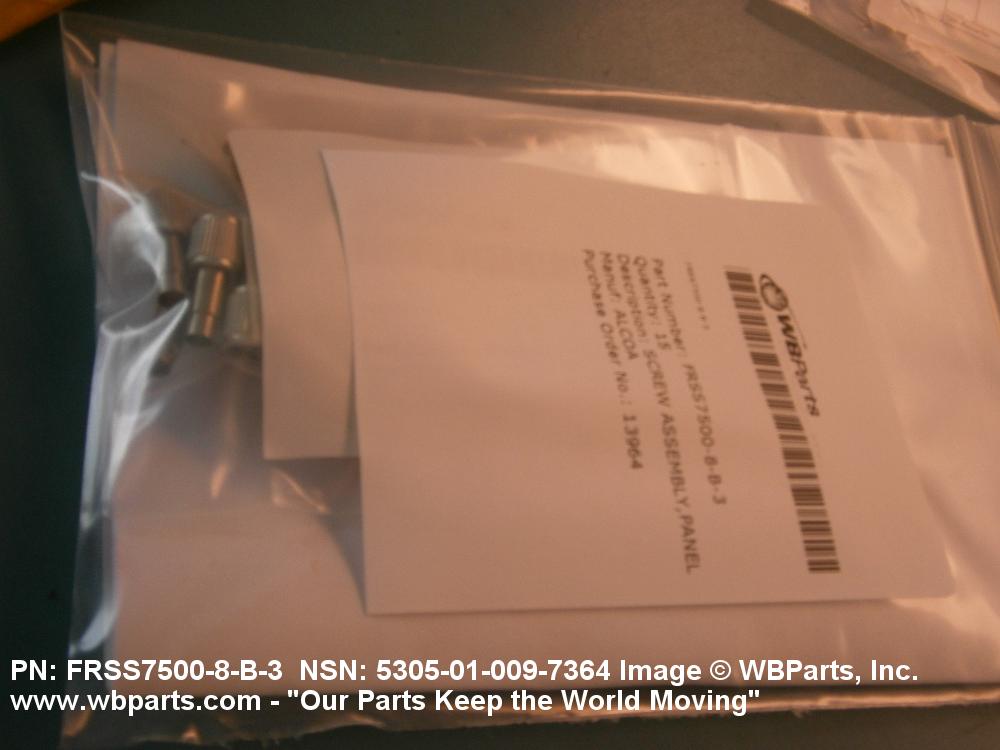

Drawings & Photos | NSN 5305-01-009-7364
Demand History | NSN 5305-01-009-7364
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 481106-53 | 2023-03-81 | 176 | DIBBS |
| 50001507-17 | 2023-03-81 | 176 | DIBBS |
| FRSS7500-8-B-3 | 2023-03-81 | 176 | DIBBS |
| 481106-53 | 2023-03-73 | 176 | DIBBS |
| 50001507-17 | 2023-03-73 | 176 | DIBBS |
| FRSS7500-8-B-3 | 2023-03-73 | 176 | DIBBS |
| 481106-53 | 2019-11-323 | 600 | DIBBS |
| 50001507-17 | 2019-11-323 | 600 | DIBBS |
| FRSS7500-8-B-3 | 2019-11-323 | 600 | DIBBS |
| 481106-53 | 2019-11-315 | 600 | DIBBS |
| 50001507-17 | 2019-11-315 | 600 | DIBBS |
| FRSS7500-8-B-3 | 2019-11-315 | 600 | DIBBS |
| FRSS75008B3 | 2012-05-146 | 15 | United States |
| 5305-01-009-7364 | 2011-11-308 | 1782 | DIBBS |
| 5305-01-009-7364 | 2011-08-215 | 626 | DIBBS |
| 5305-01-009-7364 | 2009-10-275 | 547 | DIBBS |
| 5305-01-009-7364 | 2008-04-100 | 620 | DIBBS |
Cross Reference | NSN 5305-01-009-7364
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11438307-17 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 481106-53 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 481106-53 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 481106-53 | 58794 | FASTENER TECHNOLOGY CORP. |
| 481106-53 | 8R640 | FASTENER TECHNOLOGY CORP |
| 50001507-17 | I9002 | BUREAU DE GESTION OTAN HAWK |
| FRSS7500-8-B-3 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FRSS7500-8-B-3 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-009-7364
Related Products | NSN 5305-01-009-7364
Technical Data | NSN 5305-01-009-7364
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.437 INCHES MINIMUM |
| FASTENER LENGTH | 0.440 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 HEAD STEEL COMP 302 SPRING STEEL COMP 304 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE HEAD QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-S-23195 MIL SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER |
| SURFACE TREATMENT | ANODIZE HEAD PASSIVATE SPRING PASSIVATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 1 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.420 INCHES NOMINAL |
| HEAD HEIGHT | 0.495 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| SPECIAL FEATURES | HEAD VERTICALLY KNURLED |
| MANUFACTURERS CODE | 0HDW7 |
| DESIGN CONTROL REFERENCE | FRSS7500-8-B-3 |
Restrictions/Controls & Freight Information | NSN 5305-01-009-7364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013680 | ALUM SCREWS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-009-7364
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
