NSN 5305-01-008-9299 NK525832R20, NK525-832R20, 01-008-9299
Product Details | SOCKET HEAD CAP SCREW
5305-01-008-9299 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NK525832R20, NK525-832R20, 5305-01-008-9299, 01-008-9299, 5305010089299, 010089299
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1975 | 01-008-9299 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-008-9299
Cross Reference | NSN 5305-01-008-9299
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NK525-832R20 | 26233 | NYLOK CORPORATION DBA NYLOK WESTERN FASTENER DIV NYLOK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-008-9299
Technical Data | NSN 5305-01-008-9299
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.406 INCHES NOMINAL |
| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681-CANC FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

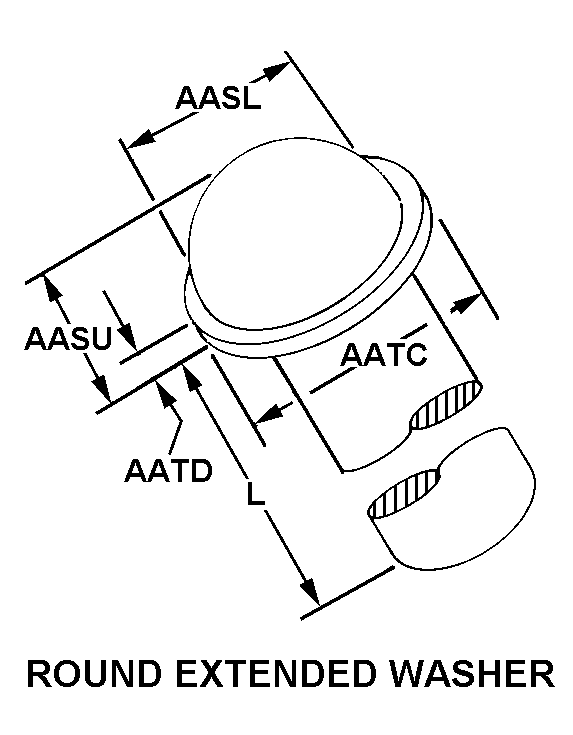

| HEAD STYLE | C38 ROUND EXTENDED WASHER |
