NSN 5305-00-989-7434 MS2458455, MS24584-55, MS3520555

Product Details | MACHINE SCREW

5305-00-989-7434 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2458455, MS24584-55, MS3520555, MS35205-55, MS35207263, MS35207-263, MS3521155, MS35211-55, N5120367263, N80P16008C13, NASM35207, AN5261032R8, AN526-1032R8, FFS92, JHP42065, JHP42-065, XX0020648, XX002-0648, Z00.N5123300369, Z00N5123300369, F78, 5305PL0716159 , 5-4-1305-105, 5861, 59029AX, 71137263, 71137-263, 805092, 85376600, 853766-00, 858396, 904A13152, 904-A-13152, 9460523308, 946052-3308, 10082683 , 100B24SC108, 100B24SC10-8, 13207E5470FN32, 13705, 19086, 19086ADX, 2018857, 220-H-25415 PIECE 3, 220H25415PIECE3, 2536, 3457164, 411 512, 411512, 411532, 417775, 5305-00-989-7434, 00-989-7434, 5305009897434, 009897434, 541305105

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-989-7434	06657 ( SCREW, MACHINE )

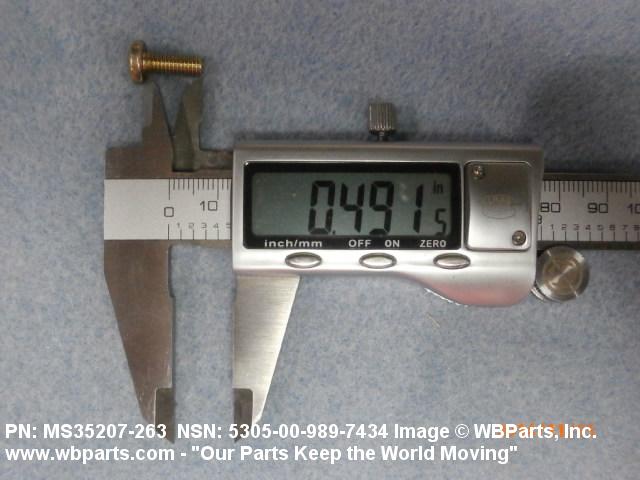

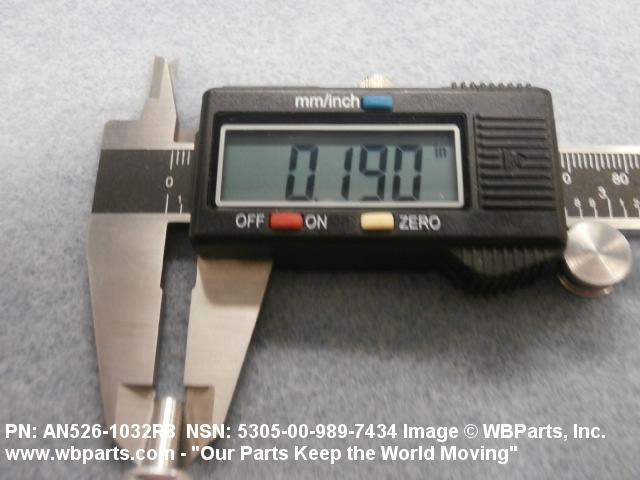

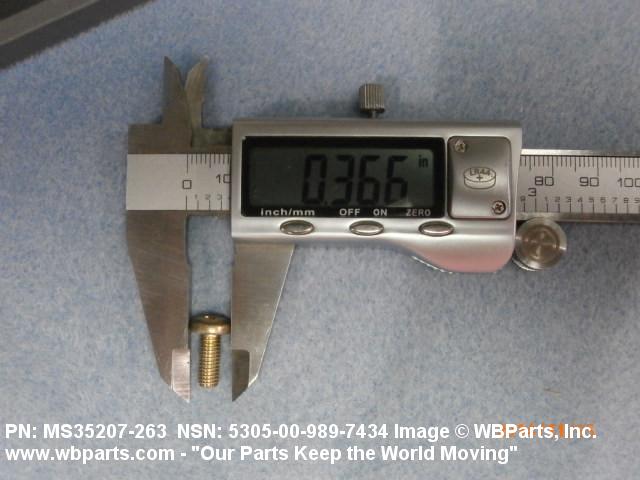

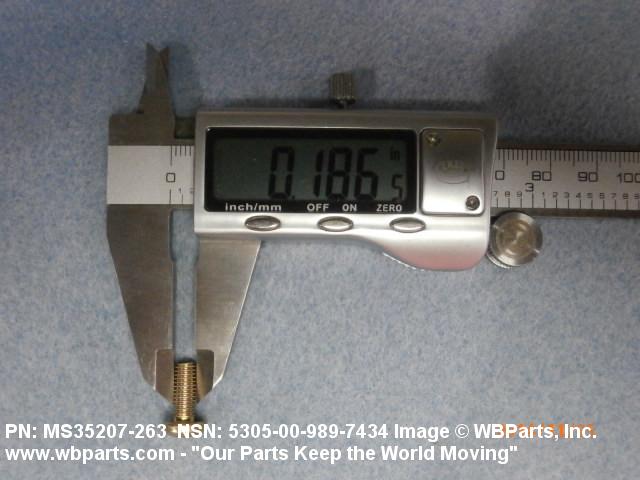

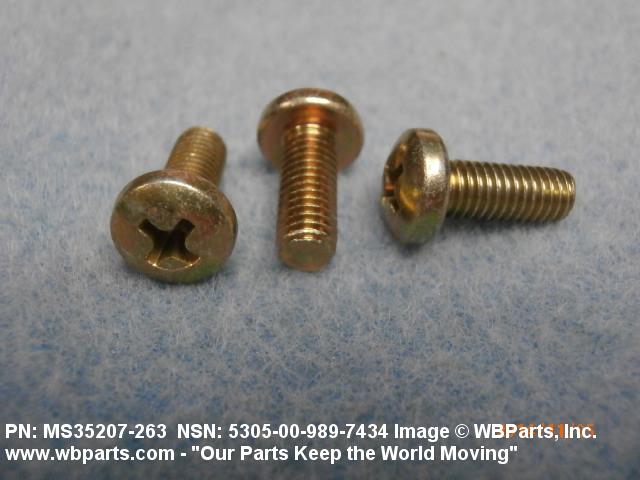

Drawings & Photos | NSN 5305-00-989-7434

Part Number	Request Date	QTY	Origin
AN5261032R8	2023-12-352	23370	United States
AN5261032R8	2023-12-348	23370	United States
5305-00-989-7434	2023-10-278	5000	AE
5305-00-989-7434	2023-10-277	5000	AE
5305-00-989-7434	2023-10-275	5000	US
FFS92	2023-08-236	14	US
MS35207263	2023-07-192	50	Croatia
AN5261032R8	2023-01-19	1	United States
5861	2022-11-313	2	United States
5305-00-989-7434	2022-06-173	500	United States
5305-00-989-7434	2022-04-115	160	TW
5305-00-989-7434	2020-06-182	160	MANUAL
5305-00-989-7434	2019-07-211	100	us
MS35207263	2019-01-23	100	United States
MS35207263	2018-04-109	3000	US
5305-00-989-7434	2018-02-46	3	us
MS35207-263	2017-11-319	1
MS35207263	2017-06-167	30	United States
5305-00-989-7434	2017-02-53	8	MANUAL
MS35207-263	2016-07-211	7000	JP
5305-00-989-7434	2015-12-341	637	DIBBS
5305-00-989-7434	2015-11-334	105	United Kingdom
5305-00-989-7434	2015-11-307	764	DIBBS
5305-00-989-7434	2015-10-292	2460	DIBBS
MS35207263	2015-07-211	1434	United States
MS35207-263	2015-04-91	5	Greece
MS35207263	2015-02-40	80	United States
MS35207263	2015-01-21	100	Canada
AN526-1032R8	2014-09-271	100	United States
MS35207-263	2014-09-271	100	United States
AN526-1032R8	2014-07-199	100	United States
MS35207-263	2014-07-199	100	United States
MS35207-263	2014-03-71	985	United States
MS35207263	2014-01-24	2	Singapore
MS35207263	2013-10-304	3	China
MS35207263	2013-09-259	1	United States
MS35207263	2013-05-142	3600	us
5305-00-989-7434	2013-02-50	70	KR
5305-00-989-7434	2013-01-11	36	US
MS35207-263	2012-11-310	564
MS35207-263	2012-07-187	300	KR
MS35207263	2012-05-143	192	US
MS35207263	2012-04-93	146	US
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
MS35207263	2011-02-33	150	TW
MS35207263	2010-12-356	1	Italy
FFS92	2010-11-323	165	US
5305-00-989-7434	2010-11-313	6200	DIBBS
5305-00-989-7434	2010-06-159	165	United States
FFS92	2009-12-338	100	US
5305-00-989-7434	2009-11-317	288	Italy
FFS92	2009-10-292	50	United States
NASM35207	2009-08-232	756	US
5305-00-989-7434	2009-08-231	200	US
5305-00-989-7434	2009-08-217	164	US
5305-00-989-7434	2009-07-208	5515	DIBBS
AN5261032R8	2009-06-181	100	Canada
AN5261032R8	2009-06-181	100	Canada
AN5261032R8	2009-06-181	100	Canada
AN5261032R8	2009-05-138	116	China
MS35207263	2009-03-83	100	US
MS35207263	2008-10-302	20	US
5305-00-989-7434	2008-09-268	500	US
5305-00-989-7434	2008-07-202	4	US
FFS92	2008-03-80	50	United States
MS35207263	2007-07-183	100	US
MS35207263	2006-07-198	200	Thailand

Cross Reference | NSN 5305-00-989-7434

Part Number	Cage Code	Manufacturer
100B24SC10-8	99872	ENTRON INDUSTRIES LIMITED PARTNERSHIP
13207E5470FN32	97403	CECOM LR CENTER
13705	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
13705	R1120	SATAIR A/S
19086	73734	FEDERAL SCREW PRODUCTS INC.
19086ADX	1VN02	AIRDALE EXPRESS LLC
2018857	001JK	EMBRAER S/A
2018857	FB459	EMBRAER AVIATION INTERNATIONAL
2018857	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
220-H-25415 PIECE 3	34345	KULITE SEMICONDUCTOR PRODUCTS, INC
2536	70655	AUTO VEHICLE PARTS CO DBA AU-VE-CO
411 512	77294	PIPER AIRCRAFT INC.
411532	77294	PIPER AIRCRAFT INC.
417775	77294	PIPER AIRCRAFT INC.
5-4-1305-105	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1305-105	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5305009897434	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0716159	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
5861	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
59029AX	45152	OSHKOSH CORPORATION
59029AX	75Q65	OSHKOSH DEFENSE, LLC
71137-263	95097	LITTLE GIANT CRANE AND SHOVEL INC
805092	19203	PICATINNY ARSENAL
853766-00	32345	DEFENSE REDUCTION AGENCY
858396	19203	PICATINNY ARSENAL
904-A-13152	34345	KULITE SEMICONDUCTOR PRODUCTS, INC
946052-3308	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN526-1032R8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
F78	00365	TLD ACE CORPORATION
FFS92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
JHP42-065	02032	HOLLINGSWORTH JOHN R CO
MS24584-55	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35205-55	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35207-263	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35207-263	60144	UNIFAB INDUSTRIES INC
MS35207-263	63020	CRESCENT MANUFACTURING OPERATING COMPANY
MS35207-263	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35207-263	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35207-263	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
MS35211-55	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N5120367263	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
N80P16008C13	24446	GENERAL ELECTRIC CO
N80P16008C13	24454	GENERAL ELECTRIC CO ELECTRONIC COMPONENTS DIVISION OF
NASM35207	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
XX002-0648	H2229	RDM TECHNOLOGY B.V.
Z00.N5123300369	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-989-7434

Compare

Related Products | NSN 5305-00-989-7434

5305-00-989-7435, 5305-00-989-7777, 5305-00-989-7858, 5305-00-989-7986, 5305-00-989-8024

Technical Data | NSN 5305-00-989-7434

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH	0.500 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35207-263

Restrictions/Controls & Freight Information | NSN 5305-00-989-7434

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-989-7434

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
