NSN 5305-00-989-7435 MS35207264, MS35207-264, MS35207364

Product Details | MACHINE SCREW

5305-00-989-7435 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS35207264, MS35207-264, MS35207364, MS35207-364, MS3520956, MS35209-56, MS3522464, MS35224-64, N5120367264, N80P16010C17, N80P16010Q90, AB2513A10, AN51541610, AN515-416-10, AN5201032R10, AN520-1032R10, AN52010R10, AN520-10R10, AN526103210, AN526-1032-10, AN5261032R10, AN526-1032R10, AN526R1032R10, B45253033, B4525-303-3, BCOX11AG1, CSA46417, FFS92, FF-S-92, WSC102, Z106 005288, Z106005288, 7521550, 806337, 835183, 85328200, 853282-00, 86G1010, 935.63.12.066, 9356312066, 9842437148, 9842437-14-8, 9933425 , 006657-039, 06657009, 06657-009, 06657039, 06657-039, 0703371, 10082684 , 1032X516BLKOXD, 1055887, 1055-887 , 113615A, 1243003107, 124-3003-107, 128778, 132911, 1901838, 19087, 19087ADX, 2216316, 22660ITEM1 , 23521R1, 2G1010, 3430561000, 343-0561-000, 4071301310, 407-13-013-10, 411 533, 411533, 50716864, 507168-64, 5305-00-989-7435, 00-989-7435, 5305008987435 , 5305009897435, 006657039, 009897435

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-989-7435	06657 ( SCREW, MACHINE )

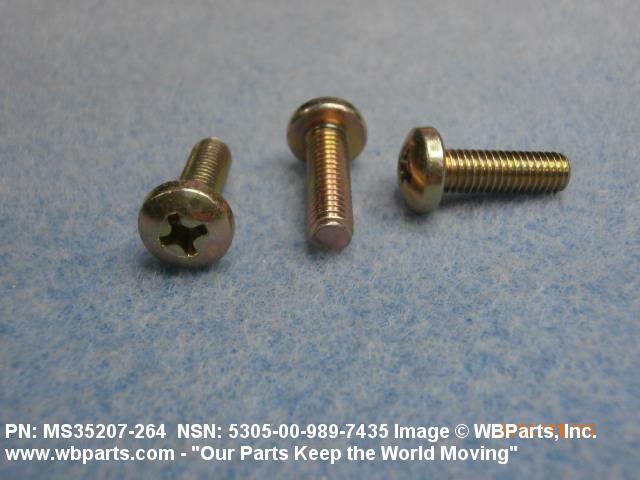

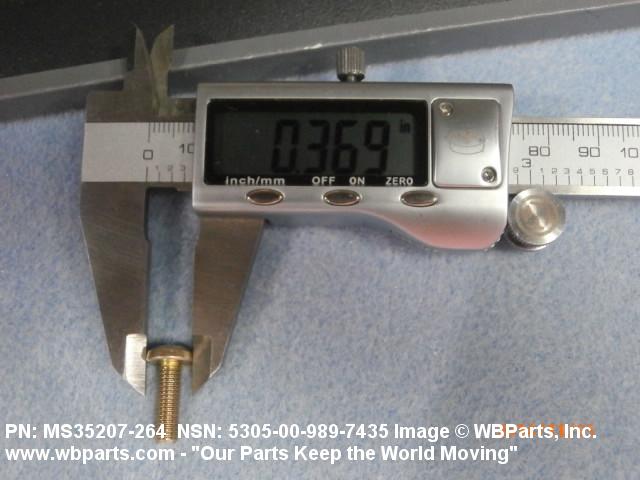

Drawings & Photos | NSN 5305-00-989-7435

Part Number	Request Date	QTY	Origin
5305-00-989-7435	2025-03-72	275	US
MS35207264	2024-11-312	216	us
MS35207264	2024-11-312	1000	us
AN52010R10	2024-07-213	4	Greece
MS35207264	2024-05-122	5010	us
MS35207264	2023-12-352	23564	United States
AN52010R10	2023-10-286	10	Turkey
FFS92	2023-08-236	14	US
MS35207264	2023-07-206	50	US
MS35207264	2023-07-186	7	US
MS35207264	2023-06-171	2000	United States
MS35207264	2023-05-143	13284	United States
MS35207-264	2023-04-101	10	United States
MS35207-264	2023-04-101	10	United States
5305-00-989-7435	2023-04-95	91	United States
MS35207264	2022-10-292	20	BD
MS35207264	2021-10-277	2000	United States
MS35207264	2021-06-167	20	MY
MS35207264	2021-06-167	20	TR
MS35207264	2021-06-165	20	US
5305-00-989-7435	2020-06-182	240	MANUAL
5305-00-989-7435	2018-02-47	40	United States
5305-00-989-7435	2018-02-44	40	United States
5305-00-989-7435	2018-02-32	40	United States
MS35207264	2017-08-221	400	US
5305-00-989-7435	2016-11-326	1100	DIBBS
MS35207264	2016-11-312	3	United States
MS35207264	2016-08-237	250	United States
MS35207-264	2016-07-211	2900	JP
MS35207-264	2016-07-211	2900	JP
5305-00-989-7435	2016-06-164	1421	DIBBS
5305-00-989-7435	2015-10-286	1292	DIBBS
MS35207264	2015-08-229	24	CA
MS35207264	2015-07-211	717	United States
5305-00-989-7435	2015-06-173	1512	US
5305-00-989-7435	2015-06-172	1512	DIBBS
MS35207264	2015-04-91	3520	United States
MS35207264	2015-03-87	3500	US
MS35207264	2015-03-79	1200	United States
MS35207264	2015-03-69	20	United States
MS35207264	2015-02-33	100	United States
MS35207-264	2014-11-314	1872	IL
MS35207-264	2014-09-271	100	United States
5305-00-989-7435	2014-08-229	1507	DIBBS
MS35207-264	2014-07-199	100	United States
MS35207-264	2014-03-71	377	United States
MS35207264	2014-02-59	69	US
FF-S-92	2014-02-59	75	United States
MS35207-264	2014-02-59	100	United States
5305009897435	2012-11-311	60	Singapore
MS35207-264	2012-11-310	128
MS35207264	2012-09-256	20	US
MS35207264	2012-04-93	163	US
MS35207264	2011-10-285	100	US
MS35207264	2011-03-82	1	Australia
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
5305-00-989-7435	2011-02-48	1000	Turkey
MS35207264	2011-02-33	100	TW
MS35207264	2011-01-13	125	US
AN52010R10	2010-12-362	500	United States
FFS92	2010-11-323	165	US
5305-00-989-7435	2010-07-200	1774	Taiwan
5305-00-989-7435	2010-07-200	239	Taiwan
MS35207264	2010-04-105	10	Italy
MS35207264	2010-04-99	500	United States
5305-00-989-7435	2010-02-55	2266	DIBBS
FFS92	2009-12-338	100	US
FFS92	2009-10-292	50	United States
5305-00-989-7435	2009-08-218	36	PA
5305-00-989-7435	2009-04-93	2272	DIBBS
MS35207264	2009-02-47	1	US
MS35207264	2009-02-46	120	US
5305-00-989-7435	2008-12-351	18	US
5305-00-989-7435	2008-10-279	200	Taiwan
5305-00-989-7435	2008-08-235	500	DIBBS
5305-00-989-7435	2008-05-137	500	US
FFS92	2008-03-80	50	United States
5305-00-989-7435	2007-10-275	3000	US
MS35207264	2007-07-183	100	US
MS35207264	2006-07-198	100	Thailand

Cross Reference | NSN 5305-00-989-7435

Part Number	Cage Code	Manufacturer
006657-039	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
06657-009	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
06657-039	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
0703371	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
10+32X5+16BLKOXD	73734	FEDERAL SCREW PRODUCTS INC.
1055-887	31361	WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP
1055-887	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
113615A	45152	OSHKOSH CORPORATION
113615A	75Q65	OSHKOSH DEFENSE, LLC
124-3003-107	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
128778	15434	CUMMINS INC.
132911	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
132911	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
1901838	24617	GENERAL MOTORS CORP
1901838	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
19087	73734	FEDERAL SCREW PRODUCTS INC.
19087ADX	1VN02	AIRDALE EXPRESS LLC
2216316	74006	RELIANCE COMM/TEC CORP LORAIN PRODUCTS DIV
22660ITEM1	74025	MARATHONNORCO AEROSPACE, INC. DBA MARATHON BATTERY
23521R1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
23521R1	66195	SOLAR TURBINES INCORPORATED
2G1010	12603	CLARK EQUIPMENT CO
2G1010	77237	DANA OFF HIGHWAY PRODUCTS, LLC
343-0561-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
407-13-013-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
411 533	77294	PIPER AIRCRAFT INC.
507168-64	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305008987435	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305009897435	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7521550	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
7521550	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
7521550	24617	GENERAL MOTORS CORP
806337	19203	PICATINNY ARSENAL
835183	19203	PICATINNY ARSENAL
853282-00	32345	DEFENSE REDUCTION AGENCY
86G1010	12603	CLARK EQUIPMENT CO
86G1010	77237	DANA OFF HIGHWAY PRODUCTS, LLC
935.63.12.066	S4080	PILATUS AIRCRAFT LTD
9842437-14-8	94833	KECO INDUSTRIES INC.
9933425	0Y3H3	FASTENAL COMPANY
AB2513A10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-416-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN520-1032R10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN520-10R10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN526-1032-10	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN526-1032R10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN526R1032R10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
B4525-303-3	60532	TRANE U.S. INC. DBA TRANE
BCOX11AG1	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
CSA46417	82254	CURTIS DYNA-FOG, LTD.
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS35207&264	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35207-264	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35207-264	60144	UNIFAB INDUSTRIES INC
MS35207-264	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35207-264	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35207-264	A9271	GORIZIANE GROUP SPA
MS35207-264	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
MS35207-364	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35209-56	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35224-64	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N5120367264	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
N80P16010C17	24446	GENERAL ELECTRIC CO
N80P16010Q90	90817	REICHARD COULSTON INC
WSC102	13619	EMS DEVELOPMENT CORPORATION
WSC102	81831	FILTRON CO INC DIV OF RFI CORP
Z106 005288	35510	PRESTOLITE ELECTRIC INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-989-7435

Compare

Related Products | NSN 5305-00-989-7435

5305-00-989-7777, 5305-00-989-7858, 5305-00-989-7986, 5305-00-989-8024, 5305-00-989-8836

Technical Data | NSN 5305-00-989-7435

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

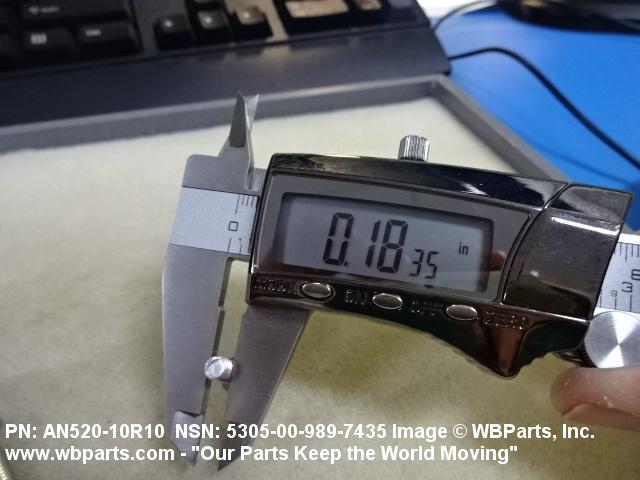

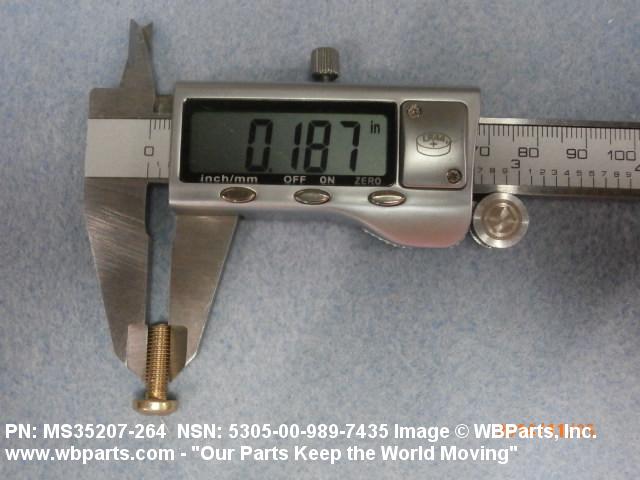

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

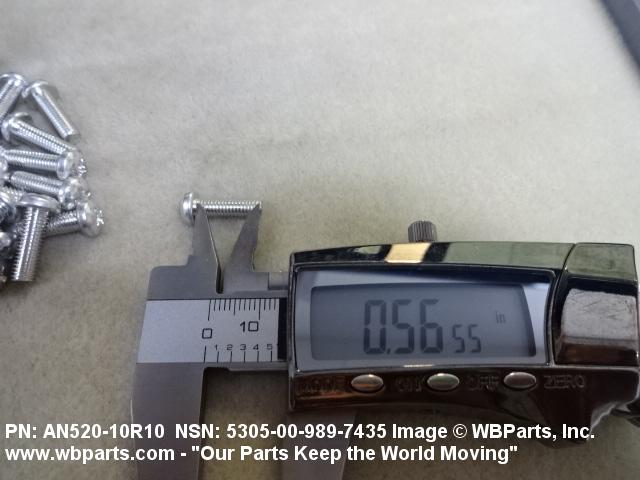

THREAD LENGTH	0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM

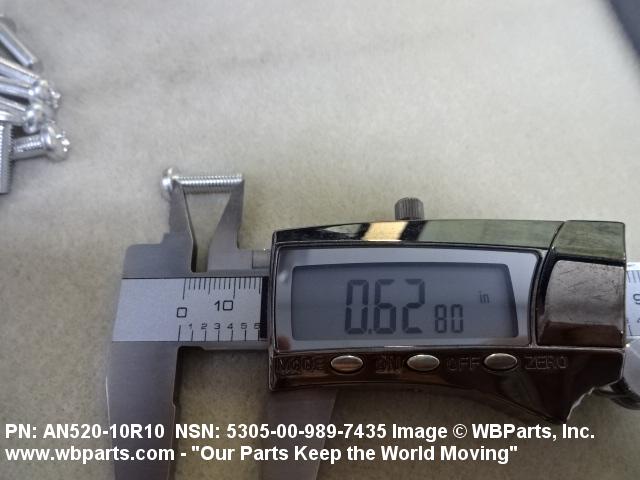

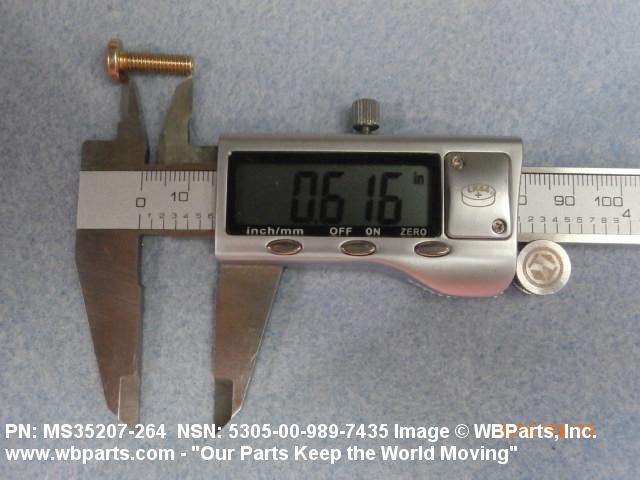

FASTENER LENGTH	0.625 INCHES NOMINAL
SCREW MATERIAL	STEEL
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

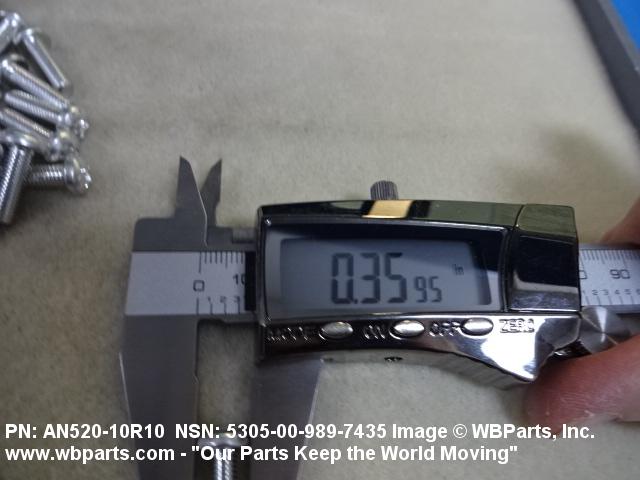

HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM

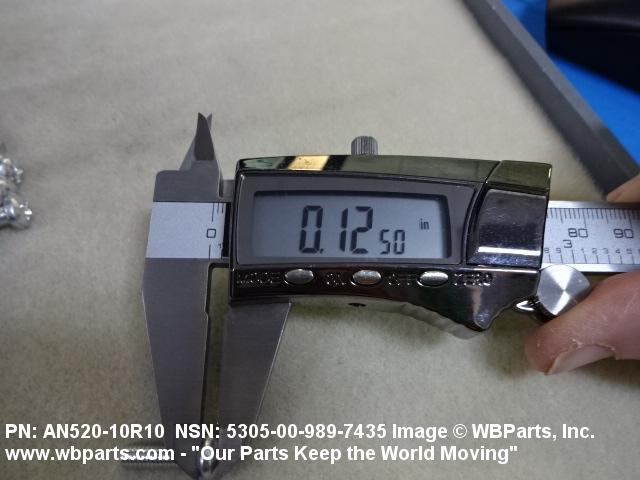

HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-989-7435

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-989-7435

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	BO	SX:BREATHING OXYGEN SYSTEMS AND COMPONENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	O	Reparable item. When uneconomically reparable, condemn and dispose of at organization level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
