NSN 5305-00-988-5308 MS246733, MS24673-3, MS24673C3

Product Details | SOCKET HEAD CAP SCREW

5305-00-988-5308 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS246733, MS24673-3, MS24673C3, MS24673-C3, NAS1351C310, NAS1351C3-10, NAS1352C08H8, S815010C10E, S8150-10C10E, H668161010, FFS86, 12Z1197114, 12-Z-1197-114, 190927, 36A227603P10, 9474711301, 947471-1301, 5305-00-988-5308, 00-988-5308, 5305009885308, 009885308

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-988-5308	16282 ( SCREW, CAP, SOCKET HEAD )

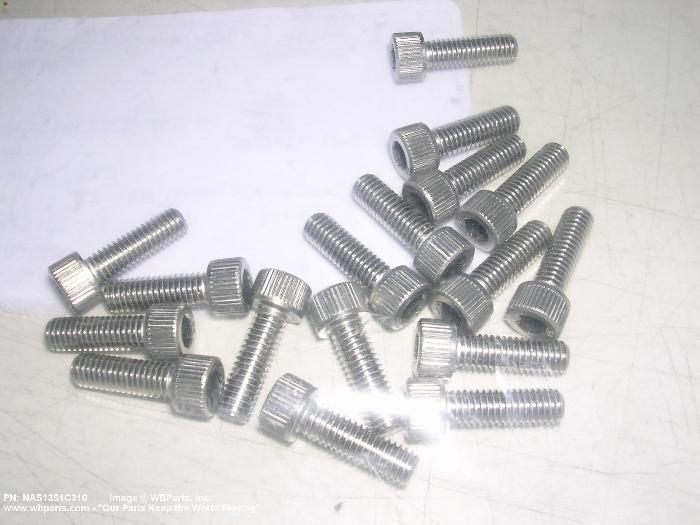

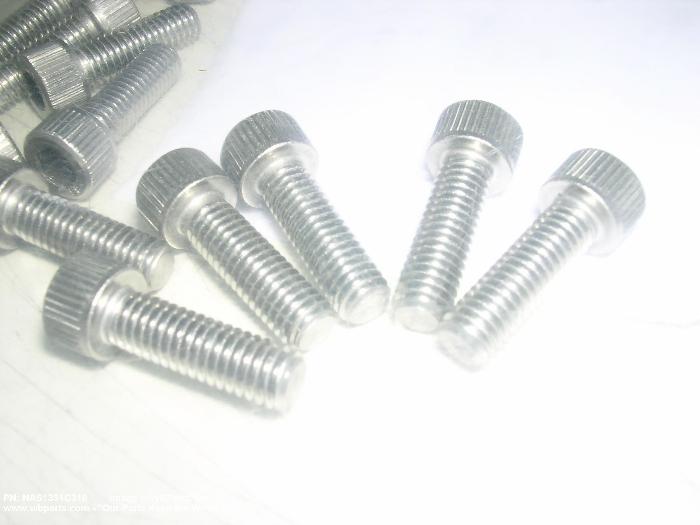

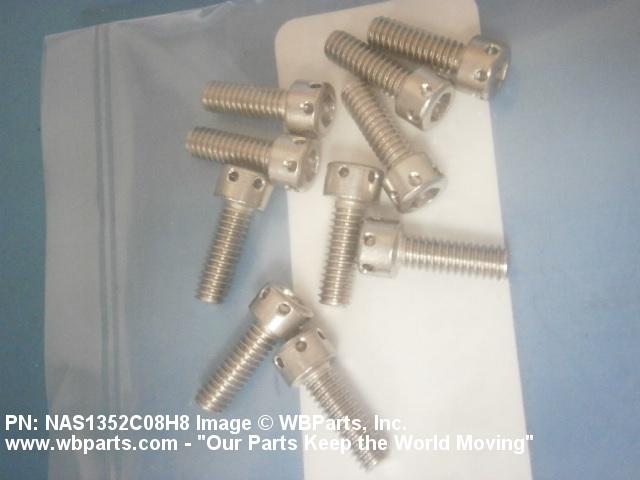

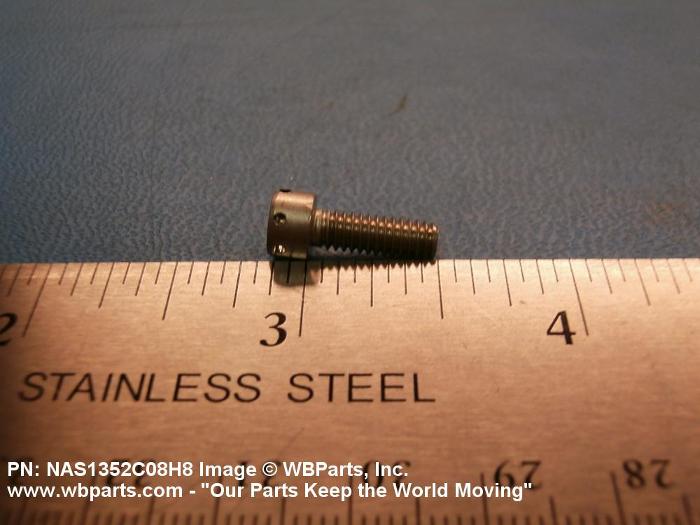

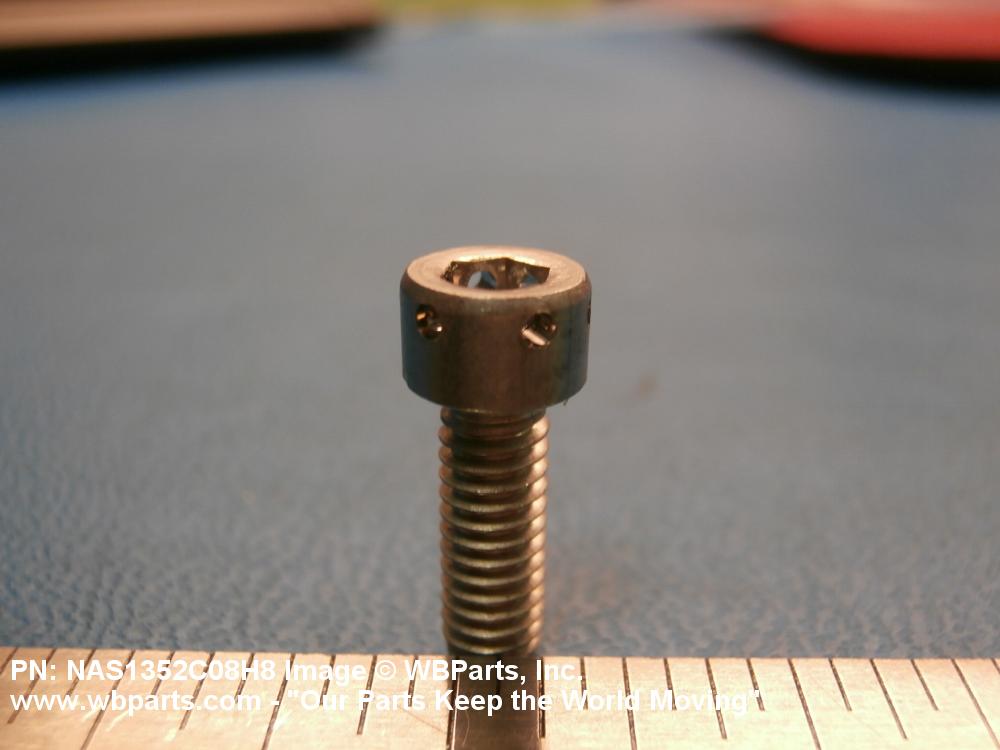

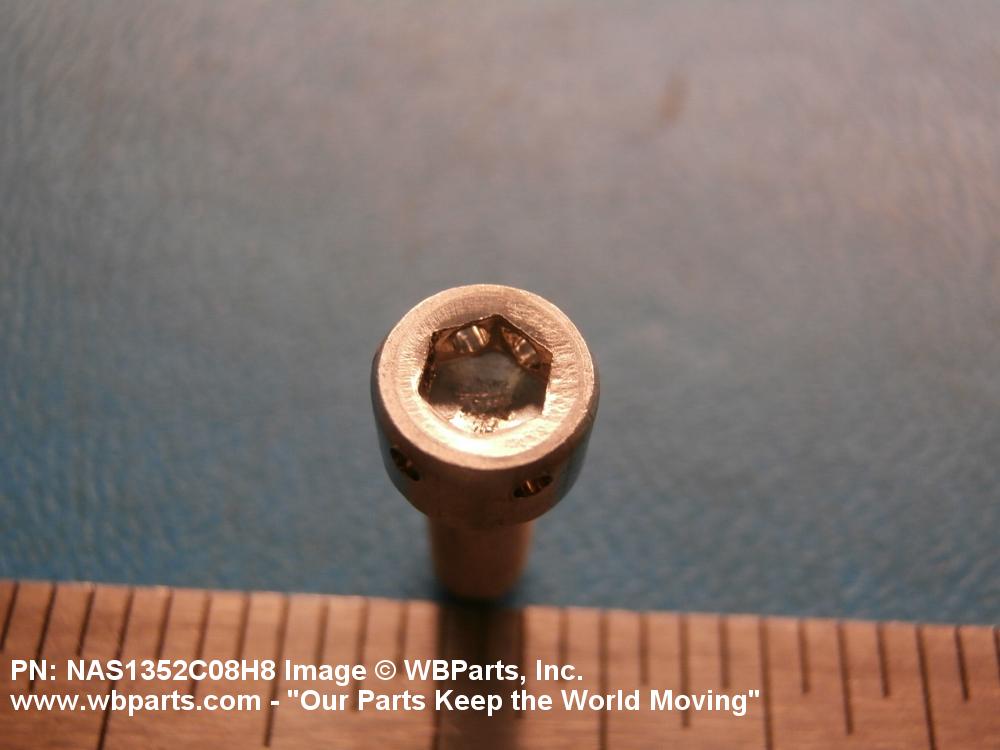

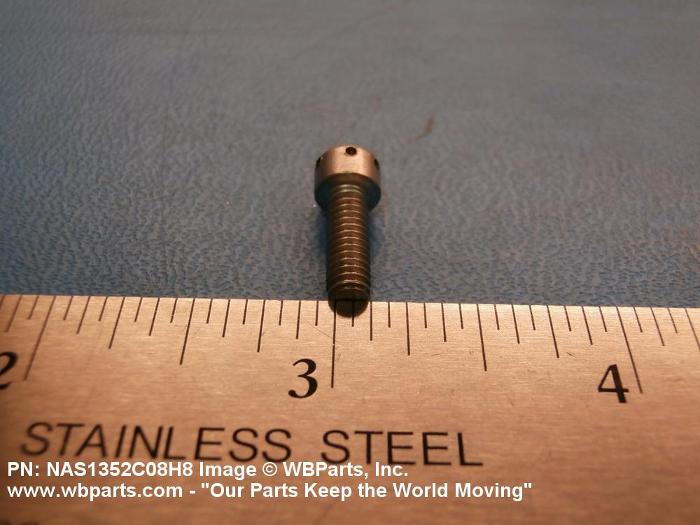

Drawings & Photos | NSN 5305-00-988-5308

Part Number	Request Date	QTY	Origin
NAS1351C310	2024-04-107	8840	us
NAS1352C08H8	2024-02-46	3000	us
NAS1352C08H8	2022-07-192	100	United States
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
NAS1352C08H8	2021-05-134	1000	US
NAS1352C08H8	2019-01-24	30	India
5305-00-988-5308	2018-10-294	16546	DIBBS
nas1351c3-10	2018-08-219	1	United States
NAS1351C310	2014-10-280	10000	US
NAS1352C08H8	2014-03-65	50	United States
NAS1352C08H8	2013-11-319	10	United States
FFS86	2013-08-229	80	Canada
NAS1352C08H8	2012-06-156	60	India
NAS1352C08H8	2012-05-144	30	United States
NAS1352C08H8	2012-05-132	100	Germany
FFS86	2012-03-74	2	US
NAS1352C08H8	2012-02-52	3	United Kingdom
NAS1352C08H8	2012-01-02	32	India
NAS1351C310	2011-12-349	400	United States
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
MS246733	2011-04-111	1000	US
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
MS246733	2010-04-111	500	US
NAS1351C310	2007-12-346	30	United States
NAS1351C310	2007-11-325	17	United States
NAS1351C310	2007-11-317	30	United States

Cross Reference | NSN 5305-00-988-5308

Part Number	Cage Code	Manufacturer
12-Z-1197-114	94135	NAVAL ORDNANCE STANDARDS
190927	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
36A227603P10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
947471-1301	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
947471-1301	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
FFS86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
H668161010	16004	DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
H668161010	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
MS24673-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24673-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24673-C3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1351C3-10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1352C08H8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
S8150-10C10E	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
S8150-10C10E	72599	ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
S8150-10C10E	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-988-5308

Compare

Related Products | NSN 5305-00-988-5308

5305-00-988-5328, 5305-00-988-5342, 5305-00-988-5747, 5305-00-988-5816, 5305-00-988-5818

Technical Data | NSN 5305-00-988-5308

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.579 INCHES MINIMUM
FASTENER LENGTH	0.625 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	E11 ROUND INTERNAL HEXAGON
HOLE TYPE	DRILLED
HOLE QUANTITY	6
HOLE DIAMETER	0.050 INCHES NOMINAL
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS86

Restrictions/Controls & Freight Information | NSN 5305-00-988-5308

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
