NSN 5305-00-983-6659 MS1699842, MS16998-42, MS3545822

Product Details | SOCKET HEAD CAP SCREW

5305-00-983-6659 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699842, MS16998-42, MS3545822, MS35458-22, NAS1351410P, NAS1351-4-10P, NAS608410P, NAS608-4-10P, XX0020277, XX002-0277, FF-S-86 REVISION C, FFS86REVISIONC, 593-6960598 PC4, 5936960598PC4, 6300766-42, 710009, 710-009, 852295, 87033800, 870338-00, 23528R1, 3241504000, 324-1504-000, 4912853-01, 5305-00-983-6659, 00-983-6659, 5305009836659, 009836659, 491285301, 630076642

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-983-6659	16282 ( SCREW, CAP, SOCKET HEAD )

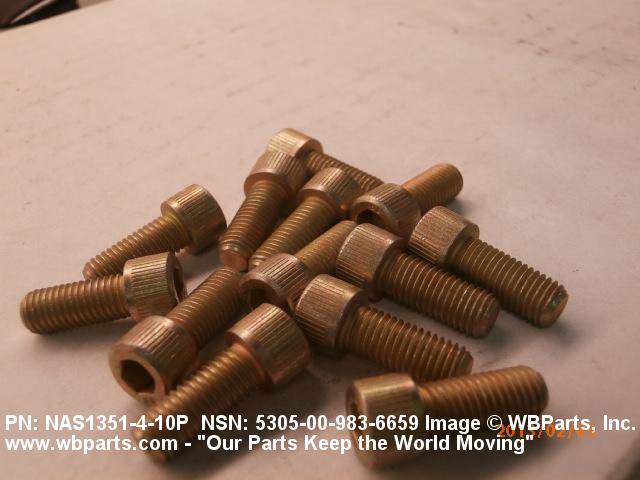

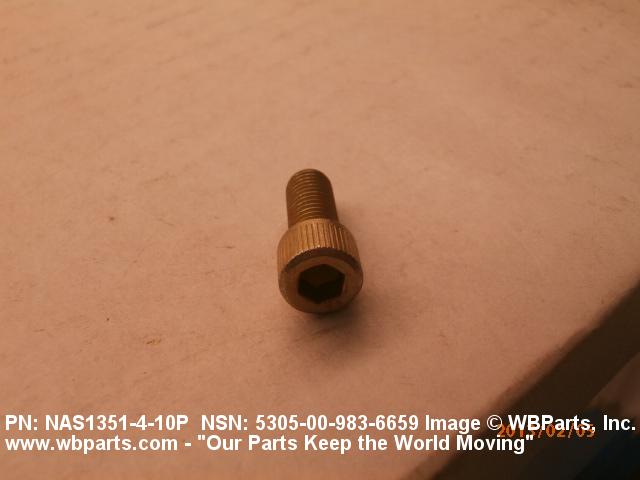

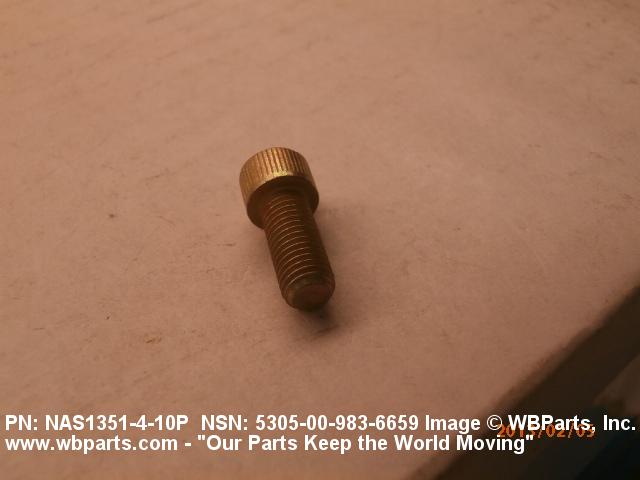

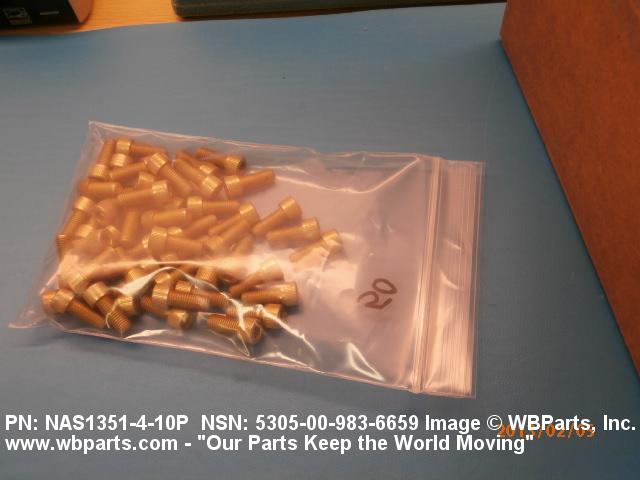

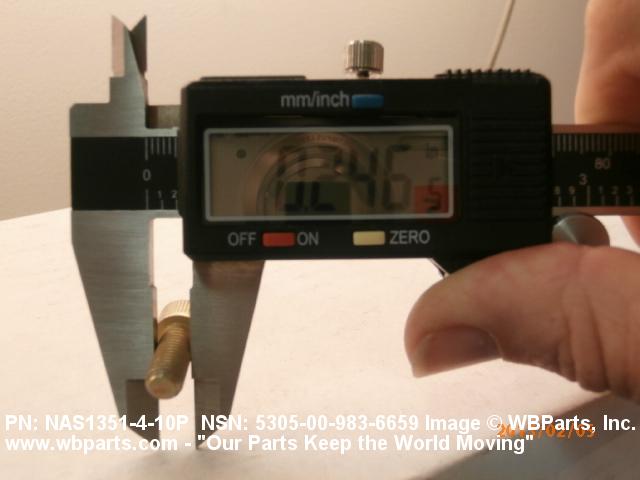

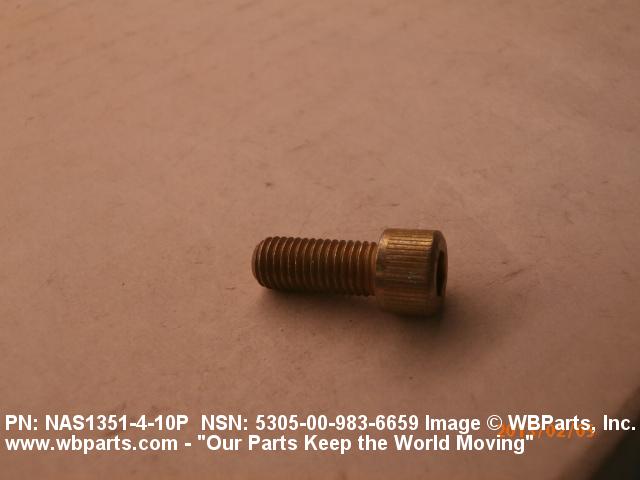

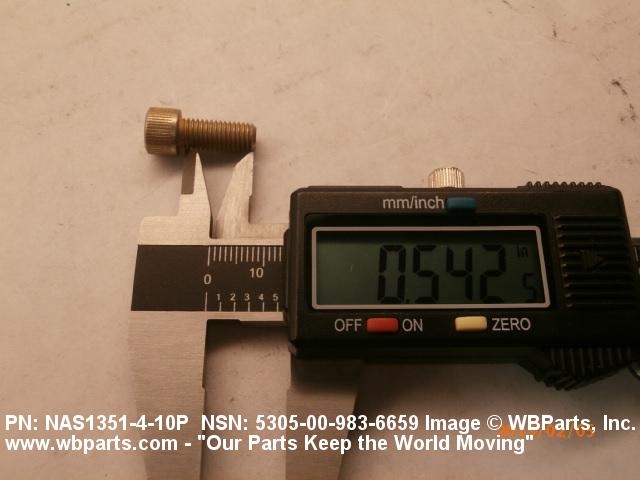

Drawings & Photos | NSN 5305-00-983-6659

Part Number	Request Date	QTY	Origin
5305-00-983-6659	2016-11-327	1	DIBBS-RFPs
MS1699842	2016-05-132	20	us
NAS1351-4-10P	2014-08-232	46	Australia
NAS1351-4-10P	2014-08-232	46	United States
NAS1351-4-10P	2014-08-232	46	United States
NAS1351-4-10P	2014-08-227	46	Australia
5305-00-983-6659	2013-11-325	1	DIBBS-RFPs
5305-00-983-6659	2013-10-291	1	DIBBS-RFPs
5305-00-983-6659	2013-09-246	1	DIBBS-RFPs
MS16998-42	2013-03-70	248
NAS1351410P	2013-01-25	50	United States
NAS1351410P	2012-07-205	3850	US
NAS1351410P	2012-07-201	25	US
5305-00-983-6659	2012-05-135	100	IL
5305-00-983-6659	2012-02-33	253	DIBBS
5305-00-983-6659	2011-06-166	259	DIBBS
MS1699842	2010-08-218	10	US
5305-00-983-6659	2010-05-124	43	DIBBS
NAS1351410P	2009-09-245	8	Netherlands
NAS1351410P	2009-01-22	296	Greece
5305-00-983-6659	2008-10-301	1	US
NAS608410P	2008-09-261	40	United States

Cross Reference | NSN 5305-00-983-6659

Part Number	Cage Code	Manufacturer
23528R1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
23528R1	66195	SOLAR TURBINES INCORPORATED
324-1504-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4912853-01	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
4912853-01	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
5305009836659	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
593-6960598 PC4	53711	NAVAL SEA SYSTEMS COMMAND
6300766-42	53711	NAVAL SEA SYSTEMS COMMAND
710-009	90031	RAYMOND CORPORATION, THE
852295	19203	PICATINNY ARSENAL
870338-00	32345	DEFENSE REDUCTION AGENCY
FF-S-86 REVISION C	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16998-42	4W343	INTEGRITY FASTENERS, INC.
MS16998-42	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35458-22	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35458-22	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1351-4-10P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS608-4-10P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
XX002-0277	H2229	RDM TECHNOLOGY B.V.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-983-6659

Compare

Related Products | NSN 5305-00-983-6659

5305-00-983-6660, 5305-00-983-6661, 5305-00-983-6662, 5305-00-983-6663, 5305-00-983-6664

Technical Data | NSN 5305-00-983-6659

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

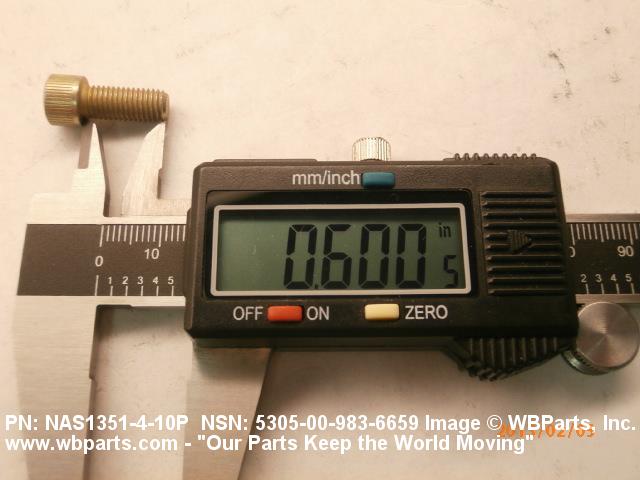

THREAD LENGTH	0.523 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH	0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	180000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	155000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM

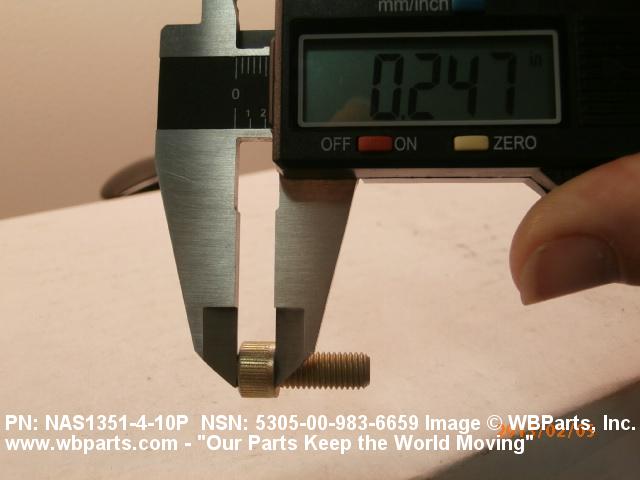

HEAD HEIGHT	0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

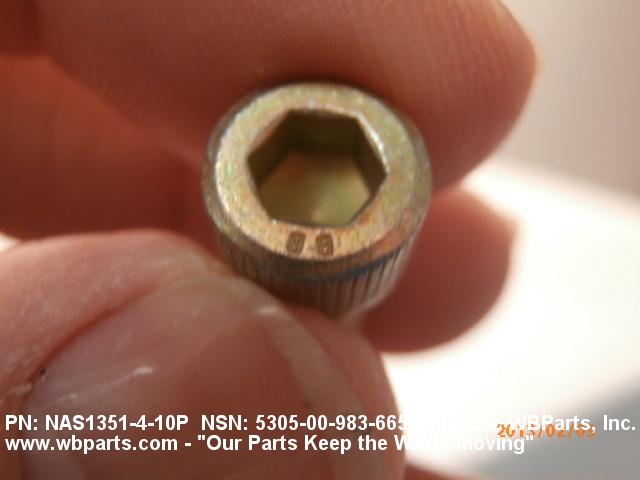

INTERNAL DRIVE STYLE	D5 HEXAGON

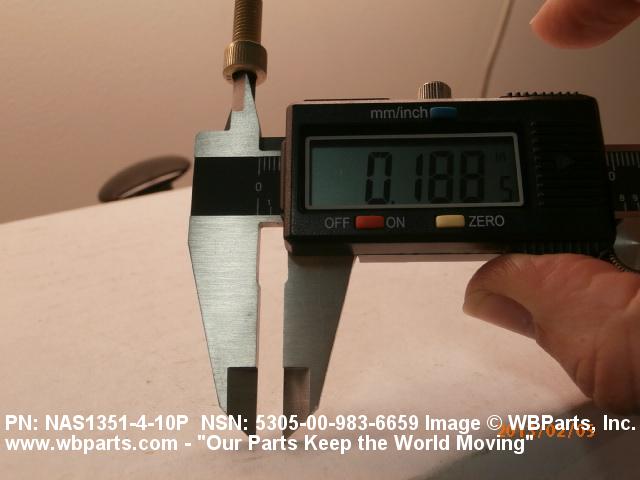

WIDTH ACROSS FLATS	0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	6 TYPE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-86 REVISION C

Restrictions/Controls & Freight Information | NSN 5305-00-983-6659

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-983-6659

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
