NSN 5305-00-959-1909 MS1699611, MS16996-11, M21699611

Product Details | SOCKET HEAD CAP SCREW

5305-00-959-1909 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699611, MS16996-11, M21699611, M216996-11, NAS1351C310, NAS1351C3-10, ASC1541663, C950000527, C950-000527, FFS86, FF-S-86, G2251611, G225161-1, 10511915, 20009210, 200092-10, 200983F10, 20098-3F10, 245473, 40021281706, 400-2128-1706, 41760877, 4176087-7, 003007948011, 003-007948-011, 5M.3014.221.04, 5M301422104, 74455245011, 947083F10, 94708-3F-10, 96110595, 5305-00-959-1909, 00-959-1909, 5305009591909 , 009591909

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-959-1909	16282 ( SCREW, CAP, SOCKET HEAD )

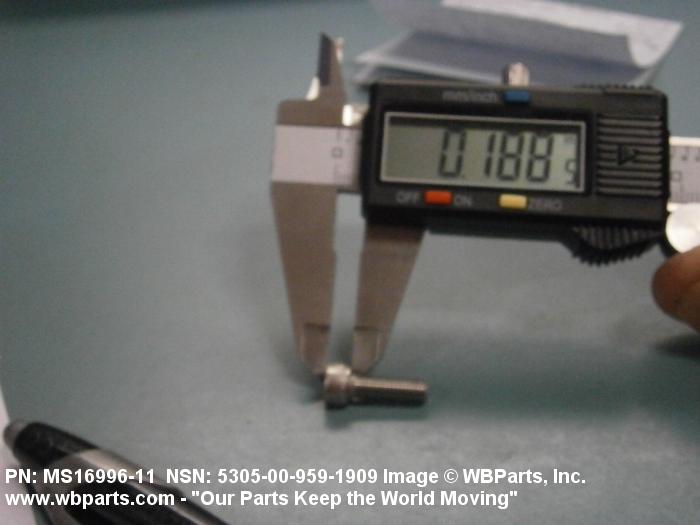

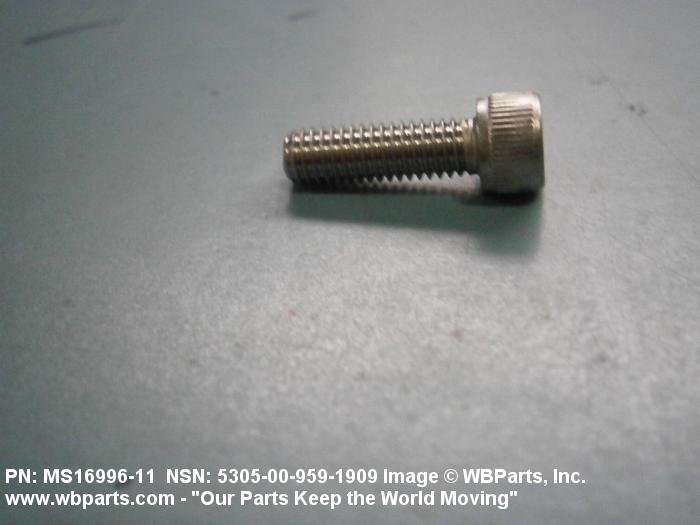

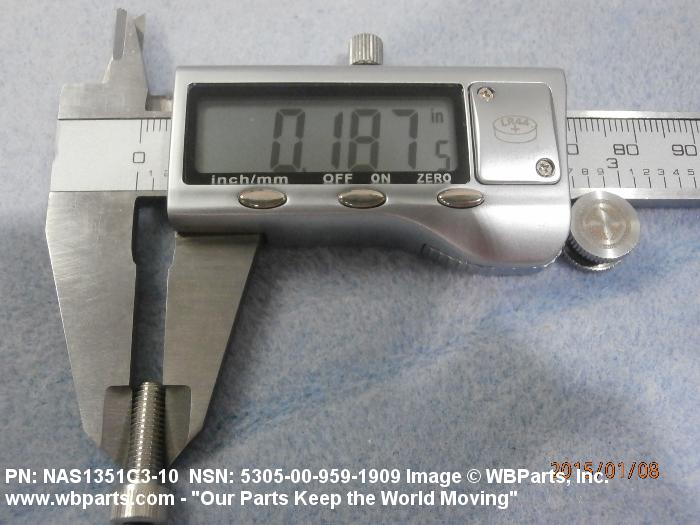

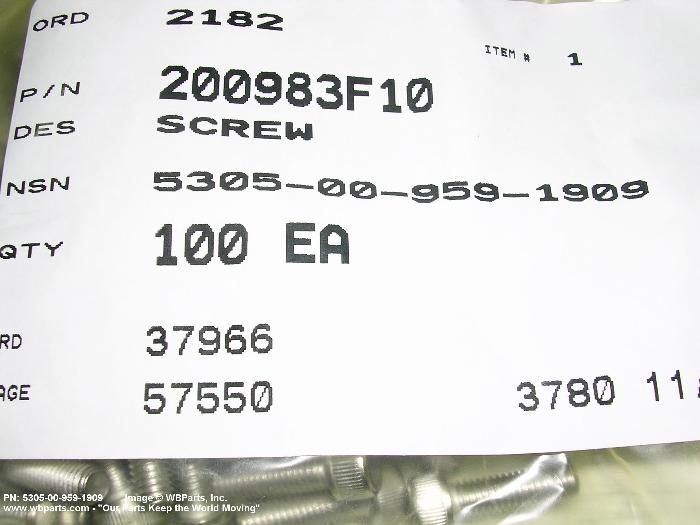

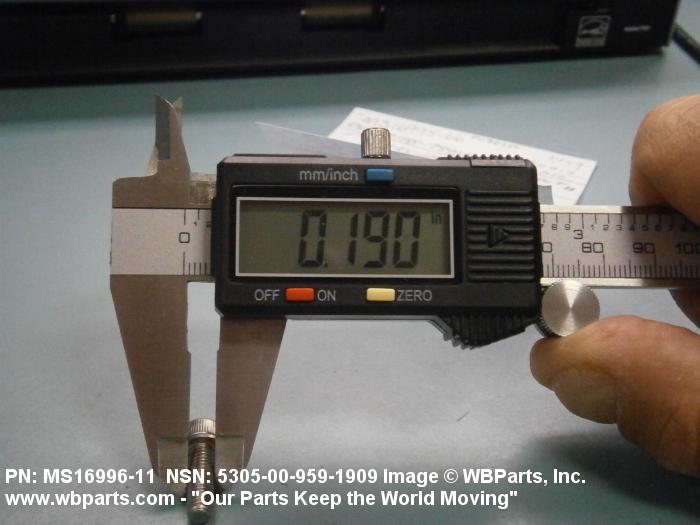

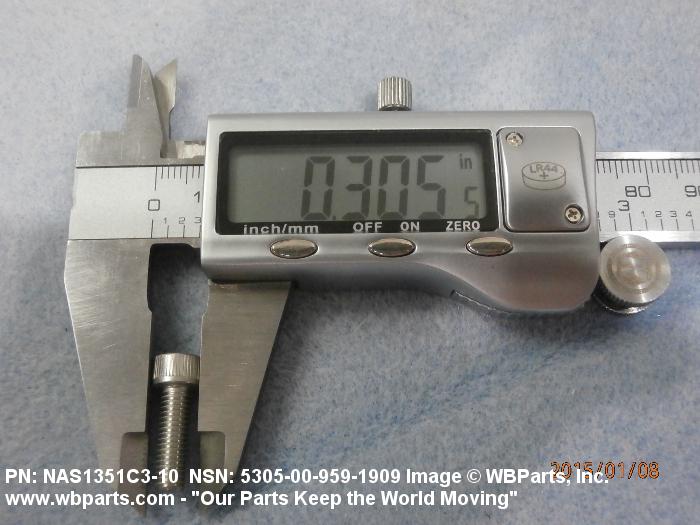

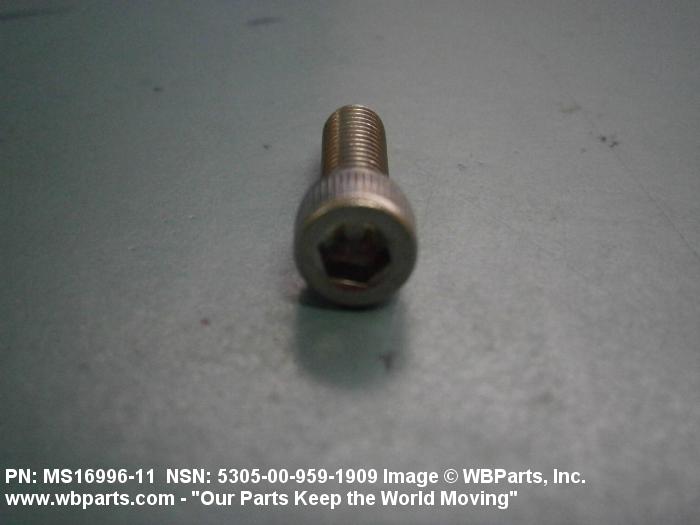

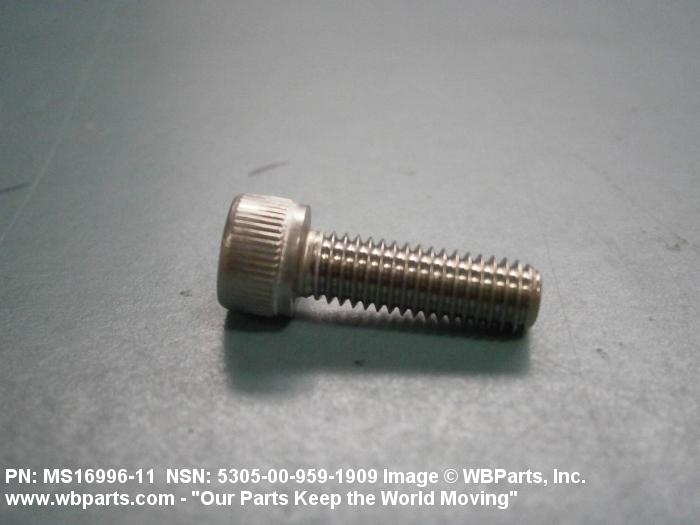

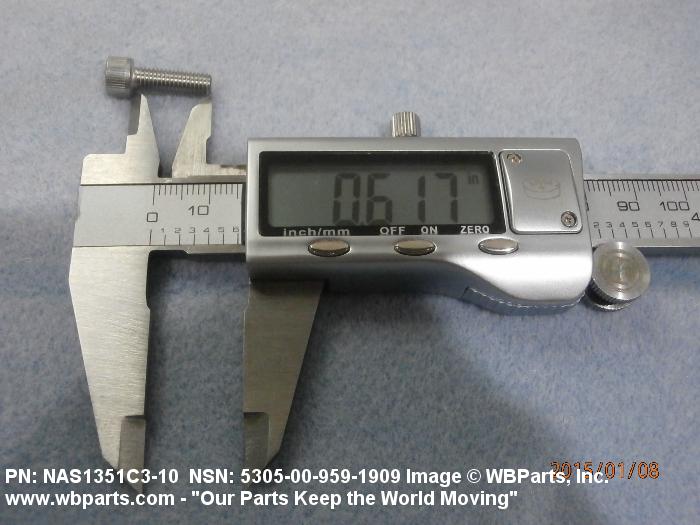

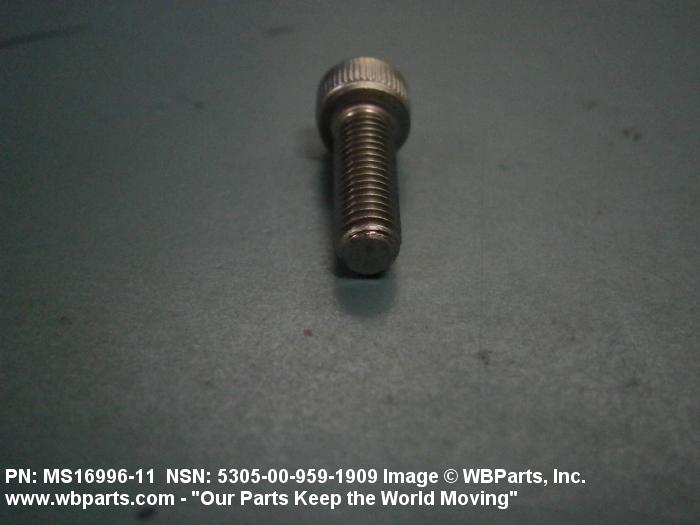

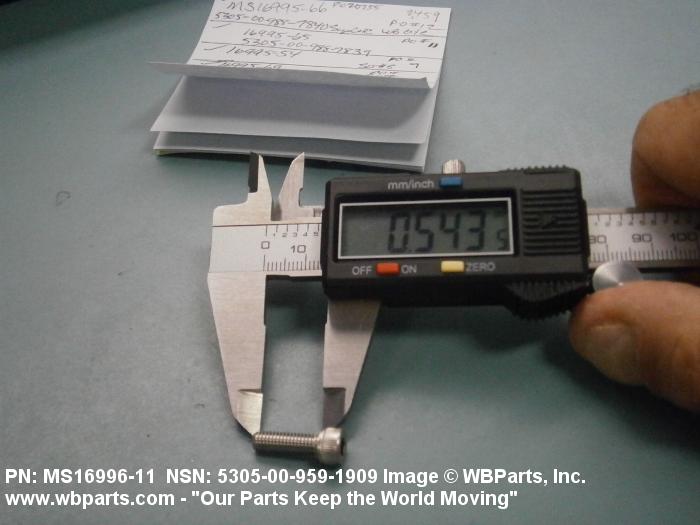

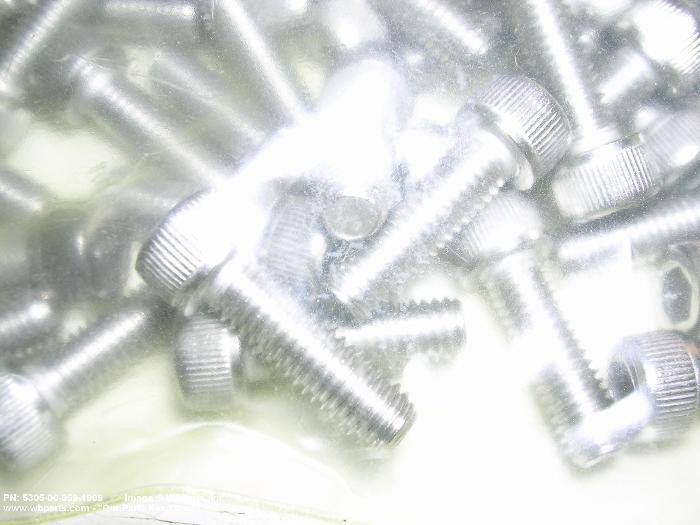

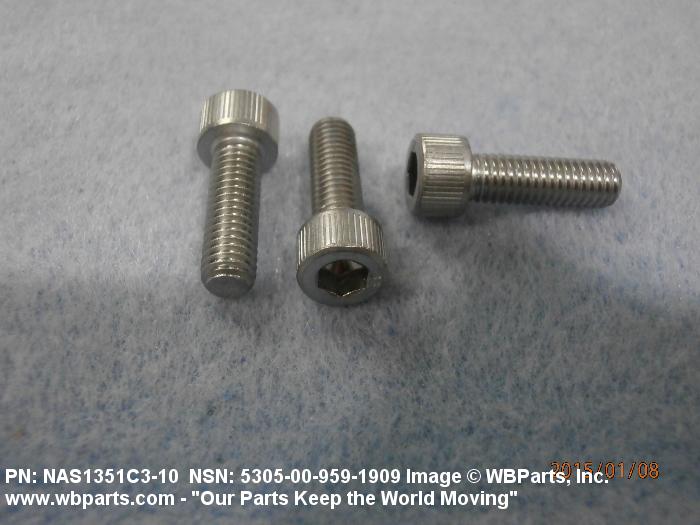

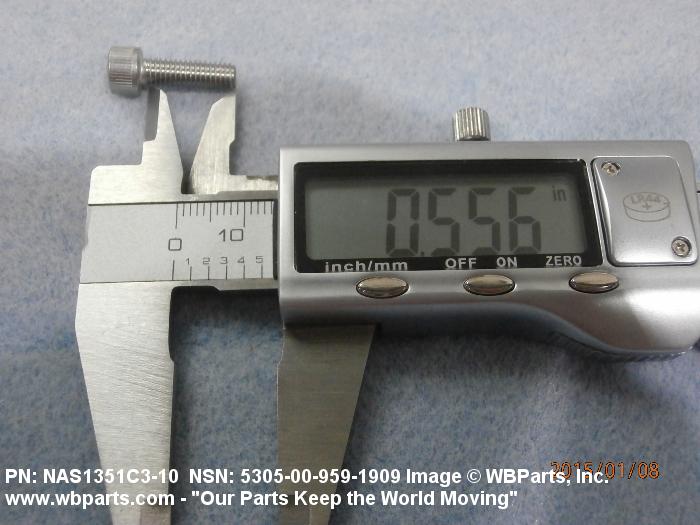

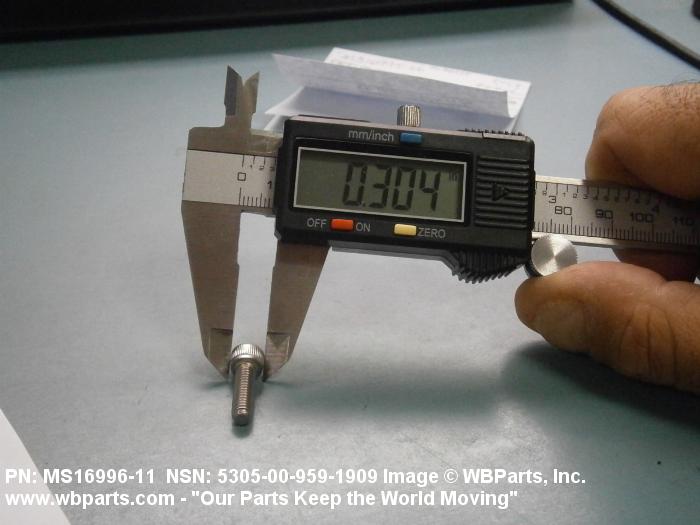

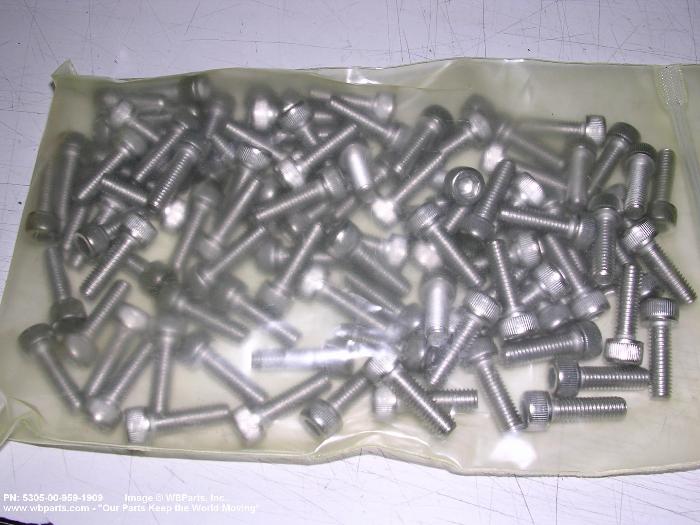

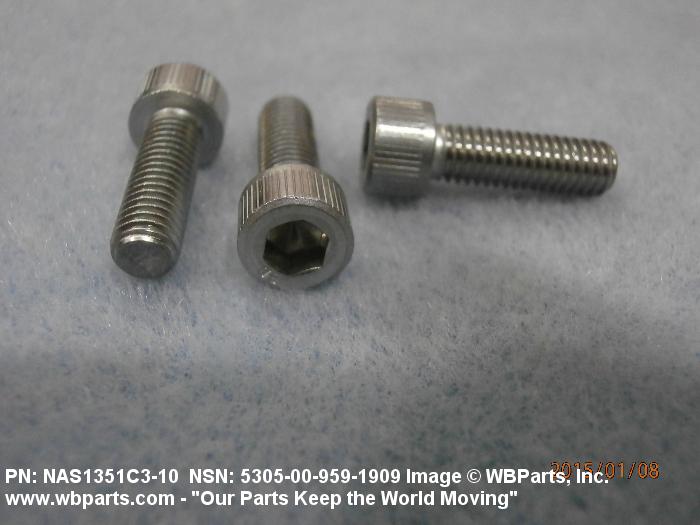

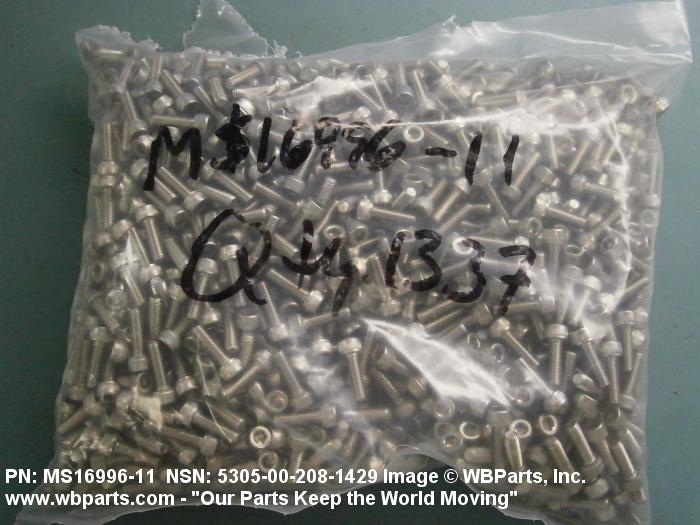

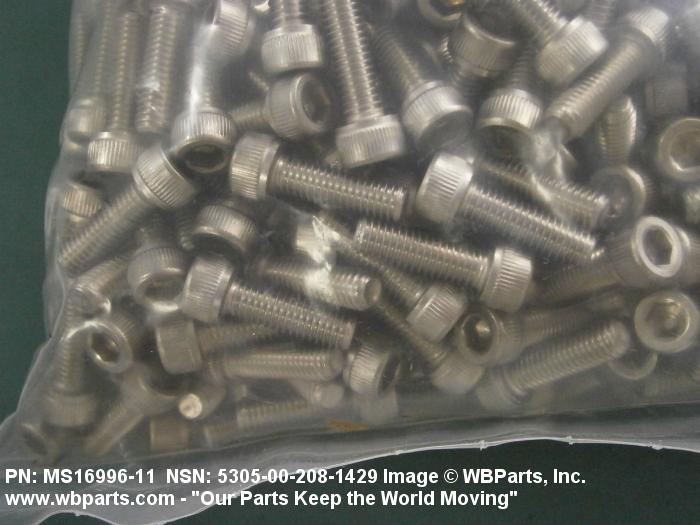

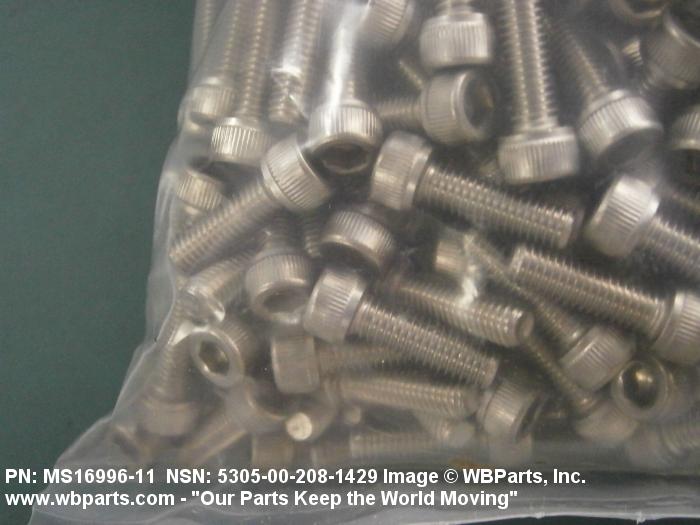

Drawings & Photos | NSN 5305-00-959-1909

Part Number	Request Date	QTY	Origin
MS16996-11	2024-10-298	500	DIBBS
NAS1351C310	2024-04-107	8840	us
5305-00-959-1909	2023-07-194	1	United Arab Emirates
MS16996-11	2023-04-101	16	United States
FFS86	2022-05-143	40	United States
MS1699611	2022-01-04	60	United States
FFS86	2021-12-347	40	US
MS1699611	2019-10-288	10	United States
MS16996-11	2018-11-310	2416	Israel
nas1351c3-10	2018-08-219	1	United States
MS16996-11	2017-01-11	128	United Arab Emirates
MS1699611	2016-12-354	40	United States
MS1699611	2016-11-312	3	United States
NAS1351C310	2014-10-280	10000	US
FFS86	2013-08-229	80	Canada
5305-00-959-1909	2013-07-184	3448	DIBBS
5305-00-959-1909	2013-05-151	1782	DIBBS
MS1699611	2013-01-09	1337	Israel
MS1699611	2013-01-09	1337	Israel
MS1699611	2013-01-09	1337	Israel
MS1699611	2013-01-09	1337	Israel
MS16996-11	2012-11-318	120	US
MS1699611	2012-04-102	200	United States
FFS86	2012-03-74	2	US
NAS1351C310	2011-12-349	400	United States
MS1699611	2011-08-223	50	United States
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
MS1699611	2011-05-145	4	us
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
MS1699611	2011-02-33	480	TW
MS1699611	2009-10-301	209	India
5305-00-959-1909	2009-09-268	280	US
MS1699611	2009-09-251	440	US
MS1699611	2009-01-26	200	US
MS1699611	2009-01-22	444	Greece
NAS1351C310	2007-12-346	30	United States
NAS1351C310	2007-11-325	17	United States
NAS1351C310	2007-11-317	30	United States
200983F10	2007-10-292	100	United States
5305-00-959-1909	2006-08-242	24	France

Cross Reference | NSN 5305-00-959-1909

Part Number	Cage Code	Manufacturer
003-007948-011	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
10511915	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
200092-10	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
20098-3F10	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
245473	35679	SINCLAIR TECHNOLOGIES INC.
400-2128-1706	0ZW37	DANKA OFFICE IMAGING COMPANY
400-2128-1706	32153	EASTMAN KODAK CO COMMERCIAL & GOVERNMENT SYSTEMS
4176087-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305009591909	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5M.3014.221.04	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
74455245011	89944	KOLLSMAN, INC.
94708-3F-10	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
96110595	F8294	THALES UNDERWATER SYSTEMS SAS DBA T U S
ASC1541663	Z4779	ASC PTY LTD
C950-000527	81833	TRANSDIGM, INC. DBA AEROCONTROLEX
FF-S-86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G225161-1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M216996-11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16996-11	3LRU1	SPEC TECH USA, INC.
MS16996-11	6F810	IDEAL FASTENERS INC.
MS16996-11	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16996-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1351C3-10	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-959-1909

Compare

Related Products | NSN 5305-00-959-1909

5305-00-959-1910, 5305-00-959-2242, 5305-00-959-2345, 5305-00-959-2346, 5305-00-959-2376

Technical Data | NSN 5305-00-959-1909

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.533 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH	0.595 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER
HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.313 INCHES MAXIMUM
HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	6 TYPE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-86

Restrictions/Controls & Freight Information | NSN 5305-00-959-1909

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-959-1909

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
