Product Details | DRIVE SCREW

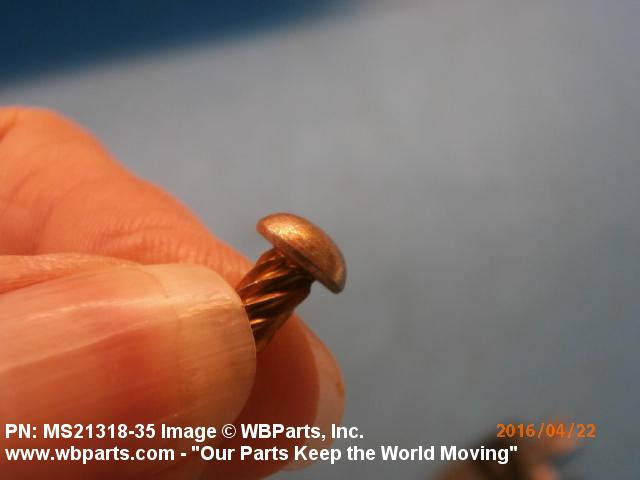

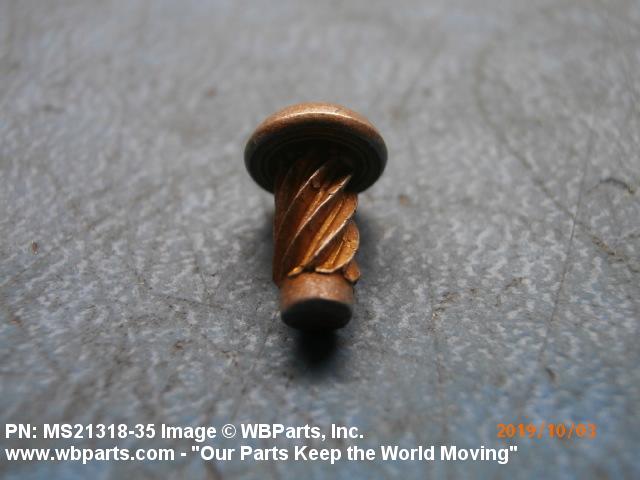

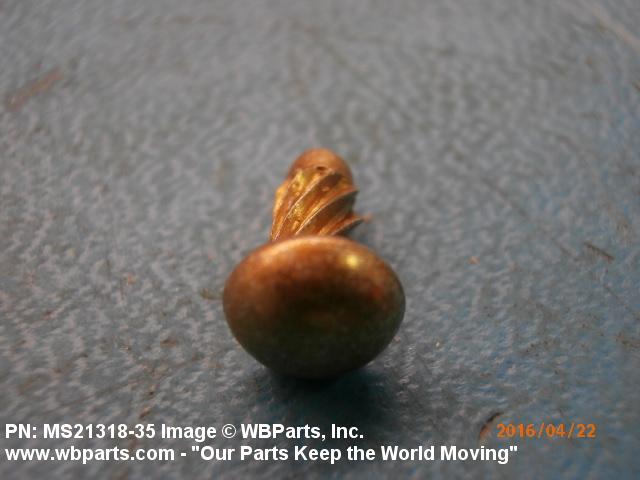

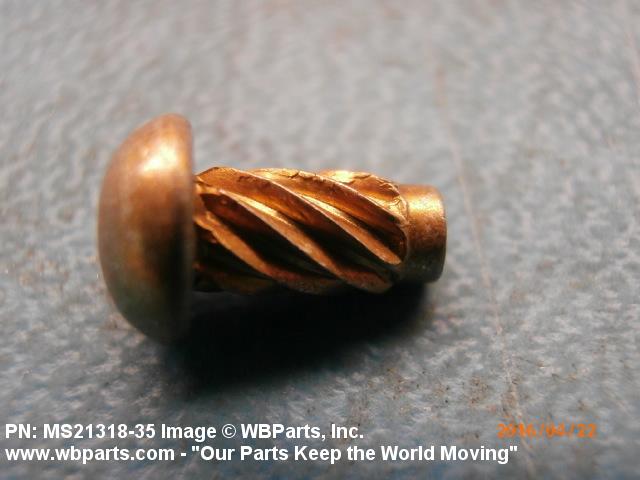

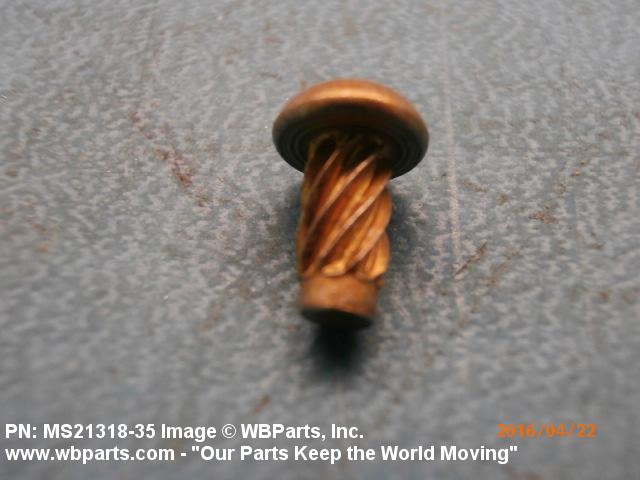

5305-00-951-2437 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: MS2131835, MS21318-35, 5544420, 55444-20 , 10403C, 5305-00-951-2437, 00-951-2437, 5305009512437, 009512437

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-951-2437

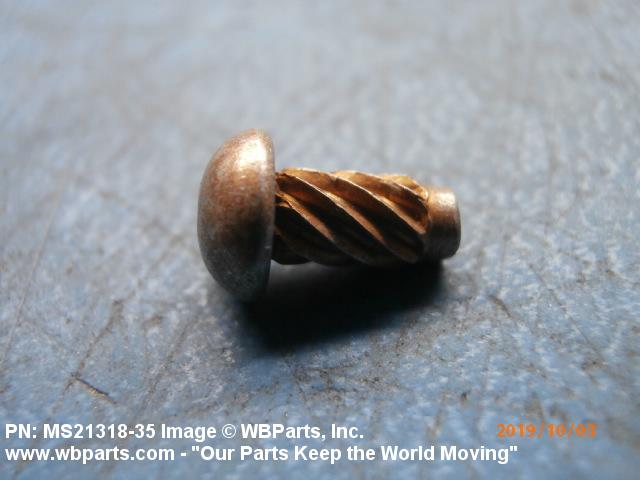

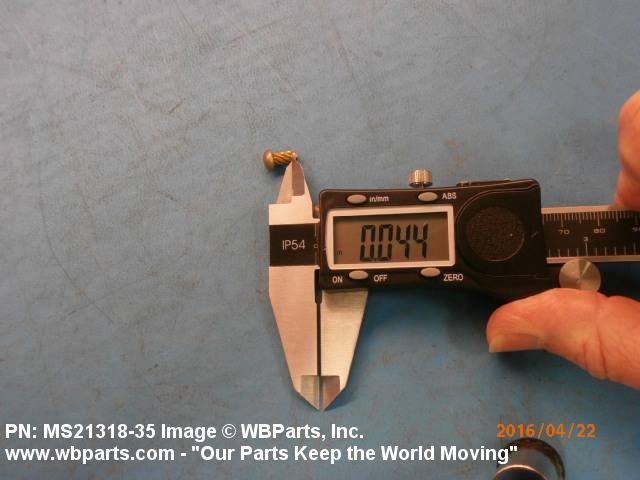

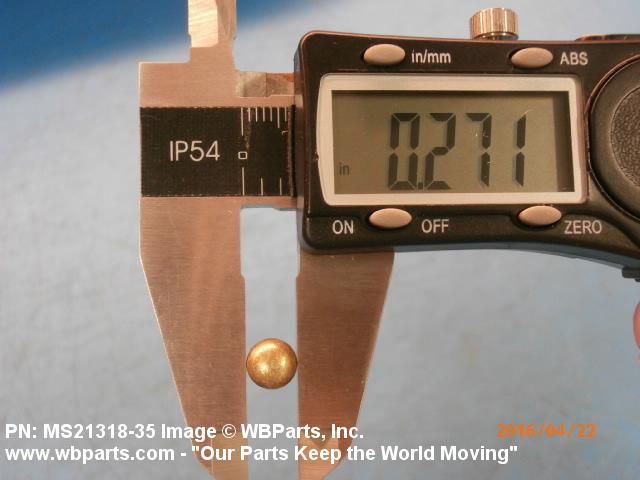

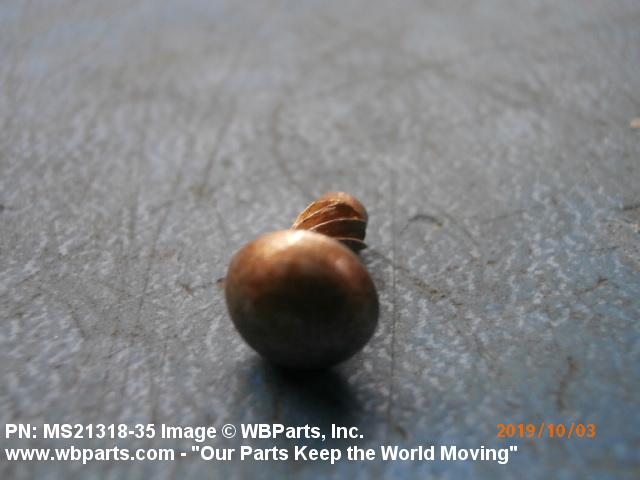

Drawings & Photos | NSN 5305-00-951-2437


Demand History | NSN 5305-00-951-2437

Part Number Request Date QTY Origin
5305-00-951-2437 2019-11-329 219 DIBBS
5305-00-951-2437 2019-11-321 219 DIBBS
MS2131835 2019-09-261 44 United States
MS2131835 2016-03-82 14 United States
5305-00-951-2437 2016-02-40 14 United States
MS2131835 2012-12-346 3500 United States
MS2131835 2012-12-346 3500 United States
5305-00-951-2437 2010-07-194 20440 US
MS2131835 2009-07-205 840 US
5305-00-951-2437 2009-07-203 800 US
MS2131835 2009-07-198 200 US
5305-00-951-2437 2009-07-196 810 United States
5305-00-951-2437 2009-07-182 800 US
5305-00-951-2437 2009-07-182 810 US
5305-00-951-2437 2009-05-141 236 DIBBS
5305-00-951-2437 2009-03-89 170 DIBBS
5305-00-951-2437 2008-12-359 33 DIBBS
5305-00-951-2437 2008-05-127 73 DIBBS

Cross Reference | NSN 5305-00-951-2437

Part Number Cage Code Manufacturer
10403C 59431 TECUMSEH PRODUCTS CO
10403C D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21318-35 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21318-35 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-951-2437

Technical Data | NSN 5305-00-951-2437

Characteristic Specifications
NONMACHINE THREAD STYLE A16 DRIVE SCREW

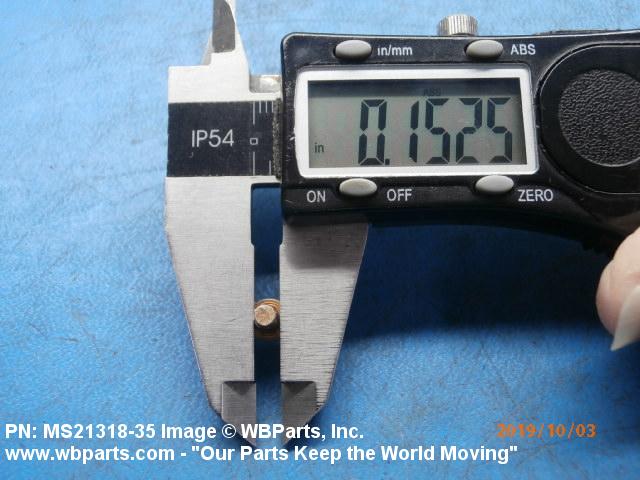

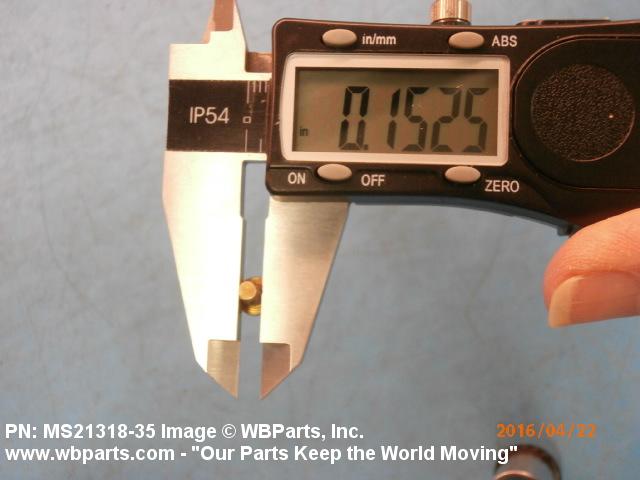

NONMACHINE NOMINAL THREAD DIAMETER 0.152 INCHES

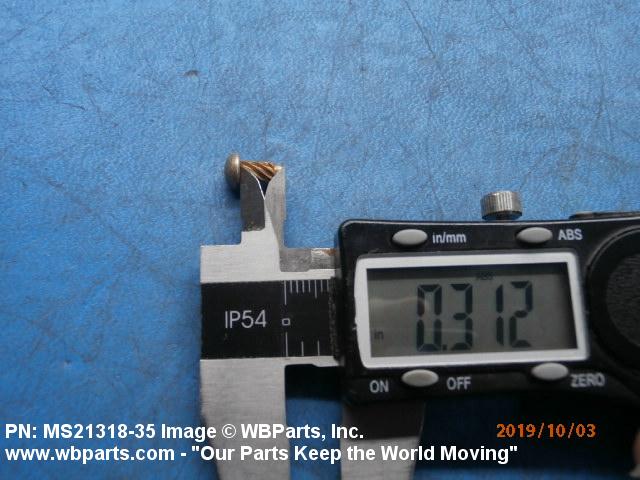

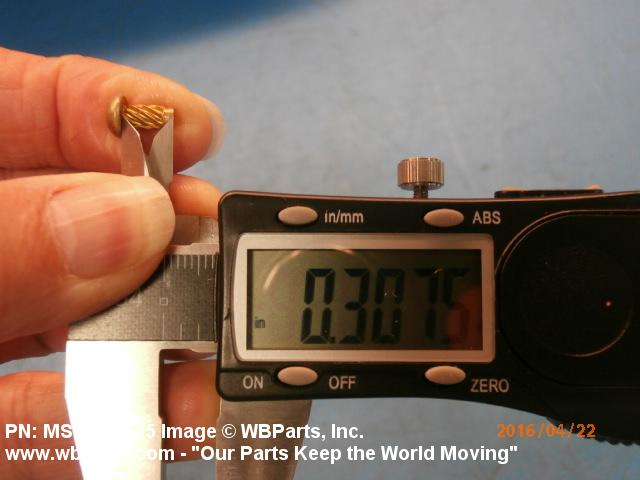

FASTENER LENGTH 0.312 INCHES NOMINAL
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL

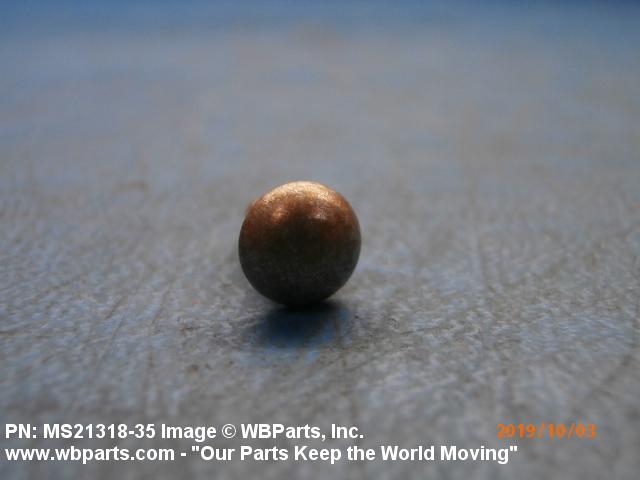

HEAD STYLE C37 ROUND

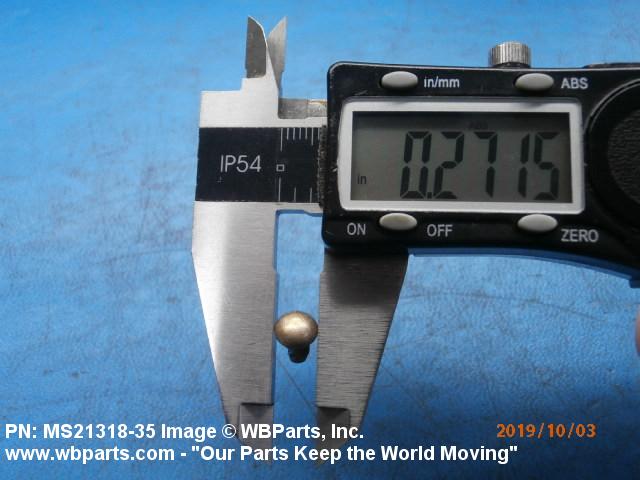

HEAD DIAMETER 0.264 INCHES MINIMUM AND 0.285 INCHES MAXIMUM

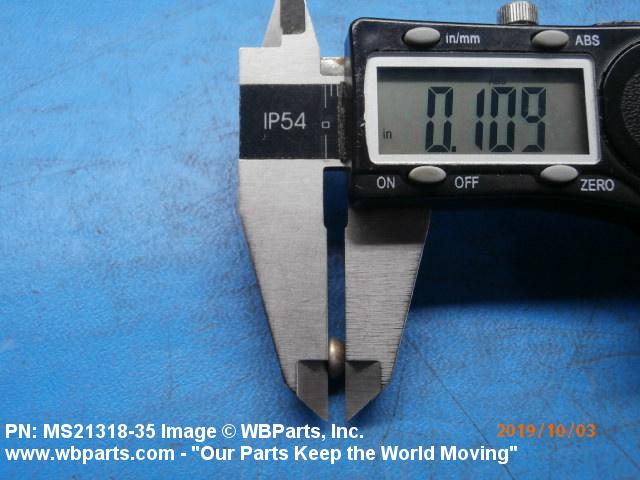

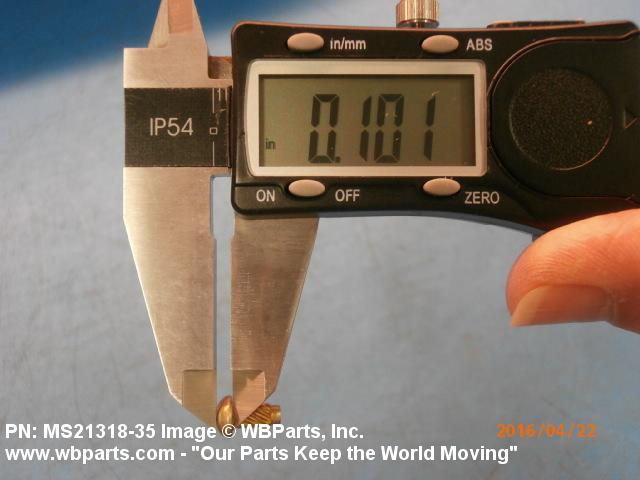

HEAD HEIGHT 0.099 INCHES MINIMUM AND 0.111 INCHES MAXIMUM

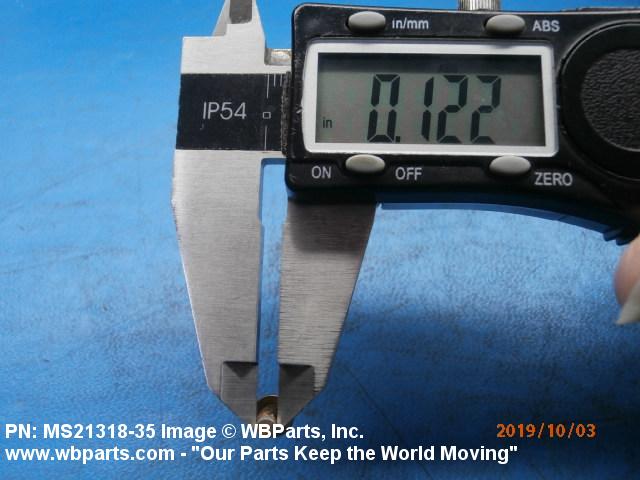

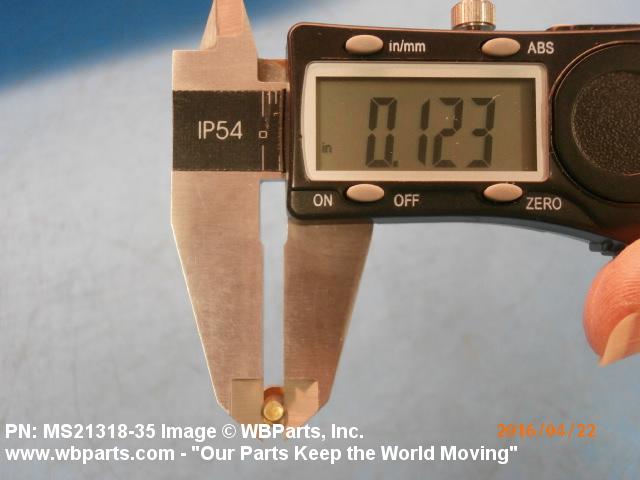

PILOT DIAMETER 0.122 INCHES MINIMUM AND 0.126 INCHES MAXIMUM

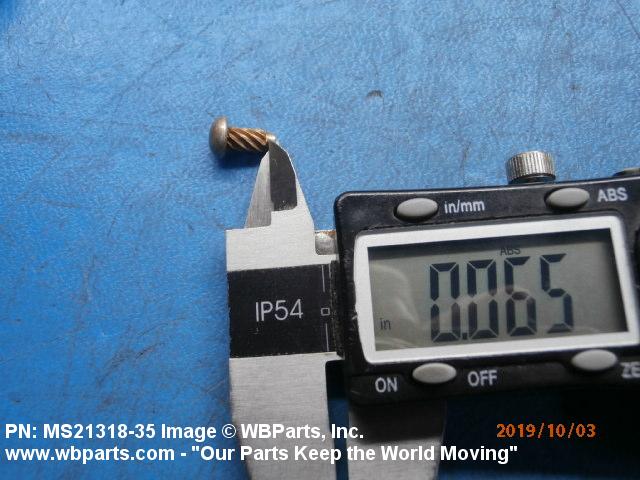

PILOT LENGTH 0.047 INCHES NOMINAL
FEATURES PROVIDED CASEHARDENED

Restrictions/Controls & Freight Information | NSN 5305-00-951-2437

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-00-951-2437

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesXSEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
