Product Details | HEXAGON HEAD CAP SCREW

5305-00-947-4355 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS35291192, MS35291-192, MS90725192, MS90725-192, MS90728192, MS90728-192, AES01C750C25AW9A91, ASME B18.2.1 , ASMEB1821, B1821BH075C325N, D301231 FIND 8, D301231FIND8, D301293 FIND 15, D301293FIND15, E108609 FIND 275, E108609FIND275, PL-315394 PC 55, PL315394PC55, 5305PL0780985 , 02113831, 021-13831, 02113881, 021-13881, 216090, 315394 PC 55, 315394PC55, 35826330, 358-26330, 5305-00-947-4355, 00-947-4355, 5305009474355, 009474355

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 MAR 1966	00-947-4355	18257 ( SCREW, CAP, HEXAGON HEAD )

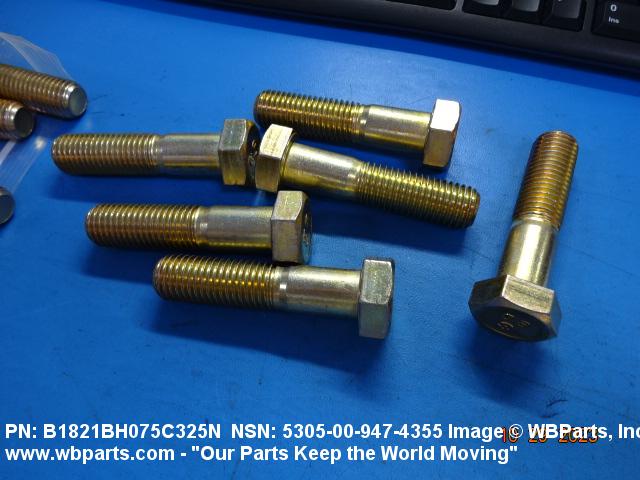

Drawings & Photos | NSN 5305-00-947-4355

Part Number	Request Date	QTY	Origin
5305-00-947-4355	2023-11-307	200	US
MS90725192	2023-11-307	200	US
5305-00-947-4355	2023-09-255	25	Turkey
5305-00-947-4355	2021-03-84	7464	US
5305-00-947-4355	2021-03-76	7464	DIBBS
5305-00-947-4355	2020-11-321	4907	DIBBS
5305-00-947-4355	2020-11-309	4907	DIBBS
ASMEB1821	2020-07-189	48	United States
ASMEB1821	2020-07-189	8	United States
MS90725192	2019-12-344	56	United States
B1821BH075C325N	2014-03-71	368	United States
ASMEB1821	2014-03-65	5	South Africa
5305-00-947-4355	2013-07-183	4	US
ASMEB1821	2011-04-111	160	United States
MS90728192	2010-05-133	60	United Arab Emirates
5305-00-947-4355	2009-11-316	4	US
5305-00-947-4355	2009-07-197	12608	DIBBS
ASMEB1821	2009-04-97	24	United States
ASMEB1821	2008-01-23	80	United States

Cross Reference | NSN 5305-00-947-4355

Part Number	Cage Code	Manufacturer
021-13831	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
021-13881	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
216090	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
315394 PC 55	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE
358-26330	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305PL0780985	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
AES01C750C25AW9A91	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH075C325N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
D301231 FIND 8	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
D301293 FIND 15	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
E108609 FIND 275	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
MS35291-192	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS90725-192	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90728-192	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PL-315394 PC 55	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-947-4355

Compare

Related Products | NSN 5305-00-947-4355

5305-00-947-4356, 5305-00-947-4357, 5305-00-947-4358, 5305-00-947-4359, 5305-00-947-4360

Technical Data | NSN 5305-00-947-4355

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

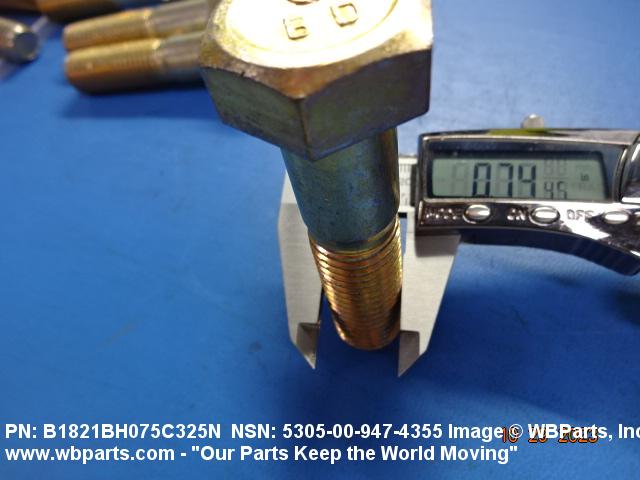

NOMINAL THREAD DIAMETER	0.750 INCHES
THREAD QUANTITY PER INCH	10
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

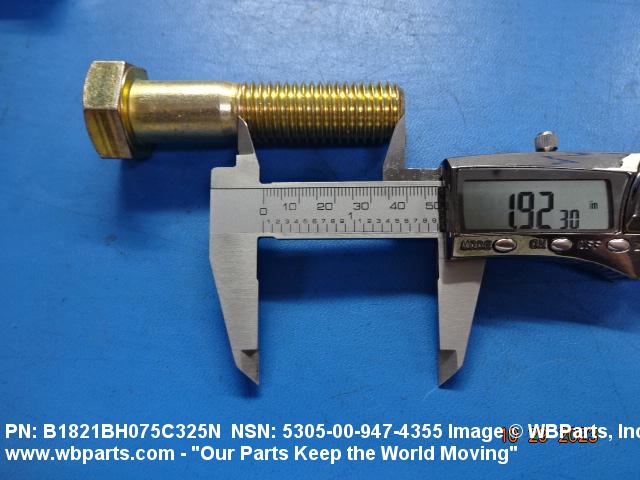

THREAD LENGTH	1.750 INCHES MINIMUM AND 2.000 INCHES MAXIMUM

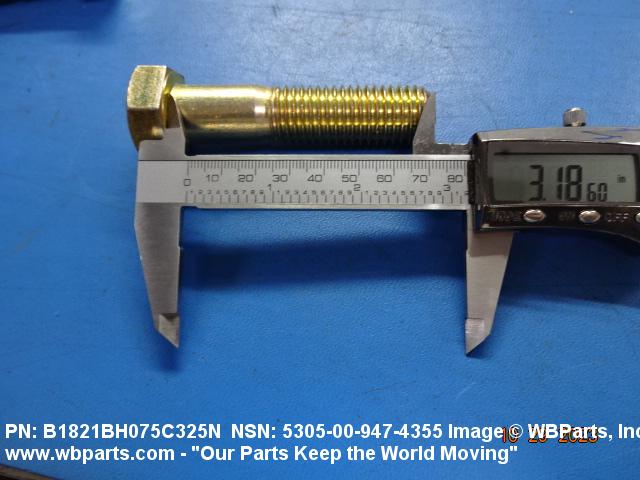

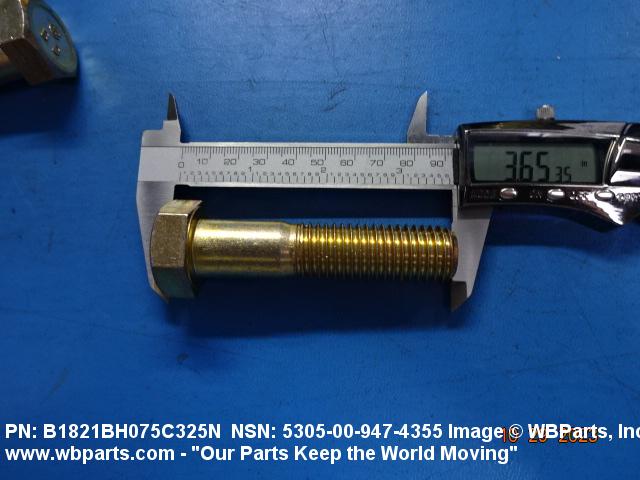

FASTENER LENGTH	3.250 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAEJ429 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354 GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	33.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	120000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

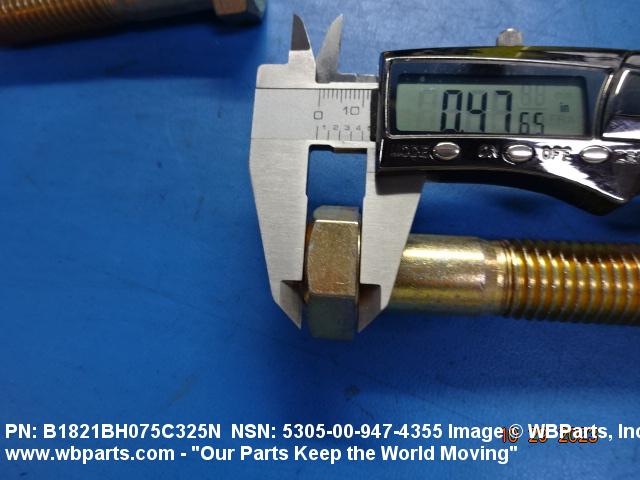

HEAD HEIGHT	0.455 INCHES MINIMUM AND 0.483 INCHES MAXIMUM

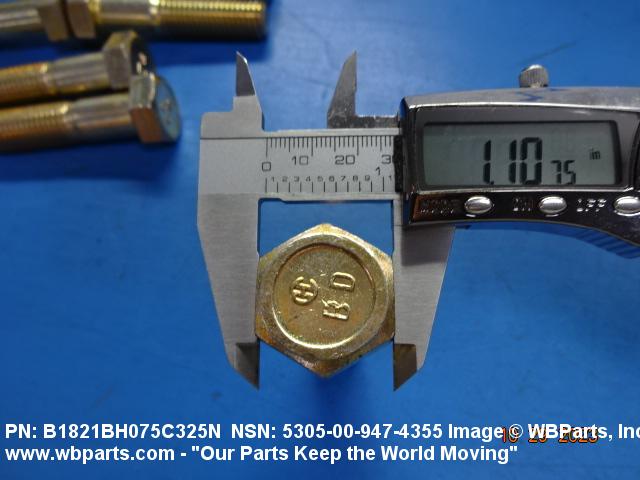

WIDTH BETWEEN FLATS	1.100 INCHES MINIMUM AND 1.125 INCHES MAXIMUM
