NSN 5305-00-942-2196 MS1815460, MS18154-60, MS35275234

Product Details | HEXAGON HEAD CAP SCREW

5305-00-942-2196 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS1815460, MS18154-60, MS35275234, MS35275-234 , MS3529760, MS35297-60, MS3530160, MS35301-60, MS51095360, MS51095-360, MS9072560, MS90725-60, B1821BH038C100D, CAV71C616G, CAV71-C6-16G , 13616, 13-616, 16470 , 16470ADX, 179839, 1993, 1C6175P17, 218150, 21894, 29418822, 403420, 91047234, 91047-234 , 9427321, 9428M65P20, 9909427321, 99121894, 99-9427321, 5305-00-942-2196, 00-942-2196, 5305009422196, 009422196, 999427321

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 DEC 1965	00-942-2196	18257 ( SCREW, CAP, HEXAGON HEAD )

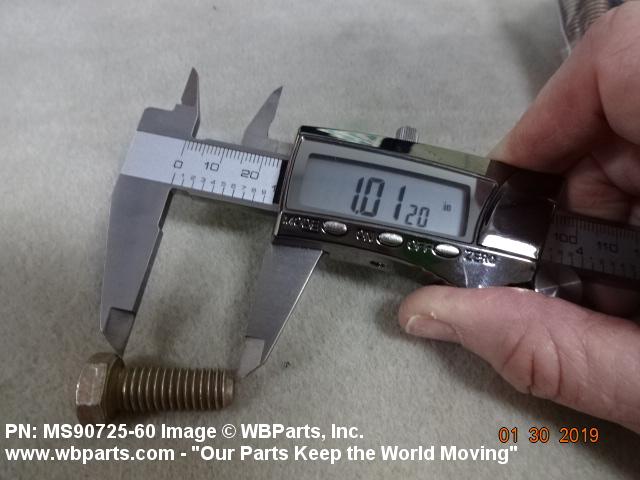

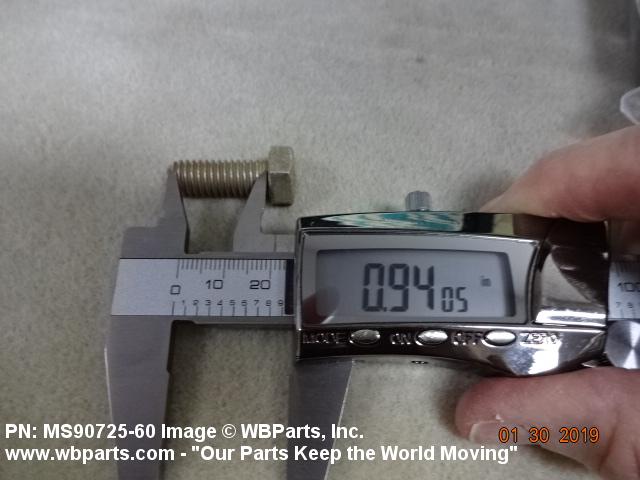

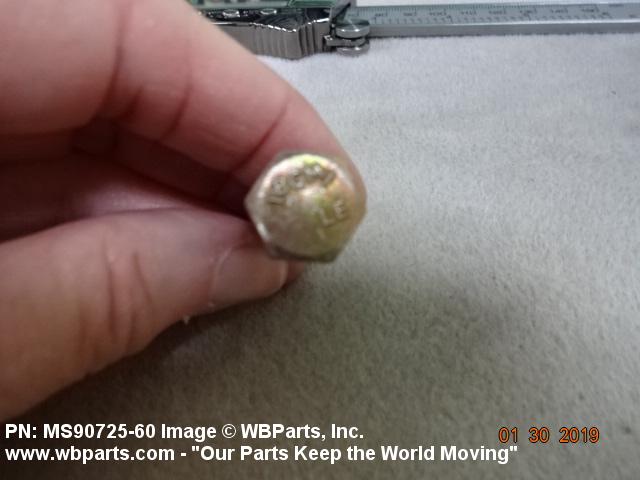

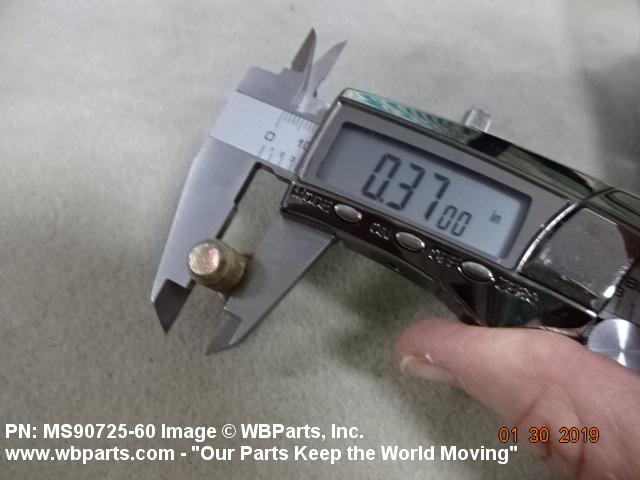

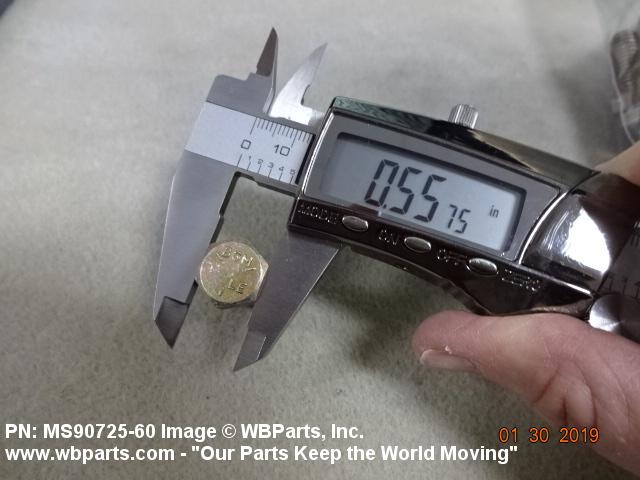

Drawings & Photos | NSN 5305-00-942-2196

Part Number	Request Date	QTY	Origin
009422196	2024-08-215	68	us
5305-00-942-2196	2023-08-233	60	US
MS9072560	2019-08-232	64	United States
MS9072560	2019-01-23	100	United States
5305-00-942-2196	2018-02-35	4262	DIBBS
5305-00-942-2196	2016-12-344	20	United States
MS9072560	2016-08-231	2000	KR
5305-00-942-2196	2016-07-186	258	DIBBS
MS90725-60	2014-03-71	46	United States
MS9072560	2013-04-107	60	United States
MS90725-60	2013-02-58	1	US
MS9072560	2012-09-262	4	United States
MS9072560	2012-06-160	100	United States
MS1815460	2012-04-93	108	US
MS9072560	2012-03-62	1	US
MS9072560	2010-05-139	275	United States
5305-00-942-2196	2009-07-203	6	Thailand
MS35275234	2009-04-92	190	US
5305-00-942-2196	2008-06-161	6309	US
5305-00-942-2196	2007-05-150	22	United States
MS9072560	2005-12-362	14500	us

Cross Reference | NSN 5305-00-942-2196

Part Number	Cage Code	Manufacturer
0400126	32MY9	MILLER INDUSTRIES TOWING EQUIPMENT INC.
13-616	10988	CNH INDUSTRIAL AMERICA LLC
179839	72915	GENERAL MOTORS CORP ELECTRO-MOTIVE DIV
180122	338X5	NAVISTAR DEFENSE LLC
1993	49576	QUINCY COMPRESSOR DIVISION OF COLTEC INDUSTRIES INC
1C6175P17	07482	GENERAL ELECTRIC COMPANY DBA GE
21894	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
29418822	51186	CENTURY DATA SYSTEMS
403420	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
5305009422196	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0837178	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
9427321	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
9428M65P20	07482	GENERAL ELECTRIC COMPANY DBA GE
99-9427321	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
99-9427321	65282	WHITE MOTOR CORP
9909427321	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
99121894	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AES01C375A00AW9A97	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
ASME-B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH038C100D	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
ESP-B-2.121-PP	338X5	NAVISTAR DEFENSE LLC
MS18154-60	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS18154-60	A9271	GORIZIANE GROUP SPA
MS35297-60	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35301+60	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35301-60	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51095-360	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-60	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-942-2196

Compare

Related Products | NSN 5305-00-942-2196

5305-00-942-2211, 5305-00-942-2212, 5305-00-942-2213, 5305-00-942-2214, 5305-00-942-2215

Technical Data | NSN 5305-00-942-2196

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	1.000 INCHES MAXIMUM
FASTENER LENGTH	0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A354, GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	E6 HEXAGON FLATS
HOLE TYPE	DRILLED
HOLE QUANTITY	1
HOLE DIAMETER	0.062 INCHES NOMINAL
SURFACE FINISH	63.0 MICROINCHES THREADS

Restrictions/Controls & Freight Information | NSN 5305-00-942-2196

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-942-2196

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
