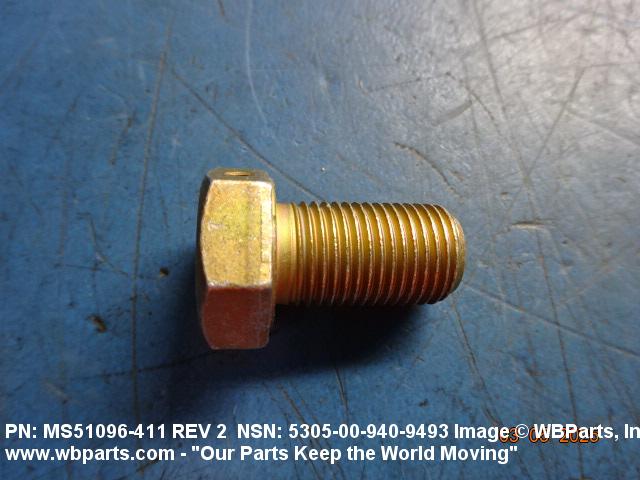

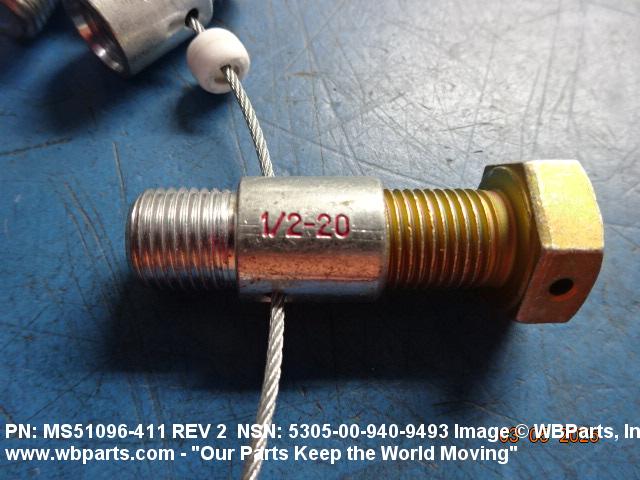

Product Details | HEXAGON HEAD CAP SCREW
5305-00-940-9493 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS51096411, MS51096-411, FFS85, 5305-00-940-9493, 00-940-9493, 5305009409493, 009409493
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1965 | 00-940-9493 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |
Drawings & Photos | NSN 5305-00-940-9493
Demand History | NSN 5305-00-940-9493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-940-9493 | 2016-08-216 | 32 | DIBBS |
| FFS85 | 2013-01-11 | 473 | US |
| FFS85 | 2011-10-280 | 95 | United States |
| FFS85 | 2011-09-265 | 14 | US |
| FFS85 | 2010-03-84 | 100 | US |
| FFS85 | 2010-02-43 | 10 | United States |
| FFS85 | 2009-09-272 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-940-9493
Related Products | NSN 5305-00-940-9493
Technical Data | NSN 5305-00-940-9493
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.719 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| FASTENER LENGTH | 0.844 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1524 OR STEEL COMP 1025 OR STEEL COMP 1026 OR STEEL COMP 1527 OR STEEL COMP 1029 OR STEEL COMP 1030 OR STEEL COMP 1033 OR STEEL COMP 1034 OR STEEL COMP 1035 OR STEEL COMP 1536 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OR STEEL COMP 1541 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 34.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.302 INCHES MINIMUM AND 0.323 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.092 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES THREADS |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 10P STYLE AND 5 GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS85 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51096-411 |
Restrictions/Controls & Freight Information | NSN 5305-00-940-9493
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
