NSN 5305-00-940-8068 MS51095513, MS51095-513, MS90728234
Product Details | HEXAGON HEAD CAP SCREW
5305-00-940-8068 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS51095513, MS51095-513, MS90728234, MS90728-234, B1821BH100C300N, CJ67290PC 4, CJ67290PC4, 01070-0223REVB PIECE 158, 010700223REVBPIECE158, 122-2422337 PIECE 33, 1222422337PIECE33, 131648, 13-1648, 5305-00-940-8068, 00-940-8068, 5305009408068, 009408068
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1965 | 00-940-8068 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

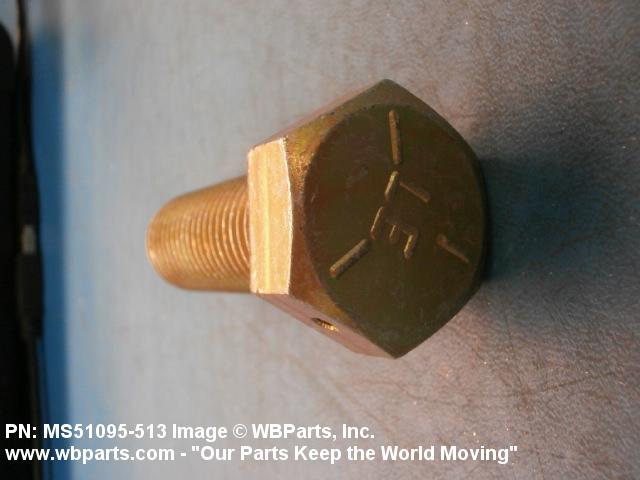

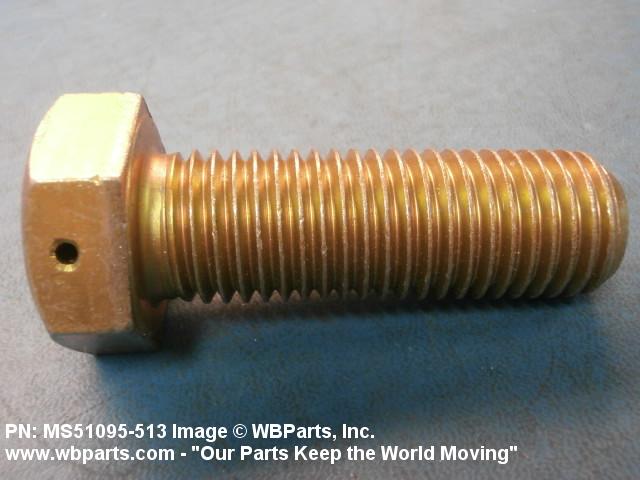

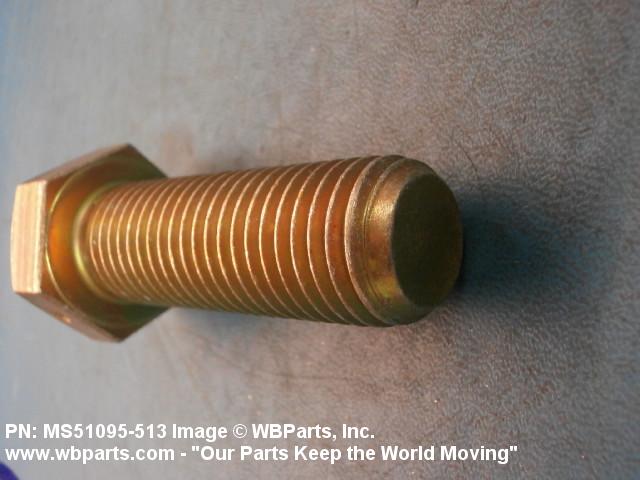

Drawings & Photos | NSN 5305-00-940-8068
Demand History | NSN 5305-00-940-8068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-940-8068 | 2024-01-07 | 310 | DIBBS |
| 5305-00-940-8068 | 2023-09-271 | 720 | United States |
| 5305-00-940-8068 | 2023-06-180 | 310 | DIBBS |
| 5305-00-940-8068 | 2023-02-32 | 330 | DIBBS |
| 5305-00-940-8068 | 2023-01-24 | 330 | DIBBS |
| 5305-00-940-8068 | 2022-02-38 | 1890 | DIBBS |
| 5305-00-940-8068 | 2022-01-25 | 1890 | DIBBS |
| MS51095513 | 2016-10-279 | 25 | United States |
| 5305-00-940-8068 | 2015-11-334 | 4089 | DIBBS |
| B1821BH100C300N | 2014-03-71 | 138 | United States |
| 5305-00-940-8068 | 2012-08-233 | 5696 | DIBBS |
| 5305-00-940-8068 | 2012-03-86 | 4117 | DIBBS |
| 5305-00-940-8068 | 2010-04-102 | 2146 | DIBBS |
| 5305-00-940-8068 | 2009-06-153 | 2000 | DIBBS |
| 5305-00-940-8068 | 2009-04-111 | 145 | DIBBS |
| 5305-00-940-8068 | 2008-11-318 | 744 | DIBBS |
| 5305-00-940-8068 | 2008-06-163 | 731 | DIBBS |
Cross Reference | NSN 5305-00-940-8068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01070-0223REVB PIECE 158 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| 122-2422337 PIECE 33 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 13-1648 | 10988 | CNH INDUSTRIAL AMERICA LLC |
| AES01CA00C00AW9A91 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| ASME B18.2.1 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B1821BH100C300N | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| CJ67290PC 4 | 75394 | EMERSON POWER TRANSMISSION CORPORATION |
| MS51095-513 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS90728-234 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-940-8068
Technical Data | NSN 5305-00-940-8068
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

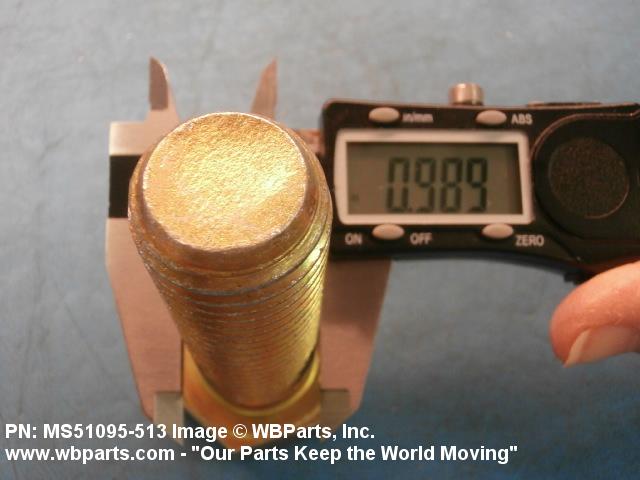

| NOMINAL THREAD DIAMETER | 1.000 INCHES |

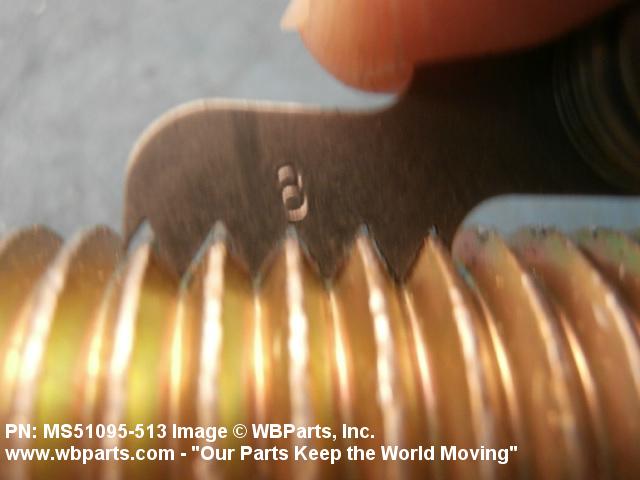

| THREAD QUANTITY PER INCH | 8 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.250 INCHES MINIMUM AND 2.562 INCHES MAXIMUM |

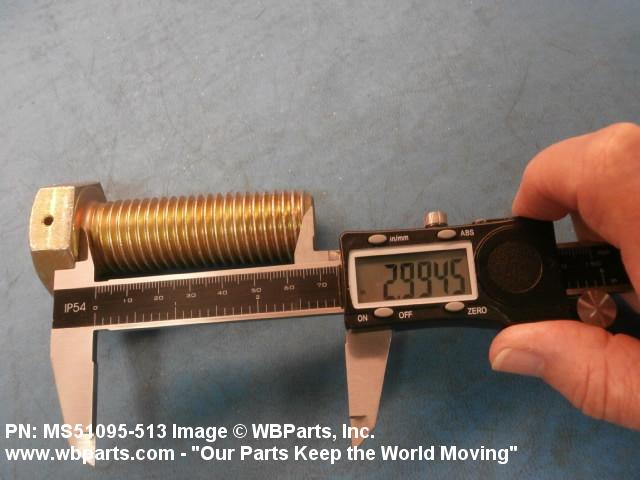

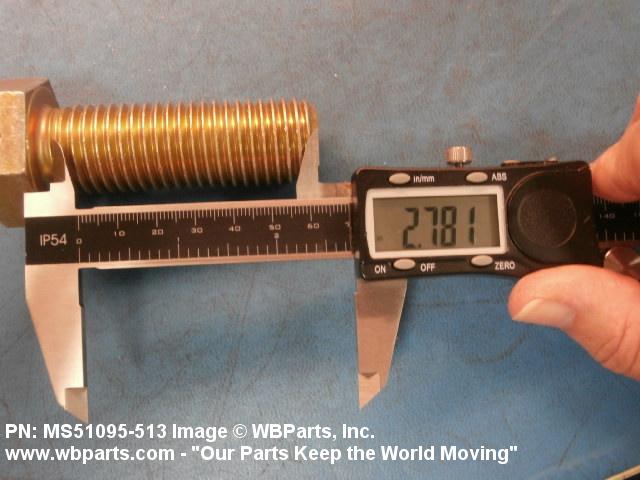

| FASTENER LENGTH | 2.812 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J429 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354 GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.591 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |

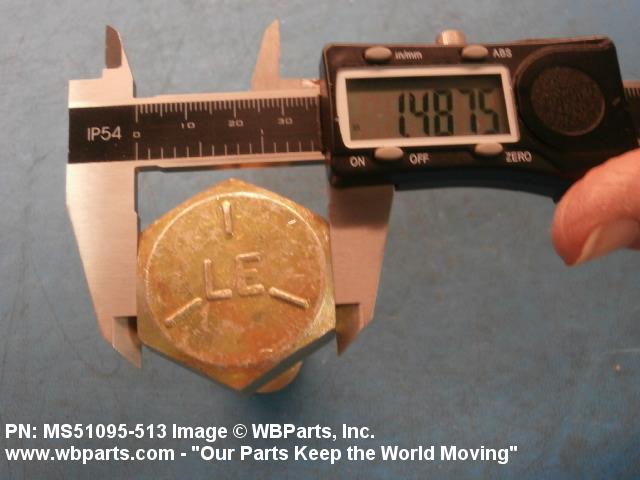

| WIDTH BETWEEN FLATS | 1.469 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES THREADS |
Restrictions/Controls & Freight Information | NSN 5305-00-940-8068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146150 | GUN CARRAIGE/GUN MOUNT PARTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
