NSN 5305-00-939-0661 MS519751, MS51975-1, 2437080
Product Details | SHOULDER SCREW
5305-00-939-0661 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: MS519751, MS51975-1, 2437080, 5305-00-939-0661, 00-939-0661, 5305009390661, 009390661
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 NOV 1965 | 00-939-0661 | 22846 ( SCREW, SHOULDER ) |

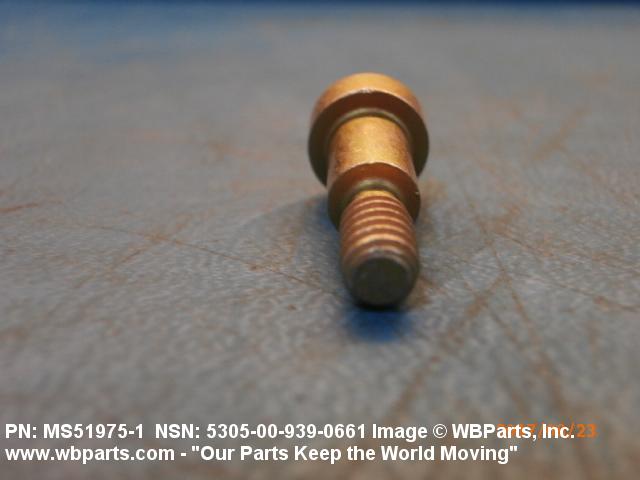

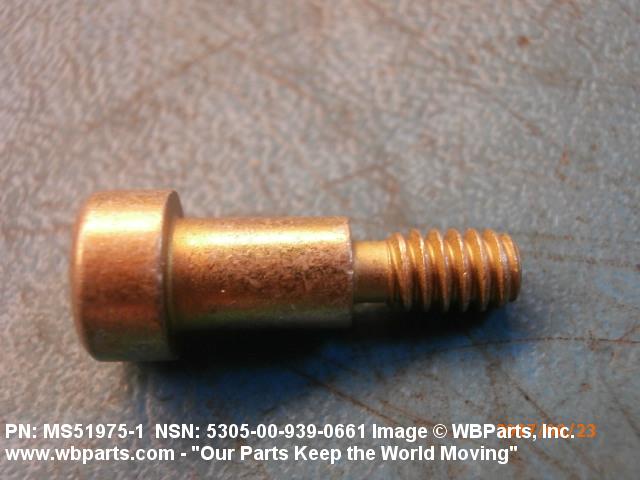

Drawings & Photos | NSN 5305-00-939-0661
Demand History | NSN 5305-00-939-0661
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-939-0661 | 2023-08-242 | 246 | DIBBS |
| 5305-00-939-0661 | 2022-07-198 | 8 | United States |
| MS519751 | 2021-02-54 | 5 | United States |
| 5305-00-939-0661 | 2018-05-141 | 135 | US |
| 5305-00-939-0661 | 2017-08-233 | 10 | Canada |
| 5305-00-939-0661 | 2017-04-115 | 200 | US |
| 5305-00-939-0661 | 2017-02-37 | 360 | US |
| MS519751 | 2010-02-41 | 4 | Spain |
| MS519751 | 2009-10-290 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-939-0661
Related Products | NSN 5305-00-939-0661
Technical Data | NSN 5305-00-939-0661

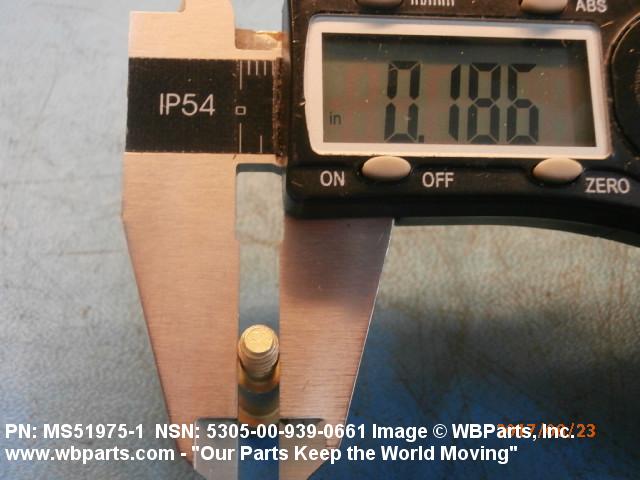

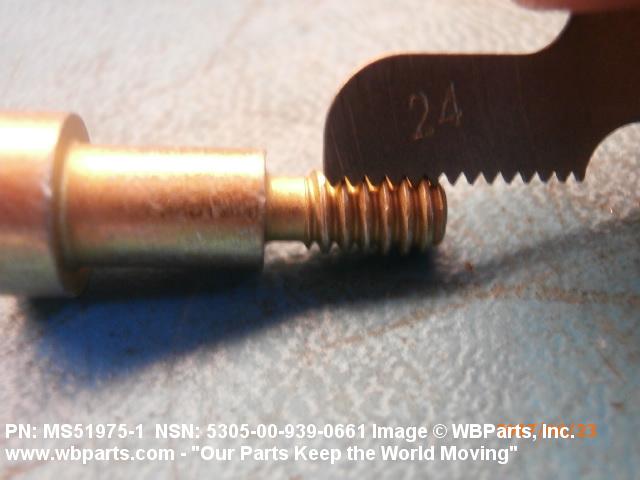

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.355 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

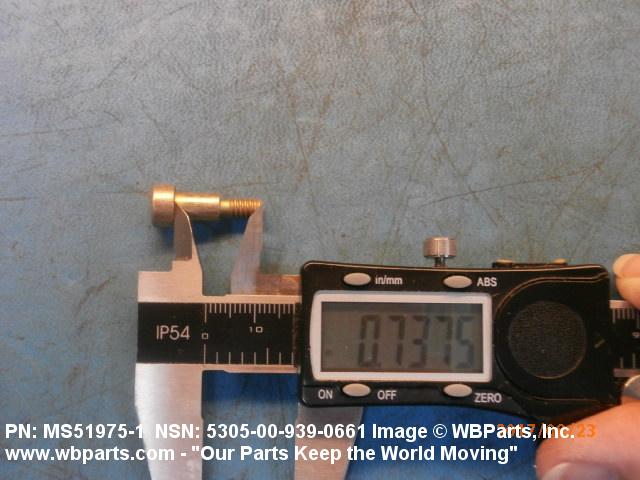

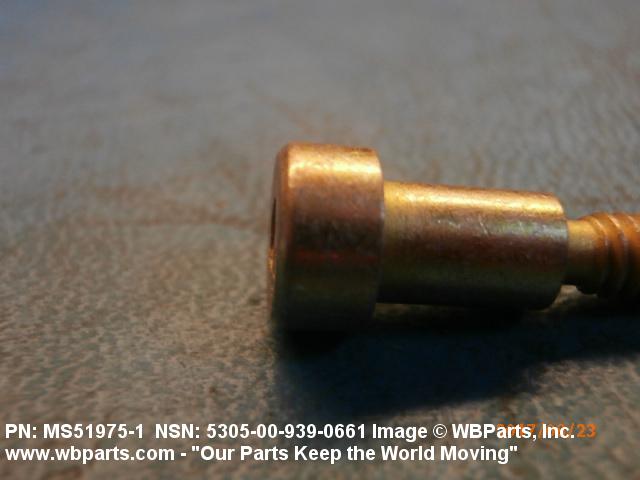

| FASTENER LENGTH | 0.735 INCHES MINIMUM AND 0.745 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 4140 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 140000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

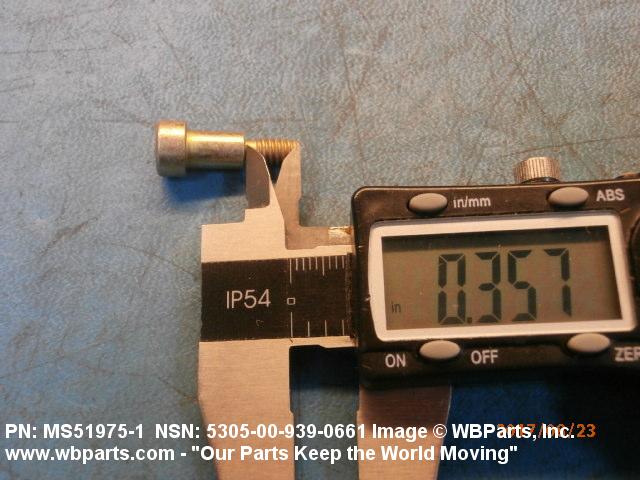

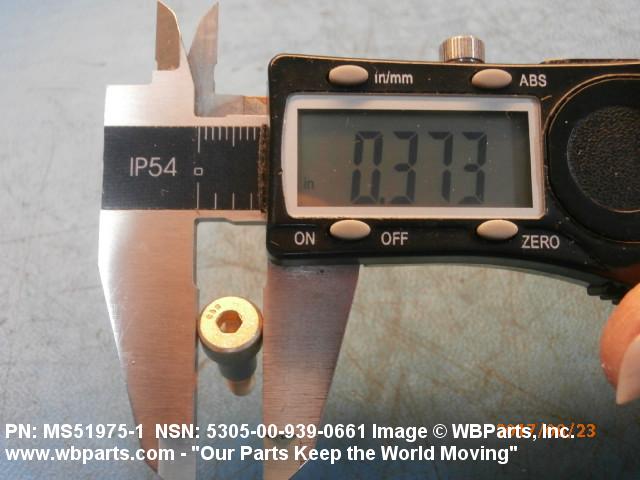

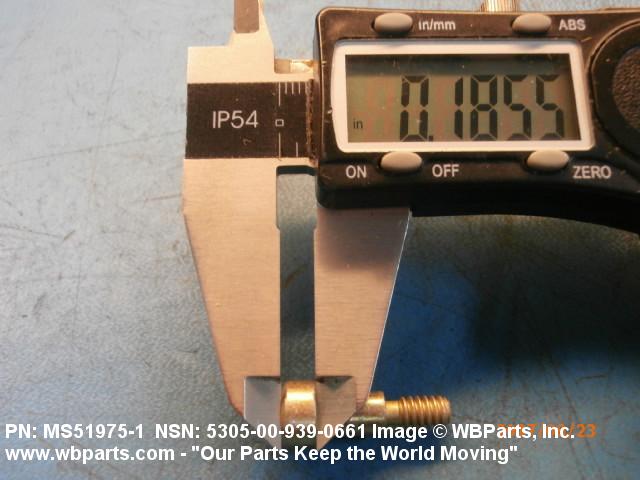

| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| HEAD HEIGHT | 0.177 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |

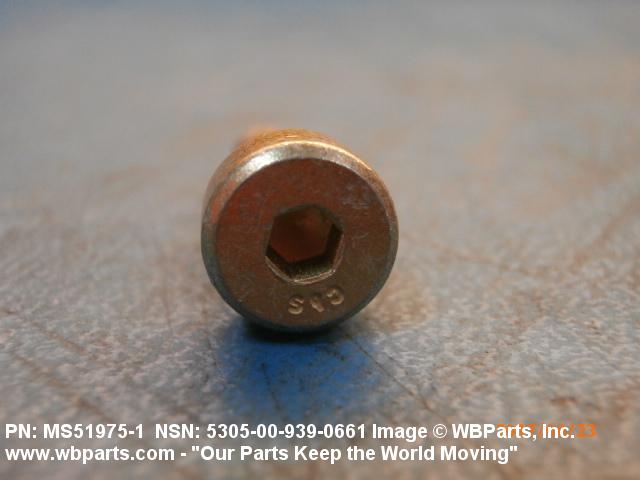

| INTERNAL DRIVE STYLE | D5 HEXAGON |

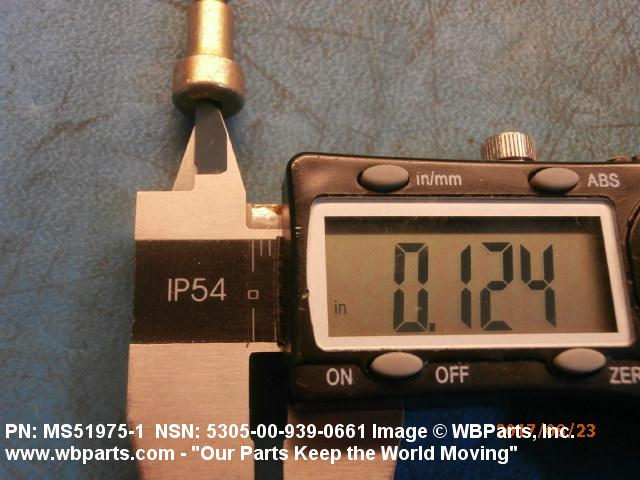

| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

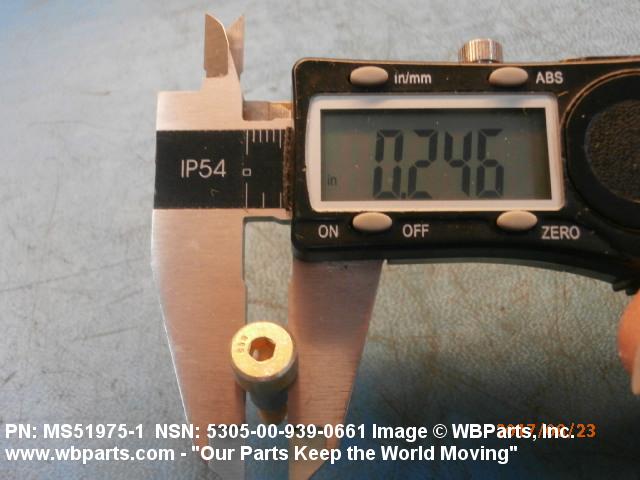

| SHOULDER DIAMETER | 0.246 INCHES MINIMUM AND 0.248 INCHES MAXIMUM FIRST SHOULDER |

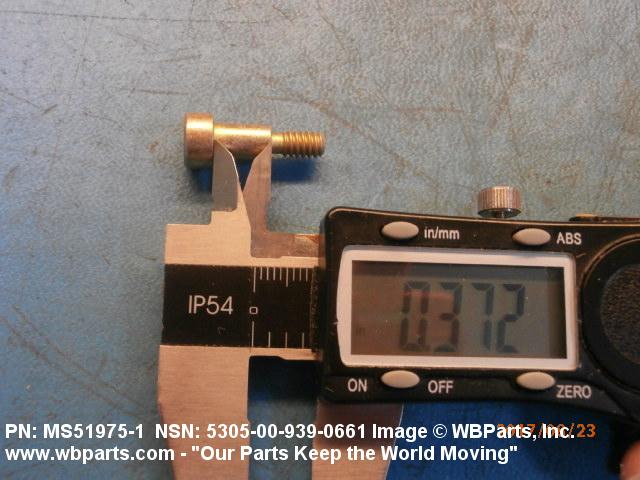

| SHOULDER LENGTH | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM FIRST SHOULDER |
