NSN 5305-00-900-6806 LL507DD1032R7, 2048395-18, 2048395PC18
Product Details | SOCKET HEAD CAP SCREW
5305-00-900-6806 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: LL507DD1032R7, 2048395-18, 2048395PC18, 5305-00-900-6806, 00-900-6806, 5305009006806, 204839518, 009006806
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-900-6806 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

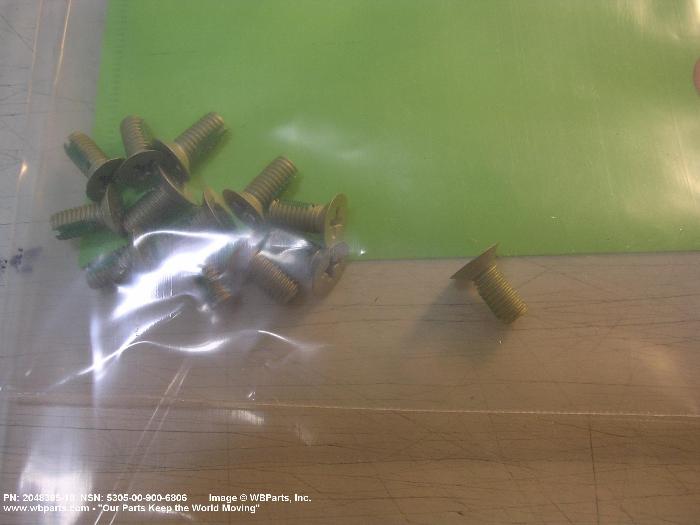

Drawings & Photos | NSN 5305-00-900-6806
Demand History | NSN 5305-00-900-6806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-900-6806 | 2023-12-348 | 9335 | DIBBS |
| 5305-00-900-6806 | 2023-12-340 | 9335 | DIBBS |
| 5305-00-900-6806 | 2023-11-324 | 2000 | DIBBS |
| 5305-00-900-6806 | 2021-12-346 | 12550 | DIBBS |
| 5305-00-900-6806 | 2021-11-327 | 12550 | US |
| 5305-00-900-6806 | 2021-11-319 | 12550 | DIBBS |
| 5305-00-900-6806 | 2021-08-235 | 7703 | DIBBS |
| 5305-00-900-6806 | 2021-08-222 | 7703 | DIBBS |
| 5305-00-900-6806 | 2015-02-39 | 10398 | DIBBS |
| 204839518 | 2014-06-156 | 37 | US |
| 5305-00-900-6806 | 2014-06-152 | 10025 | DIBBS |
| 5305-00-900-6806 | 2014-01-02 | 6554 | DIBBS |
| 5305-00-900-6806 | 2013-04-91 | 0 | DIBBS |
| 204839518 | 2007-10-303 | 13 | United States |
