NSN 5305-00-719-5401 MS24694S49, MS24694-S49, NAS514P10328P

Product Details | MACHINE SCREW

5305-00-719-5401 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS24694S49, MS24694-S49, NAS514P10328P, NAS514P1032-8P, AN50910R7, AN509-10R7, Z00.N5150624049, Z00N5150624049, 2011110, 399147, 5305-00-719-5401, 00-719-5401, 5305007195401, 007195401

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-719-5401	06657 ( SCREW, MACHINE )

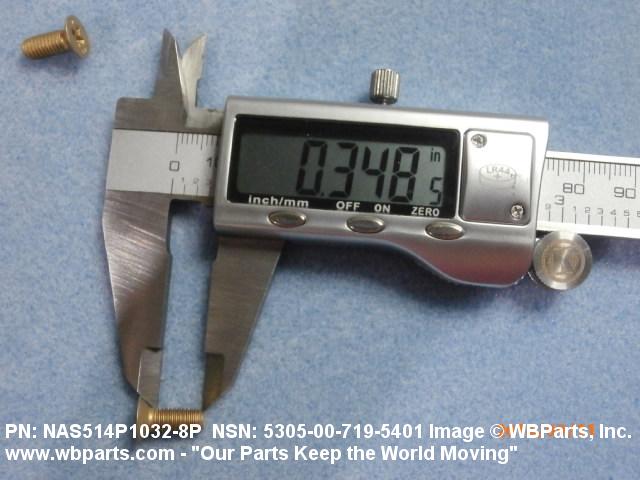

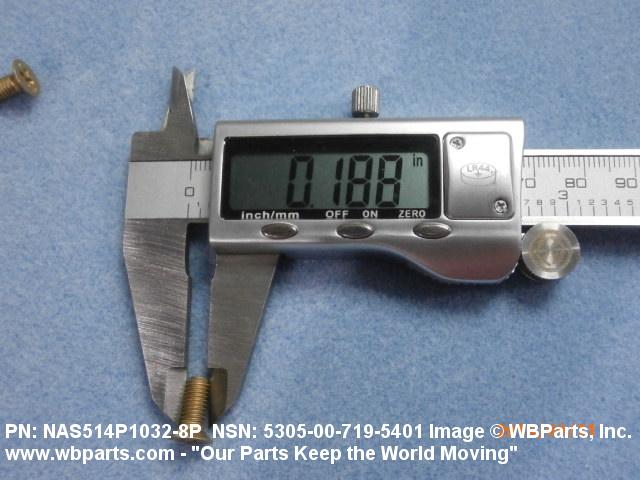

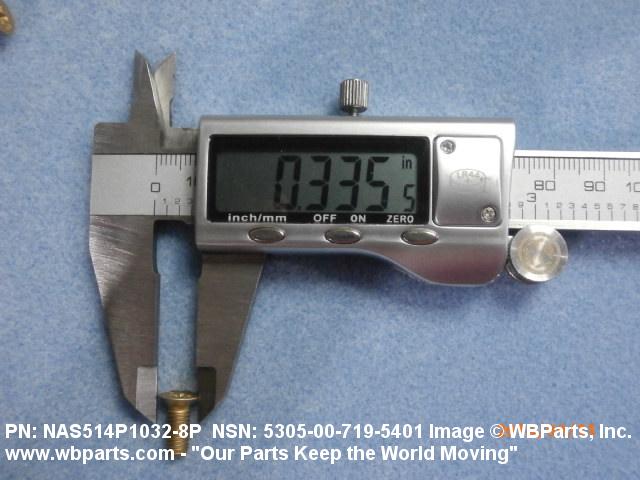

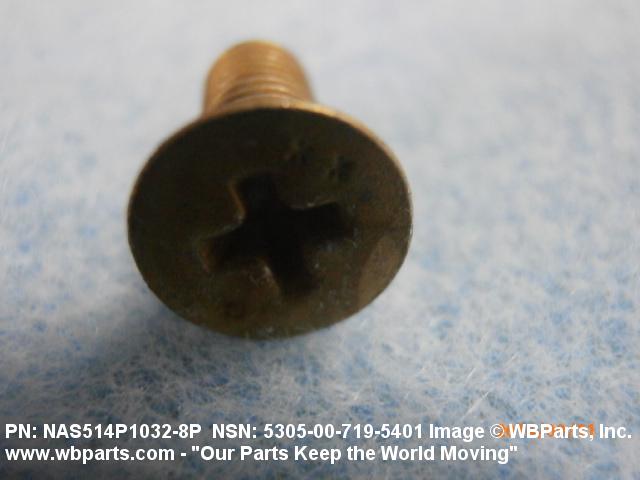

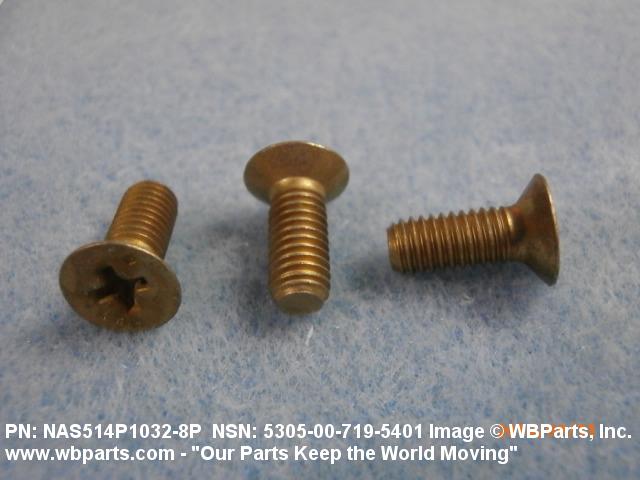

Drawings & Photos | NSN 5305-00-719-5401

Part Number	Request Date	QTY	Origin
MS24694S49	2024-01-29	180	US
MS24694S49	2022-12-335	100	United States
MS24694S49	2022-02-53	2	us
MS24694S49	2022-02-46	98	US
MS24694S49	2021-07-209	20	Germany
MS24694S49	2020-10-290	320	United States
NAS514P10328P	2017-10-297	100	United Arab Emirates
NAS514P10328P	2017-09-244	500	US
AN50910R7	2017-06-166	100	US
5305-00-719-5401	2016-11-327	1	DIBBS-RFPs
NAS514P10328P	2015-06-175	12	United States
5305-00-719-5401	2014-11-306	452	DIBBS
NAS514P10328P	2014-10-289	192	United States
NAS514P1032-8P	2014-09-272	100	United States
5305-00-719-5401	2014-09-247	234	DIBBS
MS24694S49	2014-07-202	100	LB
NAS514P1032-8P	2014-07-199	100	United States
MS24694S49	2014-04-120	80	US
MS24694S49	2014-02-51	20	IN
MS24694S49	2013-12-350	100	Lebanon
MS24694S49	2013-11-325	50	United States
MS24694-S49	2013-11-322	28	Belgium
5305-00-719-5401	2013-08-219	100	KR
5305-00-719-5401	2013-08-219	500	KR
MS24694S49	2013-06-170	100	Lebanon
NAS514P10328P	2012-12-346	200	Switzerland
NAS514P10328P	2012-12-344	200	Switzerland
MS24694S49	2012-11-310	84
MS24694S49	2012-07-191	60	us
MS24694S49	2012-05-122	5	United States
MS24694S49	2012-04-102	500	US
NAS514P10328P	2011-07-187	20000	United States
NAS514P10328P	2011-06-179	5000	United States
NAS514P10328P	2011-06-179	10000	United States
5305-00-719-5401	2010-12-364	70	FR
5305-00-719-5401	2009-09-264	1	Thailand
AN50910R7	2009-05-138	54	China
5305-00-719-5401	2008-11-323	250	US
NAS514P10328P	2008-11-322	250	US
5305-00-719-5401	2008-09-268	145	US
5305-00-719-5401	2008-08-238	1280	Canada
5305-00-719-5401	2008-04-121	11	Brazil
5305-00-719-5401	2008-04-114	500	United States

Cross Reference | NSN 5305-00-719-5401

Part Number	Cage Code	Manufacturer
2011110	001JK	EMBRAER S/A
2011110	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
399147	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
AN509-10R7	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS24694-S49	4W343	INTEGRITY FASTENERS, INC.
MS24694-S49	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24694-S49	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS514P1032-8P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
Z00.N5150624049	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-719-5401

Compare

Related Products | NSN 5305-00-719-5401

5305-00-719-5402, 5305-00-719-5403, 5305-00-719-5404, 5305-00-719-5405, 5305-00-719-5406

Technical Data | NSN 5305-00-719-5401

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.329 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
FASTENER LENGTH	0.469 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 4037 OR STEEL COMP 8630
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.327 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-719-5401

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-719-5401

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
