NSN 5305-00-719-5404 MS24694S55, MS24694-S55, AN50910R13
Product Details | MACHINE SCREW
5305-00-719-5404 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24694S55, MS24694-S55, AN50910R13, AN509-10R13, Z00.N5150624055, Z00N5150624055, 2008137, 5305-00-719-5404, 00-719-5404, 5305007195404, 007195404
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-719-5404 | 06657 ( SCREW, MACHINE ) |

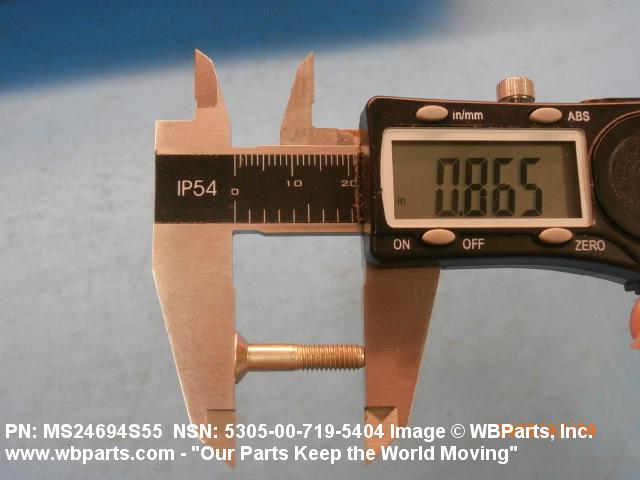

Drawings & Photos | NSN 5305-00-719-5404
Demand History | NSN 5305-00-719-5404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-719-5404 | 2022-05-135 | 144 | DIBBS |
| 5305-00-719-5404 | 2022-01-12 | 63 | DIBBS |
| 5305-00-719-5404 | 2020-09-252 | 30 | SA |
| MS24694S55 | 2020-02-57 | 10 | US |
| MS24694S55 | 2020-01-06 | 50 | United States |
| MS24694S55 | 2020-01-06 | 50 | United States |
| AN50910R13 | 2019-08-239 | 10 | United States |
| 5305-00-719-5404 | 2019-03-87 | 530 | DIBBS |
| 5305-00-719-5404 | 2018-12-336 | 530 | DIBBS |
| 5305-00-719-5404 | 2016-09-273 | 250 | United States |
| MS24694S55 | 2016-04-97 | 100 | Mexico |
| 5305-00-719-5404 | 2015-05-130 | 403 | DIBBS |
| 5305-00-719-5404 | 2014-12-356 | 20 | United States |
| 5305-00-719-5404 | 2014-06-166 | 960 | DIBBS |
| MS24694S55 | 2014-02-42 | 22 | India |
| 5305-00-719-5404 | 2013-10-295 | 965 | DIBBS |
| MS24694S55 | 2013-07-193 | 100 | IN |
| MS24694S55 | 2013-04-92 | 275 | United States |
| MS24694S55 | 2012-08-229 | 100 | Ecuador |
| MS24694S55 | 2012-03-67 | 200 | United States |
| MS24694S55 | 2012-03-65 | 200 | United States |
| 5305-00-719-5404 | 2011-05-133 | 1312 | DIBBS |
| 5305-00-719-5404 | 2011-03-76 | 16 | US |
| 5305-00-719-5404 | 2011-02-35 | 1310 | DIBBS |
| 5305-00-719-5404 | 2009-06-169 | 419 | DIBBS |
| 5305-00-719-5404 | 2009-03-90 | 500 | DIBBS |
| 5305-00-719-5404 | 2009-03-82 | 465 | DIBBS |
Cross Reference | NSN 5305-00-719-5404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2008137 | 001JK | EMBRAER S/A |
| 2008137 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| AN509-10R13 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| MS24694-S55 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24694S55 | 0LPR3 | IASC, INC DBA INLAND AEROSPACE SUPPLY CO |
| MS24694S55 | 7Y270 | HARDWARE & METAL SPECIALTIES CORP |
| MS24694S55 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24694S55 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24694S55 | 9M264 | GFC INDUSTRIES INC |
| Z00.N5150624055 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-719-5404
Technical Data | NSN 5305-00-719-5404
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

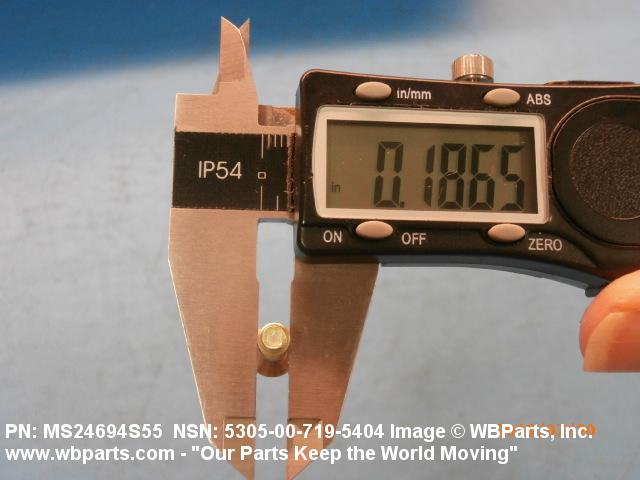

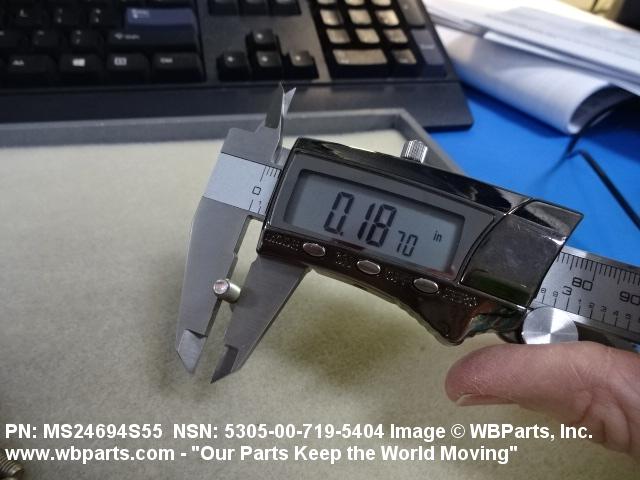

| NOMINAL THREAD DIAMETER | 0.190 INCHES |

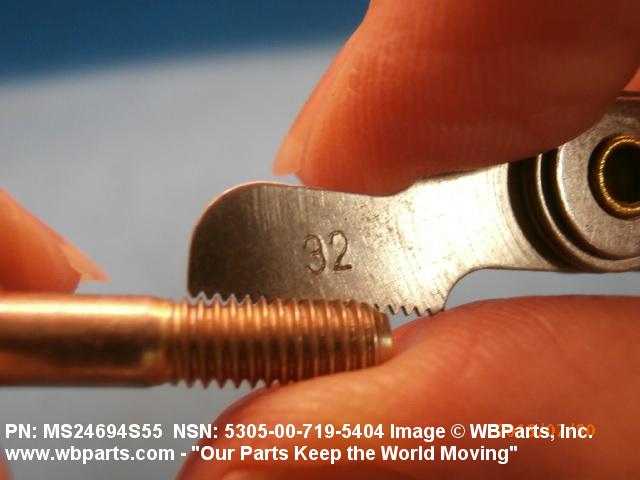

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

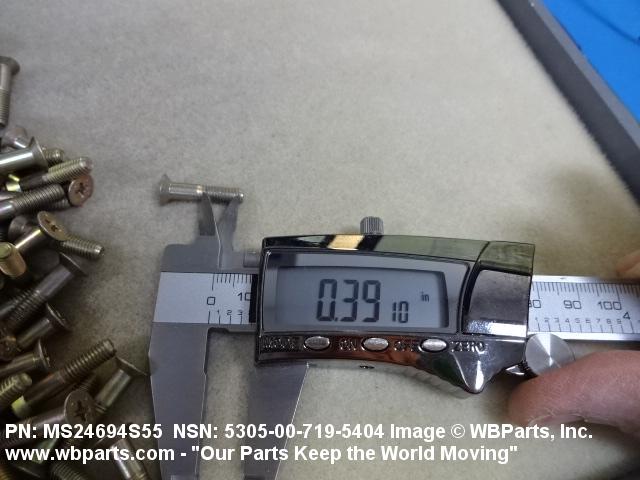

| THREAD LENGTH | 0.376 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |

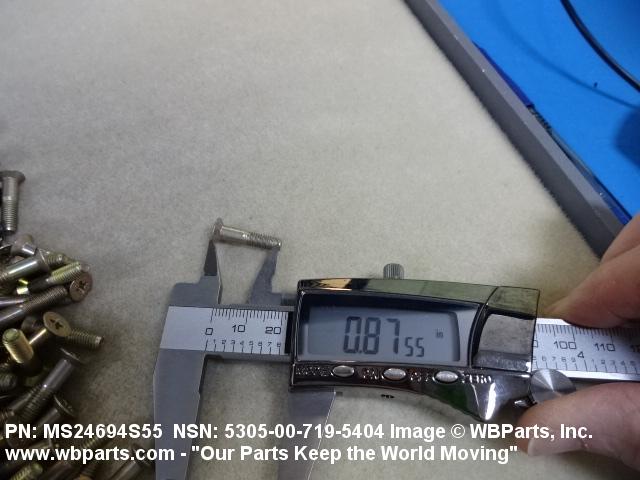

| FASTENER LENGTH | 0.828 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 8630 OR STEEL COMP 4037 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 6300 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |

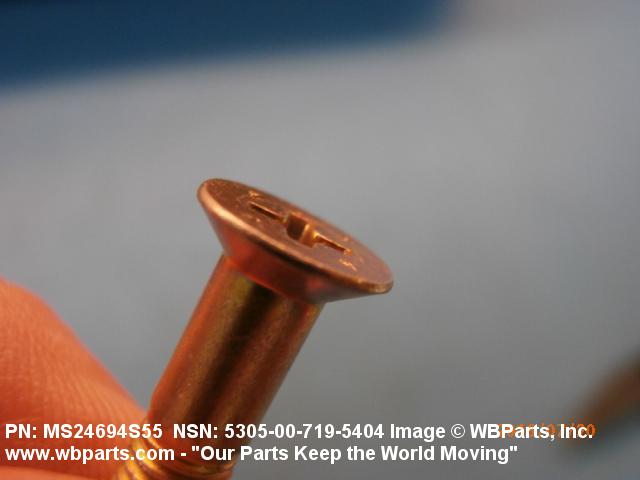

| HEAD STYLE | A39 FLAT COUNTERSUNK |

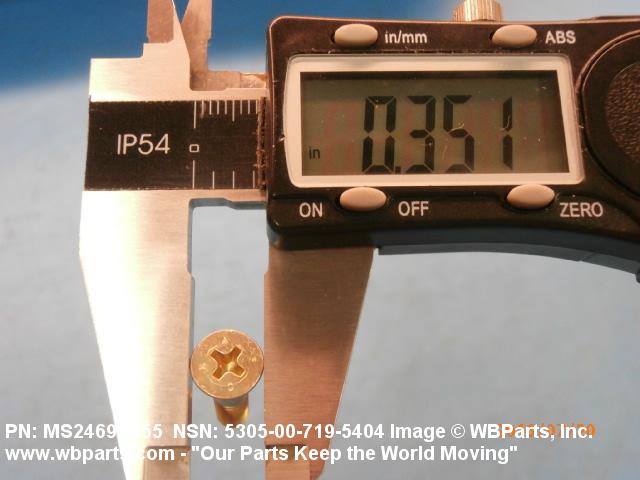

| HEAD DIAMETER | 0.327 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

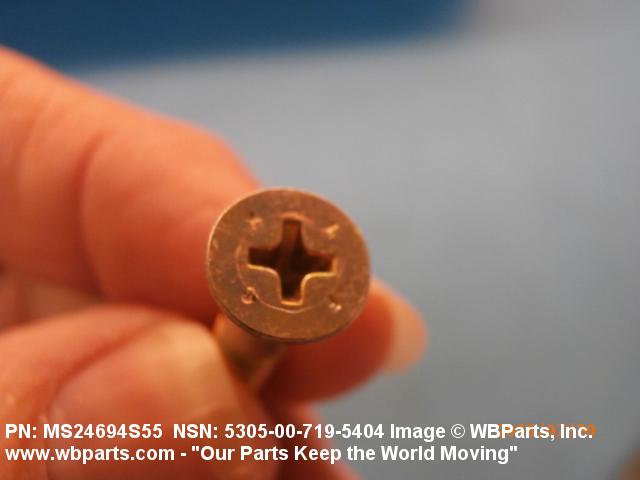

| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-719-5404
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-719-5404
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
