NSN 5305-00-719-5219 MS3529011, MS35290-11, MS90726111

Product Details | HEXAGON HEAD CAP SCREW

5305-00-719-5219 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS3529011, MS35290-11, MS90726111, MS90726-111, MS90727111, MS90727-111, A200.0229-85, A200022985, B1821BH050F125N, FFS85, FF-S-85, 5305PL0895381, 71144111, 71144-111, 9424113, 13247011, 13247-011, 18C820, 2455012, 24C820, 24C-820, 4042503, 4042-503, 50041212, 500412-12, 5305-00-719-5219, 00-719-5219, 5305007195219 , 007195219

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-719-5219	18257 ( SCREW, CAP, HEXAGON HEAD )

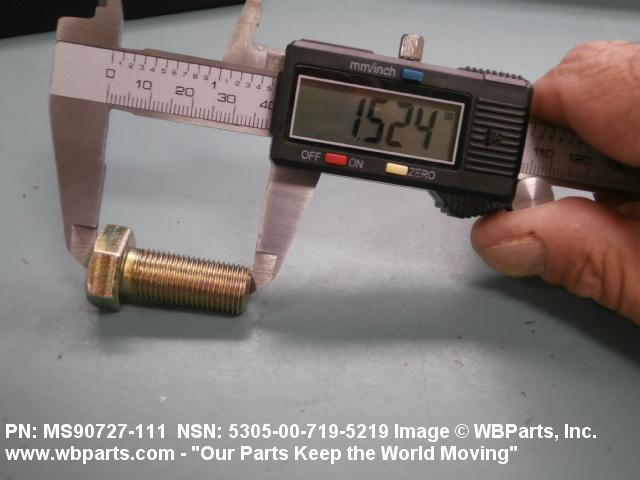

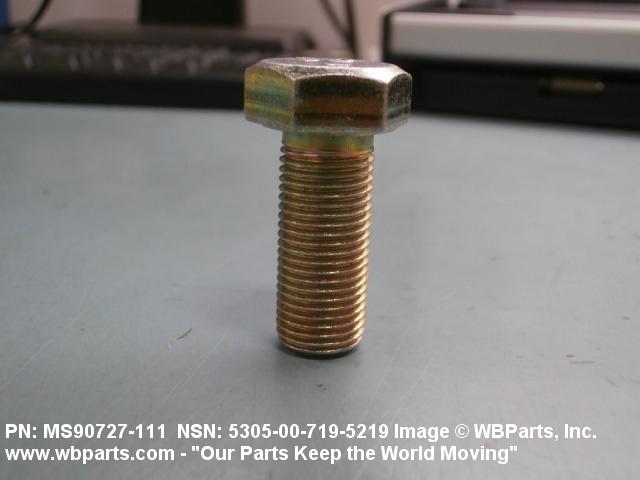

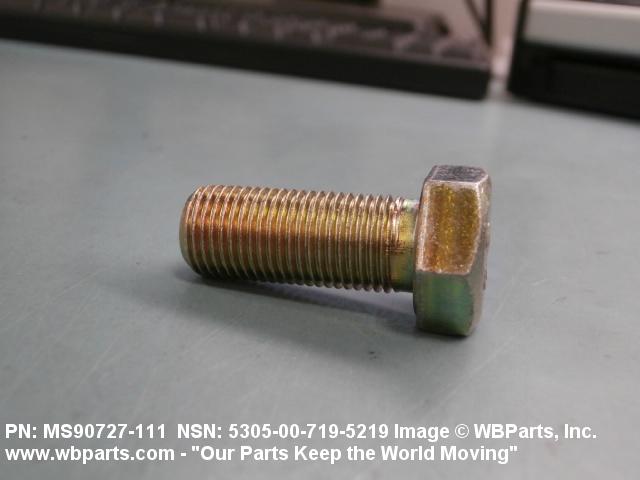

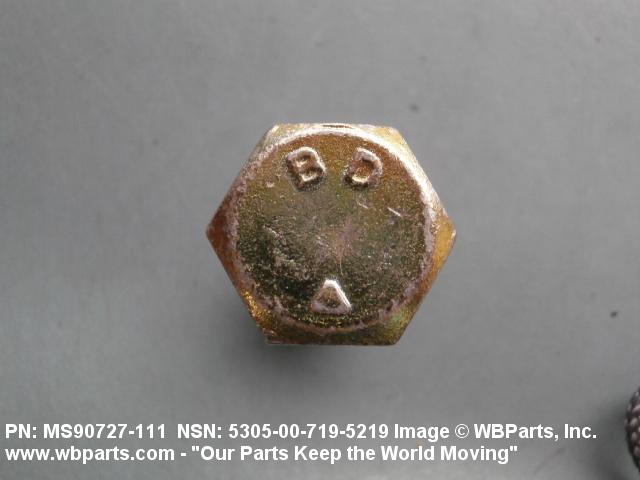

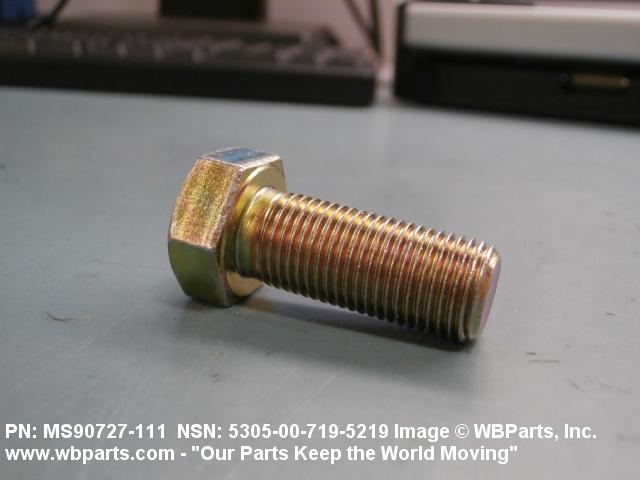

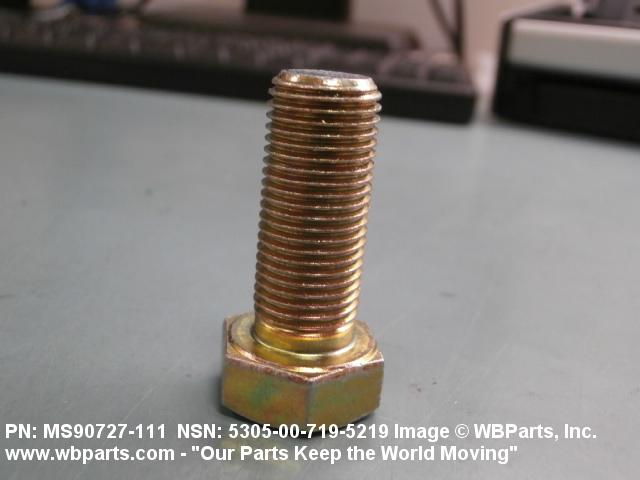

Drawings & Photos | NSN 5305-00-719-5219

Part Number	Request Date	QTY	Origin
MS90726111	2024-06-17	400	US
MS90726111	2023-10-11	54	us
5305-00-719-5219	2022-10-03	302	DIBBS
5305-00-719-5219	2021-08-05	16	US
MS90727111	2014-05-05	80	US
B1821BH050F125N	2013-11-04	2	United States
B1821BH050F125N	2013-10-08	6	United States
FFS85	2013-01-11	473	US
5305-00-719-5219	2012-03-13	102	US
B1821BH050F125N	2012-02-08	190	IL
FFS85	2011-10-07	95	United States
FFS85	2011-09-22	14	US
MS90727-111	2011-06-04	5	PK
MS90727-111	2011-06-04	5	PK
MS3529011	2010-03-26	10	Ireland
FFS85	2010-03-25	100	US
FFS85	2010-02-12	10	United States
MS90726111	2010-01-19	140	US
FFS85	2009-09-29	50	US
5305-00-719-5219	2009-06-19	150	United States

Cross Reference | NSN 5305-00-719-5219

Part Number	Cage Code	Manufacturer
13247-011	U3788	VERMEER EQUIPMENT UK LTD
18C820	12603	CLARK EQUIPMENT CO
2455012	0B6S1	INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54
2455012	30874	INTERNATIONAL BUSINESS MACHINES CORP
24C-820	1X0J7	VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC
24C-820	40152	VME AMERICAS INC SUB OF VME GROUP N V
4042-503	15083	TERRELL MACHINE CO INC
4042-503	15093	SPECIALTIES SALES AND MFG CO
500412-12	97271	DANA LIGHT AXLE PRODUCTS, LLC DBA DANA LIGHT AXLE PRODUCTS
5305007195219	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0895381	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
71144-111	95097	LITTLE GIANT CRANE AND SHOVEL INC
9424113	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
A200.0229-85	54077	JOHN BEAN TECHNOLOGIES CORPORATION DBA AIRPORT SYSTEMS GROUND EQUIPMENT
A200022985	54077	JOHN BEAN TECHNOLOGIES CORPORATION DBA AIRPORT SYSTEMS GROUND EQUIPMENT
B1821BH050F125N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
FF-S-85	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS35290-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90726-111	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90727-111	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-719-5219

Compare

Related Products | NSN 5305-00-719-5219

5305-00-719-5221, 5305-00-719-5235, 5305-00-719-5238, 5305-00-719-5239, 5305-00-719-5240

Technical Data | NSN 5305-00-719-5219

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

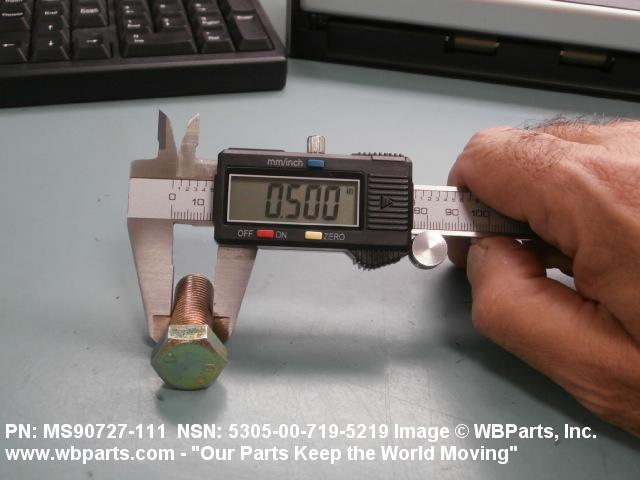

NOMINAL THREAD DIAMETER	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	1.250 INCHES MAXIMUM
FASTENER LENGTH	1.250 INCHES NOMINAL
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J429 GR 8 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	32.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

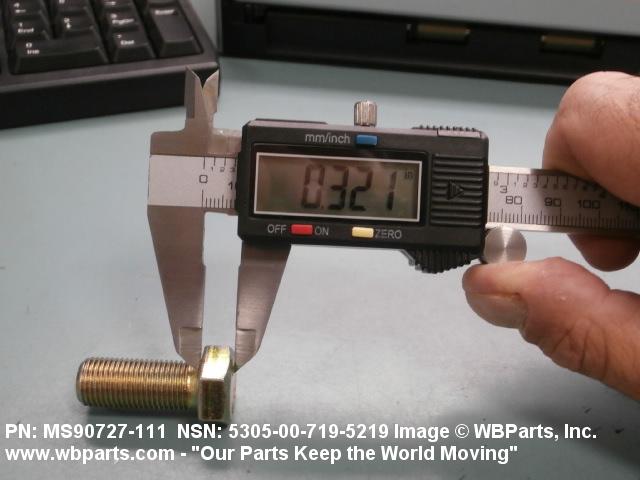

HEAD HEIGHT	0.302 INCHES MINIMUM AND 0.323 INCHES MAXIMUM

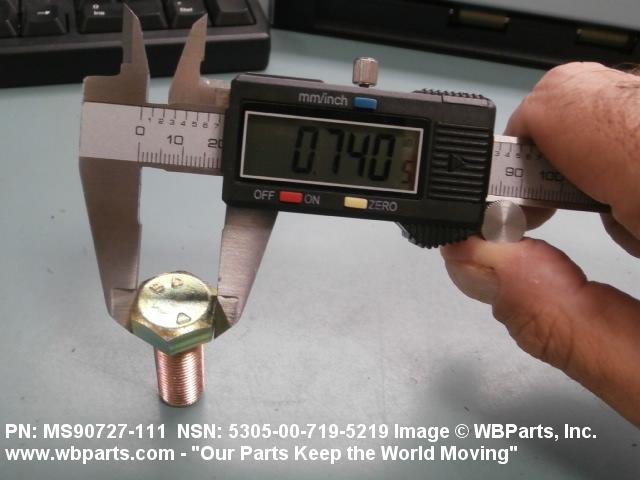

WIDTH BETWEEN FLATS	0.736 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	2 TYPE AND 10P STYLE AND 8 GRADE
III END ITEM IDENTIFICATION	NAVIGATION RADIO SET;AIRBORNE MOBILE DIR AIR SPT CT;B-1 SUPPORT EQUIPMENT;AIRCRAFT ELEVATORS;FIRE PUMPS;CIRCUIT SWITCH;CARGO / WEAPONS ELEVATORS;JP-5 AVIATION FUEL SYSTEM;PHOENIX MISSILE;COMMUNICATIONS SYSTEMS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-85
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS90727-111
