NSN 5305-00-477-2714 NAS1351416, NAS1351-4-16, 00-477-2714
Product Details | SOCKET HEAD CAP SCREW
5305-00-477-2714 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1351416, NAS1351-4-16, 5305-00-477-2714, 00-477-2714, 5305004772714, 004772714
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1969 | 00-477-2714 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

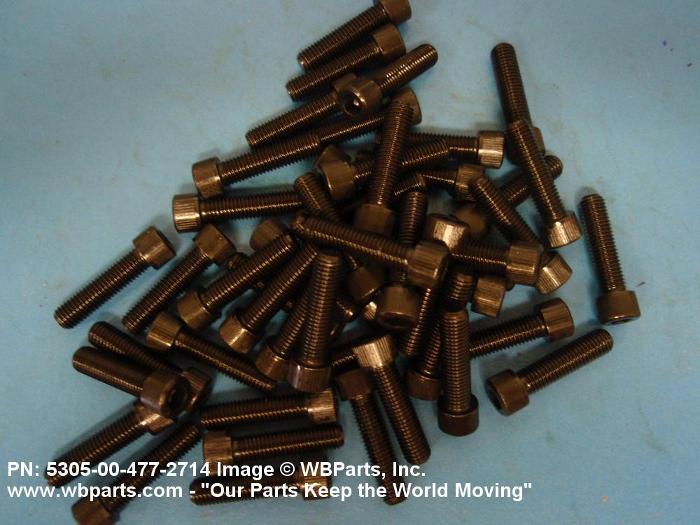

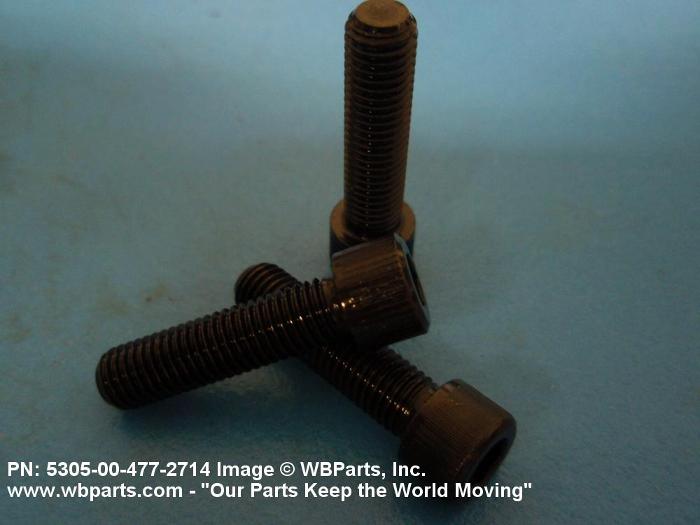

Drawings & Photos | NSN 5305-00-477-2714
Demand History | NSN 5305-00-477-2714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-477-2714 | 2024-08-238 | 59 | DIBBS |
| 5305-00-477-2714 | 2024-06-176 | 55 | DIBBS |
| 5305-00-477-2714 | 2023-07-187 | 158 | DIBBS |
| 5305-00-477-2714 | 2023-06-176 | 54 | DIBBS |
| 5305-00-477-2714 | 2023-06-172 | 158 | DIBBS |
| 5305-00-477-2714 | 2023-04-114 | 160 | DIBBS |
| 5305-00-477-2714 | 2023-03-66 | 109 | DIBBS |
| 5305-00-477-2714 | 2023-03-60 | 106 | DIBBS |
| NAS1351416 | 2021-05-146 | 75 | United States |
| 5305-00-477-2714 | 2021-03-75 | 2381 | DIBBS |
| NAS1351-4-16 | 2016-07-211 | 15 | JP |
| NAS1351416 | 2016-01-12 | 20 | United States |
| 5305-00-477-2714 | 2015-06-155 | 3447 | DIBBS |
| NAS1351416 | 2014-03-84 | 12 | India |
| NAS1351416 | 2013-11-326 | 100 | India |
| NAS1351416 | 2011-12-341 | 25 | United States |
| NAS1351416 | 2011-05-132 | 72 | United States |
| NAS1351416 | 2011-03-67 | 15 | United States |
| NAS1351416 | 2011-02-38 | 5 | US |
| NAS1351416 | 2008-03-72 | 4 | US |
Cross Reference | NSN 5305-00-477-2714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1351-4-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-477-2714
Related Products | NSN 5305-00-477-2714
Technical Data | NSN 5305-00-477-2714
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRF |

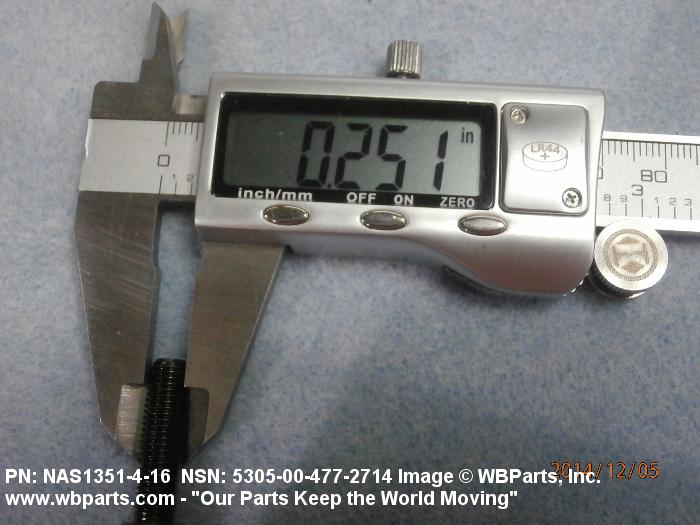

| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.913 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |

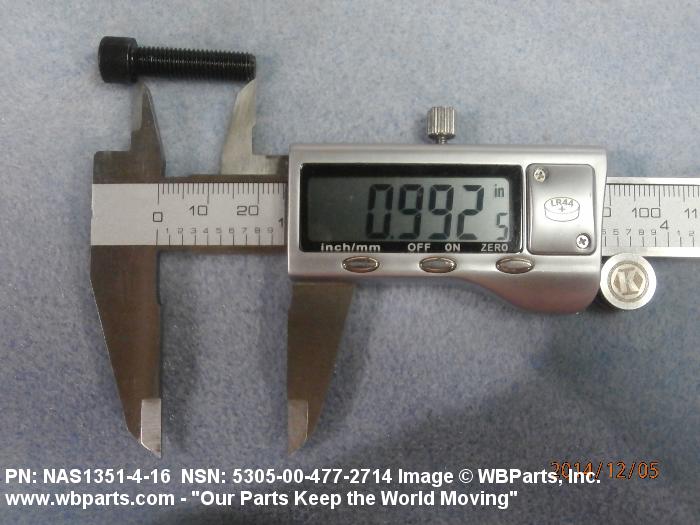

| FASTENER LENGTH | 0.970 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 CL1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 155000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

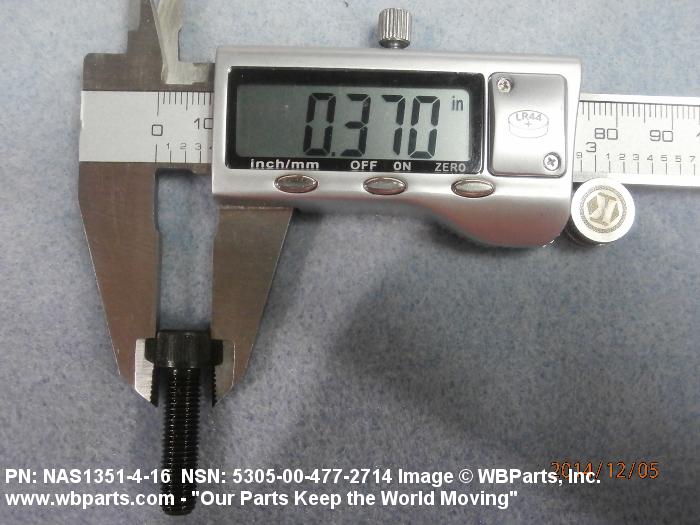

| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
