NSN 5305-00-346-3130 MS2467861, MS24678-61, MS2467861C

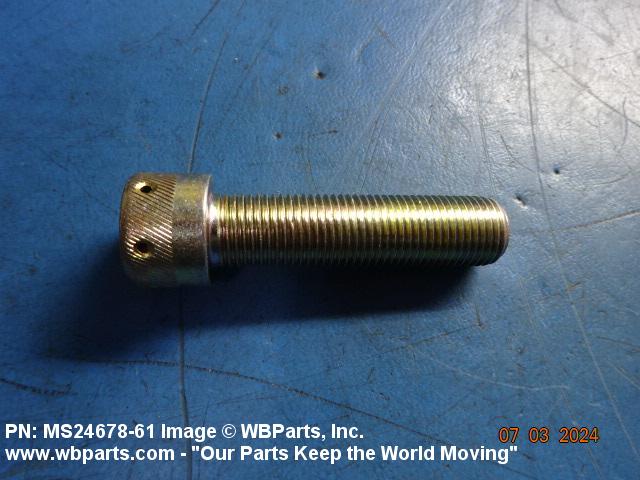

Product Details | SOCKET HEAD CAP SCREW
5305-00-346-3130 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS2467861, MS24678-61, MS2467861C, MS24678-61C, FFS86, 5305-00-346-3130, 00-346-3130, 5305003463130, 003463130
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JAN 1974 | 00-346-3130 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-00-346-3130
Demand History | NSN 5305-00-346-3130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2467861 | 2024-09-249 | 186 | Japan |
| MS2467861 | 2024-08-234 | 186 | Japan |
| MS2467861 | 2024-06-170 | 26 | United Kingdom |
| FFS86 | 2022-05-143 | 40 | United States |
| FFS86 | 2021-12-347 | 40 | US |
| FFS86 | 2013-08-229 | 80 | Canada |
| FFS86 | 2012-03-74 | 2 | US |
| FFS86 | 2011-08-222 | 50 | US |
| FFS86 | 2011-08-214 | 50 | US |
| FFS86 | 2011-03-61 | 8 | US |
| FFS86 | 2011-03-60 | 5000 | US |
| 5305-00-346-3130 | 2009-04-111 | 1437 | DIBBS |
Cross Reference | NSN 5305-00-346-3130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFS86 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24678-61 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24678-61 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24678-61C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-346-3130
Related Products | NSN 5305-00-346-3130
Technical Data | NSN 5305-00-346-3130
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.500 INCHES MINIMUM |
| FASTENER LENGTH | 1.984 INCHES MINIMUM AND 2.032 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.735 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| HEAD HEIGHT | 0.492 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.375 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E9 ROUND |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |
| HOLE DIAMETER | 0.064 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 6 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS86 |
