NSN 5305-00-253-5615 MS2131821, MS21318-21, N530P404B6

Product Details | DRIVE SCREW

5305-00-253-5615 A hardened cylindrical fastener with multiple spiral flutes on its shank. It also has an end smaller in diameter than the outside diameter of the spiral flutes, which acts as a pilot when driven into a drilled hole.

Part Alternates: MS2131821, MS21318-21, N530P404B6, AA155418, AA1554-18, AL81AF083, AM29581/12, AM2958112, 10125086 , 192413, 20Z42D2, 24566695770, 29930, 4B4158, 8151289, 815-1289, 9001314, 5305-00-253-5615, 00-253-5615, 5305002535615 , 002535615

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-253-5615	15896 ( SCREW, DRIVE )

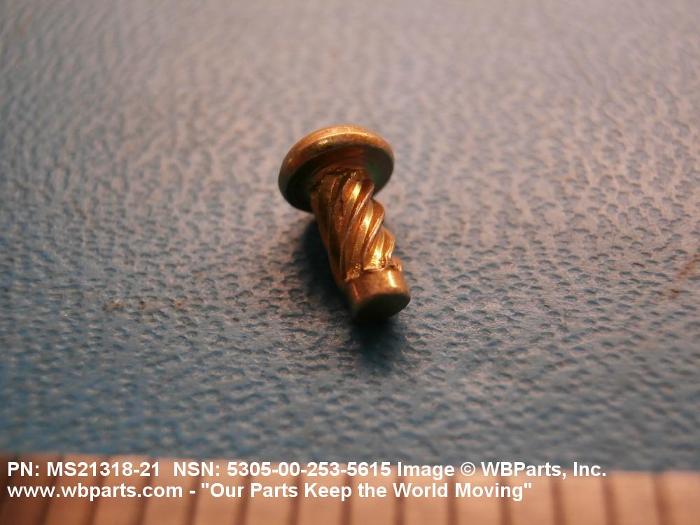

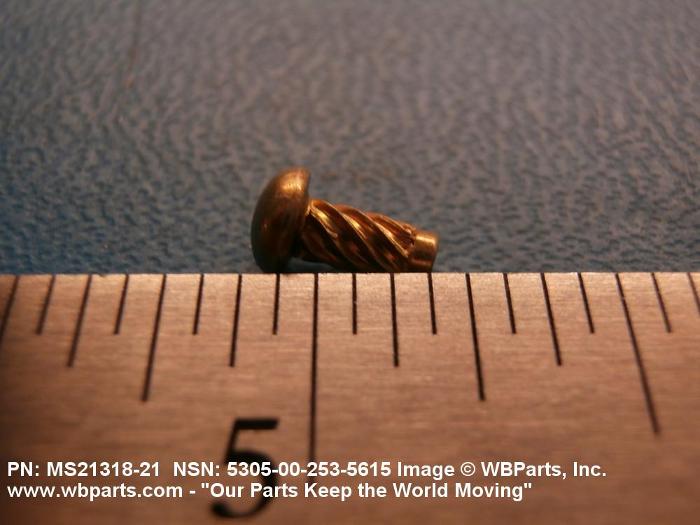

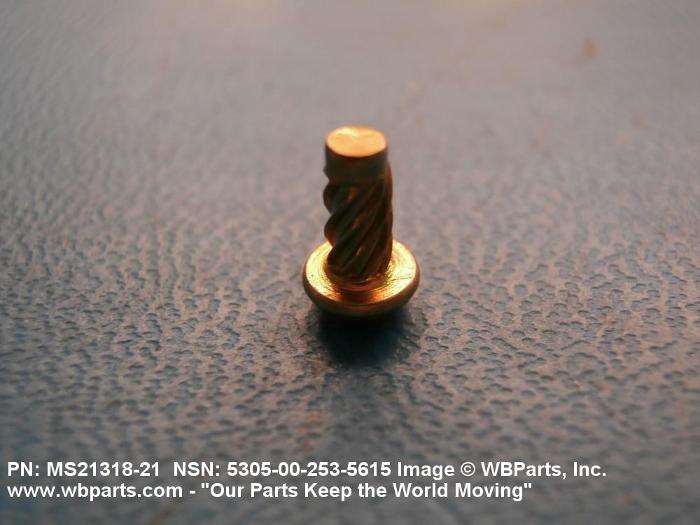

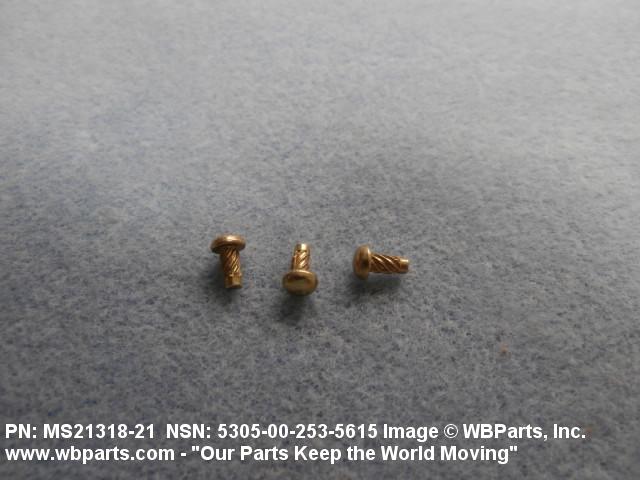

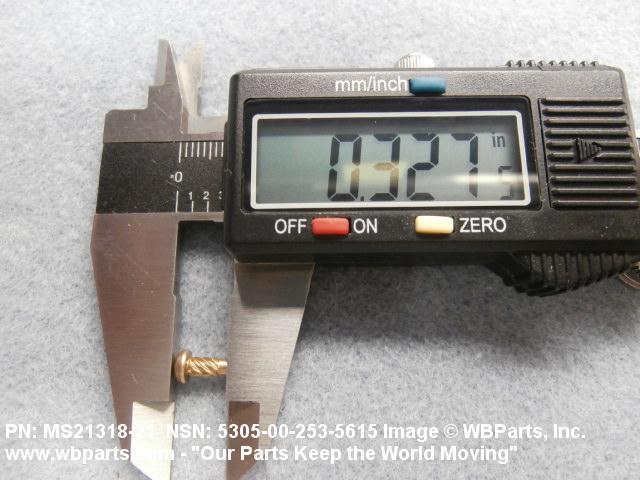

Drawings & Photos | NSN 5305-00-253-5615

Part Number	Request Date	QTY	Origin
MS2131821	2024-08-242	1000	US
MS2131821	2024-07-192	520	United States
5305-00-253-5615	2024-04-114	900	United States
MS2131821	2023-08-213	18200	US
MS2131821	2023-08-213	20000	US
MS2131821	2023-08-213	25000	US
5305-00-253-5615	2019-07-195	2602	DIBBS
5305-00-253-5615	2018-12-354	4	DIBBS-KIT
MS21318-21	2018-12-353	4
MS2131821	2018-10-304	1152	United States
MS2131821	2017-04-97	68	US
MS2131821	2017-01-04	66	United States
MS2131821	2016-09-250	1	US
MS2131821	2016-04-117	20	US
MS2131821	2015-06-175	590	JP
MS21318-21	2015-05-149	100	United States
MS2131821	2015-05-146	590	US
MS21318-21	2014-09-271	100	United States
MS21318-21	2014-07-199	100	United States
MS2131821	2014-06-161	75	United States
MS2131821	2013-10-296	60	United States
MS2131821	2012-11-317	24	United States
MS2131821	2012-11-317	500	United States
MS2131821	2012-11-312	24	United States
MS2131821	2011-09-252	1	US
MS2131821	2011-08-222	1	US
MS2131821	2011-05-123	50	US
MS2131821	2010-11-307	10	United States
MS2131821	2010-11-305	10	United States
5305-00-253-5615	2010-05-133	23	United Arab Emirates
5305-00-253-5615	2009-11-316	50	United States
5305-00-253-5615	2009-10-303	36	US
5305-00-253-5615	2009-07-195	90	United States
5305-00-253-5615	2009-06-170	90	US
MS2131821	2009-06-161	100	US
MS2131821	2009-06-161	100	US
5305-00-253-5615	2009-05-147	140	United States
5305-00-253-5615	2009-02-49	98	DIBBS
5305-00-253-5615	2009-01-14	100	United States
5305-00-253-5615	2008-08-237	1550	US

Cross Reference | NSN 5305-00-253-5615

Part Number	Cage Code	Manufacturer
192413	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
20Z42D2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
24566695770	0124B	SAPA OPERACIONES SL
29930	53964	KAYDON CUSTOM FILTRATION CORPORATION
4B4158	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305002535615	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
815-1289	44940	CUMMINS POWER GENERATION INC.
9001314	18876	U S ARMY AVIATION AND MISSILE COMMAND
AA1554-18	K1037	MEGGITT AEROSPACE LTD DBA MEGGITT AIRCRAFT BRAKING SYSTEMS
AL81AF083	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AM29581/12	K1037	MEGGITT AEROSPACE LTD DBA MEGGITT AIRCRAFT BRAKING SYSTEMS
MS21318-21	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21318-21	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N530P404B6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-253-5615

Compare

Related Products | NSN 5305-00-253-5615

5305-00-253-5616, 5305-00-253-5617, 5305-00-253-5618, 5305-00-253-5619, 5305-00-253-5620

Technical Data | NSN 5305-00-253-5615

Characteristic	Specifications
NONMACHINE THREAD STYLE	A16 DRIVE SCREW

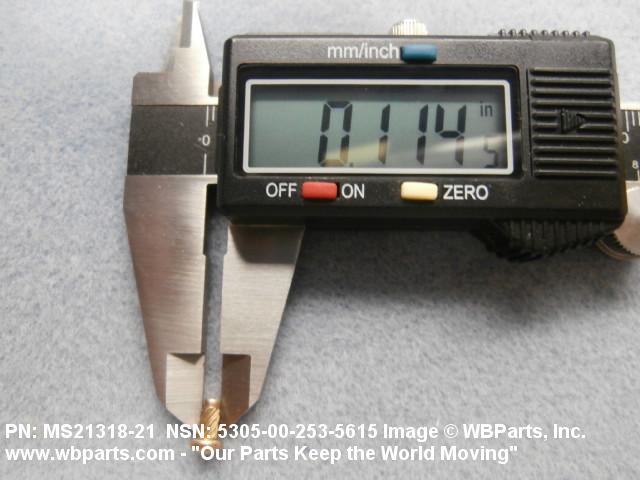

NONMACHINE NOMINAL THREAD DIAMETER	0.114 INCHES

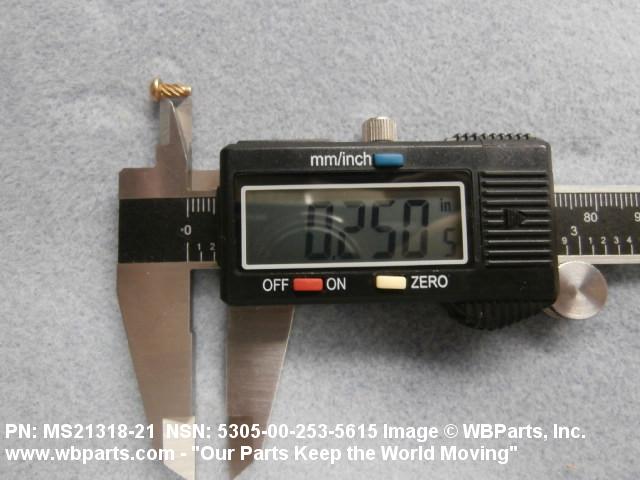

FASTENER LENGTH	0.250 INCHES NOMINAL
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HEAD STYLE	C37 ROUND

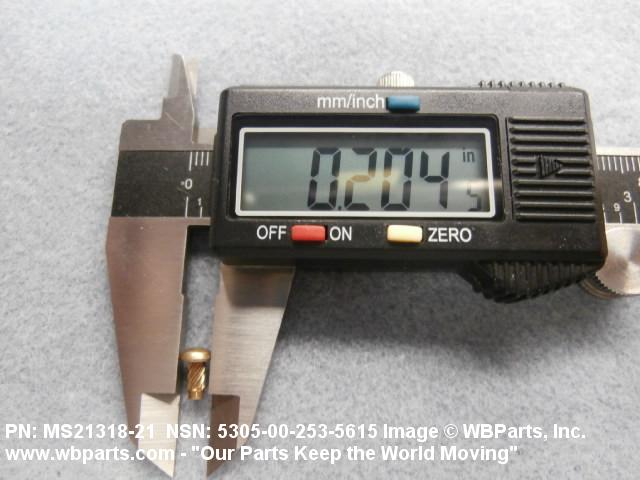

HEAD DIAMETER	0.193 INCHES MINIMUM AND 0.211 INCHES MAXIMUM
HEAD HEIGHT	0.075 INCHES MINIMUM AND 0.086 INCHES MAXIMUM
PILOT DIAMETER	0.092 INCHES MINIMUM AND 0.096 INCHES MAXIMUM
PILOT LENGTH	0.047 INCHES NOMINAL
FEATURES PROVIDED	CASEHARDENED

Restrictions/Controls & Freight Information | NSN 5305-00-253-5615

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-253-5615

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
