NSN 5305-00-080-0064 NAS1352044P, NAS1352-04-4P, BS24704-40UNCX1/4
Product Details | SOCKET HEAD CAP SCREW

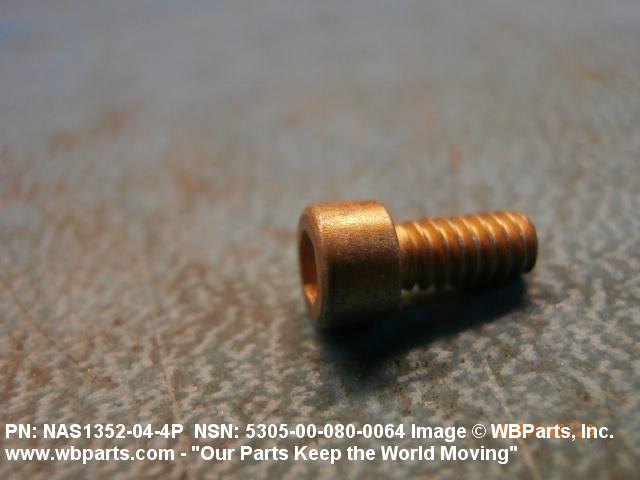

5305-00-080-0064 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352044P, NAS1352-04-4P, BS24704-40UNCX1/4, BS2470440UNCX14, FFS86, 09045099C48, 090-45099C4-8, 0904509C48, 090-4509C4-8, 10124963 , 40208, 4-40UNCX1/4, 440UNCX14, 5305-00-080-0064, 00-080-0064, 5305000800064, 000800064
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 DEC 1967 | 00-080-0064 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

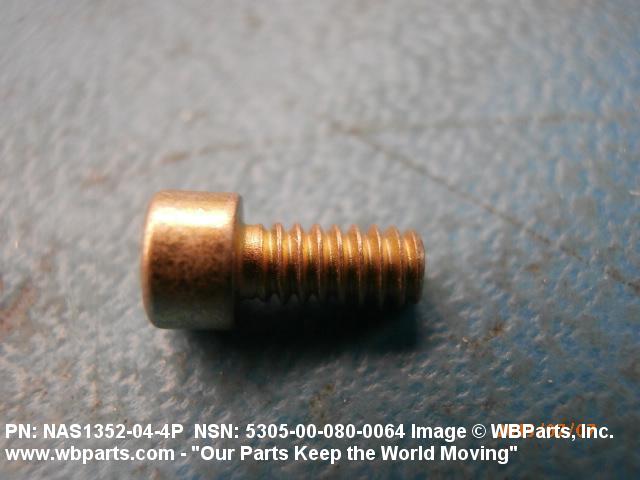

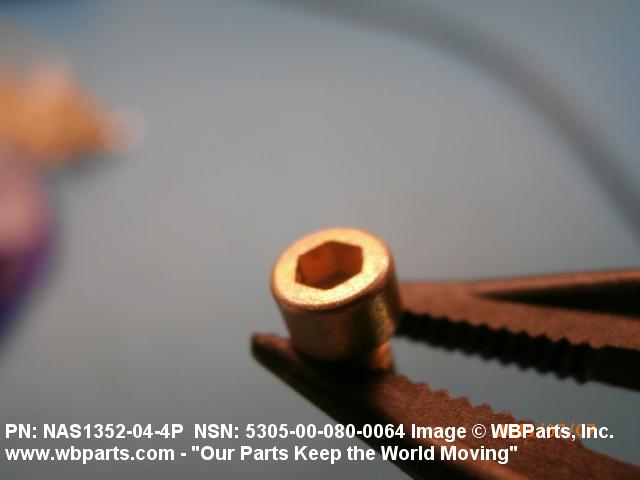

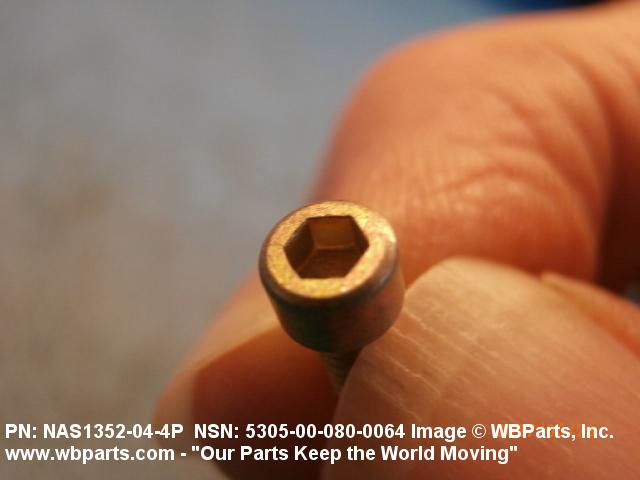

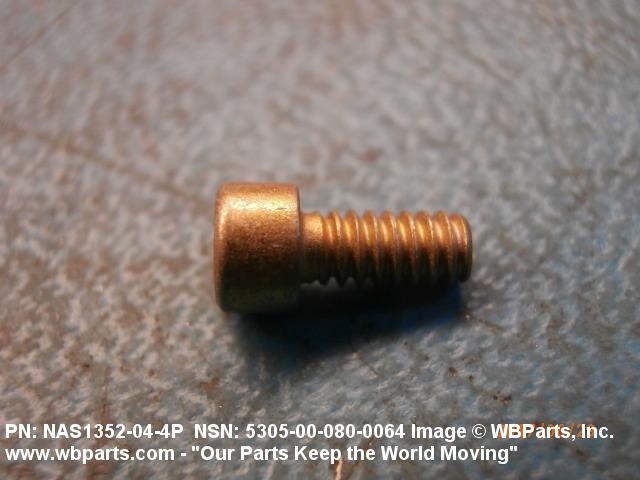

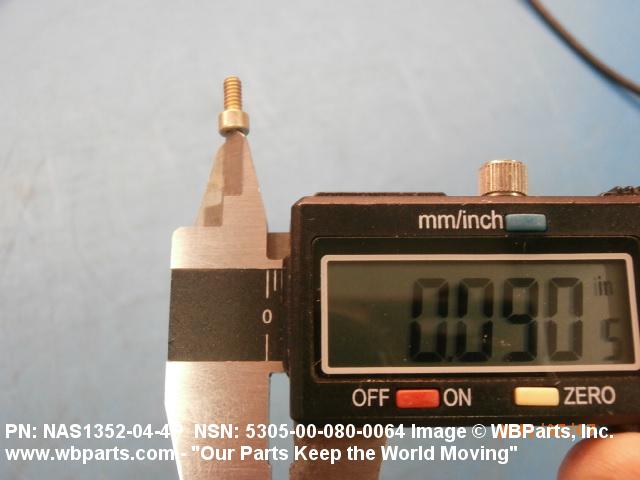

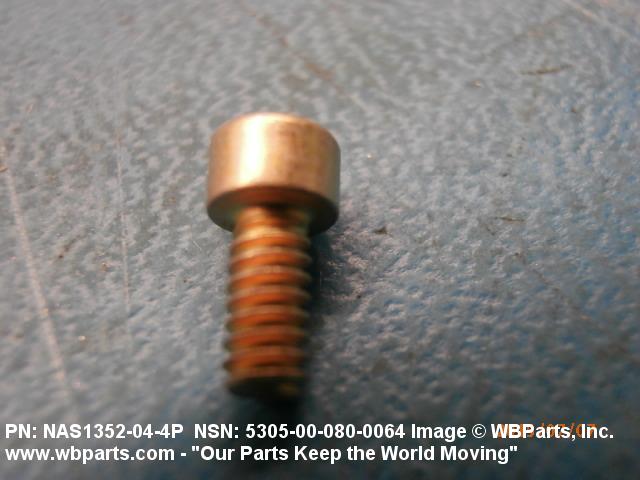

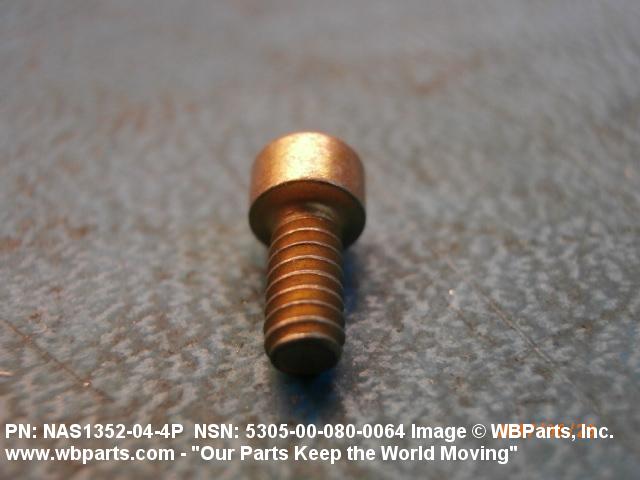

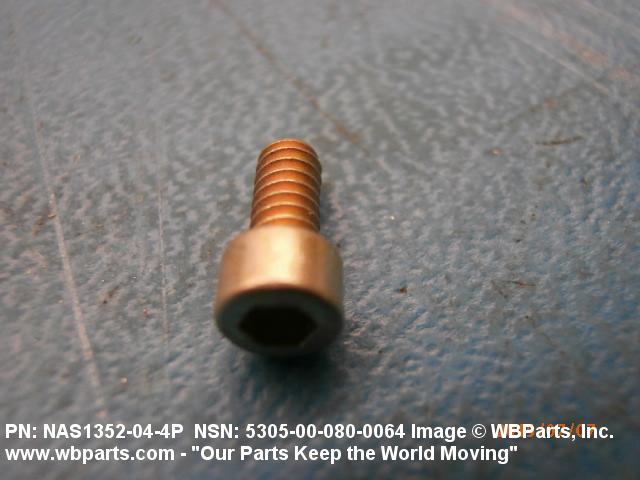

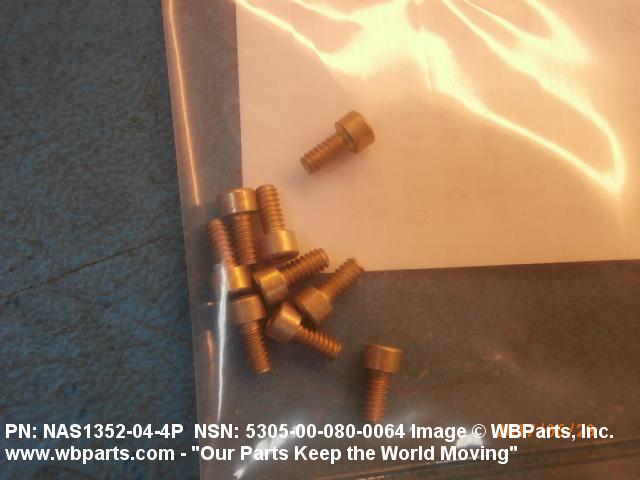

Drawings & Photos | NSN 5305-00-080-0064
Demand History | NSN 5305-00-080-0064
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-080-0064 | 2024-08-239 | 29 | DIBBS |
| 5305-00-080-0064 | 2024-01-15 | 58 | DIBBS |
| 5305-00-080-0064 | 2023-09-260 | 64 | DIBBS |
| 5305-00-080-0064 | 2023-05-141 | 127 | DIBBS |
| FFS86 | 2022-05-143 | 40 | United States |
| FFS86 | 2021-12-347 | 40 | US |
| NAS1352044P | 2018-03-85 | 24 | India |
| 5305-00-080-0064 | 2017-06-173 | 200 | United States |
| 5305-00-080-0064 | 2016-11-327 | 1 | DIBBS-RFPs |
| NAS1352044P | 2015-07-183 | 100 | us |
| NAS1352044P | 2015-06-167 | 70 | us |
| FFS86 | 2013-08-229 | 80 | Canada |
| 5305-00-080-0064 | 2012-11-314 | 16146 | DIBBS |
| FFS86 | 2012-03-74 | 2 | US |
| FFS86 | 2011-08-222 | 50 | US |
| FFS86 | 2011-08-214 | 50 | US |
| FFS86 | 2011-03-61 | 8 | US |
| FFS86 | 2011-03-60 | 5000 | US |
| 5305-00-080-0064 | 2010-04-117 | 14489 | DIBBS |
| 5305-00-080-0064 | 2009-04-118 | 17771 | DIBBS |
| 5305-00-080-0064 | 2009-04-111 | 16965 | DIBBS |
| 5305-00-080-0064 | 2008-09-246 | 9982 | DIBBS |
| 5305-00-080-0064 | 2008-03-70 | 16013 | DIBBS |
Cross Reference | NSN 5305-00-080-0064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 090-45099C4-8 | 94697 | MOOG, INC. |
| 090-4509C4-8 | 94697 | MOOG, INC. |
| 4-40UNCX1/4 | U1811 | UNBRAKO A DIVISION OF S P S TECHNOLO IES LTD |
| 40208 | 70276 | ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO |
| BS24704-40UNCX1/4 | K7766 | BRITISH STANDARDS INSTITUTION |
| FFS86 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| NAS1352-04-4P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-080-0064
Related Products | NSN 5305-00-080-0064
Technical Data | NSN 5305-00-080-0064
| Characteristic | Specifications |
|---|---|

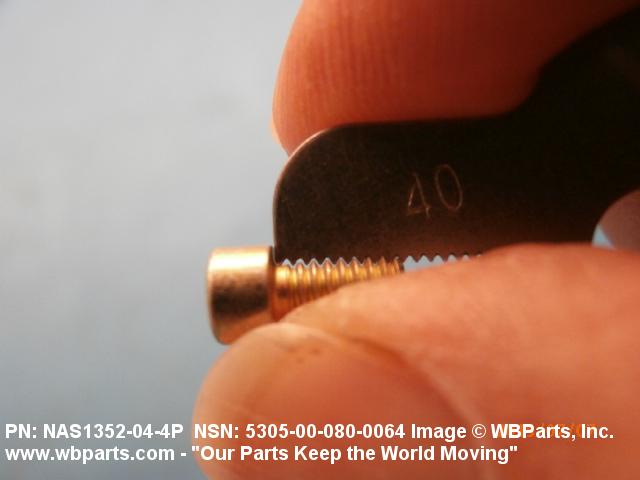

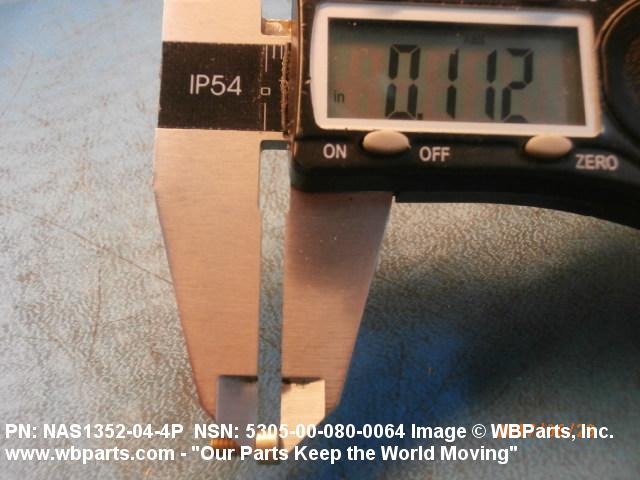

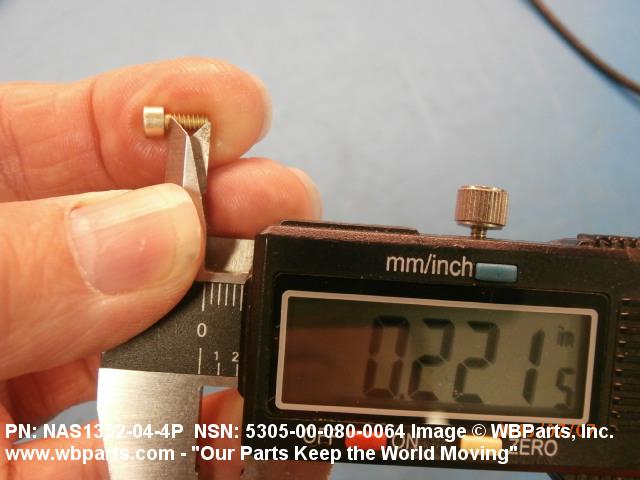

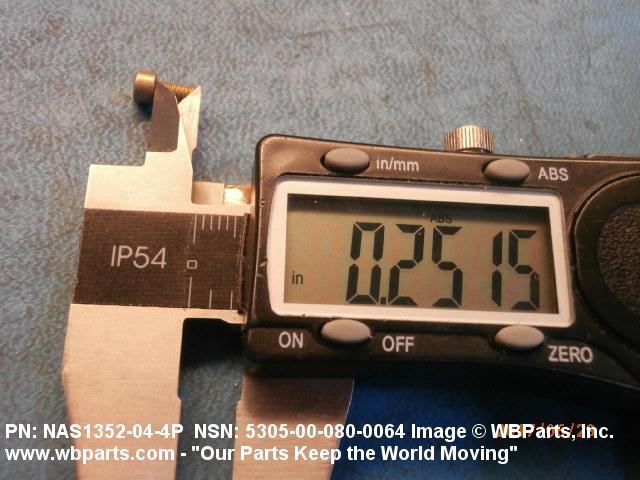

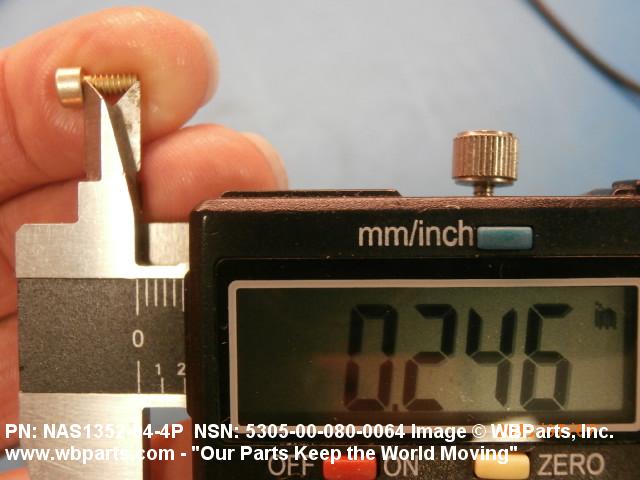

| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES MINIMUM |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 130000 POUNDS PER SQUARE INCH |

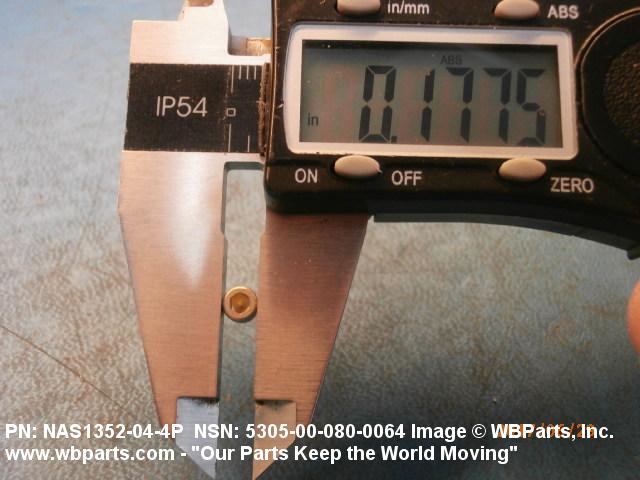

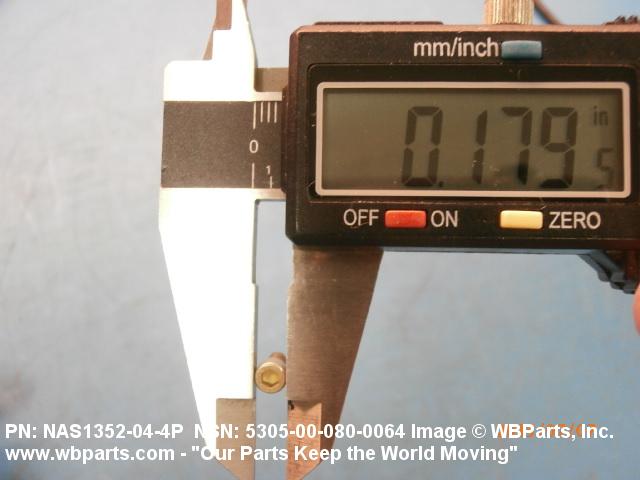

| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |

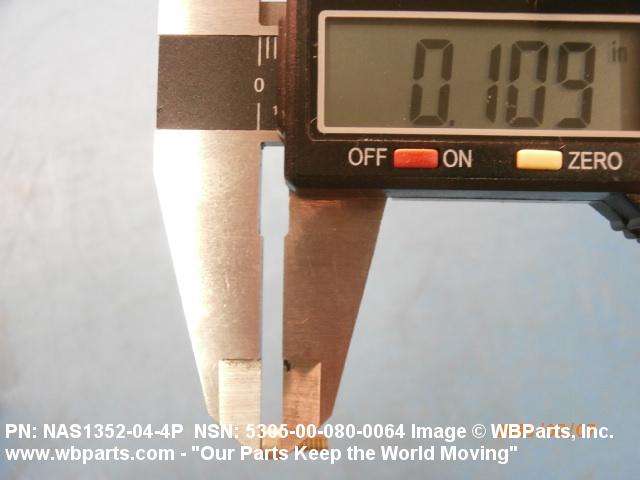

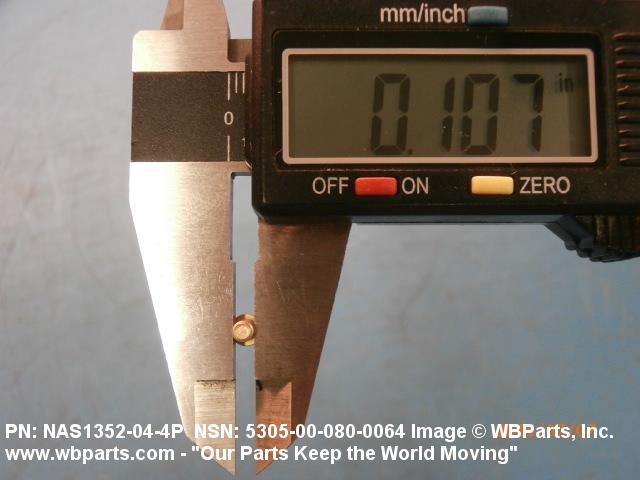

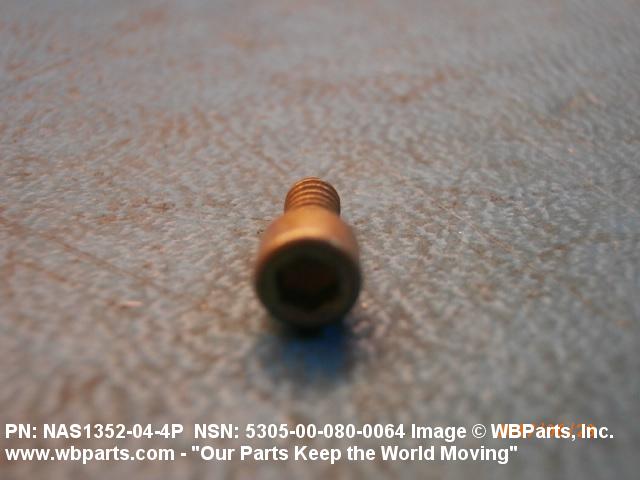

| HEAD HEIGHT | 0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.093 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1352 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS86 |
