NSN 5305-00-079-8474 NAS1297067, NAS1297-06-7, 00-079-8474
Product Details | SHOULDER SCREW
5305-00-079-8474 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: NAS1297067, NAS1297-06-7, 5305-00-079-8474, 00-079-8474, 5305000798474, 000798474
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-079-8474 | 22846 ( SCREW, SHOULDER ) |

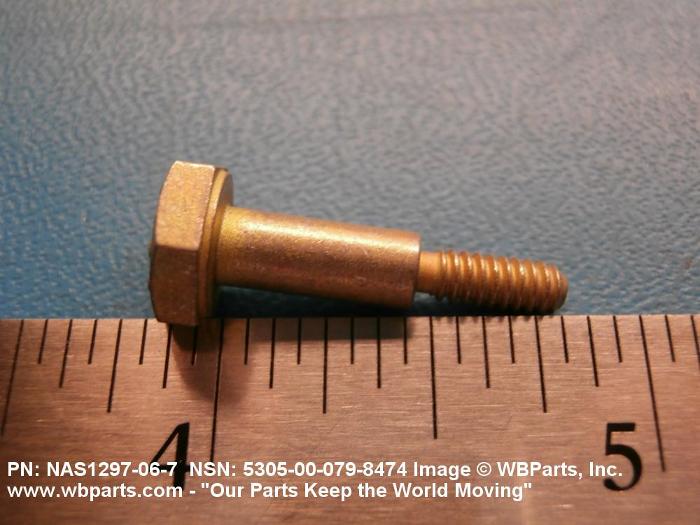

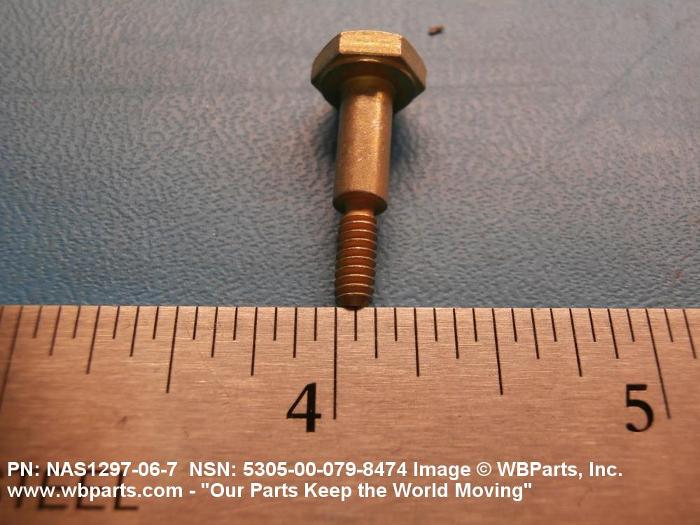

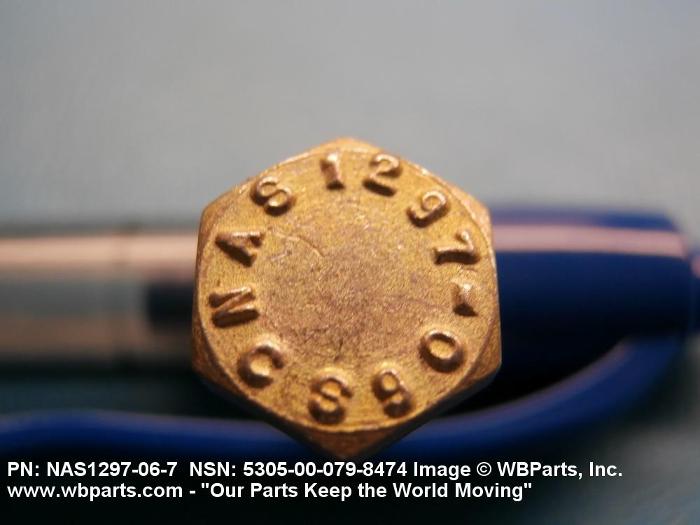

Drawings & Photos | NSN 5305-00-079-8474
Demand History | NSN 5305-00-079-8474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1297-06-7 | 2024-02-56 | 19 | DIBBS |
| 5305-00-079-8474 | 2017-04-92 | 23 | DIBBS |
| 5305-00-079-8474 | 2016-07-212 | 4 | US |
| 5305-00-079-8474 | 2016-04-94 | 10 | DIBBS |
| NAS1297067 | 2012-10-304 | 65 | United States |
| 5305-00-079-8474 | 2012-08-231 | 200 | US |
Cross Reference | NSN 5305-00-079-8474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1297-06-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-079-8474
Technical Data | NSN 5305-00-079-8474
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.342 INCHES MINIMUM AND 0.392 INCHES MAXIMUM |
| FASTENER LENGTH | 0.800 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.186 INCHES MINIMUM AND 0.189 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.448 INCHES MINIMUM AND 0.458 INCHES MAXIMUM FIRST SHOULDER |
| SPECIFICATION/STANDARD DATA | 80205-NAS1297 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-00-079-8474
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-079-8474
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
