NSN 5305-00-068-5411 MS169953, MS16995-3, N171P5006

Product Details | SOCKET HEAD CAP SCREW

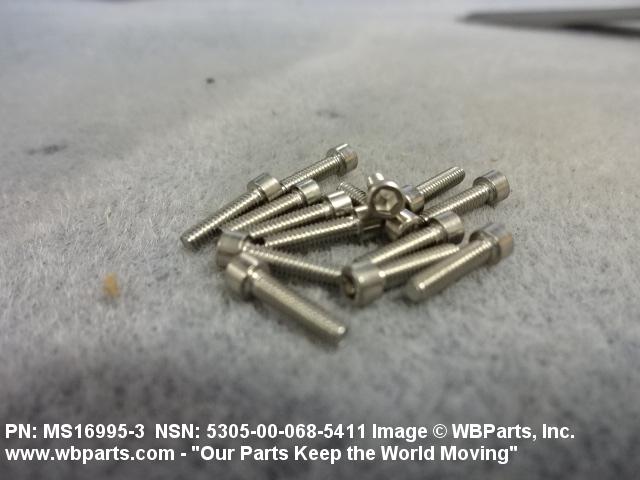

5305-00-068-5411 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS169953, MS16995-3, N171P5006, NAS1352C026, NAS1352C02-6, HC2566SSP, HC-256-6-SS-P, FFS86, FF-S-86, 7600510-11, 9470892C6, 94708-92C-6, 003007868003, 003-007868-003, 412004-206, 4182623, 418262-3, 010231-003, 08193, 0819-3, 100A900005, 10163779, 1120681007, 112-0681-007, 15650071, 15650071-1 , 1960SERIES2-56X 3/8, 1960SERIES256X38, 2009892C6, 20098-92C6, 23010323T, 2301-0323T, 33AF11210206, 33AF1121-02-06, 5305-00-068-5411, 00-068-5411, 5305000685411, 000685411, 010231003, 760051011, 412004206, 156500711

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-068-5411	16282 ( SCREW, CAP, SOCKET HEAD )

Drawings & Photos | NSN 5305-00-068-5411

Part Number	Request Date	QTY	Origin
MS169953	2024-08-241	34	Japan
NAS1352C026	2024-05-122	2510	us
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
NAS1352C026	2020-07-209	350	us
NAS1352C026	2020-03-91	100	us
NAS1352C026	2019-09-273	300	us
MS169953	2019-06-178	100	United States
NAS1352C026	2019-05-128	400	us
NAS1352C026	2019-04-108	400	us
NAS1352C026	2019-01-22	800	us
NAS1352C026	2018-05-123	800	us
NAS1352C026	2018-03-72	250	us
NAS1352C026	2017-11-325	500	us
NAS1352C026	2017-07-193	200	us
FFS86	2013-08-229	80	Canada
FFS86	2012-03-74	2	US
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
MS169953	2011-06-173	15	United States
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
5305-00-068-5411	2010-10-281	24	US
5305-00-068-5411	2009-08-231	50	US
MS169953	2009-06-175	40	India
5305-00-068-5411	2009-03-76	100	South Korea
5305-00-068-5411	2009-01-19	90	BE
5305-00-068-5411	2008-11-330	100	IL

Cross Reference | NSN 5305-00-068-5411

Part Number	Cage Code	Manufacturer
003-007868-003	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
010231-003	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
0819-3	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
100A900005	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
112-0681-007	94756	BOEING COMPANY, THE DBA BOEING
15650071	F6151	SAFRAN
15650071	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
15650071-1	F6151	SAFRAN
15650071-1	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
1960SERIES2-56X 3/8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
20098-92C6	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
2301-0323T	91816	CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS
33AF1121-02-06	35351	GE AVIATION SYSTEMS LLC
412004-206	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418262-3	1C5D9	SPS TECHNOLOGIES INC UNBRAKO DIV
418262-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7600510-11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
94708-92C-6	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
FF-S-86	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
HC-256-6-SS-P	26136	KEARFLEX ENGINEERING COMPANY
MS16995-3	35351	GE AVIATION SYSTEMS LLC
MS16995-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N171P5006	09172	GENERAL ELECTRIC CO MATERIALS INFORMATION SERVICES
NAS1352C02-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-068-5411

Compare

Related Products | NSN 5305-00-068-5411

5305-00-068-5412, 5305-00-068-5414, 5305-00-068-5415, 5305-00-068-5416, 5305-00-068-5417

Technical Data | NSN 5305-00-068-5411

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

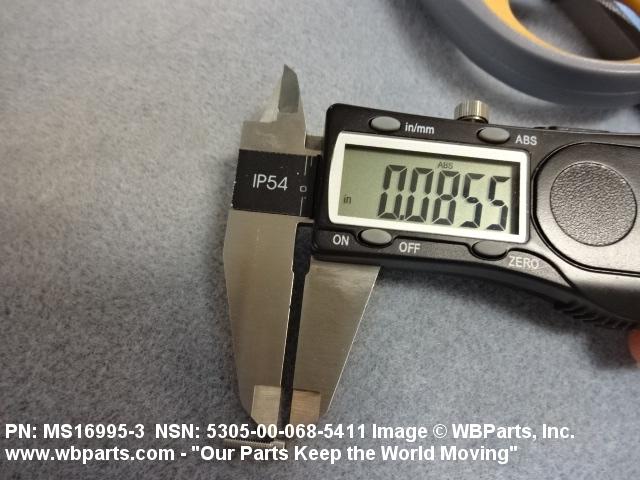

NOMINAL THREAD DIAMETER	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

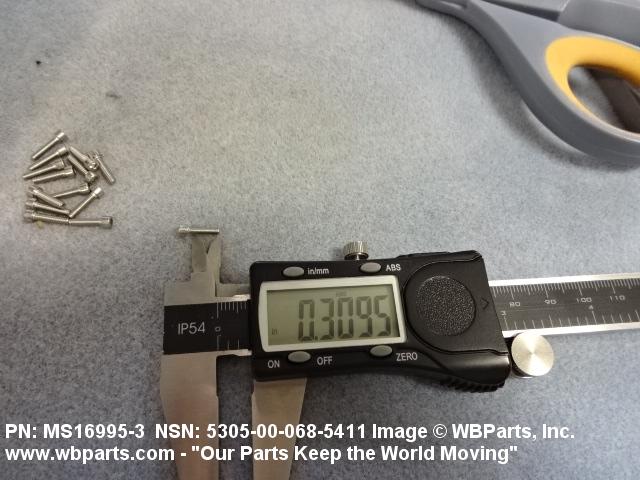

THREAD LENGTH	0.309 INCHES MINIMUM AND 0.375 INCHES MAXIMUM

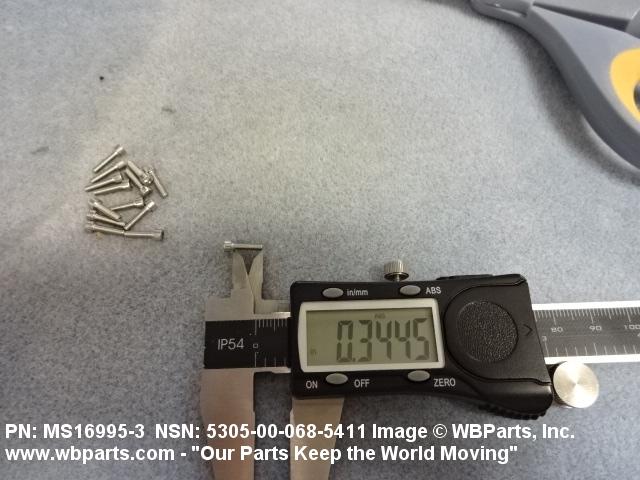

FASTENER LENGTH	0.345 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

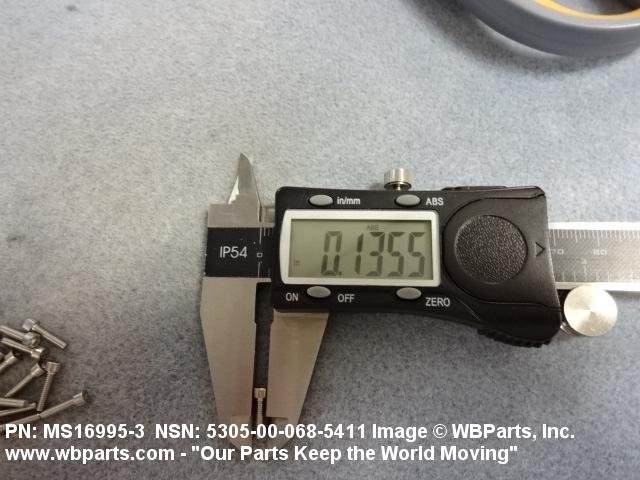

HEAD DIAMETER	0.134 INCHES MINIMUM AND 0.140 INCHES MAXIMUM

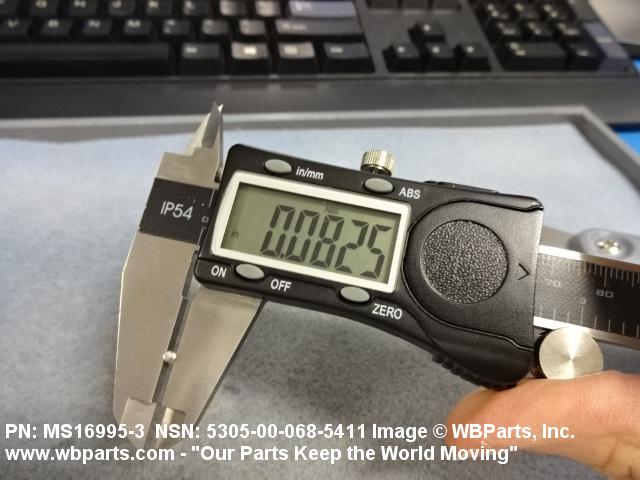

HEAD HEIGHT	0.083 INCHES MINIMUM AND 0.086 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON

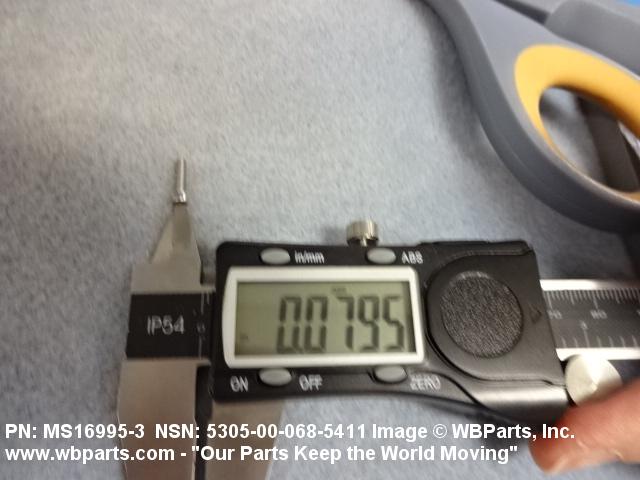

WIDTH ACROSS FLATS	0.078 INCHES MINIMUM AND 0.079 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	6 TYPE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-86

Restrictions/Controls & Freight Information | NSN 5305-00-068-5411

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-068-5411

Navy
Marines

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
