NSN 5305-00-057-4593 MS1699609, MS16996-09, MS169969

Product Details | SOCKET HEAD CAP SCREW

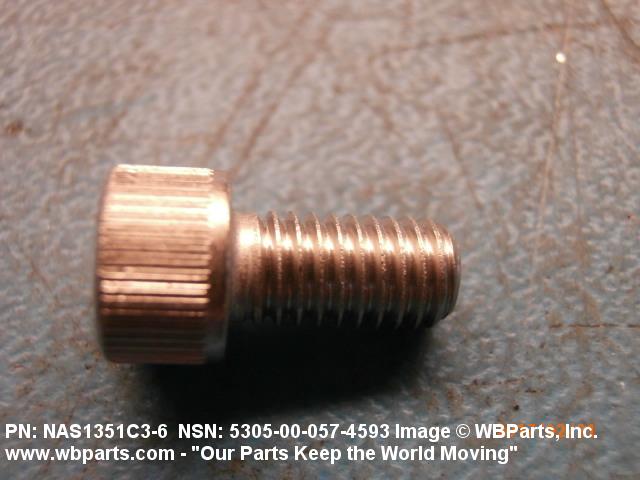

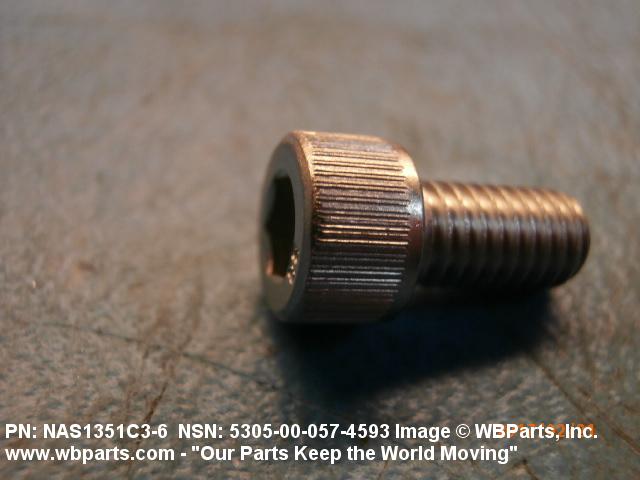

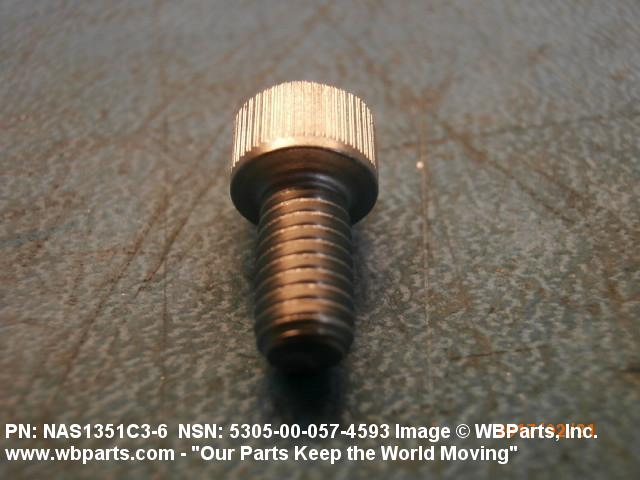

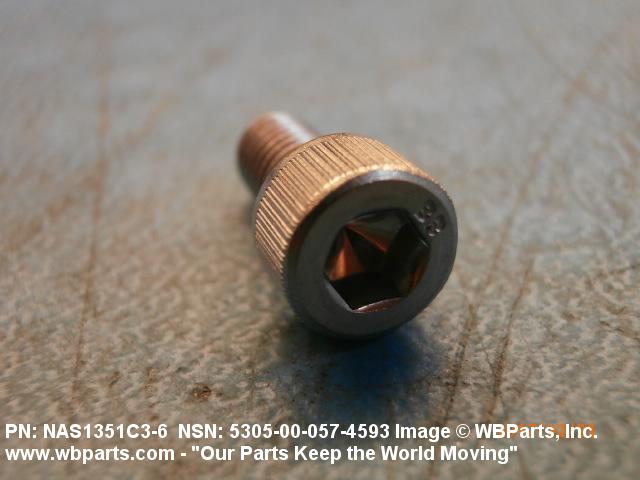

5305-00-057-4593 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699609, MS16996-09, MS169969, MS16996-9, M162137, M162-137, NAS1351C36, NAS1351C3-6, NAS608C36, NAS608C3-6, VA970190004, VA-97-0190-004, 5M.3014.222.21, 5M301422221, 65564190806, 655-641-90806, 852519, 88058, 92522100600, 003007948009, 003-007948-009, 0819286, 0819-286, 10124914, 10-32X3/8 SKTHDCAP32-303, 1032X38SKTHDCAP32303, 1120681029, 112-0681-029, 15650449-1, 200005 PL FIND NO. 57, 200005PLFINDNO57, 243626, 245469, 4185909, 418590-9, 946606-223, 5305-00-057-4593, 00-057-4593, 5305000574593 , 156504491, 946606223, 000574593

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-057-4593	16282 ( SCREW, CAP, SOCKET HEAD )

Drawings & Photos | NSN 5305-00-057-4593

Part Number	Request Date	QTY	Origin
MS169969	2024-12-351	100	United States
MS169969	2023-09-248	50	United States
MS16996-9	2020-06-174	40	Hong Kong
NAS1351C36	2020-05-125	104	United States
MS169969	2019-10-288	10	United States
5305-00-057-4593	2018-06-156	3799	DIBBS
MS169969	2018-05-143	18	United States
NAS1351C36	2016-12-363	350	Korea
NAS1351C36	2016-04-111	60	Korea
MS169969	2014-10-296	340	Israel
MS169969	2014-10-296	340	Israel
NAS1351C36	2014-02-37	280	Korea
NAS1351C36	2013-02-58	1200	United States
5305-00-057-4593	2013-02-42	100	US
5305-00-057-4593	2013-02-42	120	US
5305-00-057-4593	2012-11-310	6	United States
5305-00-057-4593	2012-11-310	500	United States
NAS1351C36	2012-07-205	2100	US
5305-00-057-4593	2011-09-264	130	US
5305-00-057-4593	2011-09-264	130	US
NAS1351C36	2011-07-182	10	us
MS169969	2011-05-125	10	United States
MS169969	2011-03-80	240	United States
MS169969	2009-05-125	120	US
MS169969	2009-01-22	74	Greece
MS169969	2008-12-358	240	US
MS169969	2008-12-343	240	US
5305-00-057-4593	2008-04-113	110	US
5305-00-057-4593	2006-08-242	156	France

Cross Reference | NSN 5305-00-057-4593

Part Number	Cage Code	Manufacturer
003-007948-009	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
0819-286	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
10-32X3/8 SKTHDCAP32-303	70276	ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO
112-0681-029	94756	BOEING COMPANY, THE DBA BOEING
15650449-1	F6151	SAFRAN
15650449-1	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
200005 PL FIND NO. 57	56349	TRI-TEC MANUFACTURING, LLC
243626	08712	PRINCE ALEXANDER PARTNERS INC DIV ARCHITECTURE ENGIEERING AND
245469	35679	SINCLAIR TECHNOLOGIES INC.
418590-9	96214	RAYTHEON COMPANY DBA RAYTHEON
5305000574593	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5M.3014.222.21	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
655-641-90806	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
852519	19139	EASTMAN KODAK COMPANY DBA KODAK
88058	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
92522100600	1NZ85	L-3 COMMUNICATIONS CORPORATION DBA SPACE AND NAVIGATION
92522100600	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
946606-223	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
M162-137	54418	MILTOPE CORPORATION
MS16996-09	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16996-9	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16996-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1351C3-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS608C3-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
VA-97-0190-004	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-057-4593

Compare

Related Products | NSN 5305-00-057-4593

5305-00-057-4876, 5305-00-057-4877, 5305-00-057-4879, 5305-00-057-4905, 5305-00-057-4913

Technical Data | NSN 5305-00-057-4593

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

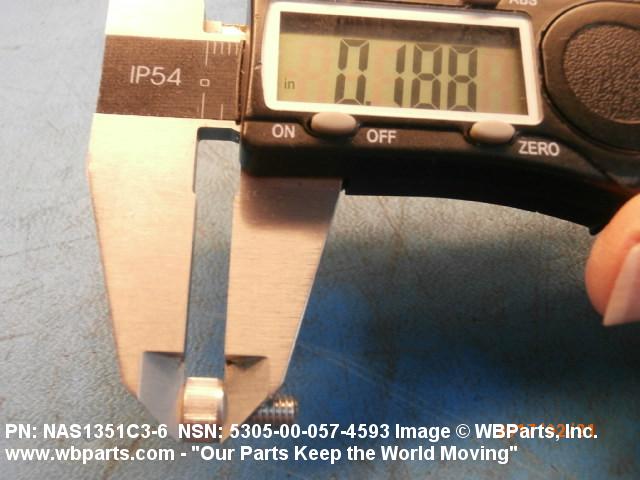

NOMINAL THREAD DIAMETER	0.190 INCHES

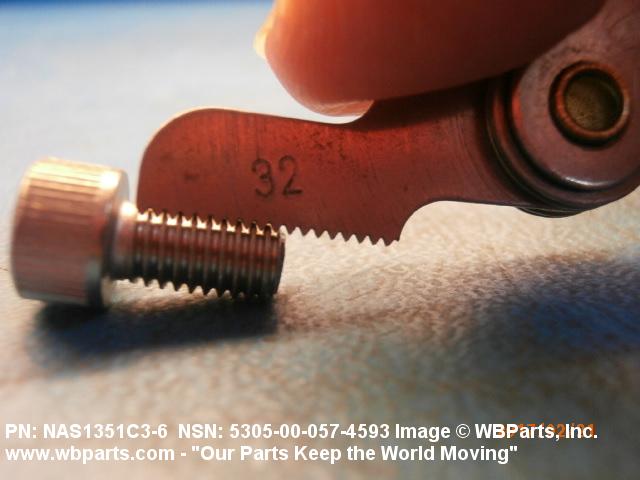

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

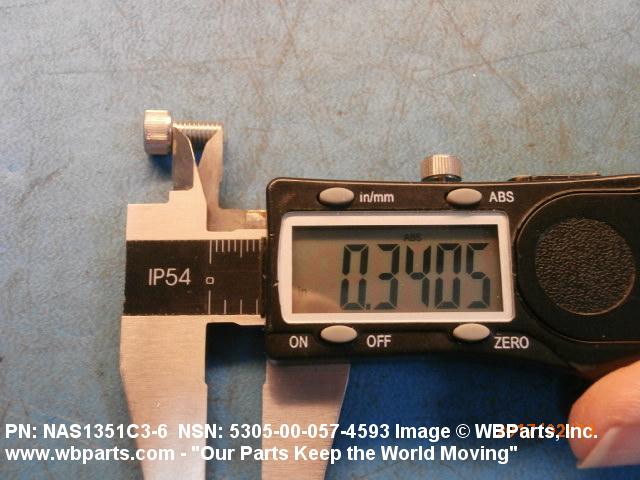

THREAD LENGTH	0.329 INCHES MINIMUM

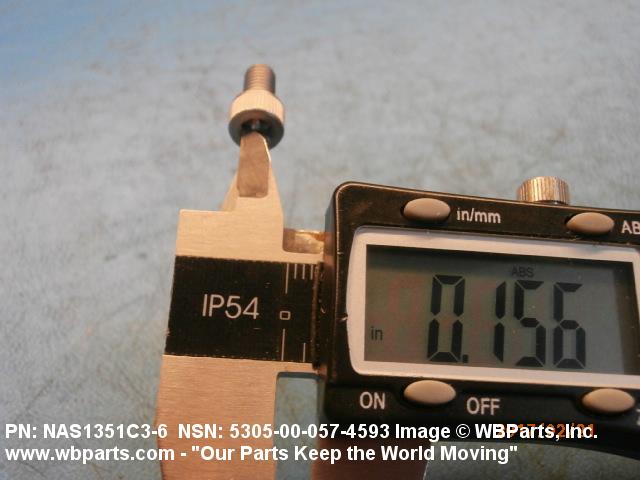

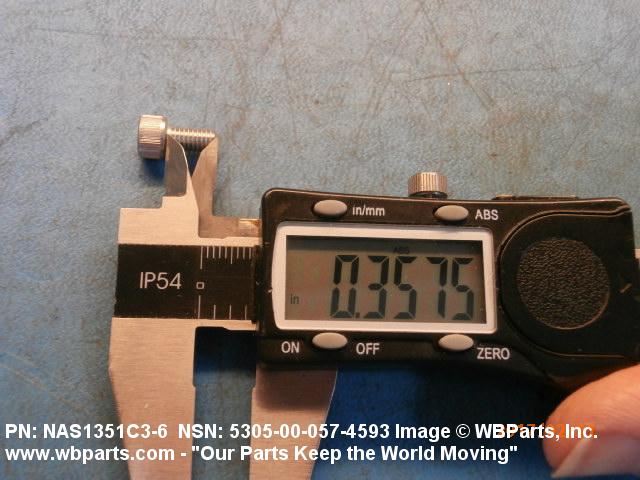

FASTENER LENGTH	0.375 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C49 FLAT CHAMFER

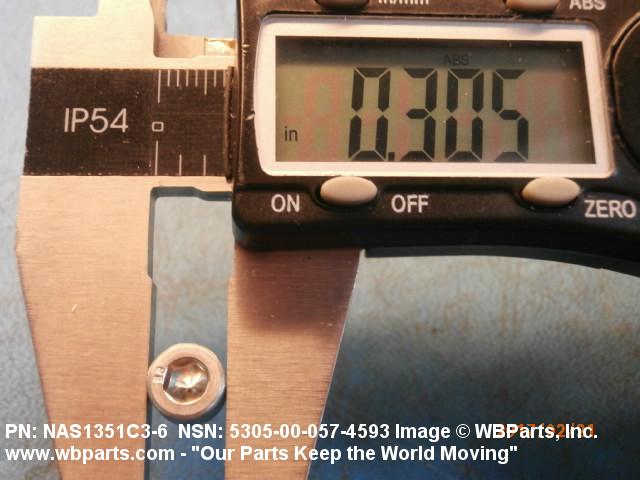

HEAD DIAMETER	0.303 INCHES MINIMUM AND 0.313 INCHES MAXIMUM

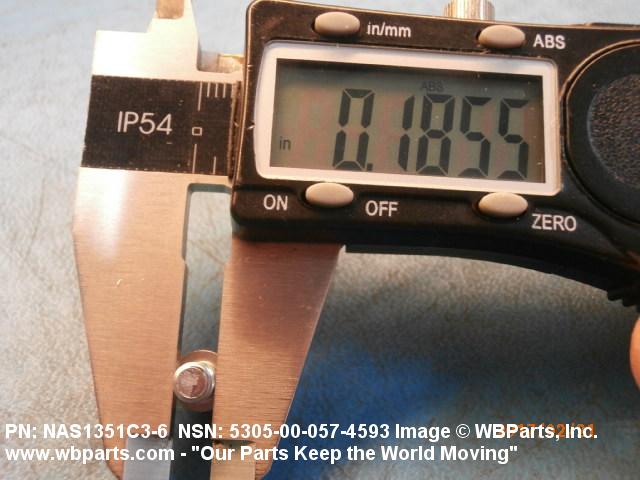

HEAD HEIGHT	0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

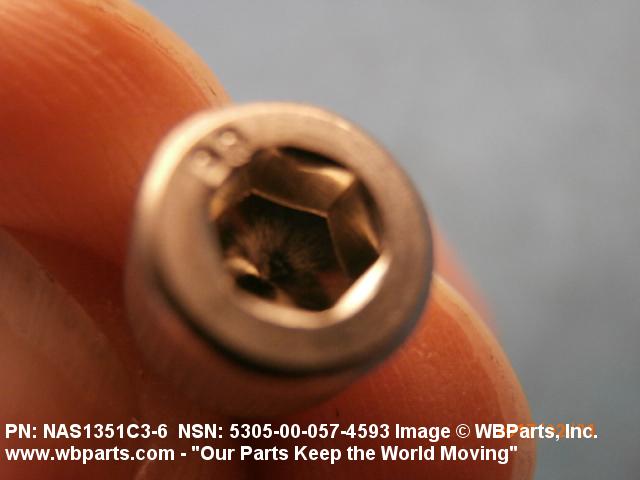

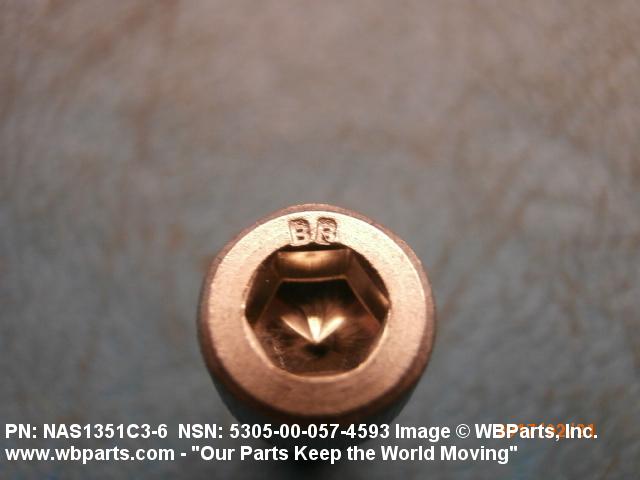

INTERNAL DRIVE STYLE	D5 HEXAGON
