Product Details | PROFILE GAGE

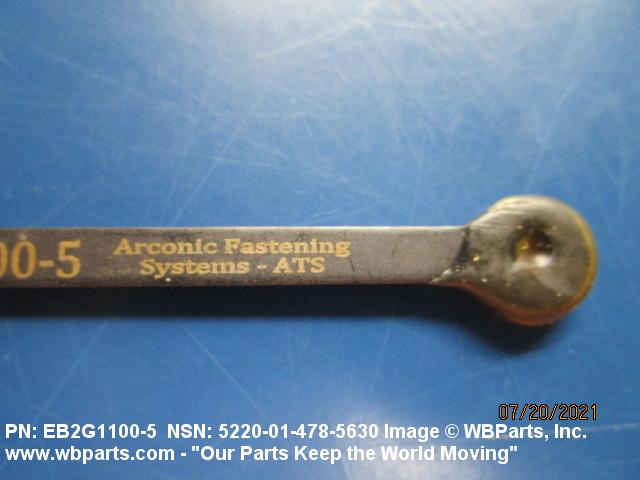

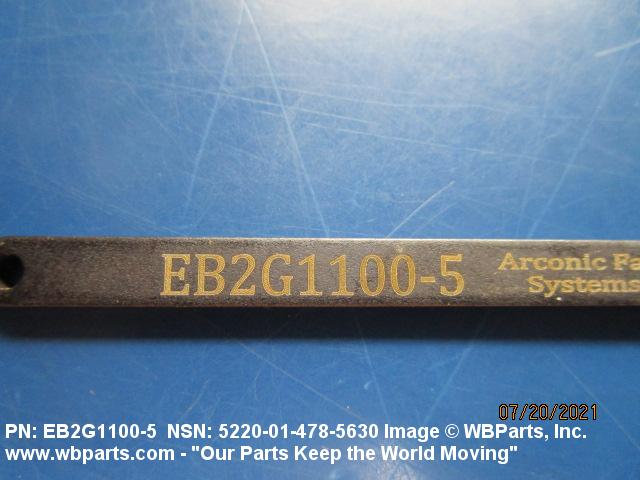

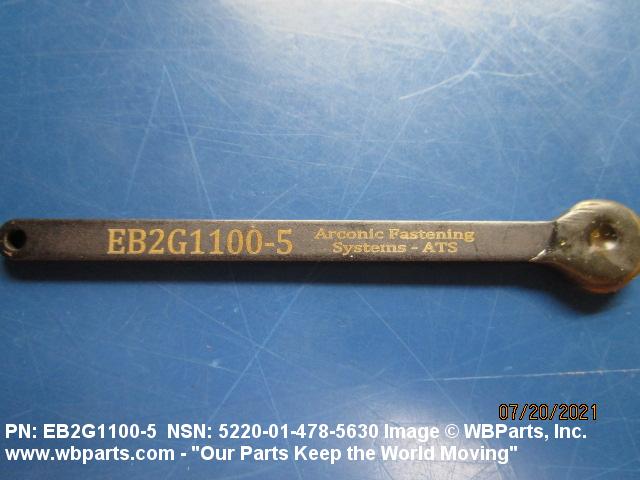

5220-01-478-5630 A gage used to check or inspect contour, radius, chamfer, depth, thickness and/or height by inclusive fit of a work piece.
Part Alternates: EB2G11005, EB2G1100-5, 5220-01-478-5630, 01-478-5630, 5220014785630, 014785630
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 19 SEP 2000 | 01-478-5630 | 38474 ( GAGE, PROFILE ) |
Drawings & Photos | NSN 5220-01-478-5630
Demand History | NSN 5220-01-478-5630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| EB2G11005 | 2024-08-215 | 1 | US |
| 5220-01-478-5630 | 2024-08-215 | 1 | US |
| 5220-01-478-5630 | 2022-08-228 | 3 | US |
| EB2G1100-5 | 2021-07-195 | 13 | DIBBS |
| 5220-01-478-5630 | 2014-07-197 | 16 | DIBBS |
| 5220-01-478-5630 | 2014-01-13 | 3 | DIBBS |
| 5220-01-478-5630 | 2013-12-339 | 3 | DIBBS |
| 5220-01-478-5630 | 2011-06-164 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5220-01-478-5630
Related Products | NSN 5220-01-478-5630
Technical Data | NSN 5220-01-478-5630
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | FLAT |
| GAGE TYPE | GO AND NOT GO |
| GAGING MEMBER OUTSIDE DIAMETER | 0.2285 INCHES AND 0.2290 INCHES |
| AIR GROOVE FEATURE | NOT INCLUDED |
| LENGTH | 4.000 INCHES |
| THICKNESS | 0.125 INCHES |
| SPECIAL FEATURES | USED WITH GAGE, PROFILE, P/N EB2G1400 AND DRIVER, EDDIE BOLT, A, P/N EB2T4020-5; USED FOR INSTALLATION OF ENGINE AIR PARTICLE SEPARATOR SEAL |
| III END ITEM IDENTIFICATION | H-53 HELICOPTER |
Restrictions/Controls & Freight Information | NSN 5220-01-478-5630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72B | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
