Product Details | PROFILE GAGE
5220-01-370-8706 A gage used to check or inspect contour, radius, chamfer, depth, thickness and/or height by inclusive fit of a work piece.
Part Alternates: 68D1501121001, 68D150112-1001, 5220-01-370-8706, 01-370-8706, 5220013708706, 013708706
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 FEB 1993 | 01-370-8706 | 38474 ( GAGE, PROFILE ) |
Drawings & Photos | NSN 5220-01-370-8706
Demand History | NSN 5220-01-370-8706
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5220-01-370-8706 | 2020-01-07 | 3 | US |
| 5220-01-370-8706 | 2019-04-120 | 1 | KR |
| 5220-01-370-8706 | 2012-12-346 | 1 | United States |
| 68D1501121001 | 2006-09-262 | 1 | US |
Cross Reference | NSN 5220-01-370-8706
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68D150112-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5220-01-370-8706
Technical Data | NSN 5220-01-370-8706
| Characteristic | Specifications |
|---|---|

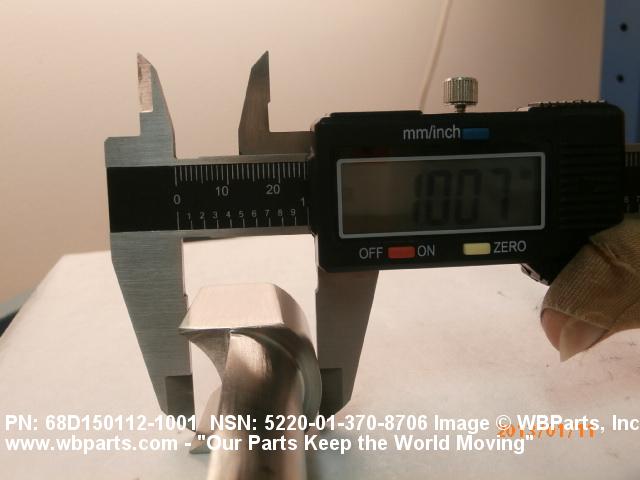

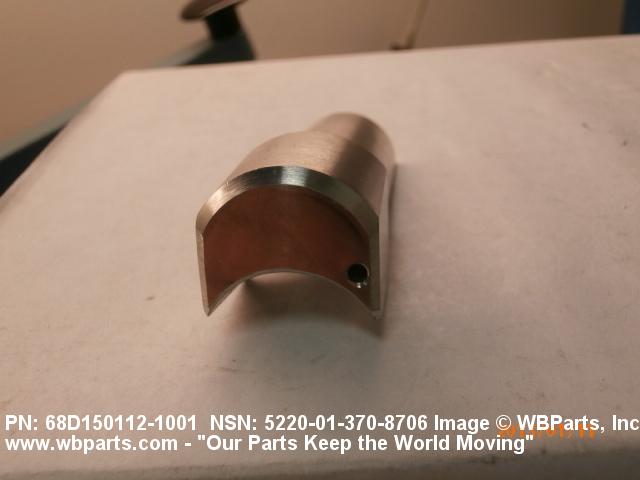

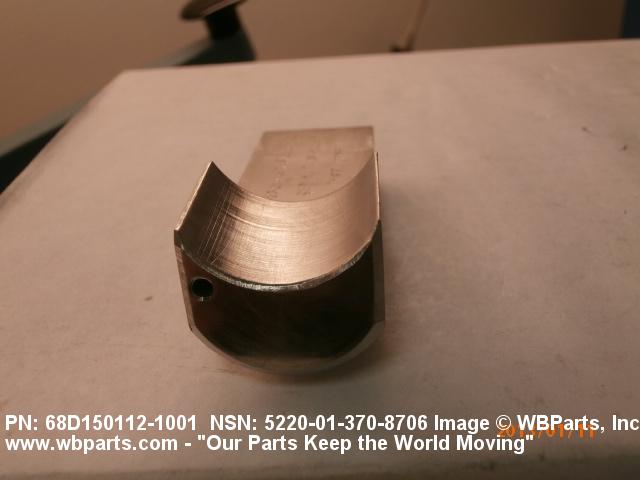

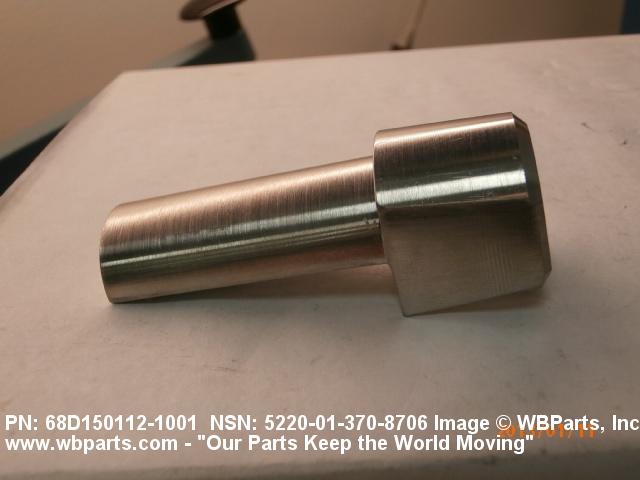

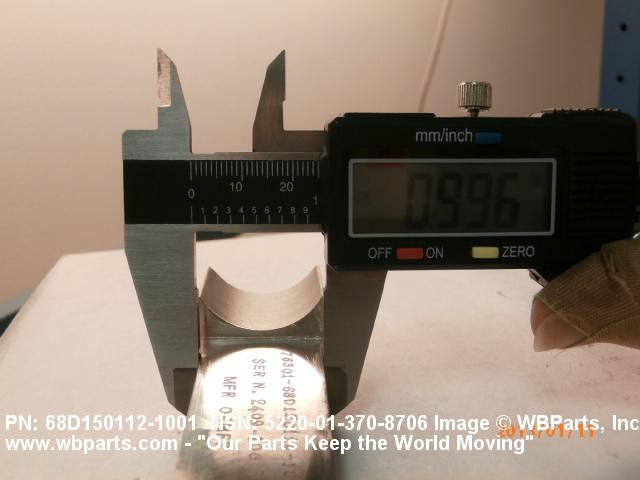

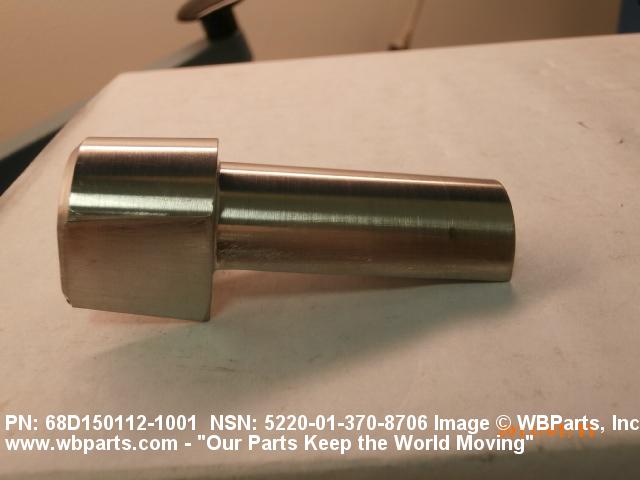

| SPECIAL FEATURES | RQRD FOR VISUAL INSPECTION OF BREECH EROSION IN BRU-46/A AND BRU-47/A BOMB RACK UNITS;BREECH GUIDE PIN MATES TO INSPECTION GAGE;INTERFACE AREA INSPECTED BETWEEN LOWER EDGES OF INSPECTION GAGE AND BREECH WALLS;MATL CORROSION RESISTANT STEEL;PASSIVATE FINISH;APPROX DIM 1 IN. WD BY 1 IN. LG BY 2 IN. HT;WT 3 0Z;SERD NO. 5087;HANDLE ALLOWS INSPECTION GAGE TO BE INSERTED OR REMOVED FROM BREECH CAVITY AFTER CLEANING WALLS OF BREECH |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68D150112-1001 |
