NSN 5220-00-717-6806 6797571, 00-717-6806, 007176806

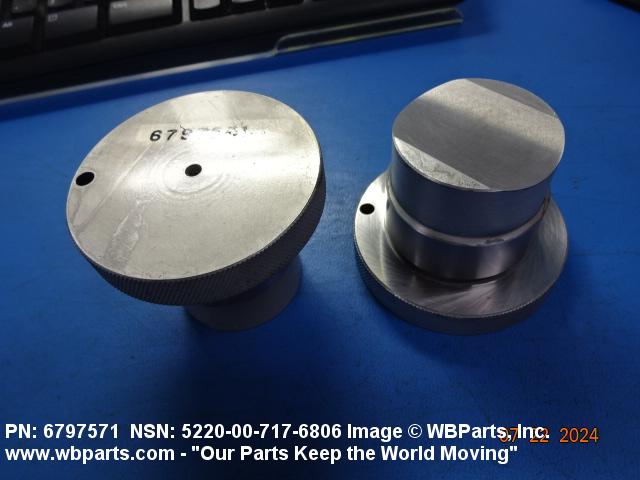

5220-00-717-6806 A gage used to check or inspect contour, radius, chamfer, depth, thickness and/or height by inclusive fit of a work piece.

Part Alternates: 6797571, 5220-00-717-6806, 00-717-6806, 5220007176806, 007176806

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
52	01 JAN 1963	00-717-6806	38474 ( GAGE, PROFILE )

Part Number	Request Date	QTY	Origin
5220-00-717-6806	2024-07-192	2	us
5220-00-717-6806	2020-01-02	12	NECO
5220-00-717-6806	2019-11-324	12	NECO
5220-00-717-6806	2019-07-212	16	NECO
5220-00-717-6806	2017-04-105	5	NECO
5220-00-717-6806	2016-03-71	5	NECO
6797571	2015-05-150	7
5220-00-717-6806	2015-05-148	7	NECO
6797571	2014-11-318	7
5220-00-717-6806	2014-11-317	7	NECO
6797571	2011-02-56	24
5220-00-717-6806	2011-02-55	24	NECO
5220-00-717-6806	2006-10-285	1	Thailand

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5220-00-717-6806

Compare

5220-00-718-0199, 5220-00-720-0881, 5220-00-720-1474, 5220-00-720-5909, 5220-00-722-4296

Characteristic	Specifications
DESIGN TYPE	SINGLE END
GAGE TYPE	ACCEPTANCE CHECK
RING GAGE TYPE FOR WHICH DESIGNED	GO PLAIN
AIR GROOVE FEATURE	NOT INCLUDED
SPECIAL FEATURES	DRAWING NAME IS GAGE, DEPTH, TORQUEMETER PICKUP MOUNTING PAD TO TORQUEMETER REFERENCE TEETH DIA
III END ITEM IDENTIFICATION	T-35 ENGINE

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	186620	TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating	Q	70
Less than truck load rating	W	Rating Variable
Water commodity Code	732	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	RN	TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC)
Budget Code	Y	variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	U	AF Equipment Management System (AFEMS)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	1R	Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia
Special Material ID	DQ	TURBO PROPENGINES(T56)
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	NRP	NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	W	Ground Support Equipment-End Items
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
