NSN 5210-01-149-5789 CR111-1/4-2024-0015N2.8 , CR1111420240015N28, CRIII-1/4-2024-T81-.0015N-2.8-4-
Product Details | MEASURING INSTRUMENT CONTACT POINT
5210-01-149-5789 An item of various shapes and sizes, designed to be attached to the actuator spindle on a measuring instrument. It is designed to touch the item on which the measurement is to be made and may do so with a ball, roller, lever, and the like.
Part Alternates: CR111-1/4-2024-0015N2.8 , CR1111420240015N28, CRIII-1/4-2024-T81-.0015N-2.8-4-, CRIII-1/4-2024-T81-0015N-2.8X1.5, CRIII142024T810015N284, CRIII142024T810015N28X15, PT07215, 28KP836, 3S3268, 70965, 5210-01-149-5789, 01-149-5789, 5210011495789, 011495789
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 23 MAR 1983 | 01-149-5789 | 42055 ( CONTACT POINT, MEASURING INSTRUMENT ) |

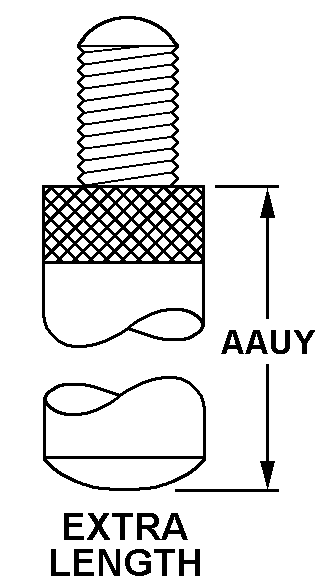

Drawings & Photos | NSN 5210-01-149-5789
Cross Reference | NSN 5210-01-149-5789
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-01-149-5789
Technical Data | NSN 5210-01-149-5789
| Characteristic | Specifications |
|---|---|
| CONTACT POINT MATERIAL | STEEL |
| THREAD CHARACTERISTICS | 4-48 UNF |
| CONTACT POINT STYLE DESIGNATOR | 10 EXTRA LENGTH |
| POINT LENGTH | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5210-01-149-5789
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024400 | BOARDS BLOCKS PANELS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
