NSN 5210-00-688-8491 25W, 53916, 00-688-8491

Product Details | MEASURING INSTRUMENT CONTACT POINT

5210-00-688-8491 An item of various shapes and sizes, designed to be attached to the actuator spindle on a measuring instrument. It is designed to touch the item on which the measurement is to be made and may do so with a ball, roller, lever, and the like.

Part Alternates: 25W, 53916, 5210-00-688-8491, 00-688-8491, 5210006888491, 006888491

Measuring Tools | Measuring Tools, Craftsmen's

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
52	29 JAN 1968	00-688-8491	42055 ( CONTACT POINT, MEASURING INSTRUMENT )

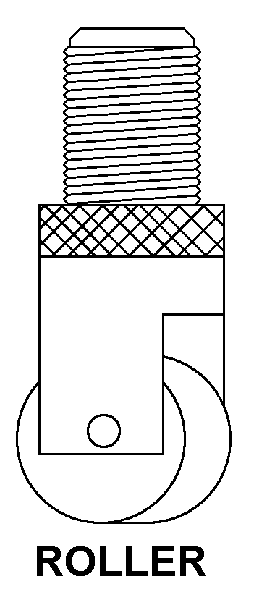

Drawings & Photos | NSN 5210-00-688-8491

Cross Reference | NSN 5210-00-688-8491

Part Number	Cage Code	Manufacturer
25W	57163	L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE
53916	57163	L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5210-00-688-8491

Compare

Related Products | NSN 5210-00-688-8491

5210-00-690-0202, 5210-00-690-7949, 5210-00-690-8454, 5210-00-690-8457, 5210-00-691-0540

Technical Data | NSN 5210-00-688-8491

Characteristic	Specifications
CONTACT POINT MATERIAL	STEEL
THREAD CHARACTERISTICS	4-48 UNF
CONTACT POINT STYLE DESIGNATOR	11 ROLLER
POINT LENGTH	0.562 INCHES NOMINAL
SPECIAL FEATURES	3/8 IN. DIA ROLLER
MANUFACTURERS CODE	57163
DESIGN CONTROL REFERENCE	25W

Restrictions/Controls & Freight Information | NSN 5210-00-688-8491

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
No Freight Information

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
