Product Details | THREAD CUTTING TAP
5136-01-076-7269 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.
Part Alternates: T246846, 5136-01-076-7269, 01-076-7269, 5136010767269, 010767269
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 10 MAY 1979 | 01-076-7269 | 15218 ( TAP, THREAD CUTTING ) |
Drawings & Photos | NSN 5136-01-076-7269
Cross Reference | NSN 5136-01-076-7269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T246846 | K0131 | GOODRICH LTD DIV GOODRICH CONTROL SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5136-01-076-7269
Related Products | NSN 5136-01-076-7269
Technical Data | NSN 5136-01-076-7269
| Characteristic | Specifications |
|---|---|

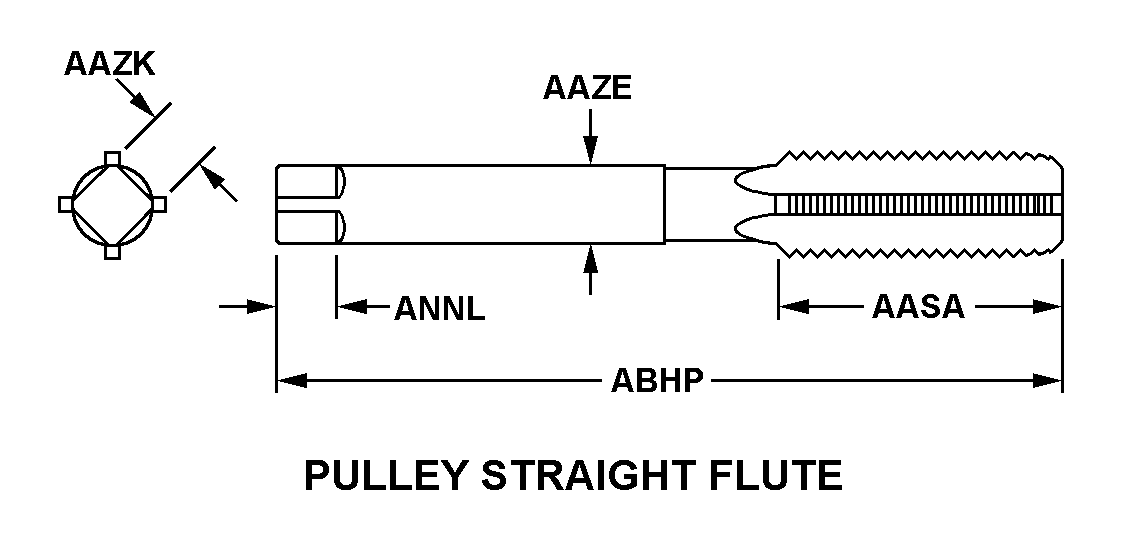

| STYLE DESIGNATOR | M8 PULLEY STRAIGHT FLUTE |
| THREAD LENGTH | 1.125 INCHES NOMINAL |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.197 INCHES NOMINAL |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| SQUARE END LENGTH | 0.344 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, HIGH SPEED OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | .250-28 UNF |
| THREAD PITCH DIAMETERS | 0.2645 TO 0.2665 INCHES |
| THREAD STRUCTURE | REGULAR |
| THREAD FORMING METHOD | CUT |
| STARTING CHAMFER TYPE | BOTTOMING |
| FLUTE QUANTITY | 3 |
| MANUFACTURERS CODE | K0131 |
| DESIGN CONTROL REFERENCE | T246846 |
