NSN 5136-00-729-5684 AA624, A-A-624, B94.9
Product Details | THREAD CUTTING TAP
5136-00-729-5684 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.
Part Alternates: AA624, A-A-624, B94.9, B94.9 10-24 UNC HS G H2, B9491024UNCHSGH2, C54321, GGGT70, GGG-T-70, GGG-T-70 TY1SEASTA, GGGT70TY1SEASTA, B949, 08227, 10148, 11520, 119684, 15320, 2068, 33624, 5136-00-729-5684, 00-729-5684, 5136007295684, 007295684
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-729-5684 | 15218 ( TAP, THREAD CUTTING ) |
Drawings & Photos | NSN 5136-00-729-5684
Demand History | NSN 5136-00-729-5684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11520 | 2023-08-222 | 1 | United States |
| 33624 | 2015-02-44 | 1 | US |
Cross Reference | NSN 5136-00-729-5684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08227 | 9Z213 | REGAL-BELOIT CORPORATION DIV REGAL CUTTING TOOLS |
| 10148 | 0FNZ7 | OSG TAP AND DIE INC. |
| 11520 | 92061 | BENDIX CORP THE INDUSTRIAL TOOLS DIV SOUTH BELOIT PLANT |
| 119684 | 56922 | JARVIS CUTTING TOOLS INC. |
| 15320 | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| 15320 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 2068 | 067J8 | MORSE CUTTING TOOLS |
| 2068 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| 33624 | 067J8 | MORSE CUTTING TOOLS |
| 33624 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| A-A-624 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| B94.9 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B94.9 10-24 UNC HS G H2 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| C54321 | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| C54321 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| GGG-T-70 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-T-70 TY1SEASTA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5136-00-729-5684
Related Products | NSN 5136-00-729-5684
Technical Data | NSN 5136-00-729-5684
| Characteristic | Specifications |
|---|---|

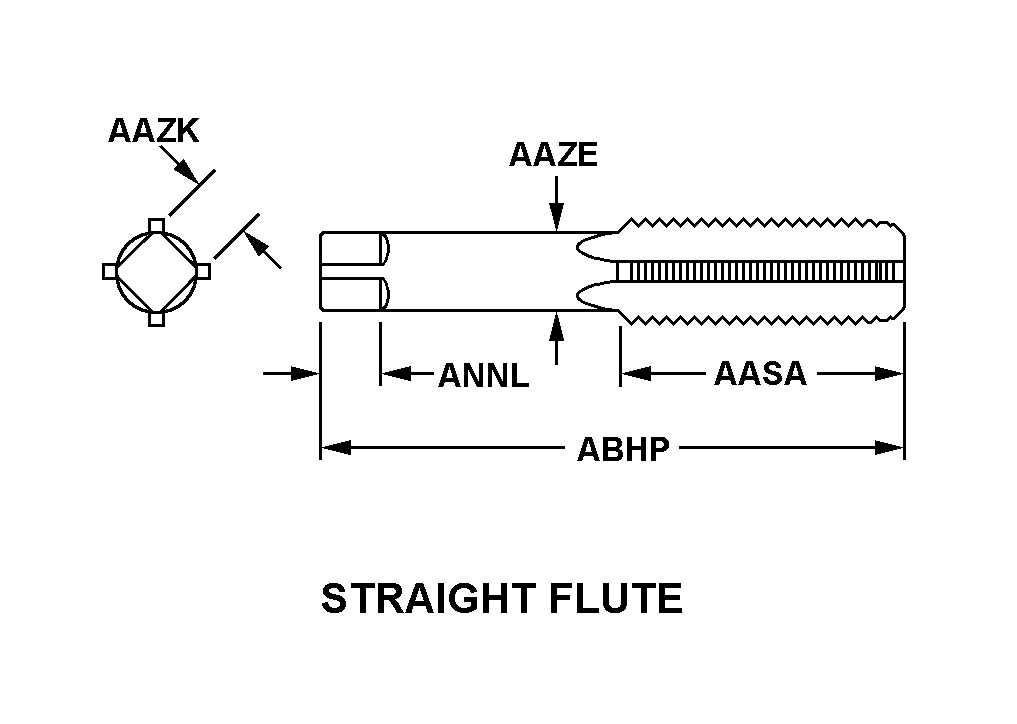

| STYLE DESIGNATOR | M1 STRAIGHT FLUTE |
| THREAD LENGTH | 0.875 INCHES NOMINAL |
| SHANK DIAMETER | 0.194 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.152 INCHES NOMINAL |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| SQUARE END LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, HIGH SPEED OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-24 UNC |
| THREAD PITCH DIAMETERS | 0.1634 TO 0.1639 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD STRUCTURE | REGULAR |
| THREAD FORMING METHOD | GROUND |
| STARTING CHAMFER TYPE | TAPER |
| FLUTE QUANTITY | 4 |
| SPECIFICATION/STANDARD DATA | 05047-ASME B94.9 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
