Product Details | THREAD CUTTING TAP

5136-01-051-9417 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.

Part Alternates: 99082, 9908-2, 5136-01-051-9417, 01-051-9417, 5136010519417, 010519417

Hand Tools | Taps, Dies, and Collets; Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 07 DEC 1977 01-051-9417

Drawings & Photos | NSN 5136-01-051-9417


Cross Reference | NSN 5136-01-051-9417

Part Number Cage Code Manufacturer
9908-2 01556 EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5136-01-051-9417

Technical Data | NSN 5136-01-051-9417

Characteristic Specifications

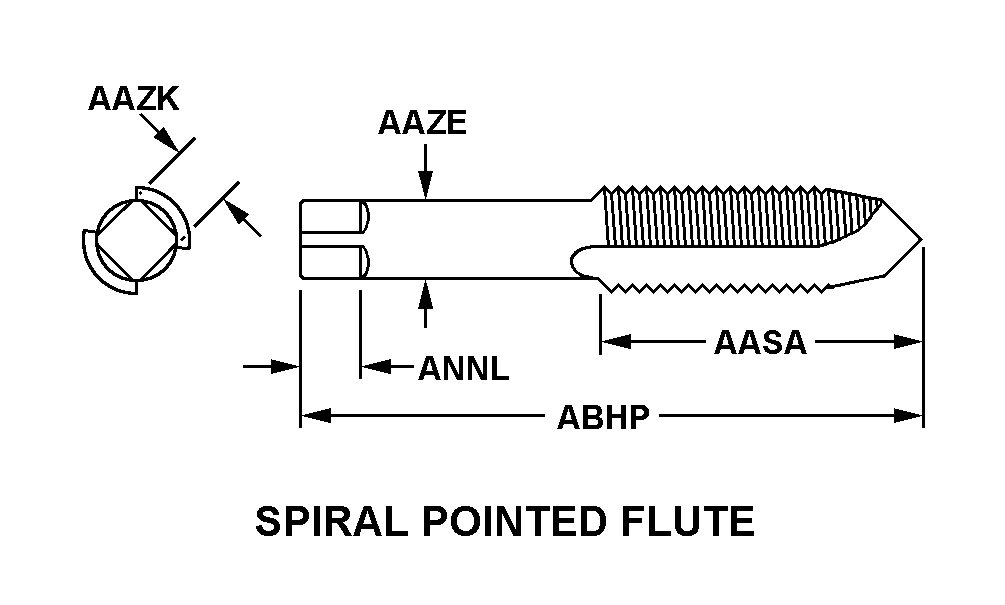

STYLE DESIGNATOR M3 SPIRAL POINTED FLUTE
SHANK DIAMETER 0.168 INCHES NOMINAL
OVERALL LENGTH 2.125 INCHES NOMINAL
MATERIAL AND LOCATION STEEL, HIGH SPEED OVERALL
THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.164-36 UNF
THREAD PITCH DIAMETERS 0.1465 TO 0.1470 INCHES
THREAD DIRECTION RIGHT-HAND
THREAD STRUCTURE REGULAR
THREAD FORMING METHOD CUT
STARTING CHAMFER TYPE PLUG
FLUTE QUANTITY 4
MANUFACTURERS CODE 01556
DESIGN CONTROL REFERENCE 9908-2
