NSN 5136-00-957-0114 GGGT0070, GGG-T-0070, GGG-T-0070 TY2SEASTCLTH2
Product Details | THREAD CUTTING TAP
5136-00-957-0114 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.
Part Alternates: GGGT0070, GGG-T-0070, GGG-T-0070 TY2SEASTCLTH2, GGGT0070TY2SEASTCLTH2, 5136-00-957-0114, 00-957-0114, 5136009570114, 009570114
Hand Tools | Taps, Dies, and Collets; Hand and Machine
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 01 JAN 1963 | 00-957-0114 | 15218 ( TAP, THREAD CUTTING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5136-00-957-0114
Related Products | NSN 5136-00-957-0114
Technical Data | NSN 5136-00-957-0114
Characteristic | Specifications |
---|---|

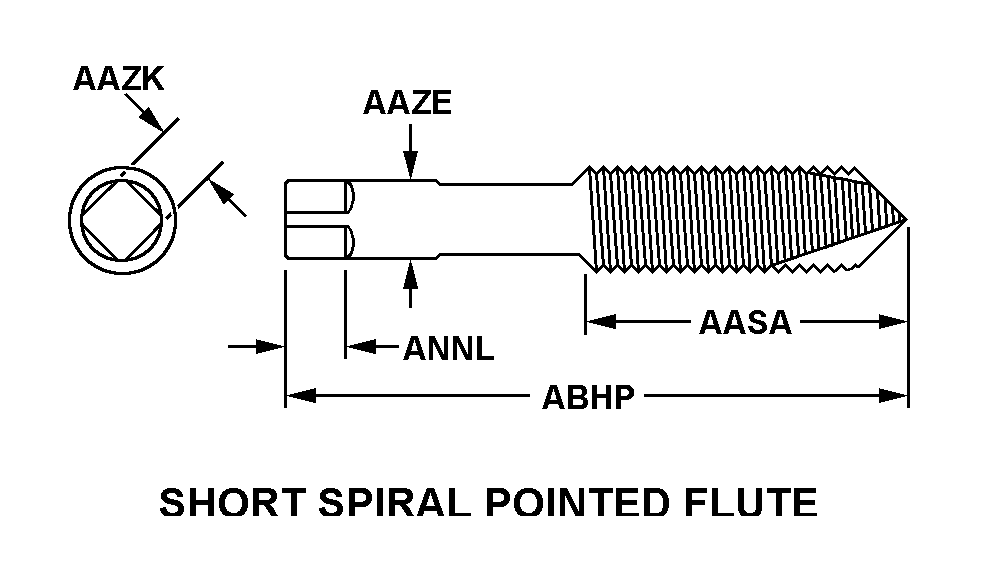

STYLE DESIGNATOR | M5 SHORT SPIRAL POINTED FLUTE |
THREAD LENGTH | 0.688 INCHES NOMINAL |
SHANK DIAMETER | ANY ACCEPTABLE |
WIDTH ACROSS FLATS | 0.110 INCHES NOMINAL |
OVERALL LENGTH | 2.000 INCHES NOMINAL |
SQUARE END LENGTH | ANY ACCEPTABLE |
MATERIAL AND LOCATION | STEEL, HIGH SPEED OVERALL |
THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.138-32 UNC |
THREAD PITCH DIAMETERS | 0.1182 TO 0.1187 INCHES |
THREAD DIRECTION | RIGHT-HAND |
THREAD STRUCTURE | REGULAR |
THREAD FORMING METHOD | GROUND |
STARTING CHAMFER TYPE | BOTTOMING |
FLUTE QUANTITY | 2 |
NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND A SERIES AND H2 LIMIT AND C STYLE |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-T-0070 |
Restrictions/Controls & Freight Information | NSN 5136-00-957-0114
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
