Product Details | DRIVE SHANK BOLT HOLE FORMING CUTTER
5133-01-038-8859 A tool consisting of any combination of drill, pilot drill, reamer, countersink, or counterbore. It is designed to form a hole for fasteners with a specific grip length and machined to a close tolerance to provide a drive fit. The tool has a shank requiring a special tool holder to be used in a power feed hand drilling machine or a power feed drill press.
Part Alternates: PWA53651, 5133-01-038-8859, 01-038-8859, 5133010388859, 010388859
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 14 APR 1977 | 01-038-8859 | 32727 ( CUTTER, HOLE FORMING, DRIVE SHANK BOLT ) |
Drawings & Photos | NSN 5133-01-038-8859
Cross Reference | NSN 5133-01-038-8859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA53651 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-01-038-8859
Technical Data | NSN 5133-01-038-8859
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.45 ROCKWELL C NOMINAL |

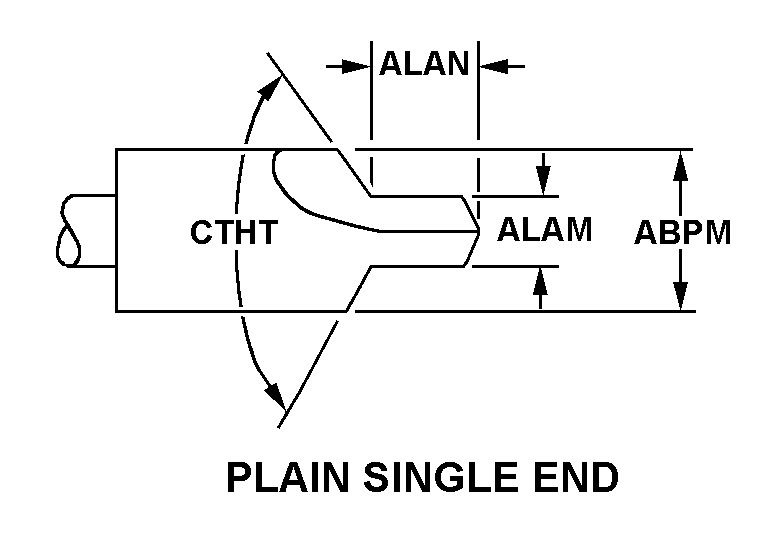

| CUTTING END STYLE | 42 PLAIN SINGLE END |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| DRILL DIAMETER | 0.095 INCHES NOMINAL |
| DRILL LENGTH | 0.219 INCHES NOMINAL |
| INCLUDED ANGLE | 100.0 DEGREES NOMINAL |

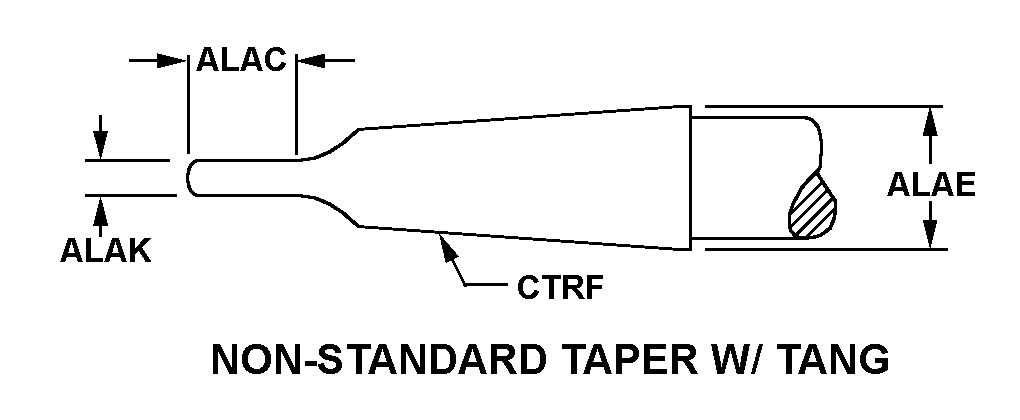

| SHANK STYLE | 77 NON-STANDARD TAPER W/TANG |
| SHANK LARGE END DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.0950 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| FLUTE QUANTITY | 1 |
| HOLDER ACCOMMODATED | DRILL,CENTER-INTERMEDIATE CASE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA53651 |
