NSN 5133-01-086-8686 TLD2040BR13, TLD2040BR1-3, 01-086-8686
Product Details | DRIVE SHANK BOLT HOLE FORMING CUTTER
5133-01-086-8686 A tool consisting of any combination of drill, pilot drill, reamer, countersink, or counterbore. It is designed to form a hole for fasteners with a specific grip length and machined to a close tolerance to provide a drive fit. The tool has a shank requiring a special tool holder to be used in a power feed hand drilling machine or a power feed drill press.
Part Alternates: TLD2040BR13, TLD2040BR1-3, 5133-01-086-8686, 01-086-8686, 5133010868686, 010868686
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 06 DEC 1979 | 01-086-8686 | 32727 ( CUTTER, HOLE FORMING, DRIVE SHANK BOLT ) |

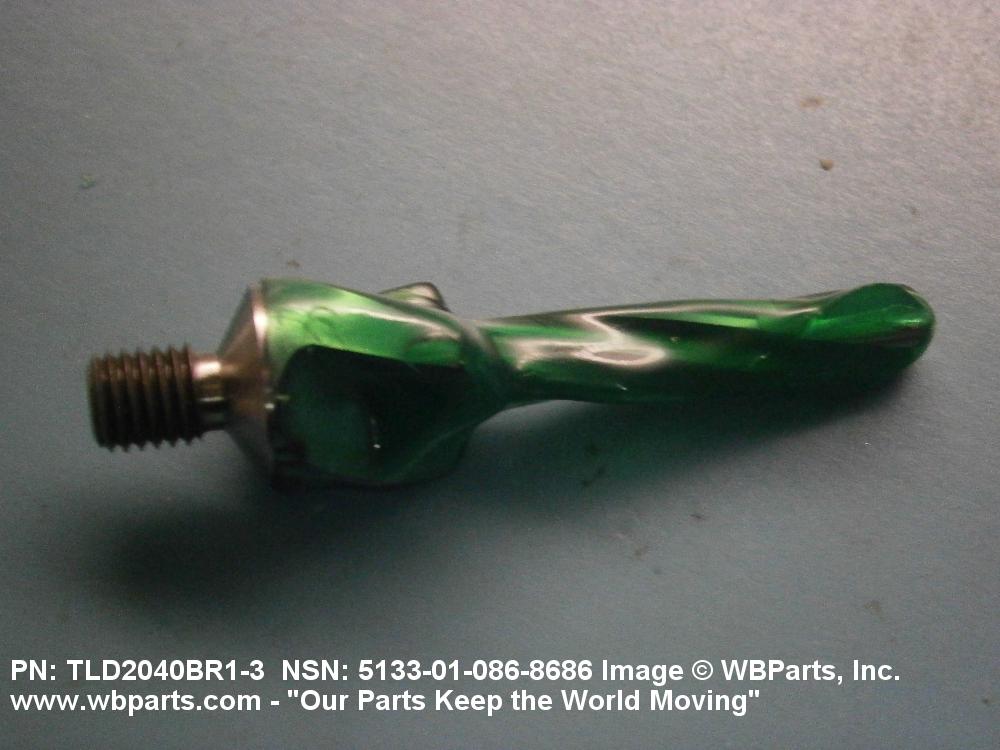

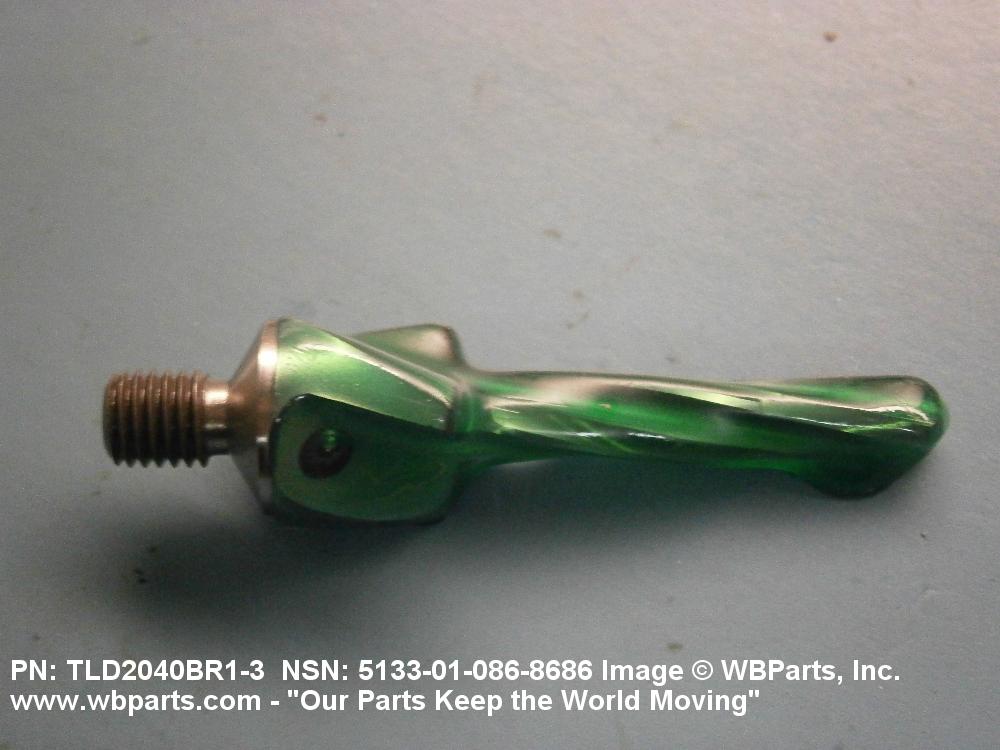

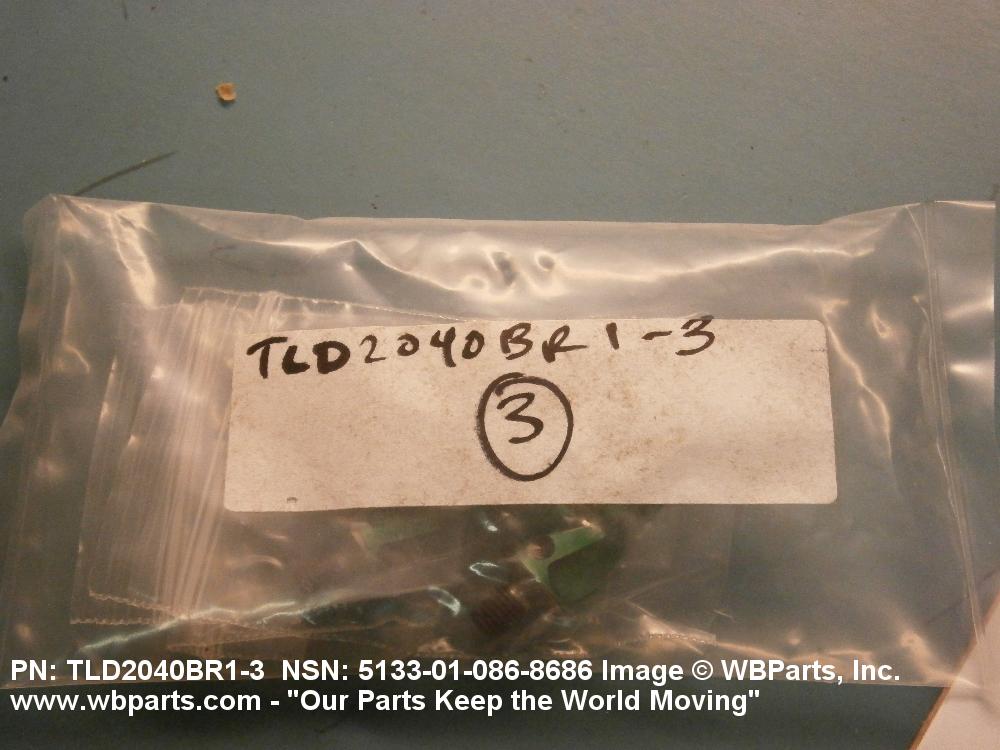

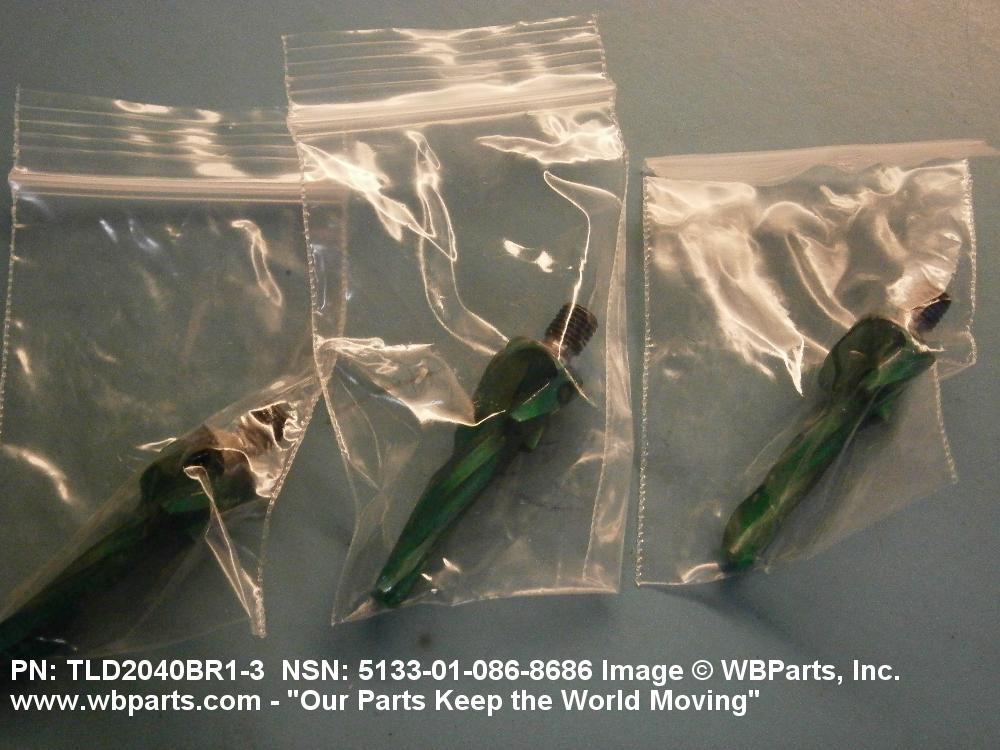

Drawings & Photos | NSN 5133-01-086-8686
Demand History | NSN 5133-01-086-8686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TLD2040BR13 | 2013-02-43 | 12 | United States |
| TLD2040BR13 | 2012-05-142 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-01-086-8686
Technical Data | NSN 5133-01-086-8686
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CUTTER |

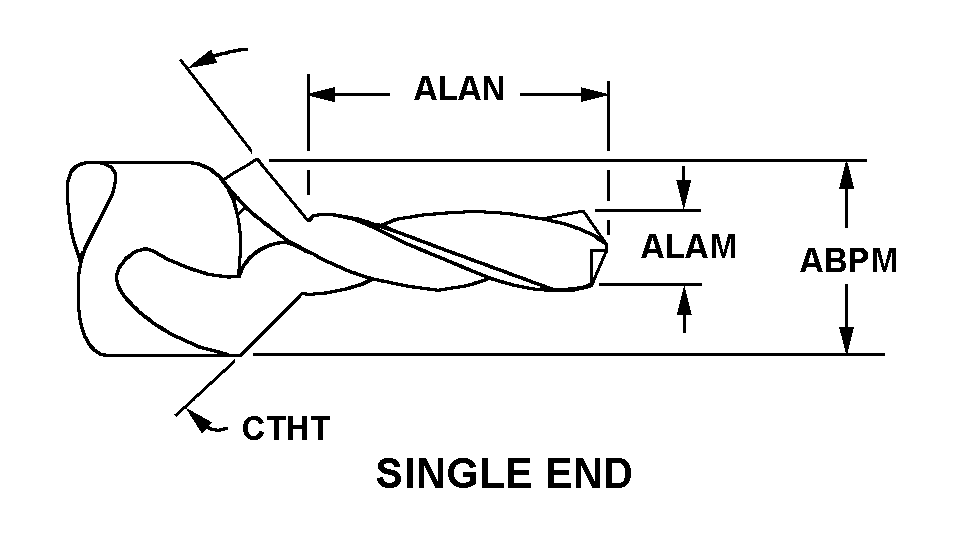

| CUTTING END STYLE | 43 SINGLE END |

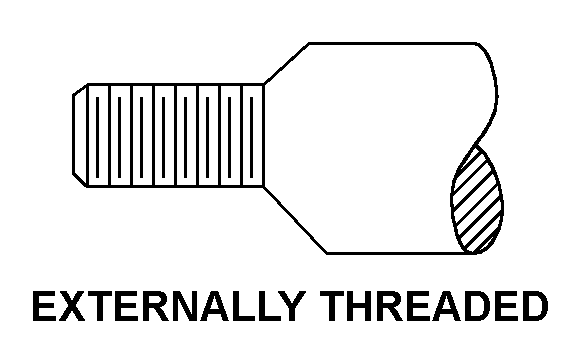

| SHANK STYLE | 86 EXTERNALLY THREADED |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5133-01-086-8686
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5133-01-086-8686
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
