NSN 5133-00-570-9881 TLD2040BR24, TLD2040BR2-4, 00-570-9881
Product Details | DRIVE SHANK BOLT HOLE FORMING CUTTER
5133-00-570-9881 A tool consisting of any combination of drill, pilot drill, reamer, countersink, or counterbore. It is designed to form a hole for fasteners with a specific grip length and machined to a close tolerance to provide a drive fit. The tool has a shank requiring a special tool holder to be used in a power feed hand drilling machine or a power feed drill press.
Part Alternates: TLD2040BR24, TLD2040BR2-4, 5133-00-570-9881, 00-570-9881, 5133005709881, 005709881
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 24 JAN 1968 | 00-570-9881 | 32727 ( CUTTER, HOLE FORMING, DRIVE SHANK BOLT ) |

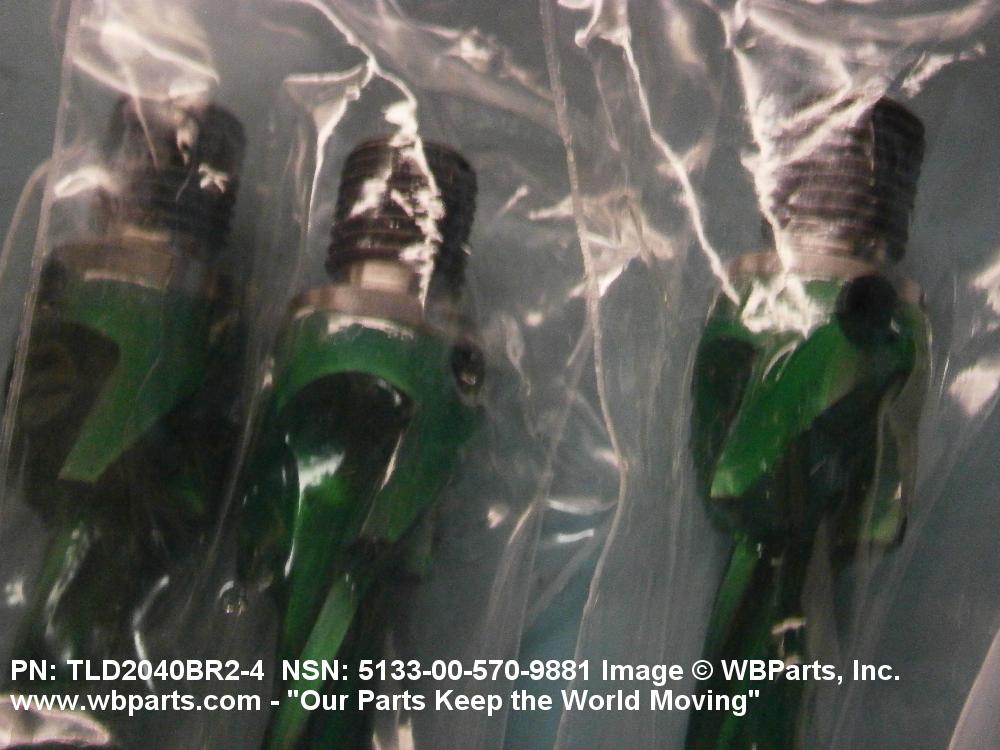

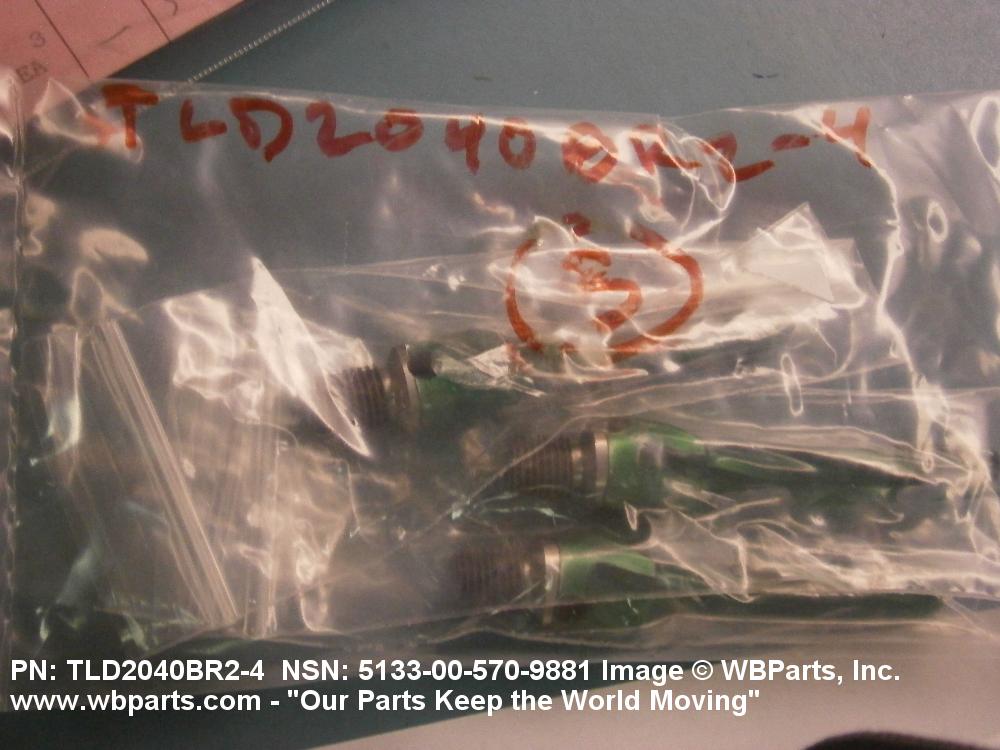

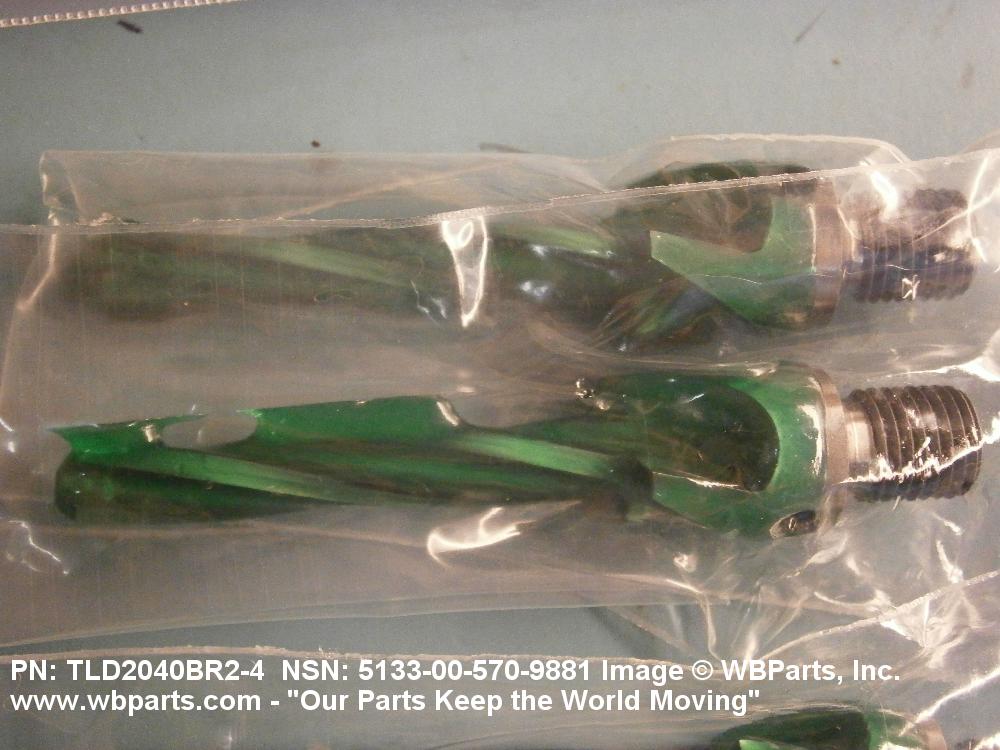

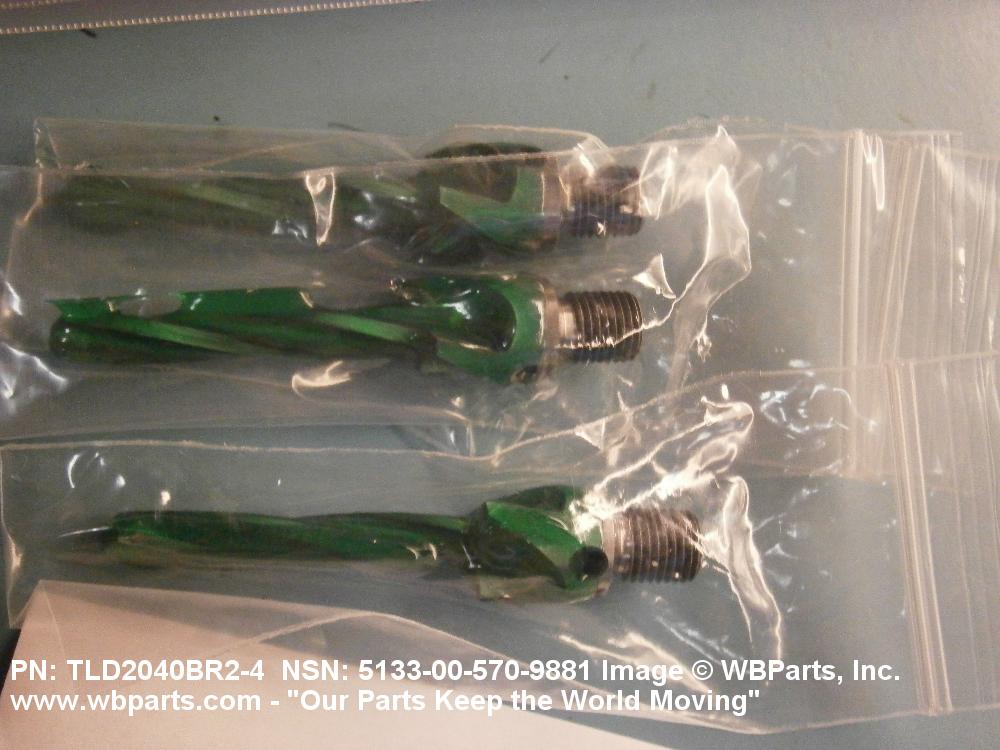

Drawings & Photos | NSN 5133-00-570-9881
Demand History | NSN 5133-00-570-9881
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TLD2040BR24 | 2013-02-12 | 12 | United States |
| TLD2040BR24 | 2012-05-21 | 3 | United States |
| TLD2040BR24 | 2010-04-21 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-570-9881
Technical Data | NSN 5133-00-570-9881
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CUTTING END STYLE | 43 SINGLE END |
| BODY DIAMETER | 0.615 INCHES NOMINAL |
| DRILL DIAMETER | 0.234 INCHES NOMINAL |
| DRILL LENGTH | ANY ACCEPTABLE |
| INCLUDED ANGLE | 10.0 DEGREES NOMINAL |
| SHANK STYLE | 86 EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.438 INCHES |
| THREAD QUANTITY | 20 PER INCH |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | TLD2040BR2-4 |
