NSN 5130-01-351-2065 AT109, AT110, 01-351-2065
Product Details | PORTABLE PNEUMATIC DIE GRINDER
5130-01-351-2065 A small hand held power tool, normally furnished with a collet or drill style chuck and lever throttle. Designed to accept carbide burs and small mounting abrasive wheels. Used for light detail grinding.
Part Alternates: AT109, AT110, 5130-01-351-2065, 01-351-2065, 5130013512065, 013512065
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 03 JAN 1992 | 01-351-2065 | 52209 ( GRINDER, DIE, PNEUMATIC, PORTABLE ) |

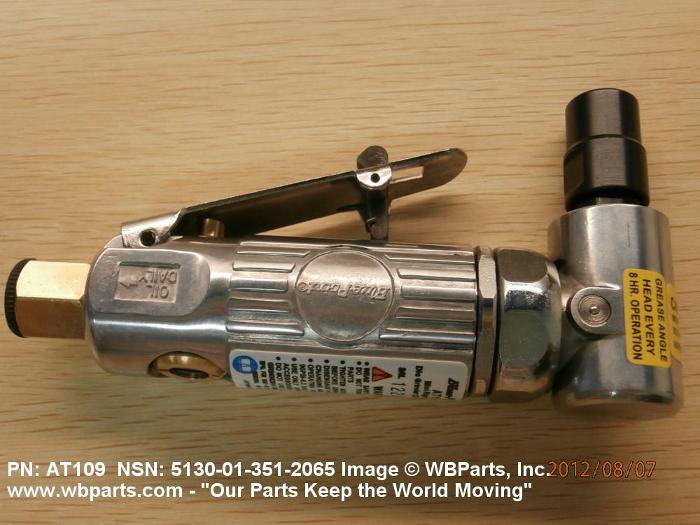

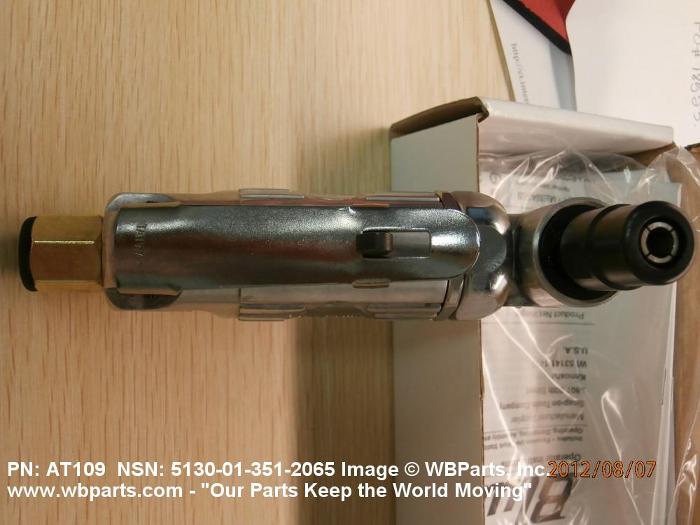

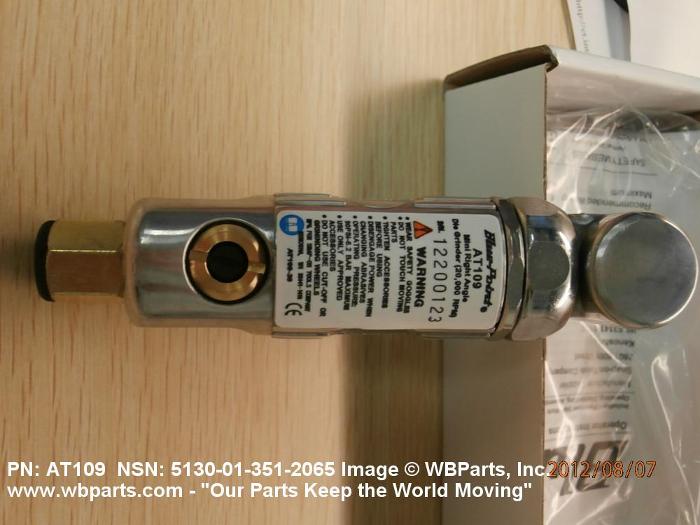

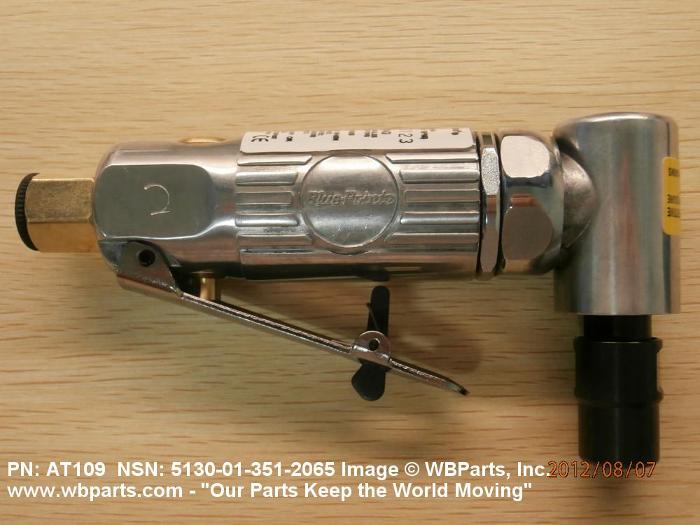

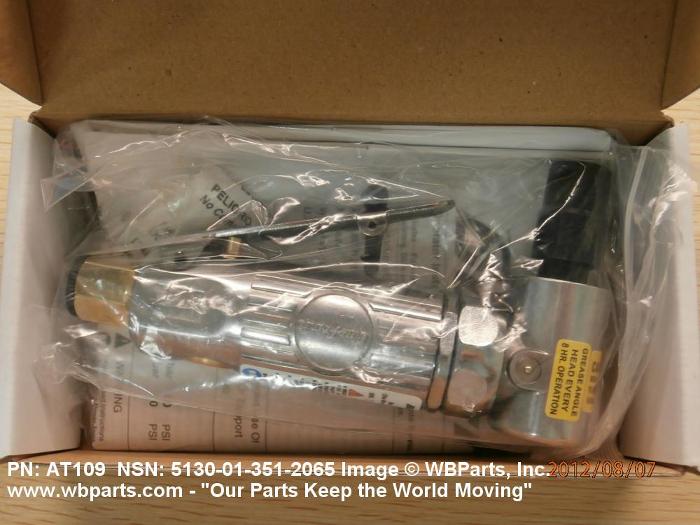

Drawings & Photos | NSN 5130-01-351-2065
Demand History | NSN 5130-01-351-2065
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5130-01-351-2065 | 2012-07-206 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-351-2065
Technical Data | NSN 5130-01-351-2065
| Characteristic | Specifications |
|---|---|
| DRIVE END TYPE | COLLET CHUCK |
| SIZE | 0.250 INCHES NOMINAL |
| NO LOAD SPEED IN RPM | 16000.0 NOMINAL |
| WHEEL GUARD | NOT PROVIDED |
| SPECIAL FEATURES | RIGHT ANGLE; LEVER THROTTLE; 0.2 HP; 1/4 IN. NPT AIR INLET; 5/16 IN. HOSE REQUIRED; 5-3/4 IN. LG |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5130-01-351-2065
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-351-2065
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
