NSN 5130-01-351-7442 GM3042A, 01-351-7442, 013517442
Product Details | SOCKET WRENCH ADAPTER
5130-01-351-7442 A rigid adapter less than four inches (101.6 mm) long used to connect sockets to handles, power tools, or to other attachments which are not designed for direct mating to each other. See also RATCHET ATTACHMENT, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; EXTENSION, SOCKET WRENCH; and ADAPTER-EXTENSION, SOCKET WRENCH; Excludes ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD; SOCKET, WRENCH, REFRIGERATION VALVE STEM; and HOLDER, SCREWDRIVER BIT, FEMALE SQUARE DRIVE.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: GM3042A, 5130-01-351-7442, 01-351-7442, 5130013517442, 013517442
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 15 JAN 1992 | 01-351-7442 | 03353 ( ADAPTER, SOCKET WRENCH ) |

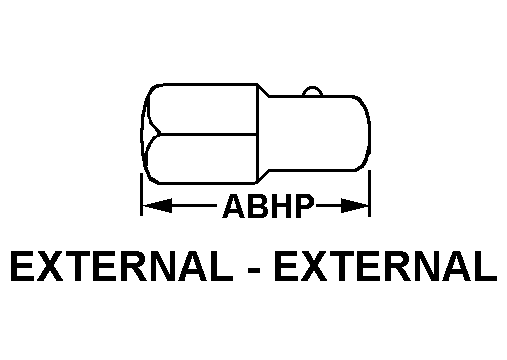

Drawings & Photos | NSN 5130-01-351-7442
Cross Reference | NSN 5130-01-351-7442
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GM3042A | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-351-7442
Technical Data | NSN 5130-01-351-7442
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| STYLE DESIGNATOR | 10 EXTERNAL-EXTERNAL |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL FIRST END 0.250 INCHES NOMINAL SECOND END |
| DRIVE END SHAPE | HEXAGON FIRST END EXTERNAL SQUARE SECOND END EXTERNAL |
| FEATURES PROVIDED | POWER TOOL |
| SPECIAL FEATURES | LOCK BUTTON RETENTION |
Restrictions/Controls & Freight Information | NSN 5130-01-351-7442
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-351-7442
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
