Product Details | ABRASIVE WHEEL

5130-01-075-6228 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies

Part Alternates: 8M, 5130-01-075-6228, 01-075-6228, 5130010756228, 010756228

Hand Tools | Hand Tools, Power Driven

Supply Group (FSG) NSN Assign. NIIN
51 24 APR 1979 01-075-6228

Drawings & Photos | NSN 5130-01-075-6228


Cross Reference | NSN 5130-01-075-6228

Part Number Cage Code Manufacturer
8M 86297 CRATEX MANUFACTURING CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5130-01-075-6228

Technical Data | NSN 5130-01-075-6228

Characteristic Specifications
ABRASIVE MATERIAL SILICON CARBIDE
USAGE DESIGN METAL WORKING

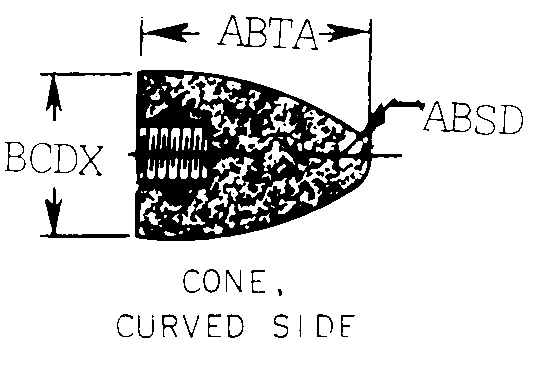

WHEEL STYLE 86 CURVED SIDE CONE
OVERALL THICKNESS 1.000 INCHES NOMINAL
WHEEL DIAMETER 0.281 INCHES NOMINAL
MOUNTING METHOD ARBOR HOLE
MOUNTING OPENING SHAPE STYLE 1 ROUND
DIAMETER 0.062 INCHES NOMINAL
MAXIMUM SPEED RATING IN RPM 25000.0
SPECIAL FEATURES MEDIUM GRIT
MANUFACTURERS CODE 86297
DESIGN CONTROL REFERENCE 8M

Restrictions/Controls & Freight Information | NSN 5130-01-075-6228

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 001020 ABRASIVES:CRUDE OR LUMP
Less than car load rating T 55
Less than truck load rating T 55.0
Water commodity Code 732 unknown
Originating Activity Code ZA Australia
ZB
ZC
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
