NSN 5130-01-047-3551 MILW17663, MIL-W-17663, 9A60J6V22
Product Details | ABRASIVE WHEEL
5130-01-047-3551 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: MILW17663, MIL-W-17663, 9A60J6V22, 5130-01-047-3551, 01-047-3551, 5130010473551, 010473551
Hand Tools | Hand Tools, Power Driven
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 05 SEP 1977 | 01-047-3551 | 02613 ( WHEEL, ABRASIVE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5130-01-047-3551
Related Products | NSN 5130-01-047-3551
Technical Data | NSN 5130-01-047-3551
Characteristic | Specifications |
---|---|
ABRASIVE MATERIAL | ALUMINUM OXIDE, MIL-W-17663 OR SILICON CARBIDE |
SCREEN GRIT SIZE DESIGNATOR | 60 |
USAGE DESIGN | METAL WORKING |
ABRASIVE DIAMOND POWDER CONCENTRATION DESIGNATION | ANY ACCEPTABLE |

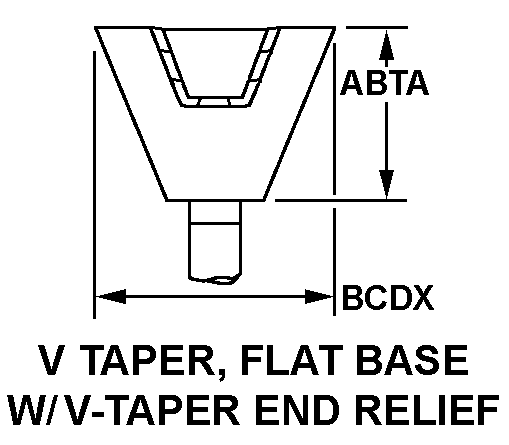

WHEEL STYLE | 125 A31 |
OVERALL THICKNESS | 1.000 INCHES NOMINAL |
WHEEL DIAMETER | 1.375 INCHES NOMINAL |
MOUNTING METHOD | SPINDLE |
SPINDLE DIAMETER | 0.375 INCHES NOMINAL |
SPINDLE LENGTH | 2.500 INCHES NOMINAL |
BINDER MATERIAL | VITREOUS |
ABRASIVE BOND GRADE DESIGNATION | J MEDIUM |
NONDEFINITIVE SPEC/STD DATA | A GROUP |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-17663 |
Restrictions/Controls & Freight Information | NSN 5130-01-047-3551
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
Less than car load rating | ||
Less than truck load rating | T | 55.0 |
Water commodity Code | 732 | unknown |
Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
