NSN 5130-00-608-2011 T7, 00-608-2011, 006082011
Product Details | ABRASIVE WHEEL
5130-00-608-2011 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: T7, 5130-00-608-2011, 00-608-2011, 5130006082011, 006082011
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 30 JAN 1975 | 00-608-2011 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 5130-00-608-2011
Cross Reference | NSN 5130-00-608-2011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T7 | 00179 | MERIT ABRASIVE PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-608-2011
Technical Data | NSN 5130-00-608-2011
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE OR SILICON CARBIDE |
| USAGE DESIGN | METAL WORKING |

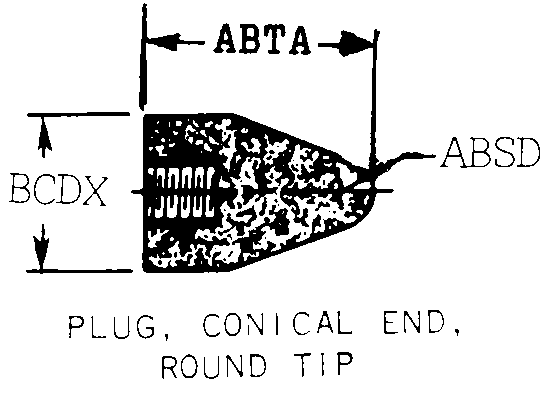

| WHEEL STYLE | 84 ROUND TIP CONICAL END PLUG |
| OVERALL THICKNESS | 1.500 INCHES NOMINAL |
| WHEEL DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING METHOD | ARBOR HOLE |
| MOUNTING OPENING SHAPE STYLE | 1 ROUND |
| DIAMETER | 0.125 INCHES NOMINAL |
| BINDER MATERIAL | GLUE OR RESIN |
| ABRASIVE BOND GRADE DESIGNATION | ANY ACCEPTABLE |
| SPECIAL FEATURES | MAX SPEED RATING IN RPM 22500.0,SPIRAL ROLL DESIGN |
| MANUFACTURERS CODE | 00179 |
| DESIGN CONTROL REFERENCE | T7 |
Restrictions/Controls & Freight Information | NSN 5130-00-608-2011
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
