NSN 5130-00-252-8077 MILR4286, 00-252-8077, 002528077
Product Details | PNEUMATIC YOKE RIVETER
5130-00-252-8077 00001015130000000
Part Alternates: MILR4286, 5130-00-252-8077, 00-252-8077, 5130002528077, 002528077
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 03 MAY 1971 | 00-252-8077 | 02535 ( RIVETER, YOKE, PNEUMATIC0 ) |
Drawings & Photos | NSN 5130-00-252-8077
Cross Reference | NSN 5130-00-252-8077
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILR4286 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-00-252-8077
Related Products | NSN 5130-00-252-8077
Technical Data | NSN 5130-00-252-8077
| Characteristic | Specifications |
|---|---|

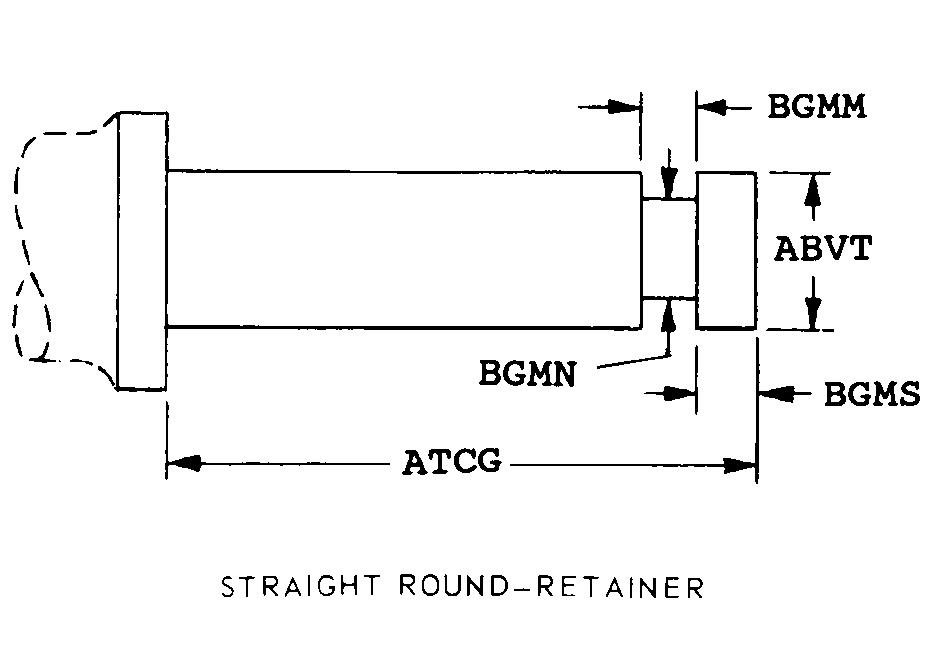

| SHANK STYLE ACCOMMODATED | AB20 STRAIGHT ROUND-RETAINER |
| SHANK OVERALL LENGTH | 0.500 INCHES NOMINAL |
| RETAINER GROOVE WIDTH | 0.135 INCHES NOMINAL |
| DISTANCE BETWEEN SHANK END AND RETAINER GROOVE | 0.162 INCHES NOMINAL |
| RETAINER GROOVE DIAMETER | 0.127 INCHES NOMINAL |
| UNIT TYPE | COMPRESSION |
| AUTOMATIC RIVET SET PLUNGER RETURN | NOT PROVIDED |
| COLD ALUMINUM ALLOY RIVET DIAMETER ACCOMMODATED | 0.125 INCHES NOMINAL |
| COLD STEEL RIVET DIAMETER ACCOMMODATED | 0.094 INCHES NOMINAL |
| YOKE TYPE | C-TYPE |
| YOKE REACH | 1.500 INCHES |
| YOKE GAP | 1.250 INCHES |
| ACCESSORY COMPONENTS AND QUANTITY | RIVET SET 2 |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR4286 |
Restrictions/Controls & Freight Information | NSN 5130-00-252-8077
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-00-252-8077
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
