NSN 5130-01-097-7538 PWA55276, 01-097-7538, 010977538
Product Details | PNEUMATIC YOKE RIVETER
5130-01-097-7538 00001015130000000
Part Alternates: PWA55276, 5130-01-097-7538, 01-097-7538, 5130010977538, 010977538
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 18 JUL 1980 | 01-097-7538 | 02535 ( RIVETER, YOKE, PNEUMATIC0 ) |

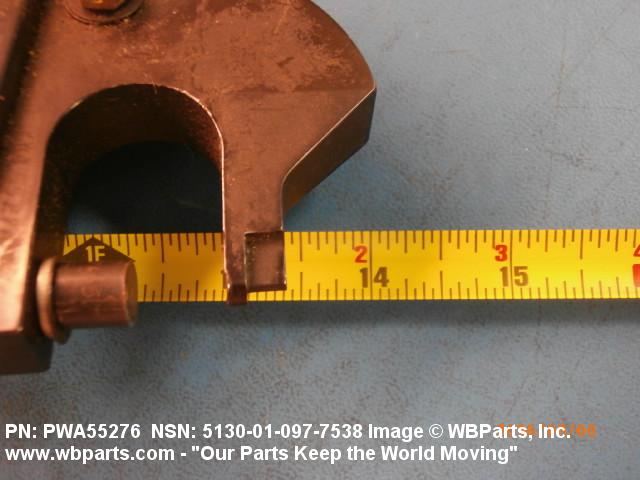

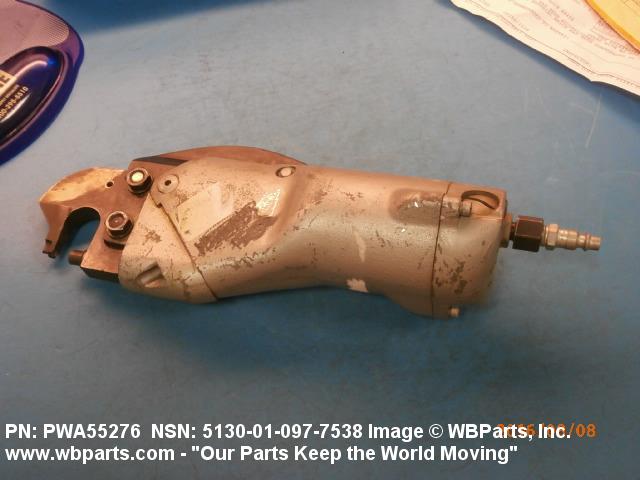

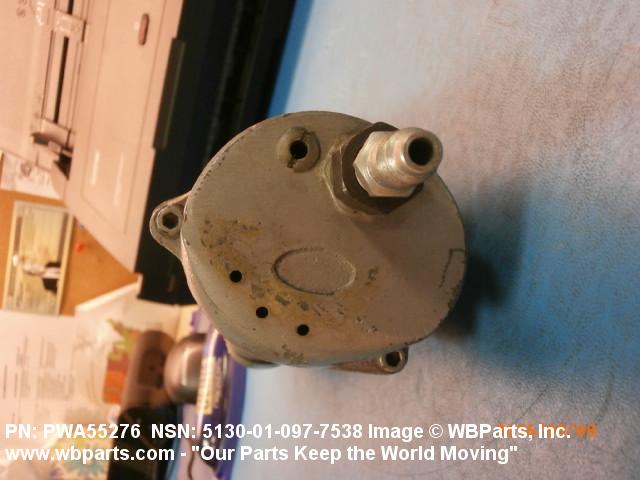

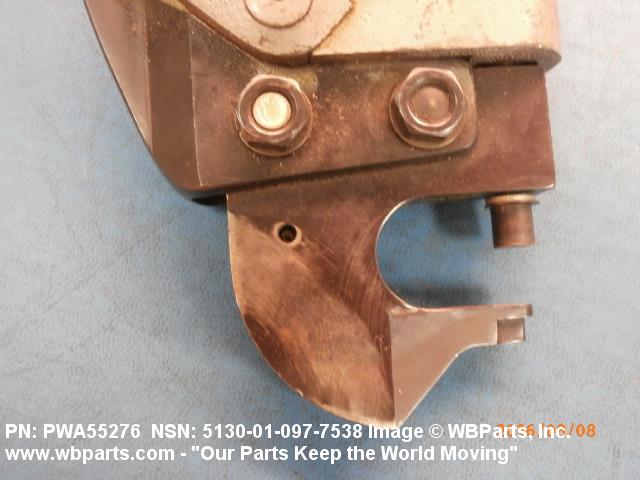

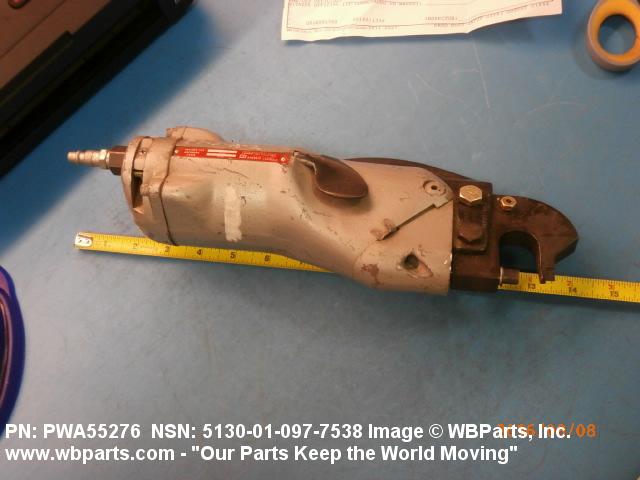

Drawings & Photos | NSN 5130-01-097-7538
Demand History | NSN 5130-01-097-7538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PWA55276 | 2016-04-120 | 1 | Saudi Arabia |
| PWA55276 | 2016-03-76 | 1 | Saudi Arabia |
Cross Reference | NSN 5130-01-097-7538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA55276 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-01-097-7538
Related Products | NSN 5130-01-097-7538
Technical Data | NSN 5130-01-097-7538
| Characteristic | Specifications |
|---|---|

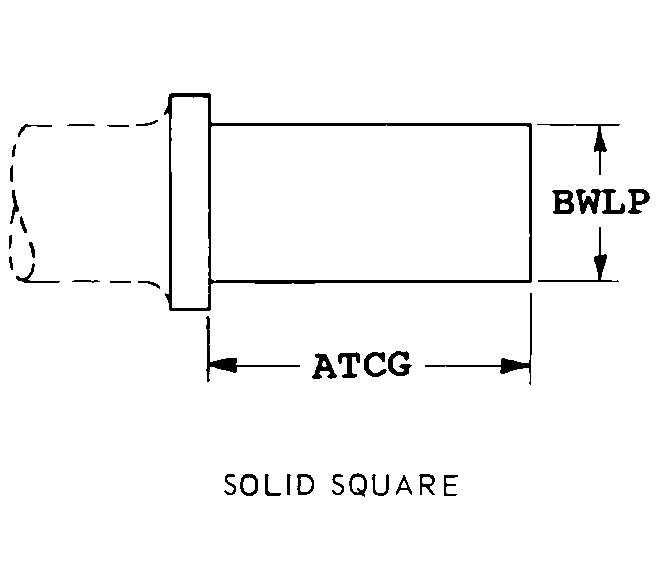

| SHANK STYLE ACCOMMODATED | AB17 SOLID SQUARE |
| UNIT TYPE | RIVET |
| AUTOMATIC RIVET SET PLUNGER RETURN | PROVIDED |
| YOKE TYPE | C-TYPE |
| III UNPACKAGED UNIT WEIGHT | 10.000 POUNDS |
| III SUPPLEMENTARY FEATURES | ITEM IS 14.0 IN. LG,5.0 IN. DIA |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA55276 |
Restrictions/Controls & Freight Information | NSN 5130-01-097-7538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-01-097-7538
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
